New

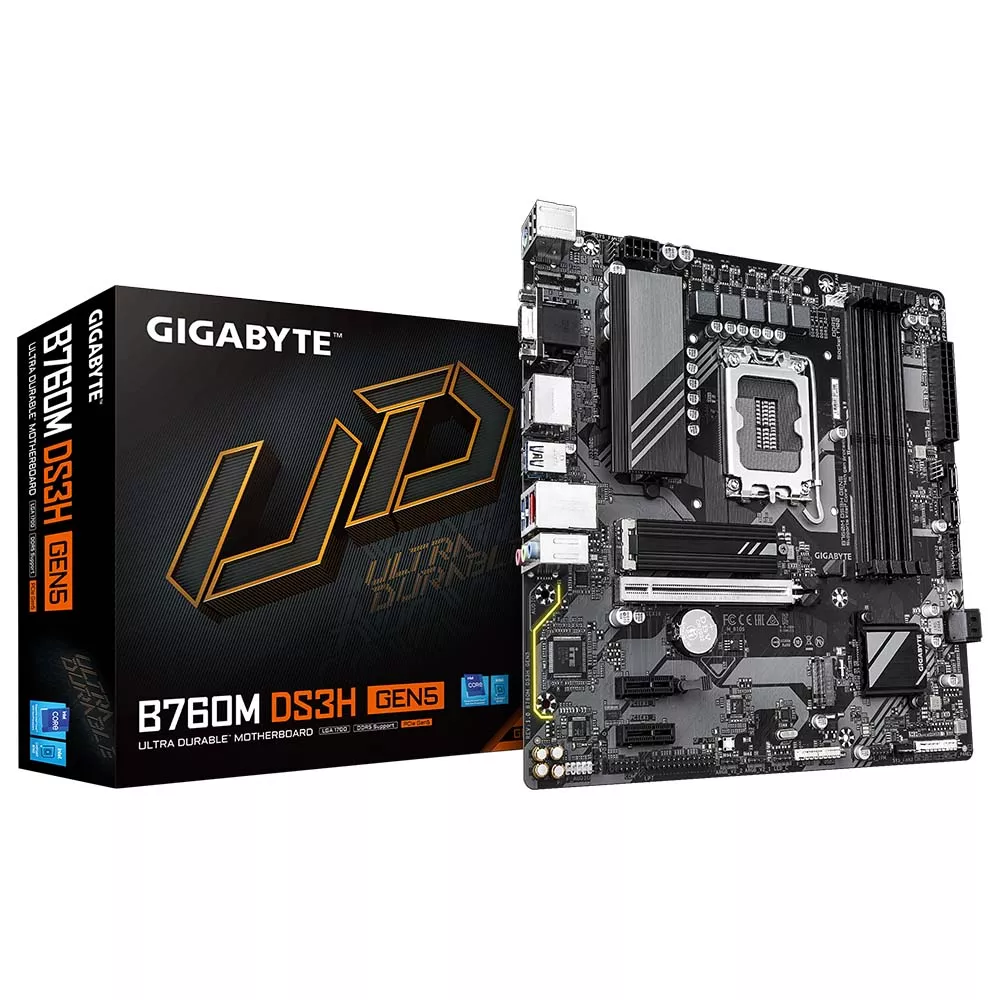

Gigabyte B760M DS3H GEN5 Motherboard [ B760M-DS3H-GEN5 ]
99.95 JOD
In stock
Related products
Gigabyte GeForce RTX 5060 WINDFORCE OC 8GB Graphics Card GDDR7 GV-N5060WF2OC-8GD
SKU:
0400311
| Brand | GIGABYTE |
|---|---|
| GPU Card Number | GeForce RTX™ 5060 |
| GPU Card Size | L=199 W=116 H=40 |
| GPU Core Clock | 2512 MHz (Reference card : 2497 MHz) |
| GPU CUDA Cores | 3840 |
| GPU Memory Bus | 128 bit |
| GPU Memory Clock | 28 Gbps |
| GPU Memory Size | 8 GB |
| GPU Memory Type | GDDR7 |
| GPU Output | DP (DisplayPort 2.1b), HDMI |
| GPU Power Connectors | 1 x 8-Pin |
| GPU Recommended PSU | 550W |
Gigabyte GeForce RTX 5060 WINDFORCE Max OC 8GB Graphics Card GDDR7 GV-N5060WF2MAX OC-8GD
SKU:
0400310
| Brand | GIGABYTE |
|---|---|
| GPU Card Number | GeForce RTX™ 5060 |
| GPU Card Size | L=199 W=116 H=40 |
| GPU Core Clock | 2512 MHz (Reference card : 2497 MHz) |
| GPU CUDA Cores | 3840 |
| GPU Memory Bus | 128 bit |
| GPU Memory Clock | 28 Gbps |
| GPU Memory Size | 8 GB |
| GPU Memory Type | GDDR7 |
| GPU Output | DP (DisplayPort 2.1b), HDMI |
| GPU Power Connectors | 1 x 8-Pin |
| GPU Recommended PSU | 550W |
Gigabyte GeForce RTX 5060 Ti AERO OC 8G [ GV-N506TAERO OC-8GD ]
SKU:
0400148
| Brand | GIGABYTE |
|---|---|
| GPU Card Number | GeForce RTX™ 5060 Ti |
| GPU Card Size | L=281 // W=117 // H=40 mm |
| GPU Core Clock | 2647 MHz (Reference card :2572 MHz) |
| GPU CUDA Cores | 4608 |
| GPU Memory Bus | 128 bit |
| GPU Memory Clock | 28 Gbps |
| GPU Memory Size | 8 GB |
| GPU Memory Type | GDDR7 |
| GPU Output | DP (DisplayPort 2.1b), HDMI 2.1b |
| GPU Power Connectors | 1 x 8-Pin |
| GPU Recommended PSU | 650W |
Description

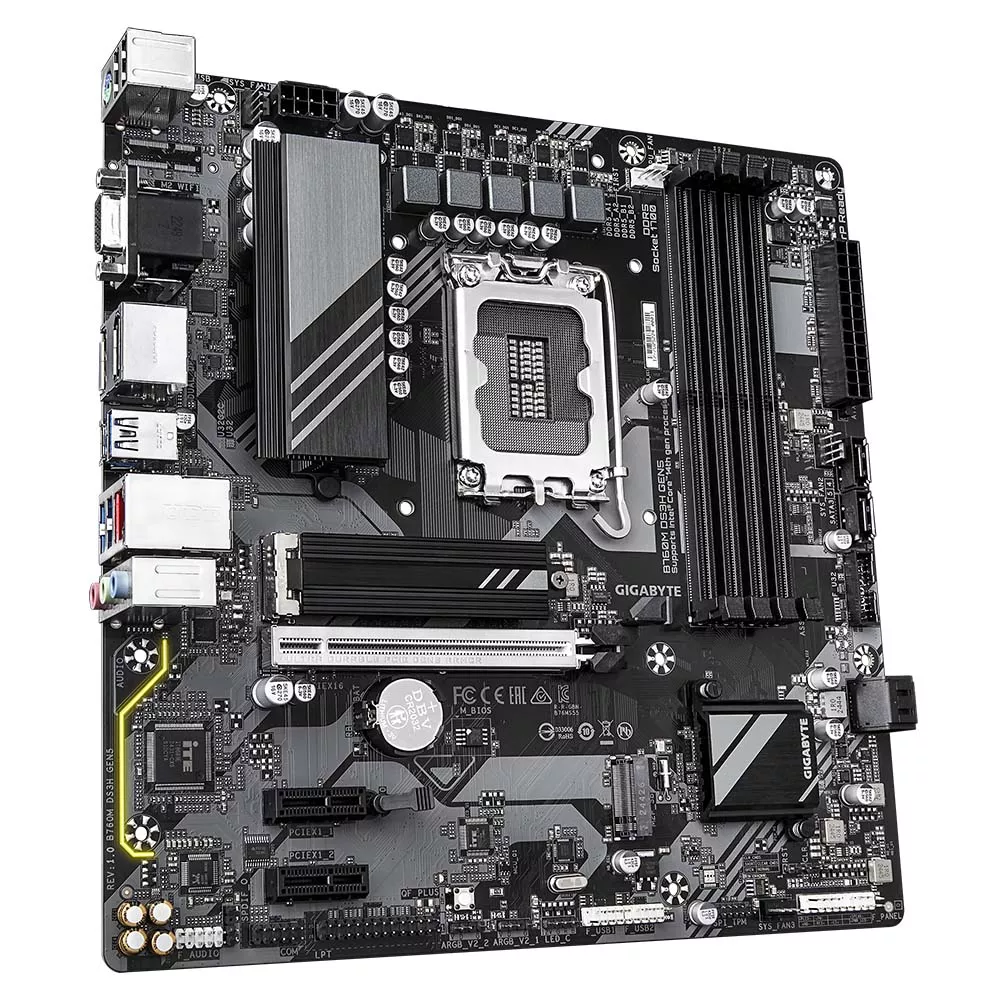

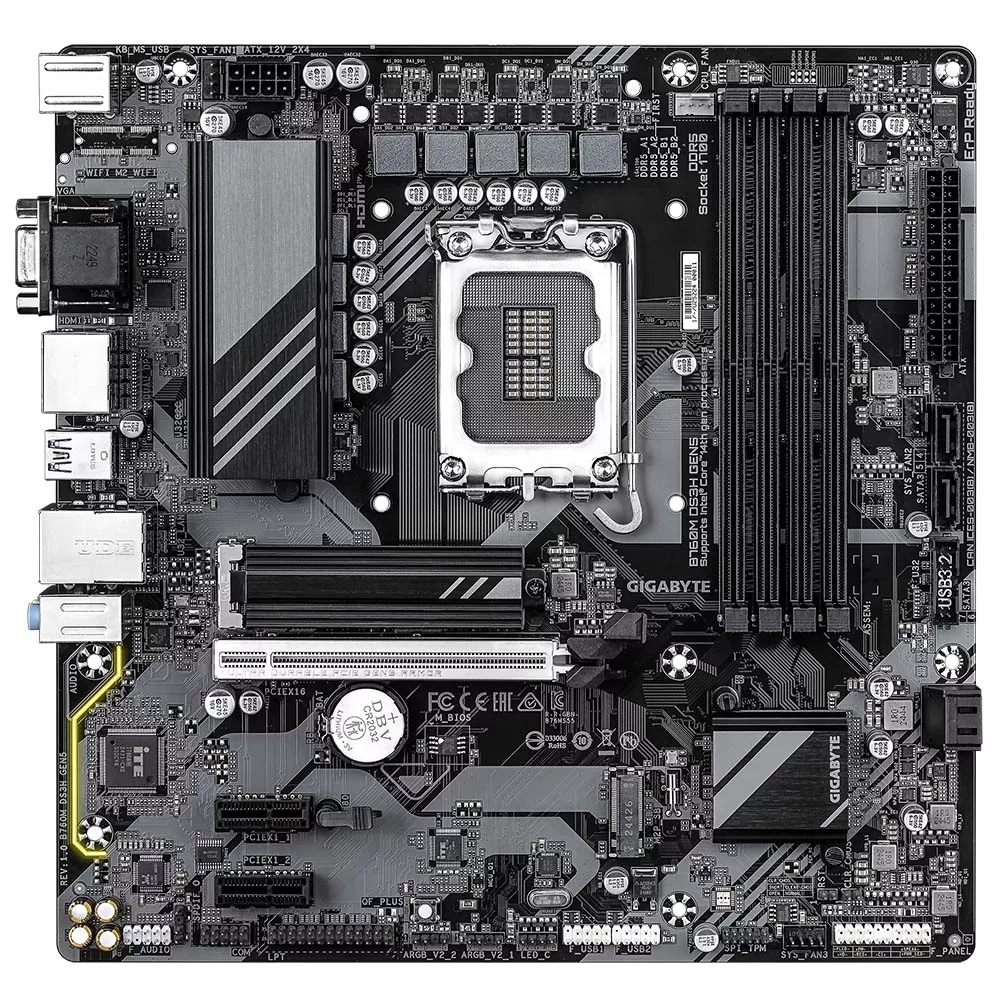

Gigabyte B760M DS3H GEN5 Motherboard [ B760-DS3H-GEN5 ]
More about Gigabyte B760M DS3H GEN5
Express to PCIE5 Performance
The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Hybrid VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.
Unlock DDR5 Performance
GIGABYTE is offering a tested and proven platform with extreme memory performance boost
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
Specification of Gigabyte B760M DS3H GEN5
Category |
Details |
|---|---|
CPU Support |
LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors (refer to Gigabyte’s website for latest CPU support list). L3 cache varies with CPU. |
Chipset |
Intel® B760 Express Chipset |
Memory (14th & 13th Gen i9/i7) |
DDR5 7600(O.C.), 7400(O.C.), 7200(O.C.), 7000(O.C.), 6800(O.C.), 6600(O.C.), 6400(O.C.), 6200(O.C.), 6000(O.C.), 5800(O.C.), 5600, 5200, 4800, 4400 MT/s |
Memory (13th Gen i5/i3 & 12th Gen Core/Pentium/Celeron) |
DDR5 4800/4400 MT/s |
Memory Slots |
4 × DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) |
Memory Features |
Dual channel architecture; ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode); Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16; Supports Extreme Memory Profile (XMP). Note: CPU/memory config may affect supported types, speeds, and module count. |
Onboard Graphics |
Intel® HD Graphics support: • 1 × D-Sub (1920×1200@60 Hz) • 1 × HDMI (4096×2160@60 Hz, HDMI 2.1, HDCP 2.3, native TMDS) • 2 × DisplayPort (4096×2304@60 Hz, DP 1.2, HDCP 2.3) Supports up to quad-display simultaneously. Graphics specs vary by CPU. |
Audio |
Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel (configurable via software). Supports S/PDIF Out. |
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Expansion Slots |
CPU: 1 × PCIe x16 (PCIe 5.0, runs at x16, supports GPU or NVMe SSD only). Chipset: 2 × PCIe x1 (PCIe 3.0, runs at x1). |
Storage Interfaces |
CPU: 1 × M.2 (Socket 3, M key, 2280, PCIe 4.0 x4/x2, M2A_CPU). Chipset: 1 × M.2 (Socket 3, M key, 2280, PCIe 4.0 x4/x2, M2P_SB). 4 × SATA 6Gb/s connectors. Supports RAID 0/1/5/10 for SATA devices. |
USB (Chipset) |
• 1 × USB Type-C® (back panel, USB 3.2 Gen 2) • 5 × USB 3.2 Gen 1 (3 back panel, 2 internal header) • 2 × USB 2.0/1.1 (back panel) |
USB (Chipset + Hub) |
4 × USB 2.0/1.1 (internal headers) |
Internal I/O Connectors |
24-pin ATX power, 8-pin ATX 12V power, 1 × CPU fan, 3 × system fans, 2 × ARGB Gen2 headers, 1 × RGB header, 2 × M.2 sockets, 4 × SATA, front panel header, front panel audio, USB 3.2 Gen 1 header, 2 × USB 2.0 headers, TPM header, serial port header, parallel port header, S/PDIF Out header, Q-Flash Plus button, reset jumper, Clear CMOS jumper. |

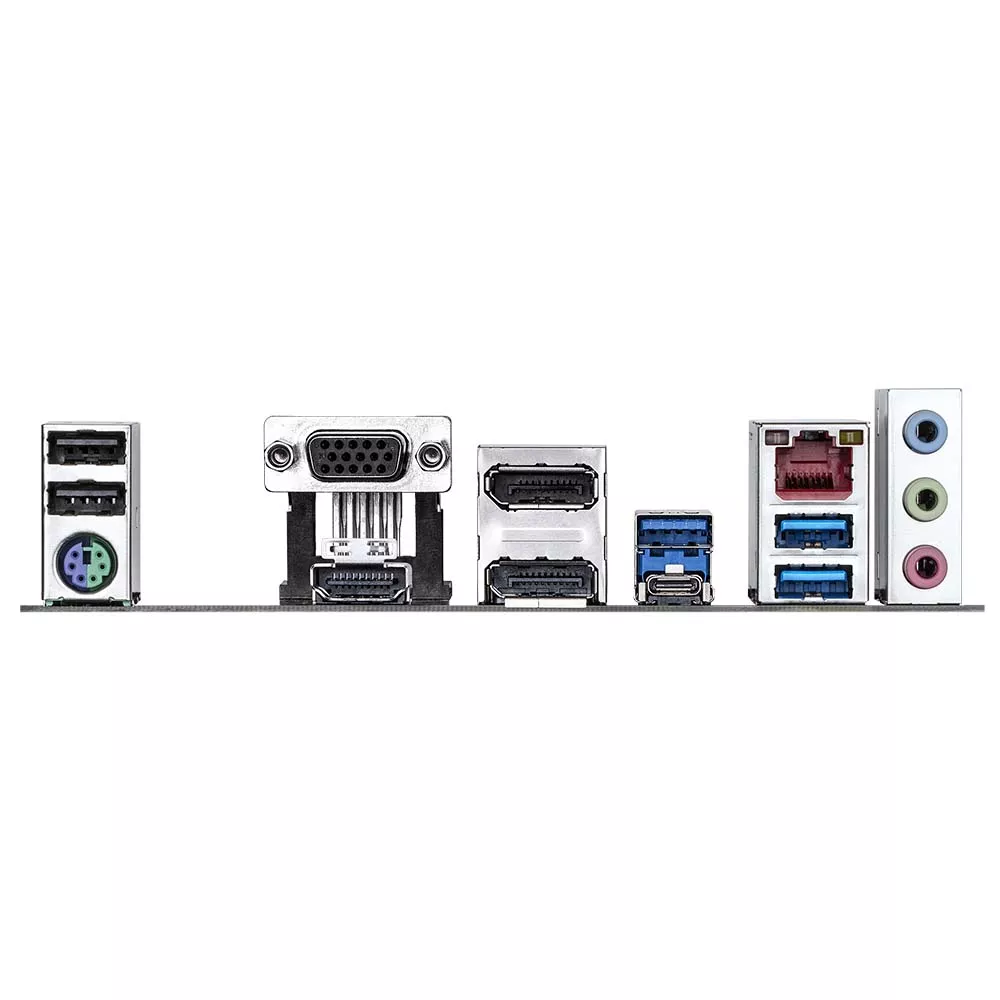

Back Panel Connectors |
2 × USB 2.0/1.1, 1 × PS/2 keyboard/mouse, 1 × D-Sub, 1 × HDMI, 2 × DisplayPort, 3 × USB 3.2 Gen 1, 1 × USB Type-C® (USB 3.2 Gen 2), 1 × RJ-45, 3 × audio jacks. (Support may vary by CPU.) |
I/O Controller |
iTE® I/O Controller Chip |
H/W Monitoring |
Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control (depends on installed fan). |
BIOS |
1 × 128 Mbit flash, licensed AMI UEFI BIOS. Supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. |
Unique Features |
GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup. |
Bundled Software |
NONE |
Operating System |
|
Form Factor |
Micro ATX, 24.4 cm × 24.4 cm |
Gigabyte
For more related products visit us at our website
PCCircle
You can buy Gigabyte products from our store at Amman Jordan PC Circle, or you can try out our Fast Delivery Service
Additional information
| Brand | GIGABYTE |
|---|---|
| MB CPU Socket | LGA 1700 For 12th/13th/14th Intel Gen |
| MB Form Factors | Micro ATX |
| MB Ram Slots | 4 Slots DDR5 |
| MB Series | B760M |
| MB Wi-Fi & Bluetooth | Bluetoth V4.2 |
