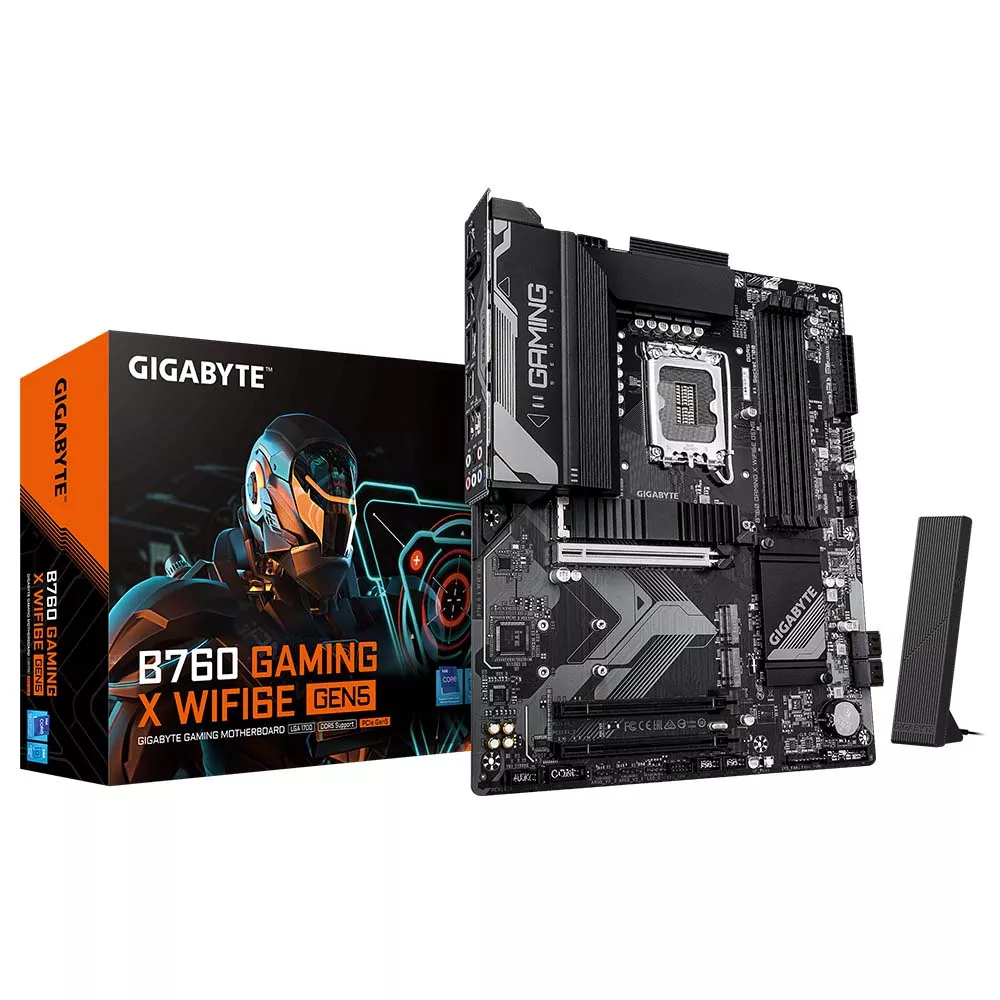

Gigabyte B760M GAMING X WF6E GEN5 Motherboard [ B760-G-X-WF6E-GEN5 ]
149.00 JOD
In stock
Related products
Gigabyte GeForce RTX 5060 WINDFORCE OC 8GB Graphics Card GDDR7 GV-N5060WF2OC-8GD
| Brand | GIGABYTE |
|---|---|
| GPU Card Number | GeForce RTX™ 5060 |
| GPU Card Size | L=199 W=116 H=40 |
| GPU Core Clock | 2512 MHz (Reference card : 2497 MHz) |
| GPU CUDA Cores | 3840 |
| GPU Memory Bus | 128 bit |
| GPU Memory Clock | 28 Gbps |
| GPU Memory Size | 8 GB |
| GPU Memory Type | GDDR7 |
| GPU Output | DP (DisplayPort 2.1b), HDMI |
| GPU Power Connectors | 1 x 8-Pin |
| GPU Recommended PSU | 550W |
Gigabyte GeForce RTX 5060 WINDFORCE Max OC 8GB Graphics Card GDDR7 GV-N5060WF2MAX OC-8GD
| Brand | GIGABYTE |
|---|---|
| GPU Card Number | GeForce RTX™ 5060 |
| GPU Card Size | L=199 W=116 H=40 |
| GPU Core Clock | 2512 MHz (Reference card : 2497 MHz) |
| GPU CUDA Cores | 3840 |
| GPU Memory Bus | 128 bit |
| GPU Memory Clock | 28 Gbps |
| GPU Memory Size | 8 GB |
| GPU Memory Type | GDDR7 |
| GPU Output | DP (DisplayPort 2.1b), HDMI |
| GPU Power Connectors | 1 x 8-Pin |
| GPU Recommended PSU | 550W |
Gigabyte GeForce RTX 5060 Ti AERO OC 8G [ GV-N506TAERO OC-8GD ]
| Brand | GIGABYTE |
|---|---|
| GPU Card Number | GeForce RTX™ 5060 Ti |
| GPU Card Size | L=281 // W=117 // H=40 mm |
| GPU Core Clock | 2647 MHz (Reference card :2572 MHz) |
| GPU CUDA Cores | 4608 |
| GPU Memory Bus | 128 bit |
| GPU Memory Clock | 28 Gbps |
| GPU Memory Size | 8 GB |
| GPU Memory Type | GDDR7 |
| GPU Output | DP (DisplayPort 2.1b), HDMI 2.1b |
| GPU Power Connectors | 1 x 8-Pin |
| GPU Recommended PSU | 650W |

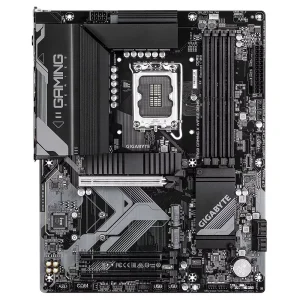

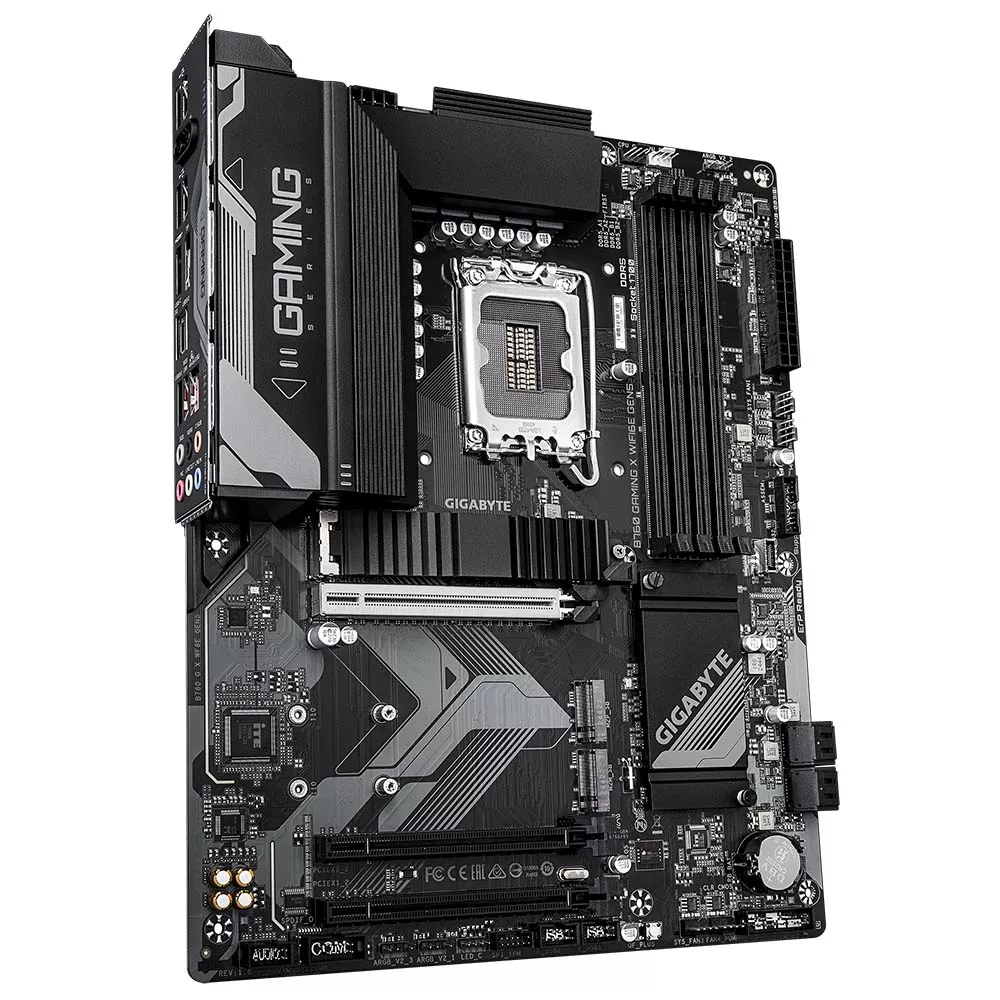

Gigabyte B760M GAMING X WF6E GEN5 Motherboard [ B760-G-X-WF6E-GEN5 ]
More about Gigabyte B760M Gaming X
Express to PCIE5 Performance
The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.
Fully Covered Thermal Design
High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.
Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that’s not only powerful but also built for longevity and reliability. GIGABYTE motherboards are engineered to endure and excel.
All-round Connectivity WF6E
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
Customize to fit your unique personality WF6E
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
Specification of B760M DS3H GEN5
Category |
Details |
|---|---|
CPU Support |
LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors (refer to Gigabyte’s website for latest CPU support list). L3 cache varies with CPU. |
Chipset |
Intel® B760 Express Chipset |
Memory Support |
DDR5: 7600(O.C.), 7400(O.C.), 7200(O.C.), 7000(O.C.), 6800(O.C.), 6600(O.C.), 6400(O.C.), 6200(O.C.), 6000(O.C.), 5800(O.C.), 5600(O.C.), 5400(O.C.), 5200(O.C.), 4800, 4000 MT/s |
Memory Slots |
4 × DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) |
Memory Features |
Dual channel architecture; ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode); Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16; Supports Extreme Memory Profile (XMP). Note: CPU/memory config may affect supported types, speeds, and module count. |
Onboard Graphics |
Intel® HD Graphics support: • 1 × DisplayPort (4096×2304@60 Hz, DP 1.2, HDCP 2.3) • 1 × HDMI (4096×2160@60 Hz, HDMI 2.1, HDCP 2.3, native TMDS) Graphics specs vary by CPU. |
Audio |
Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel (configurable via software). Supports S/PDIF Out. |
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless |
Intel® Wi-Fi 6E AX210: WiFi a/b/g/n/ac/ax, supports 2.4/5/6 GHz bands, Bluetooth 5.3, 11ax 160 MHz standard. (Actual data rate may vary.) |
Expansion Slots |
CPU: 1 × PCIe x16 (PCIe 5.0, runs at x16, supports GPU or NVMe SSD only). Chipset: 2 × PCIe x16 (PCIe 3.0, runs at x1). |
Storage Interfaces |
CPU: 1 × M.2 (Socket 3, M key, 22110/2280, PCIe 4.0 x4/x2, M2A_CPU). Chipset: 2 × M.2 (Socket 3, M key, 22110/2280, PCIe 4.0 x4/x2, M2P_SB, M2M_SB). 4 × SATA 6Gb/s connectors. Supports RAID 0/1/5/10 for SATA devices. |
USB (Chipset) |
1 × USB Type-C® (internal header, USB 3.2 Gen 2) 1 × USB 3.2 Gen 2 Type-A (red, back panel) 1 × USB Type-C® (back panel, USB 3.2 Gen 1) • 3 × USB 3.2 Gen 1 (1 back panel, 2 internal header) 1 × USB 2.0/1.1 (back panel) |
USB (Chipset + Hubs) |
8 × USB 2.0/1.1 (4 back panel, 4 internal headers) |
Internal I/O Connectors |
24-pin ATX power, 8-pin ATX 12V power, CPU fan header, CPU fan/water pump header
3 × system fan headers, system fan/water pump header, 3 × ARGB Gen2 headers, RGB header, 3 × M.2 sockets, 4 × SATA, front panel header, front panel audio, S/PDIF Out header, USB Type-C® header (USB 3.2 Gen 2), USB 3.2 Gen 1 header, 2 × USB 2.0 headers, TPM header, serial port header, Q-Flash Plus button, reset jumper, Clear CMOS jumper. |

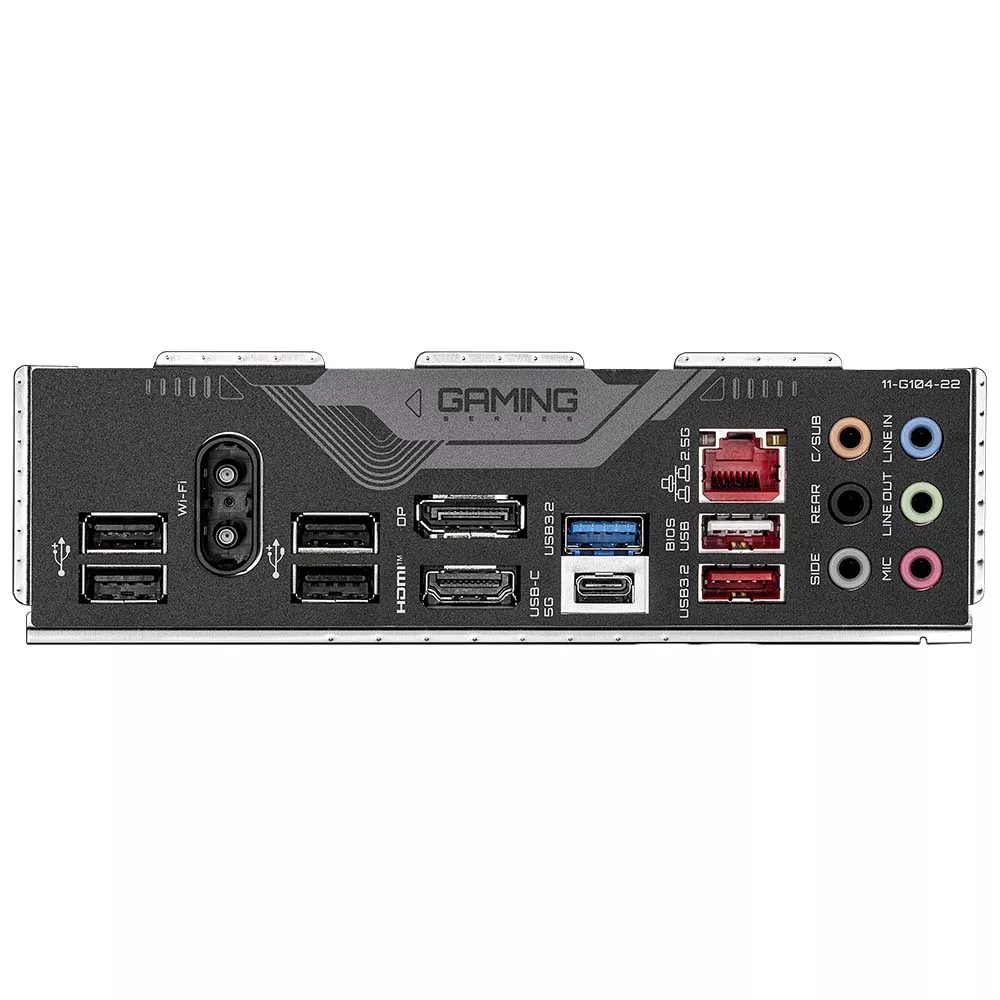

Back Panel Connectors |
|
I/O Controller |
iTE® I/O Controller Chip |
H/W Monitoring |
Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control (depends on installed fan/pump). |
BIOS |
1 × 256 Mbit flash, licensed AMI UEFI BIOS. Supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. |
Unique Features |
GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup. |
Bundled Software |
NONE |
Operating System |
Windows 11 64-bit, Windows 10 64-bit |
Form Factor |
ATX, 30.5 cm × 24.4 cm |
Gigabyte
For more related products visit us at our website
PCCircle
You can buy Gigabyte products from our store at Amman Jordan PC Circle, or you can try out our Fast Delivery Service
| Brand | GIGABYTE |
|---|---|
| MB CPU Socket | LGA 1700 For 12th/13th/14th Intel Gen |
| MB Form Factors | ATX |
| MB Ram Slots | 4 Slots DDR5 |
| MB Series | B760 |
| MB Wi-Fi & Bluetooth | None |
