TP-Link OMADA BE9300 EAP772 Ceiling Tri-Band Wi-Fi 7 Access Point
159.00 JOD
In stock
Related products
![TP-Link AX3000 Ceiling Mount WiFi 6 Access Point [ EAP653 ]](https://pccircle.com/wp-content/uploads/2025/03/TP-Link-AX3000-Ceiling-Mount-WiFi-6-Access-Point-EAP653-01-600x600.jpg)
![TP-Link AX3000 Ceiling Mount WiFi 6 Access Point [ EAP653 ]](https://pccircle.com/wp-content/uploads/2025/03/TP-Link-AX3000-Ceiling-Mount-WiFi-6-Access-Point-EAP653-02-600x600.jpg)
![Huawei BE3 Dual-Band Wi-Fi 7 Router [ WUKUN-BE32 ]](https://pccircle.com/wp-content/uploads/2025/02/Huawei-Wi-Fi-7-BE3-Router-WUKUN-BE32-15-600x600.jpg)
![Huawei BE3 Dual-Band Wi-Fi 7 Router [ WUKUN-BE32 ]](https://pccircle.com/wp-content/uploads/2025/02/Huawei-Wi-Fi-7-BE3-Router-WUKUN-BE32-17-600x600.jpg)
Description
TP-Link BE9300 EAP772 Ceiling Tri-Band Wi-Fi 7 Access Point
More about TP-Link BE9300 EAP772 Router
Ultra-Thin Design for Flexible Deployment
The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.
Boosted Network Security
Specification of EAP772
HARDWARE FEATURES | |
|---|---|
| Interface | 1× 2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/2.5A DC |
| Max. Power Consumption | • 24.05 W (For PoE); • 20.92 W (For DC) |
| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna | 2.4 GHz: 2× 4.0 dBi 5 GHz: 2× 5.0 dBi 6 GHz: 2× 5.0 dBi |
| Bluetooth | 1 × 4.0 dBi, Bluetooth 5.2 *Firmware update may be required. |

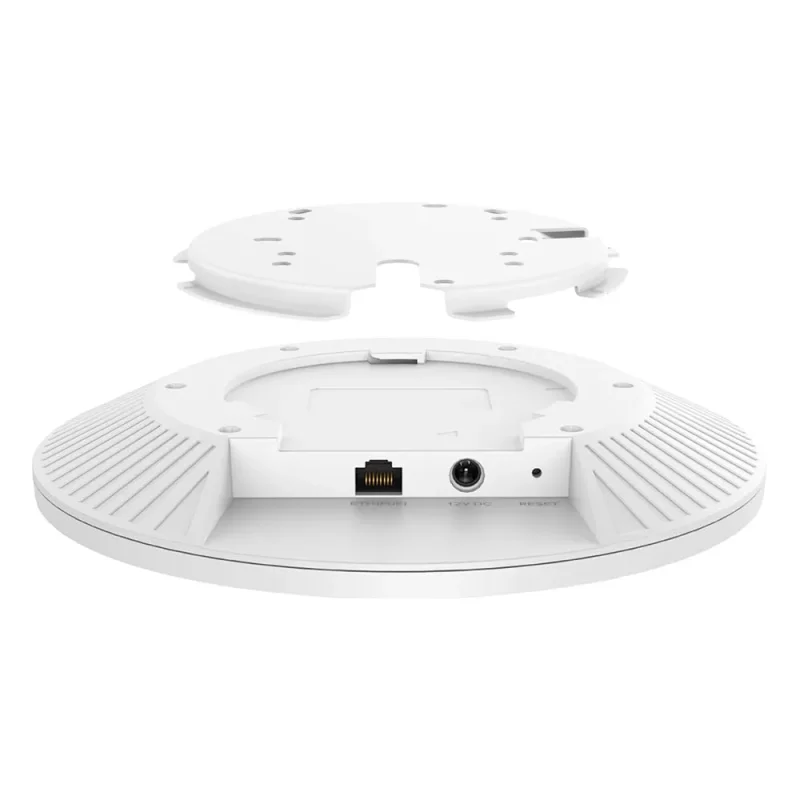

| Mounting | Ceiling / Wall Mounting (Kits Included) |
WIRELESS FEATURES | |
|---|---|
| Coverage | 140㎡(1500 ft²)§ |
| Concurrent Clients | 380+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz)† |
| Wireless Functions | MLO‡ 4K-QAM‡ Seamless Roaming(802.11k/v/r) MU-MIMO‡ EHT320‡ Mesh△ BSS Coloring‡ OFDMA‡ Load Balance Band Steering Beamforming Airtime Fairness Multiple SSIDS:24(8 on each band) Wireless Schedule Reboot Schedule QoS(WMM) Rate Limit Static IP/Dynamic IP RADIUS Accounting MAC Authentication |
| Wireless Security | Captive Portal Authentication△ Access Control Maximum number of MAC Filter: 4,000 Wireless Isolation Between Clients VLAN Rogue AP Detection WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | 20 dBm (2.4 GHz, EIRP) 23 dBm (5 GHz, band 1&band 2, EIRP) 28 dBm (5 GHz, band 3, EIRP) 23dBm (6 GHz, EIRP) |
Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management |
|
| Cloud Access | Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC |
| Package Content | EAP772 Installation Guide Ceiling/Wall Mounting Kit Note: Power Adapter is NOT included. |
| Environment | Operating Temperature: 0 °C–40 °C (32 °F–104 °F); Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing; |
