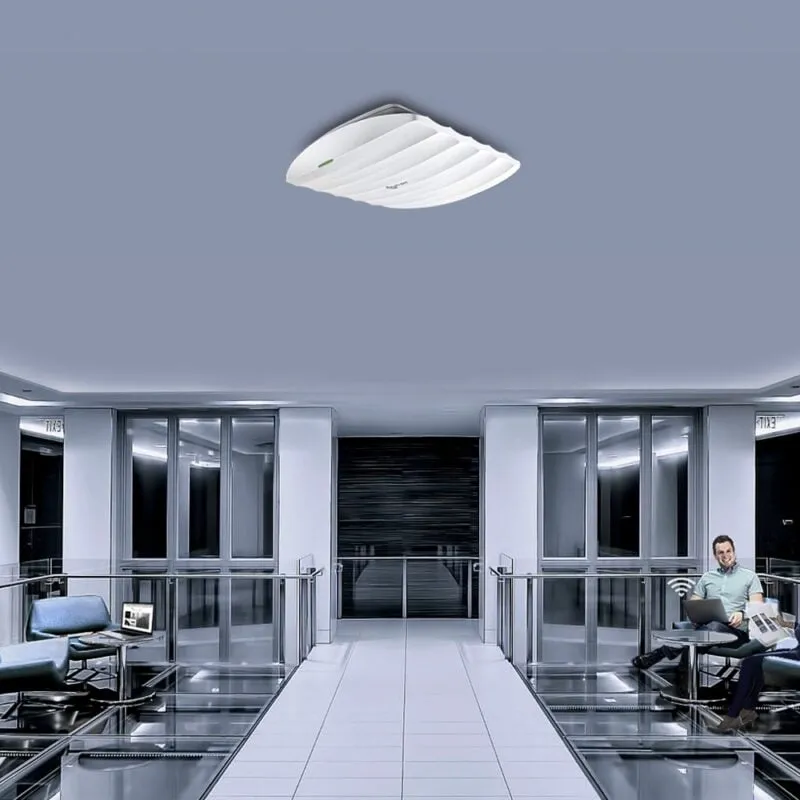

TP-link OMADA AC1350 Wireless Ceiling Mount Access Point – EAP223

TP-link OMADA AC1350 EAP223

Features:

• Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.^†
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^‡, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.*
• PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter is not included) for flexible installations.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
• Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.
• POE adapter is not included

• More router

Superior Wi-Fi Speeds with MU-MIMO Technology

Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP223 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.^†

Omada SDN—Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Multiple PoE Options for Easy Installation

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

Specifications

Interface
Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af/at PoE and Passive PoE)

Physical Security Lock
Yes

Button
Reset

Power Supply
• 802.3af/at PoE
• 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included)

Power Consumption
EU: 9.7W
US: 12.1W

Dimensions ( W x D x H )
8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)

Antenna Type
3 Internal Omni
• 2.4 GHz: 4 dBi
• 5 GHz: 5 dBi

Mounting
Ceiling /Wall Mounting (Kits included)

Wireless Standards
IEEE 802.11ac/n/g/b/a

Frequency
2.4 GHz and 5 GHz

Signal Rate

• 5 GHz:Up to 867 Mbps
• 2.4 GHz:Up to 450 Mbps

Wireless Functions
• Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz band, 7 for 5GHz band)• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming*
• Omada Mesh*
• Band Steering
• Load Balance
• MU-MIMO
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security
• Captive Portal Authentication*
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support

Transmission Power

• CE:
≤20 dBm(2.4 GHz, EIRP)
≤23 dBm(5 GHz, EIRP)

• FCC:

≤24 dBm(2.4 GHz)
≤22 dBm(5 GHz)

Omada App
Yes

Management MAC Access Control
Yes

SNMP
v1,v2c

System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes

Web-based Management
HTTP/HTTPS

L3 Management
Yes

Multi-site Management
Yes

Management VLAN
Yes
