TP-link OMADA EAP610 AX1800 Ceiling Mount Access Point – WiFi 6 – PoE+ Powered

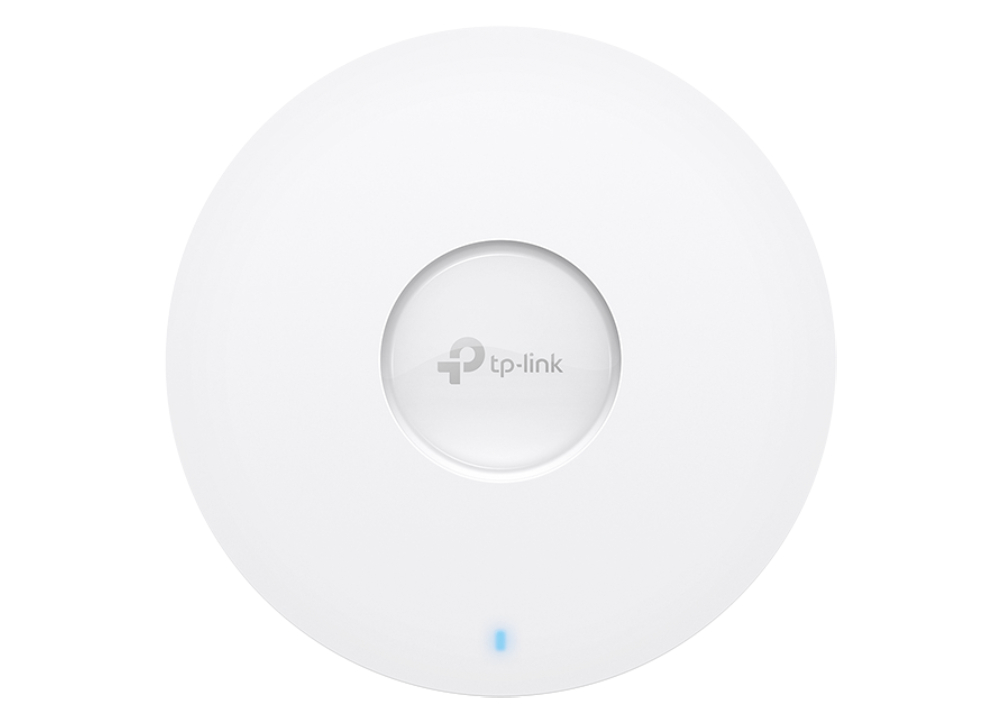

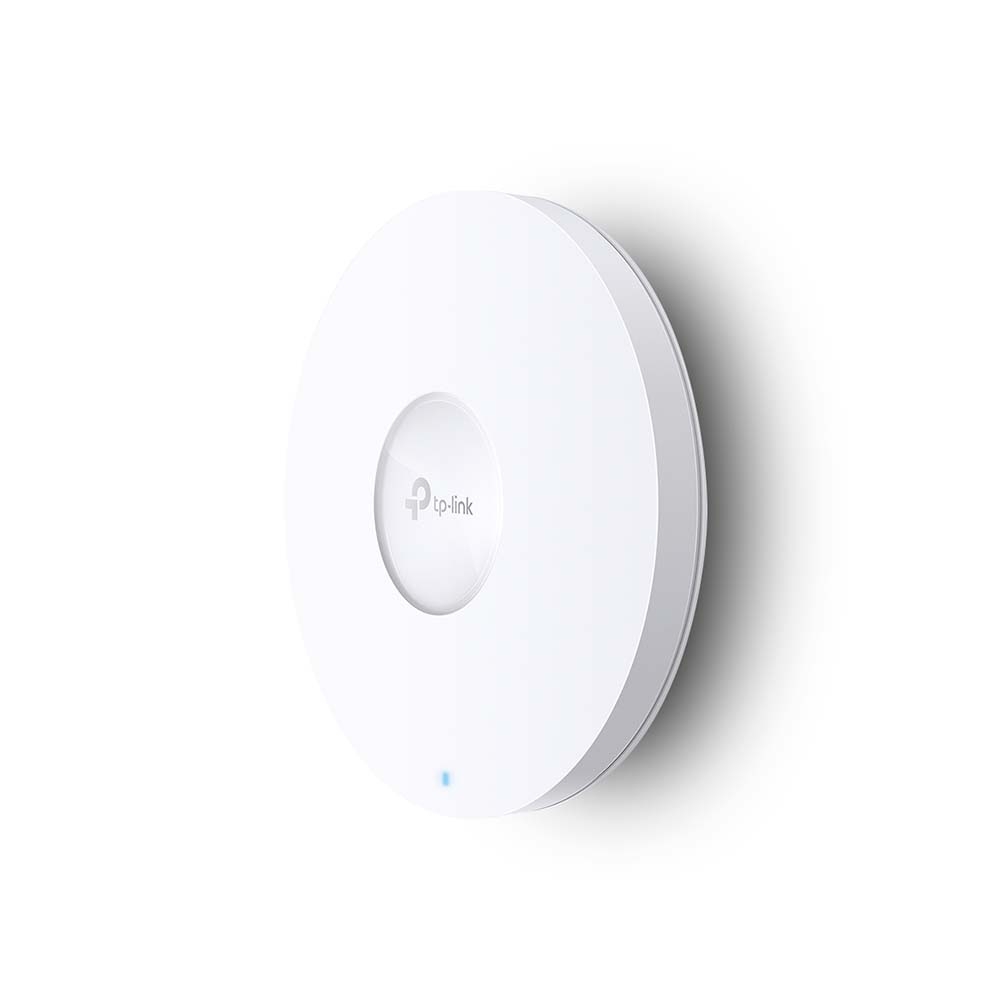

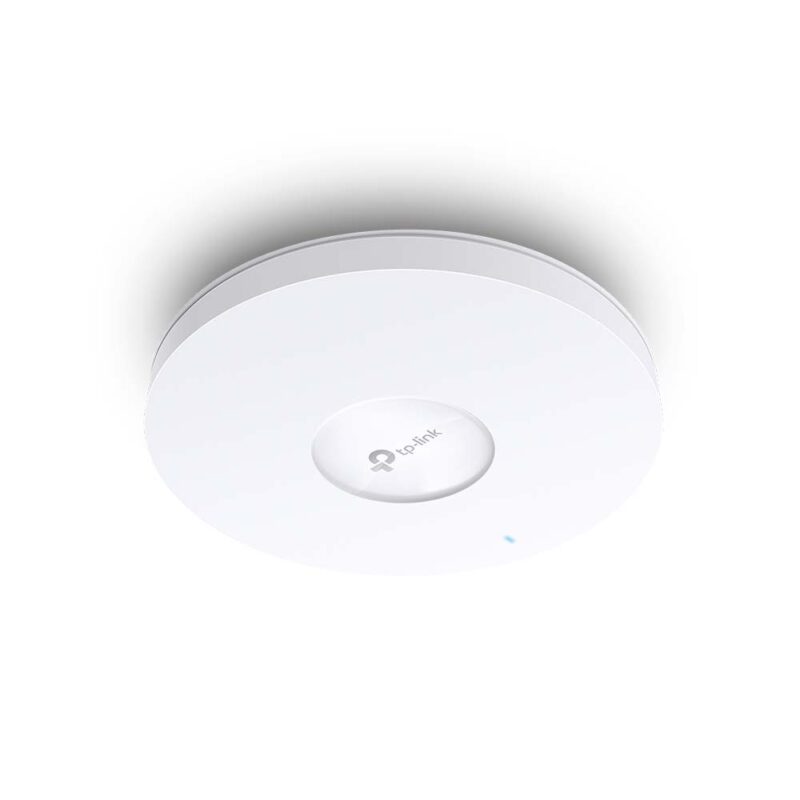

TP-link OMADA EAP610 AX1800

Features:

• Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
• High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
• Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
• Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
• PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.
• Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
• Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.
• More router

Easily Upgrade to Business WiFi 6 Network

AX1800 Ceiling Mount WiFi 6 Access Point

Superior WiFi 6 Speeds

Upgrade to WiFi 6 with speeds up to 1775 Mbps brings 50% faster speeds than WiFi 5.^† Every application feels more fluid with drastically improved Wi-Fi speeds.

Auto Channel Selection and Power Adjustment to Optimize Overall Performance

Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

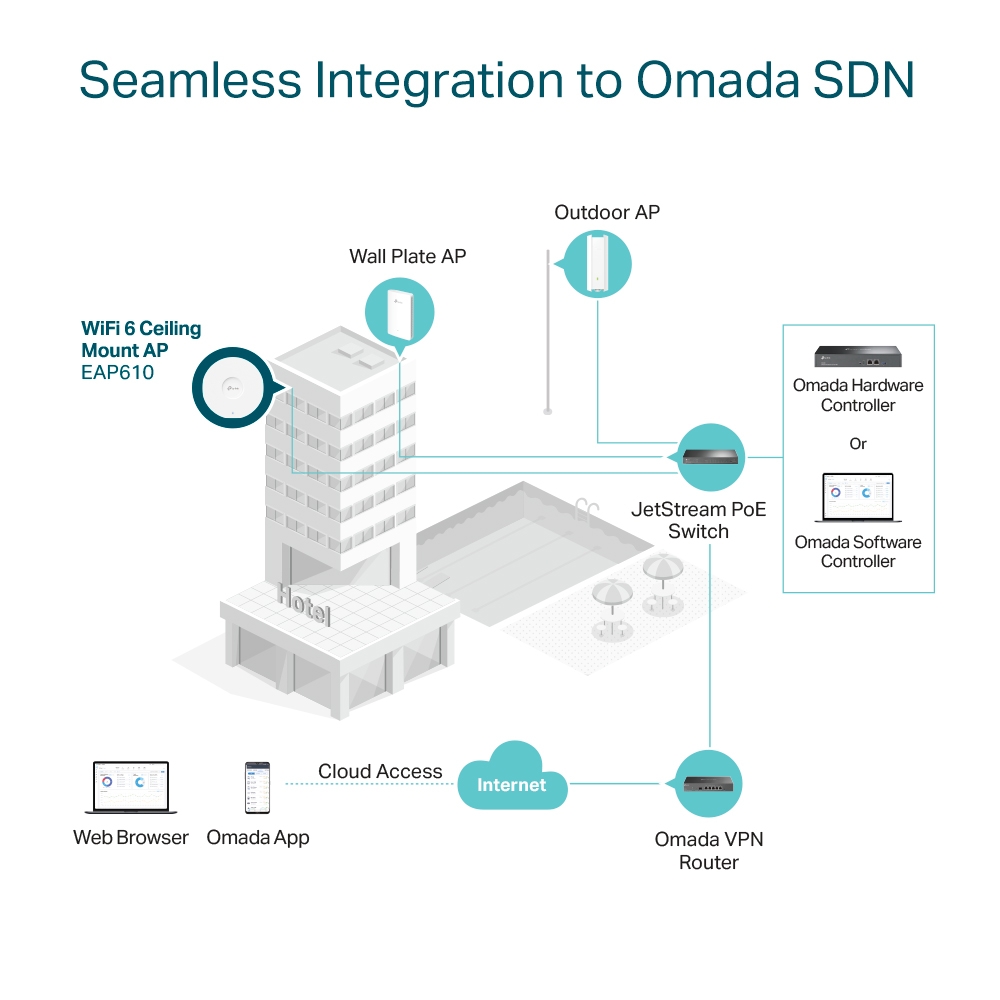

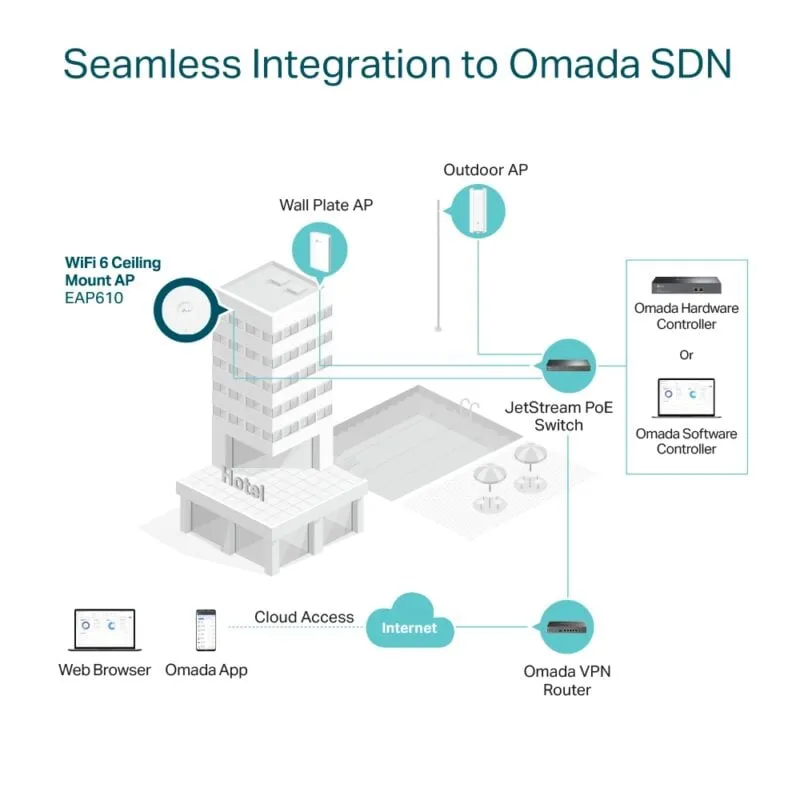

Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Always Stay Smooth with Fast Roaming

Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Specifications

Interface:
1× Gigabit Ethernet (RJ-45) Port

Button:
Reset

Power Supply:
V2 and above:• 802.3at PoE
• 48 V Passive PoE
• 12 V / 1.5 A DC (Power Adapter included)

Power Consumption:
V2 and above:
• EU: 13.7 W (For PoE); 12.3 W (for DC)
• US: 14.2 W (For PoE); 12.8 W (for DC)

Dimensions ( W x D x H ):
V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)

Antenna Type:
Internal Omni Antenna
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi

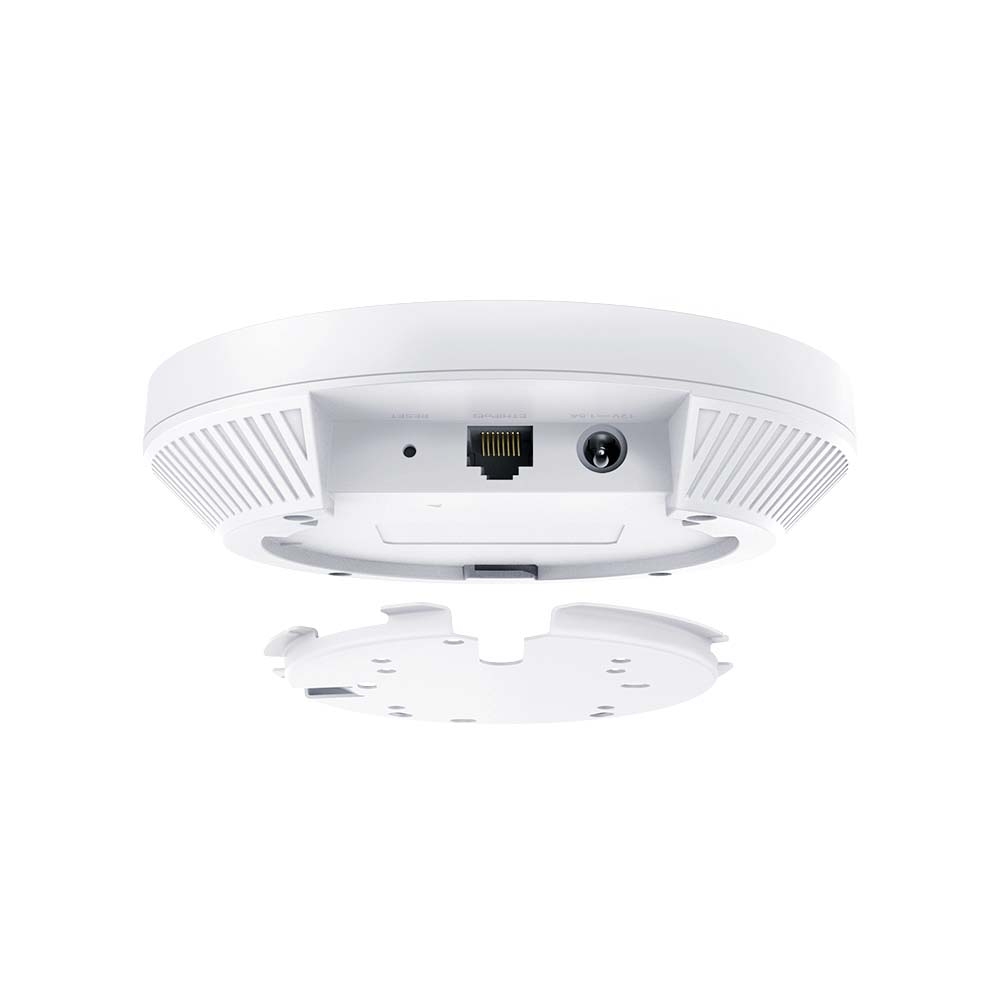

Mounting:
• Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting

WIRELESS FEATURES:
Wireless Standards:
IEEE 802.11ax/ac/n/g/b/a

Frequency:
2.4 GHz and 5 GHz

Signal Rate:
• 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps

Transmission Power:
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)

• FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)

MANAGEMENT:
Omada App:
Yes

Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller

Cloud Access:
Yes, through
• OC300
• OC200
• Omada Software Controller
• Omada Cloud-Based Controller

Email Alerts:
Yes

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Zero-Touch Provisioning:
Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment:
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
