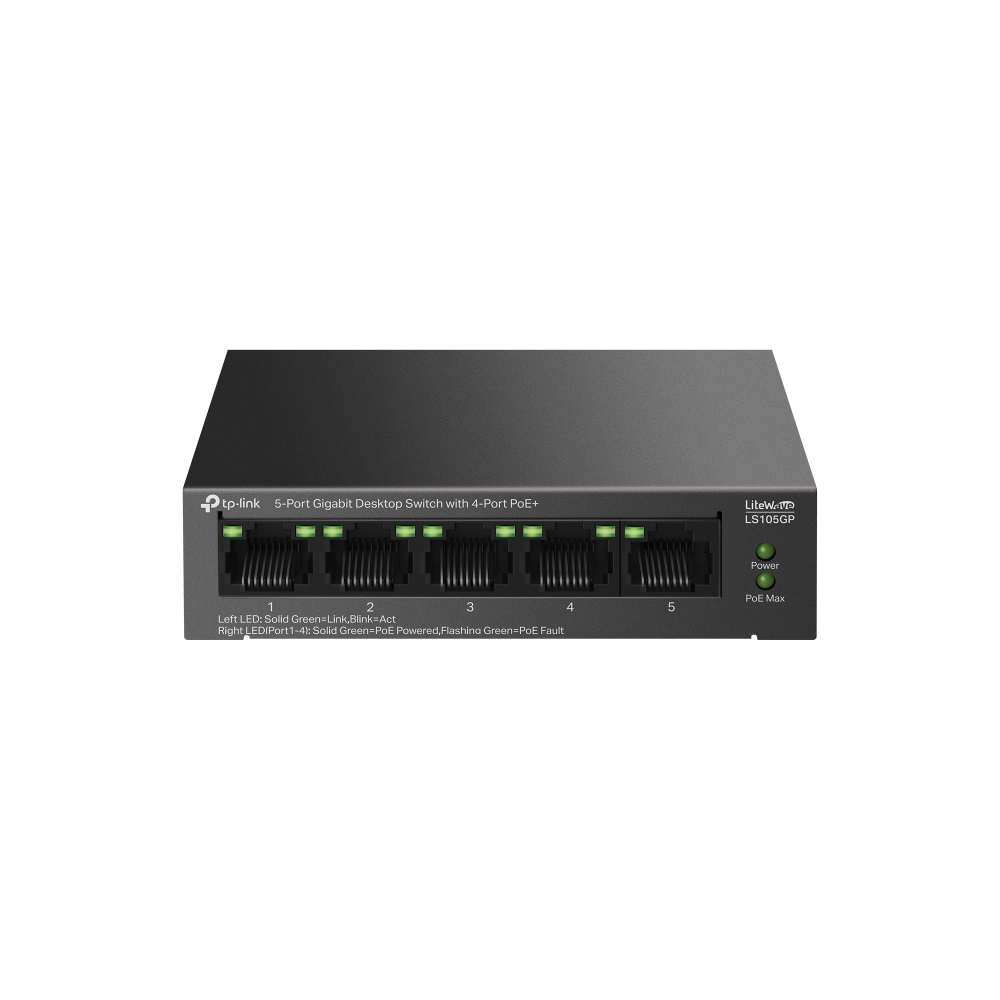

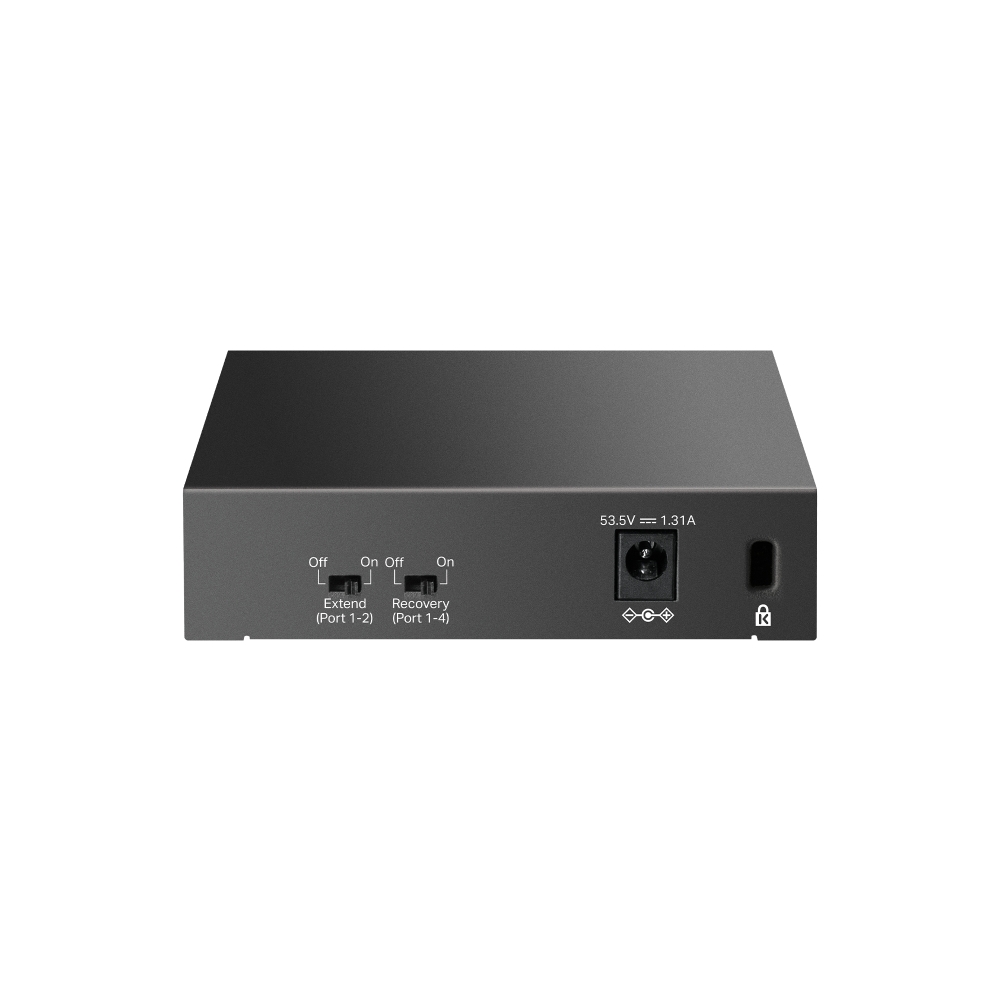

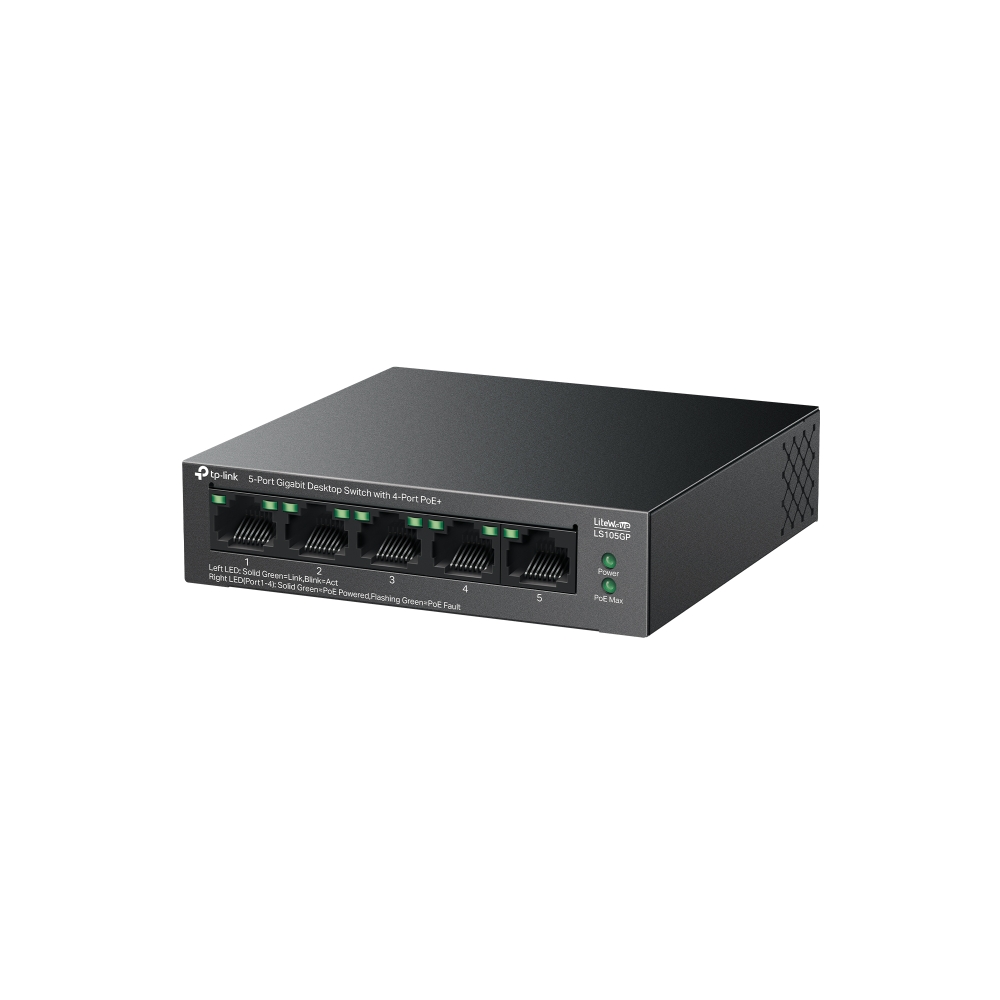

TP-Link 5 Ports Gigabit Switch PoE+ LS105GP
More about TP-Link 5 Ports Gigabit PoE+
Full Gigabit Ports
Five gigabit augo-negotiation ports provide up to 10 Gbps switching capacity.
65 W PoE Budget
Four gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
Up to 250 m PoE Transmission:
With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
PoE Auto Recovery
Automatically reboots your dropped or unresponsive PoE-powered devices.
Plug and Play
Simply plug and play for instant connectivity with no configuration required.
Silent Operation
Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
Reliable Hardware Design
Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Specification of TP-Link 5 Ports Gigabit PoE+
HARDWARE FEATURES | |
|---|---|
| Interface | 5× 10/100/1000Mbps RJ45 Ports (Ports 1–4 supports 802.3af/at PoE+) AUTO Negotiation AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Installation | Desktop Wall Mounting |
| Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Ports 1–4, up to 30 W PoE output per port Power Supply: 65 W |
| Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (99.8×98×25 mm) |
| Max Power Consumption | 4 W (220/50 Hz. no PD connected) 74.46 W (220/50 Hz. with 65 W PD connected) |
| Max Heat Dissipation | 13.6 BTU/h (no PD connected) 253.16 BTU/h (with 65 W PD connected) |
PERFORMANCE | |
|---|---|
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 2K |
| Jumbo Frame | 16 KB |
SOFTWARE FEATURES | |
|---|---|
| Advanced Features | Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) PoE Auto Recovery Button (Ports 1-4) Compatible With IEEE 802.3af/at Compliant PDs Mac Address Auto-Learning and Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping Green Technology |
| Transfer Method | Store-And-Forward |
OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents |
|
| Environment |
|
