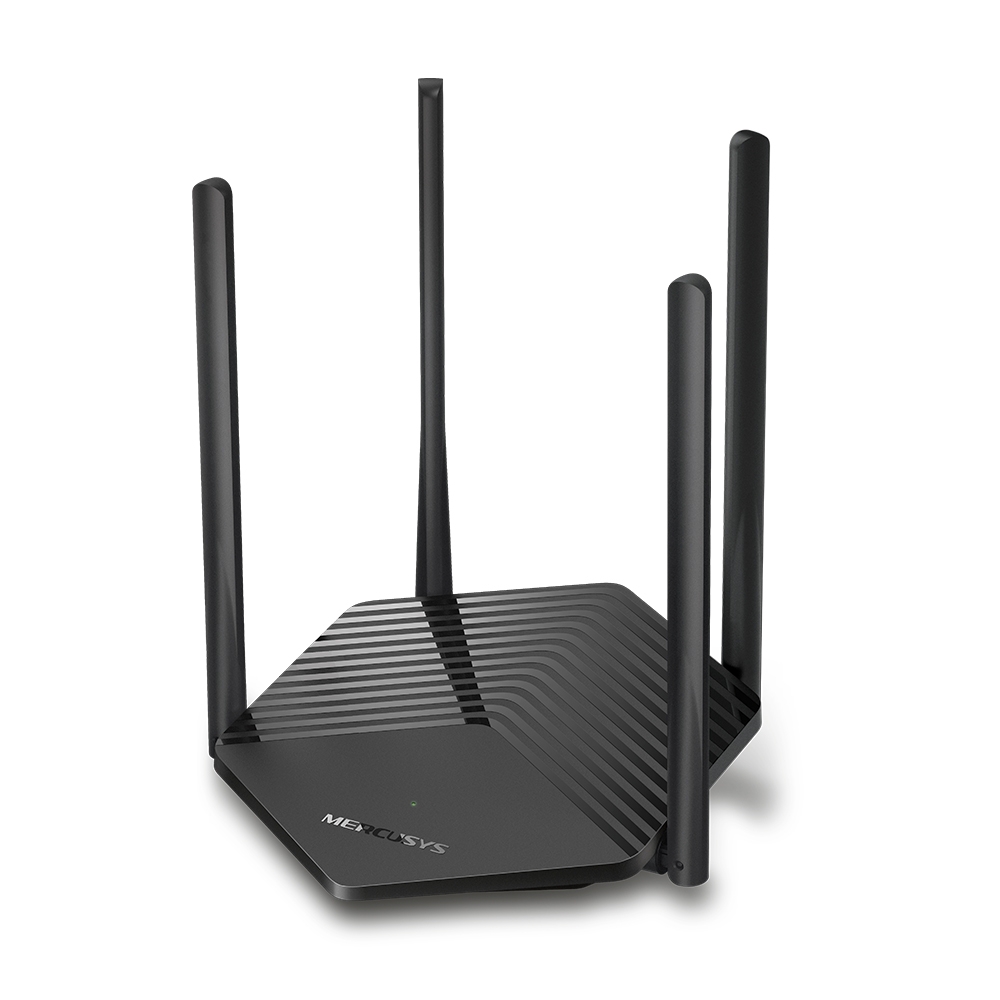

More about Mercusys AX1500 MR60X Router
WiFi 6 Made Faster and Smarter
AX1500 Wi-Fi 6 Router
Upgrade Your Network with WiFi 6
The latest WiFi 6 standard implements advanced technology designed to deliver more simultaneous stable connections, extend WiFi range, and maintain reliably fast data transmissions, satisfying the demand for a high-performance wireless experience.

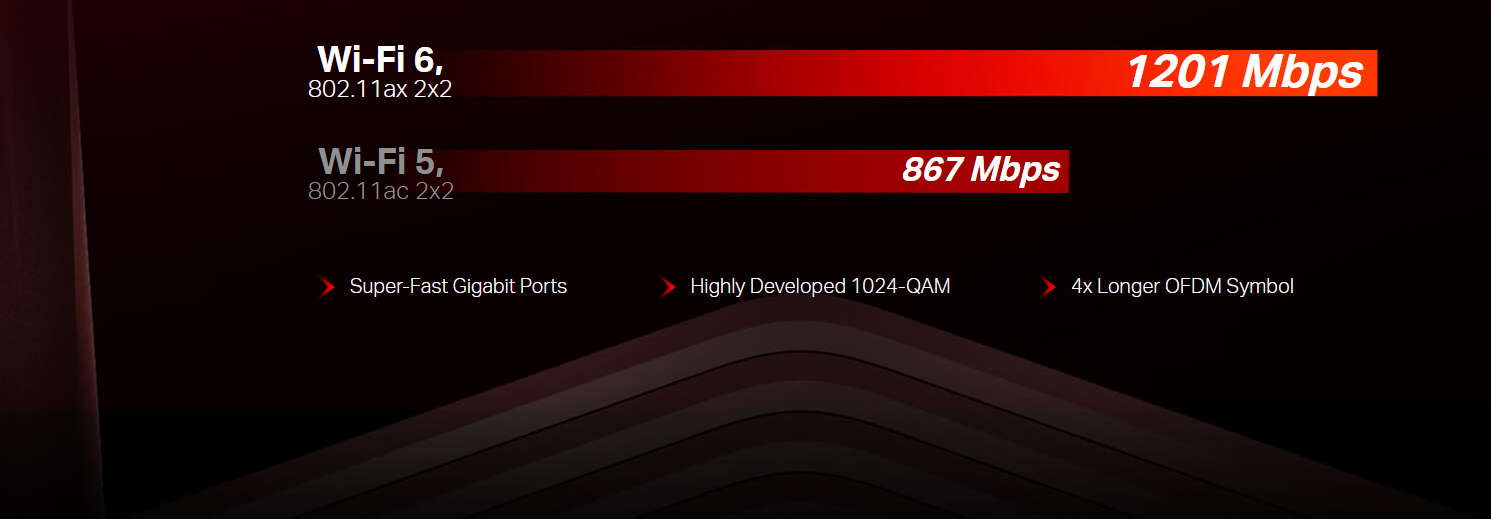

Level Up Your Speeds up to 40% Faster
By combining 1024-QAM and a long OFDMA symbol, MR60X delivers gigabit fast speeds up to 1500 Mbps for all your WiFi devices – 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. Game online, watch 4K videos, and crank up everything to the highest settings without lag.

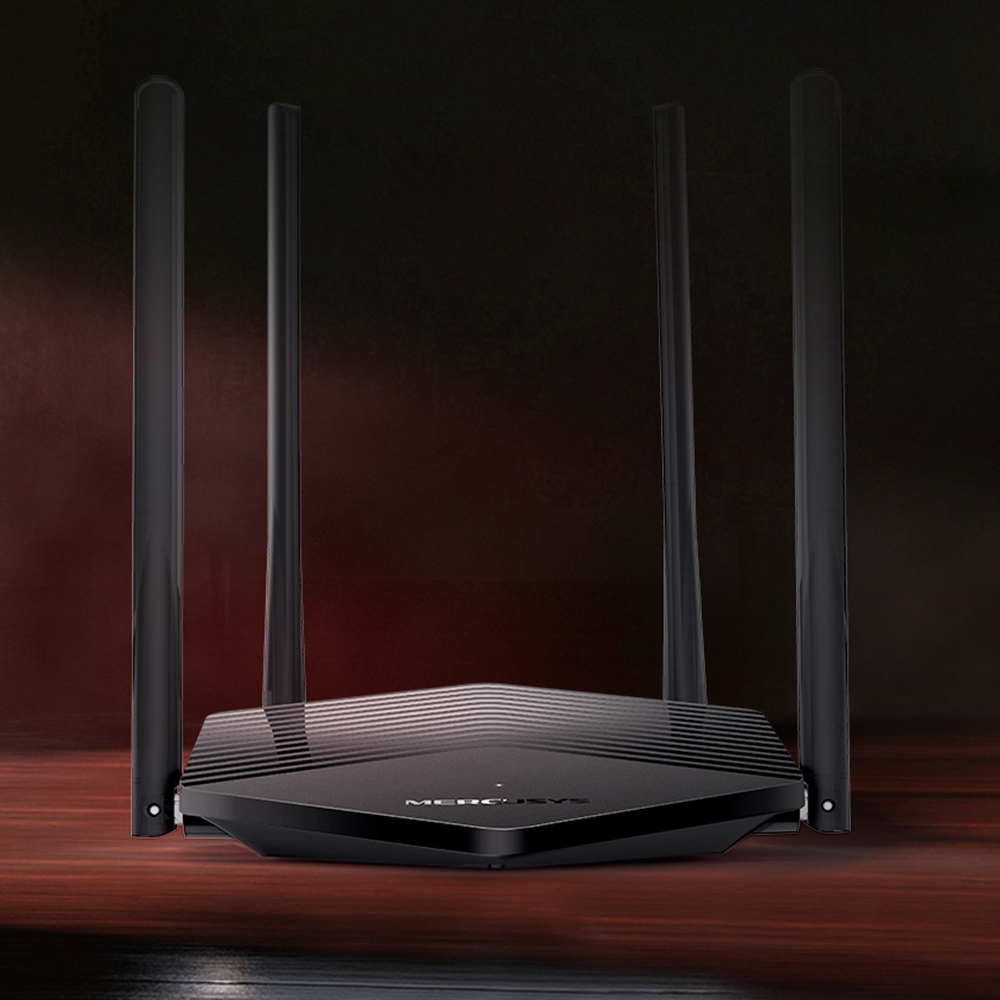

Broader, Stronger Coverage

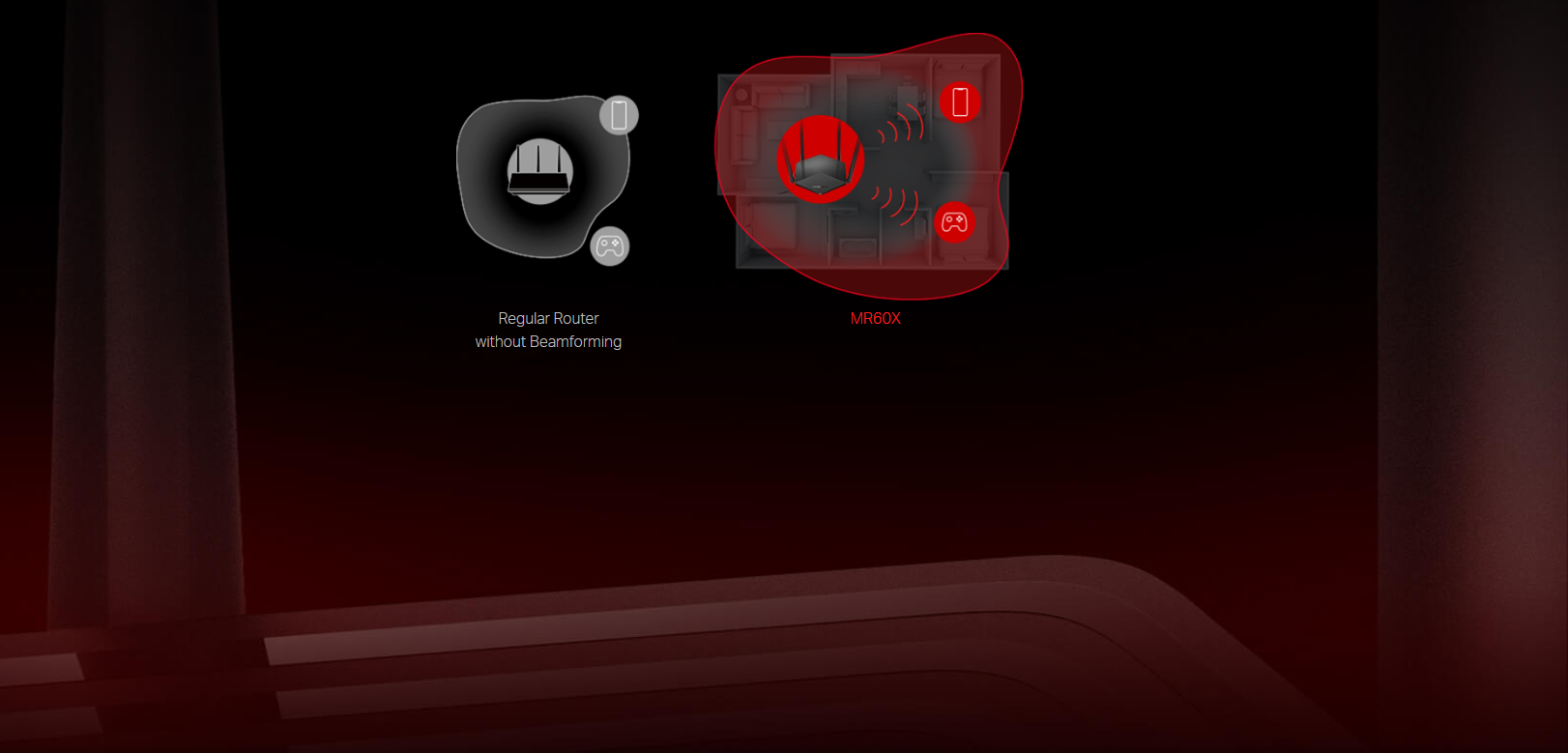

Four powerful high-gain antennas armed with advanced wireless technology provide strong signals throughout your home. Beamforming detects your connected devices and concentrates wireless signal strength towards them, making your connections more stable.

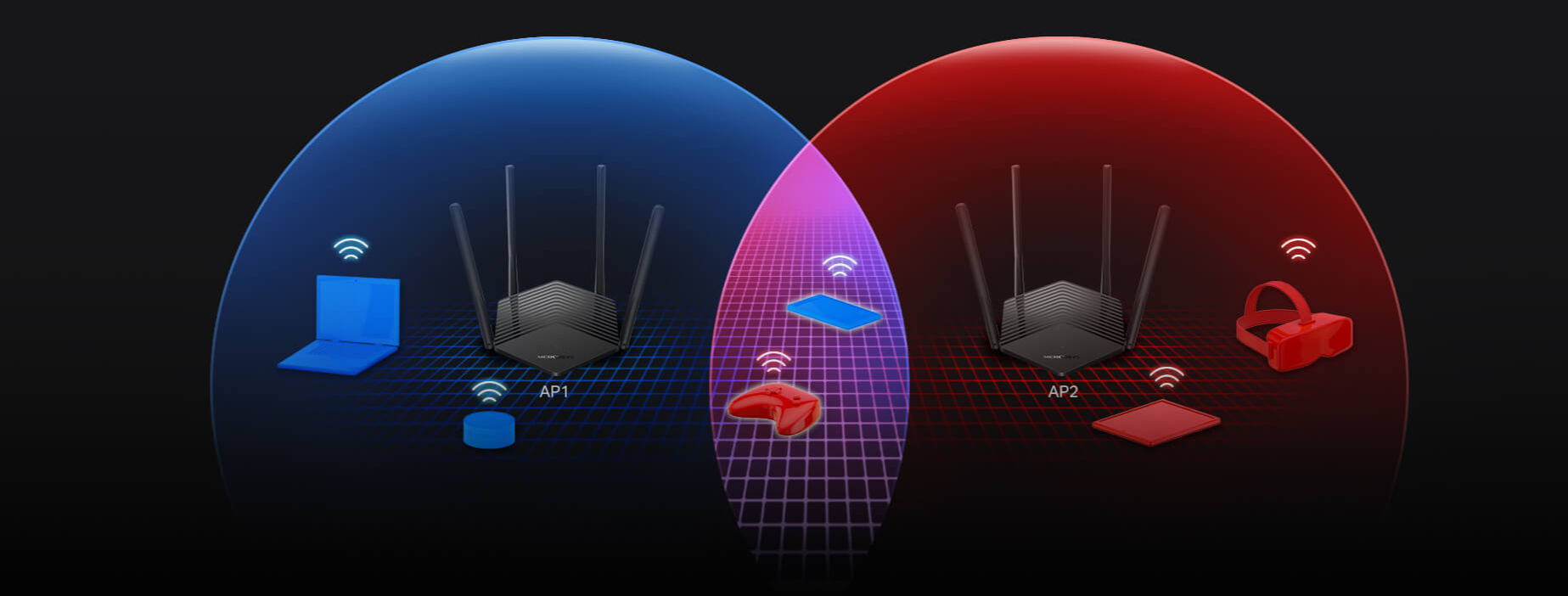

Less WiFi Interference
BSS Color marks the data frames from different APs which helps minimize the signal interference from your neighbors to improve transmission efficiency.
Specification of Mercusys AX1500 MR60X Router
Wireless
Wireless Standards
-
Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards
WiFi Speeds
- 1201 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
Reception Sensitivity
- 11g 6Mbps: -97dBm
11g 54Mbps: -79dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-78dBm
11a 6Mbps:-94dBm
11a 54Mbps:-78dBm
11ac VHT20 MCS8:-74dBm
11ac VHT40 MCS8:-70dBm
11ac VHT80 MCS8:-65dBm Wireless Security
- WPA / WPA2-Personal
WPA2 / WPA3-Personal Wireless Functions
- Enable/Disable Wireless Radio, WMM
Hardware
Dimensions
- 6.9 × 6.2 × 1.8 in (175.6 × 157.2 × 45 mm)

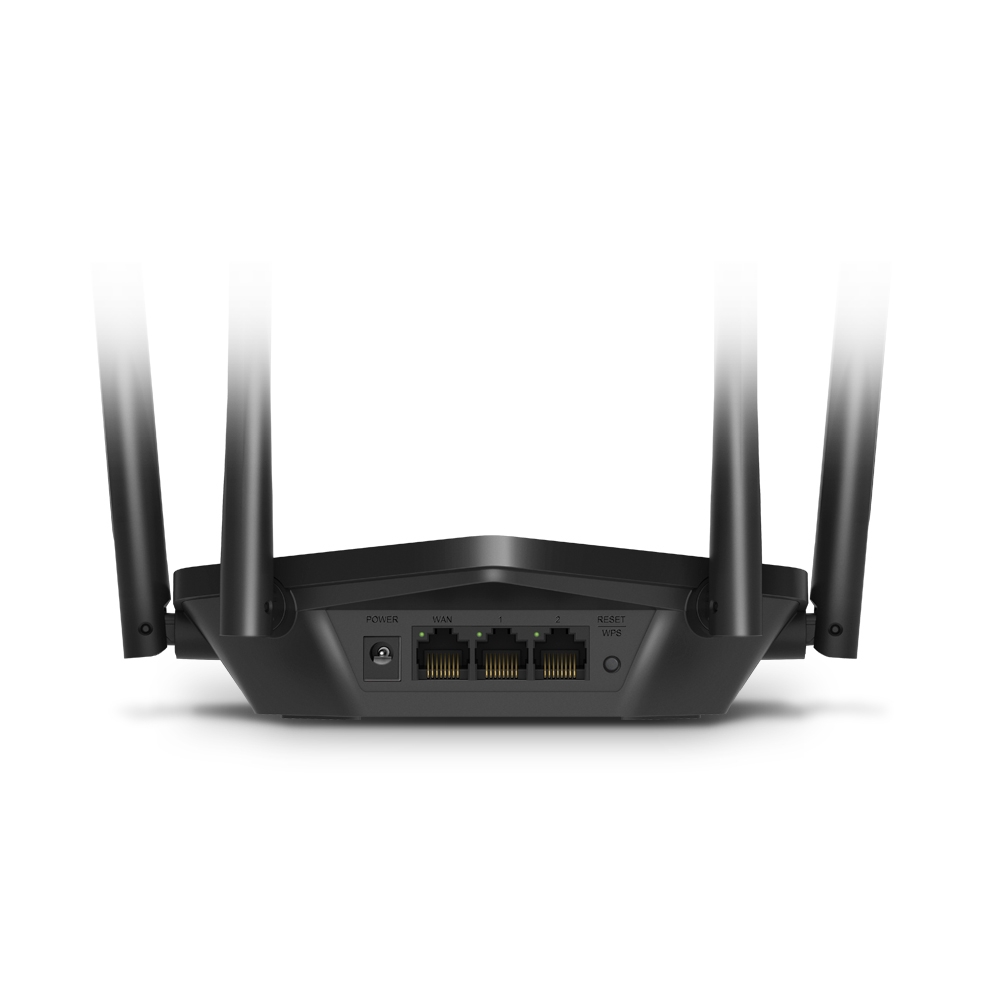

Interfaces
- 1× Gigabit WAN Port + 2× Gigabit LAN Ports
Button
- Reset/WPS Button
Antenna Type
-
4× 5 dBi Fixed Omni-Directional Antennas
Software
WAN Type
- Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
- Access Control
Local Management
Remote Management DHCP
- Server, DHCP Client List
NAT Forwarding
- Port Forwarding, Port Triggering, UPnP, DMZ
Firewall Security
-
SPI Firewall, IP and MAC Address Binding
Guest Network
- 2.4 GHz Guest Network, 5 GHz Guest Network
Others
Package Contents
• AX1500 Wi-Fi 6 Router MR60X
• Power Adapter
• Quick Installation Guide• RJ45 Ethernet CableEnvironment
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Operating Humidity: 10%~90% Non-Condensing
- Storage Humidity: 5%~90% Non-Condensing
- For more information about this product visit official website of Mercusys
