Kingston Value RAM 4GB 1600MHz PC3-12800 DDR3
Non-ECC CL11 DIMM SR x8 Desktop Memory

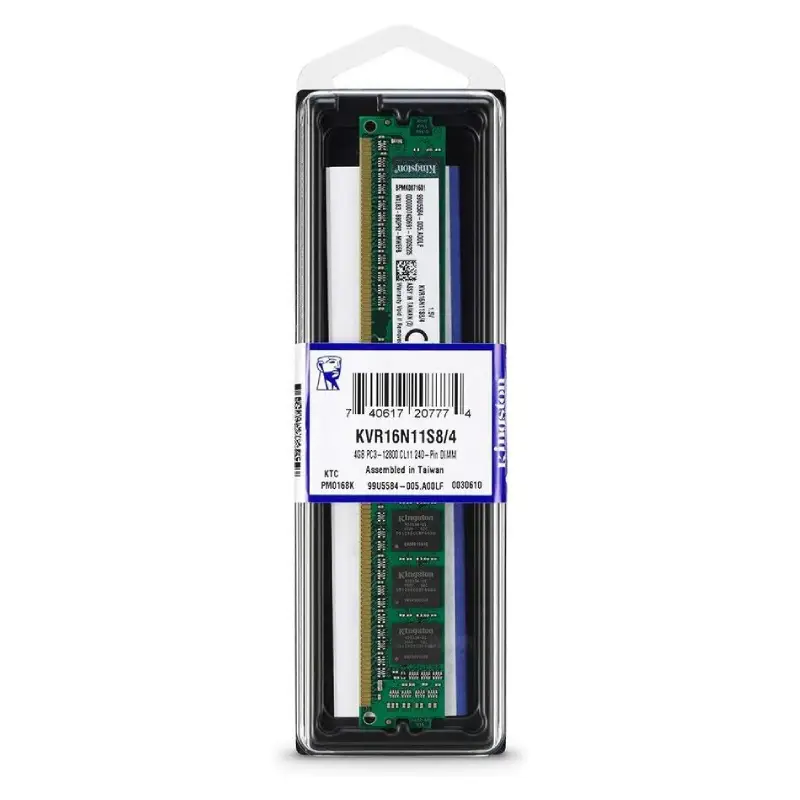

Kingston 4GB 1600MHz/Desktop [ KVR16N11S8/4 ]

4GB module of 1600MHz DDR3 Desktop RAM

DESCRIPTION

This document describes ValueRAM’s 512M x 64-bit (4GB) DDR3-1600 CL11 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V. This 240-pin DIMM uses gold contact fingers

FEATURES of Kingston 4GB 1600MHz/Desktop

• JEDEC standard 1.5V Power Supply
• VDDQ = 1.5V
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6
• Programmable Additive Latency: 0, CL – 2, or CL – 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB : Height 0.740” (18.75mm) or 1.180” (30.00mm)
