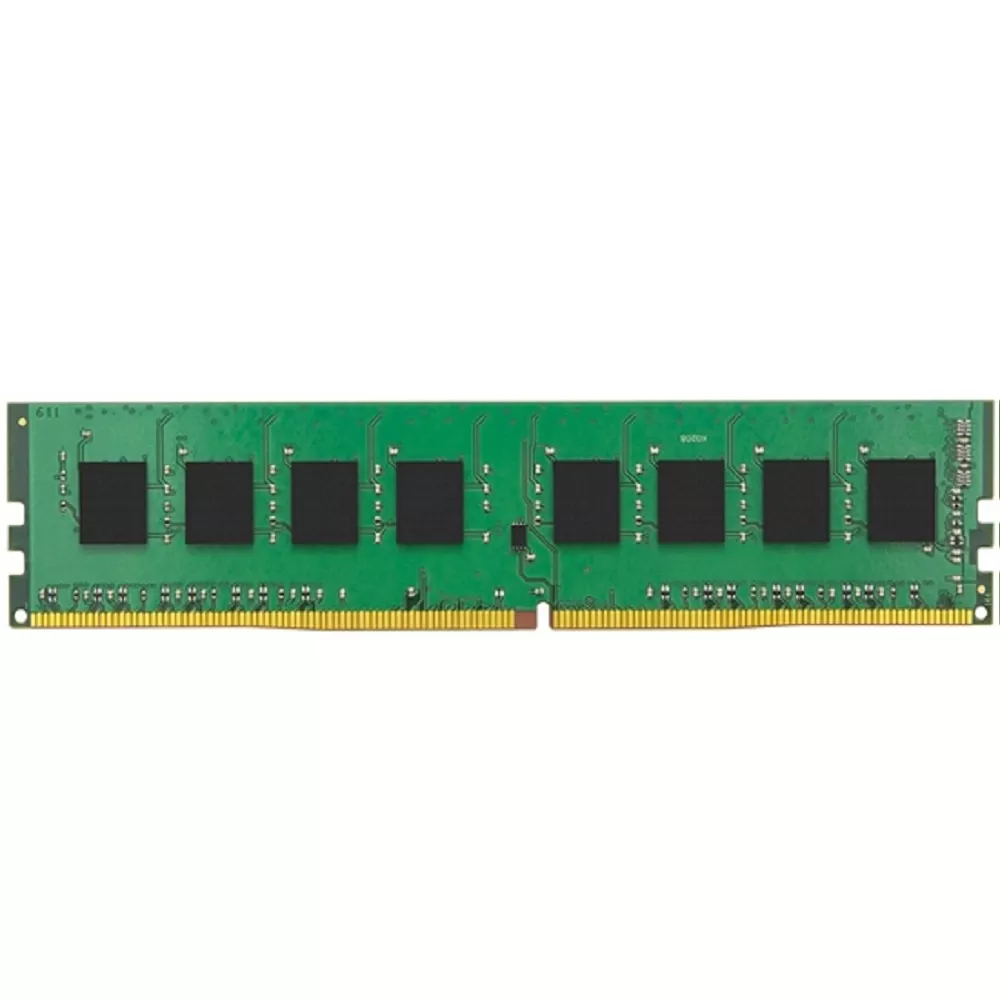

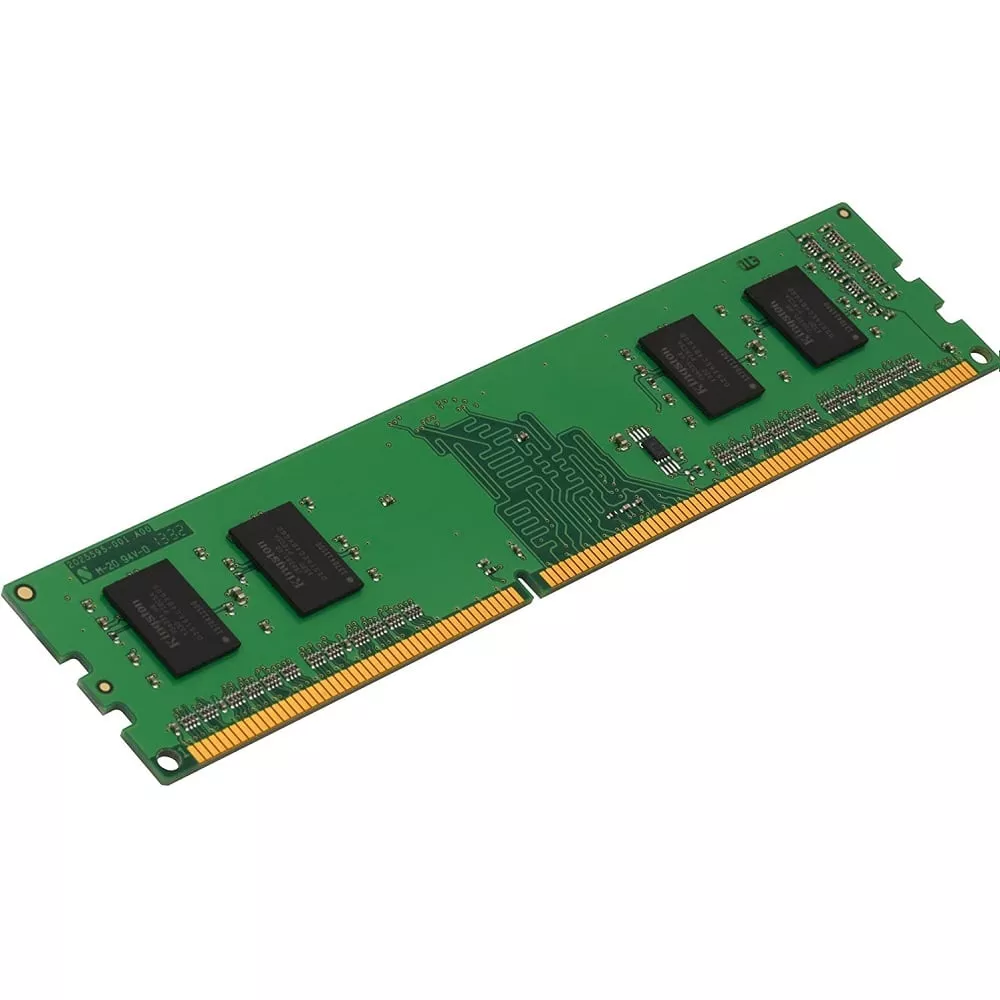

Kingston ValueRam 8GB 3200MT/s DDR4 Memory RAM KVR32N22S6/8

Kingston 8GB 3200MT/s DDR4

Kingston ValueRam 8GB 3200MT/s DDR4 Memory RAM KVR32N22S6/8

More about Kingston 8GB 3200MT/s KVR32N22S6/8

DESCRIPTION SPECIFICATIONS

8GB 1Rx16 1G x 64-Bit PC4-3200

CL22 288-Pin DIMM

FEATURES

This document describes ValueRAM’s KVR32N22S6/8 is a 1G x

64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM),

1Rx16, memory module, based on four 1G x 16-bit FBGA

components. The SPD is programmed to JEDEC standard

latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin

DIMM uses gold contact fingers. The electrical and mechanical

specifications are as follows:

CL(IDD)

Row Cycle Time (tRCmin)

Refresh to Active/Refresh

Command Time (tRFCmin)

Row Active Time (tRASmin)

UL Rating

Operating Temperature

Storage Temperature

22 cycles

45.75ns (min.)

350ns (min.)

32ns (min.)

94 V – 0

0o C to +85o C

-55o C to +100o C

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for

data, strobe, and mask signals

• Low – power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On – die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 8 internal banks; 2 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8

via the mode register set (MRS)

• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free

MODULE DIMENSIONS

All measurements are in millimeters.

(Tolerances on all dimensions are ±0.12 unless otherwise specified)

The product images shown are for illustration purposes only and may not be an exact representation of the product.

Kingston reserves the right to change any information at anytime without notice.
