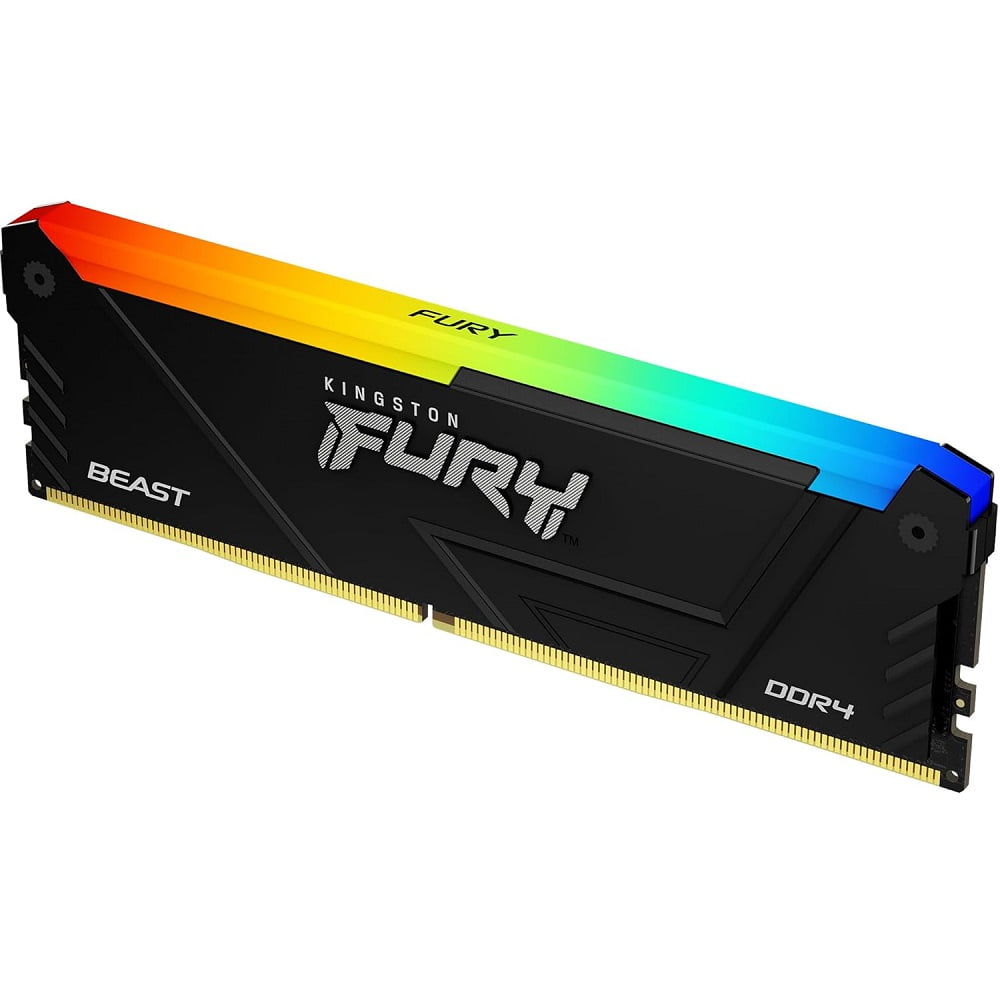

Kingston 16GB Fury Beast DDR4 3200 MT/s RGB Memory RAM CL16 [ KF432C16BB12A/16 ]
More about Kingston 16GB 3200MT/s CL16
DESCRIPTION of Kingston Fury Beast
Kingston FURY KF432C16BB12A/16 is a 2G x 64-bit (16GB)
DDR4-3200 CL16 SDRAM (Synchronous DRAM) 2Rx8, memory
module, based on sixteen 1G x 8-bit FBGA components per module.
Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0.
Each module has been tested to run at
DDR4-3200 at a low latency timing of 16-18-18 at 1.35V.
The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V.

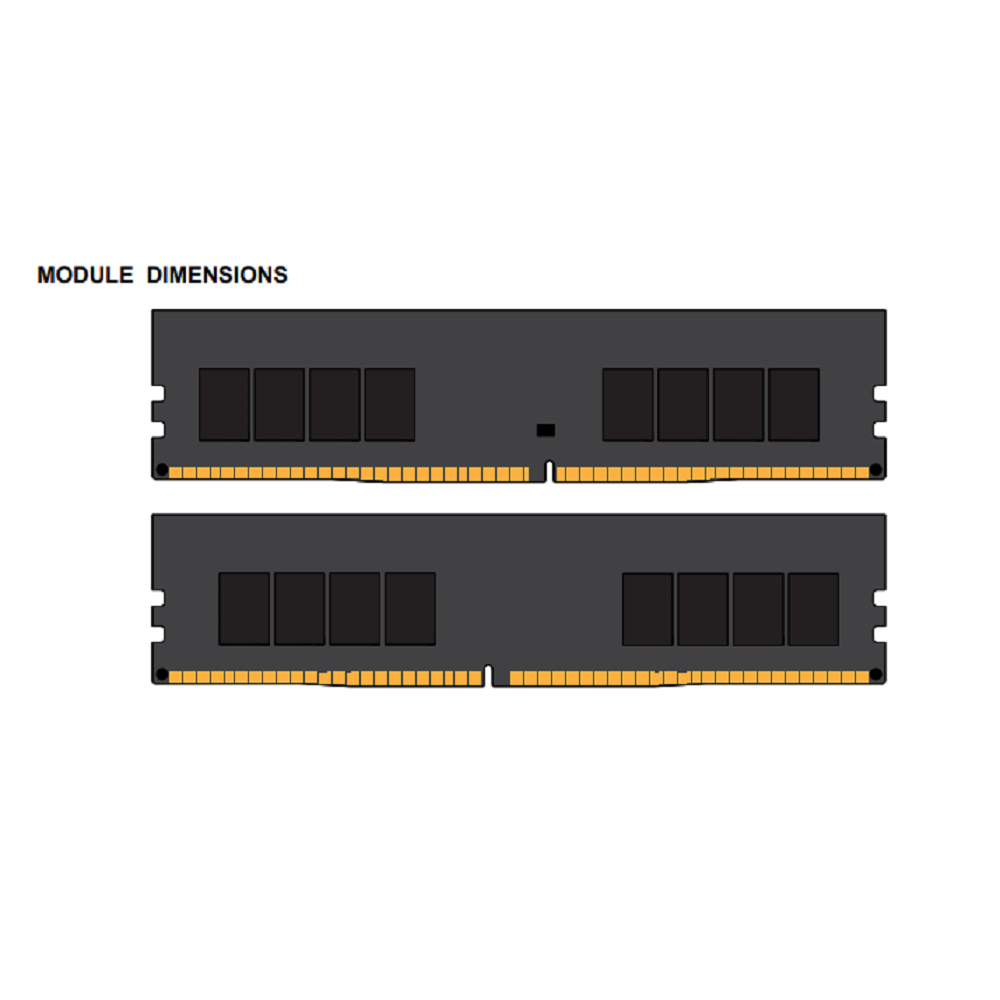

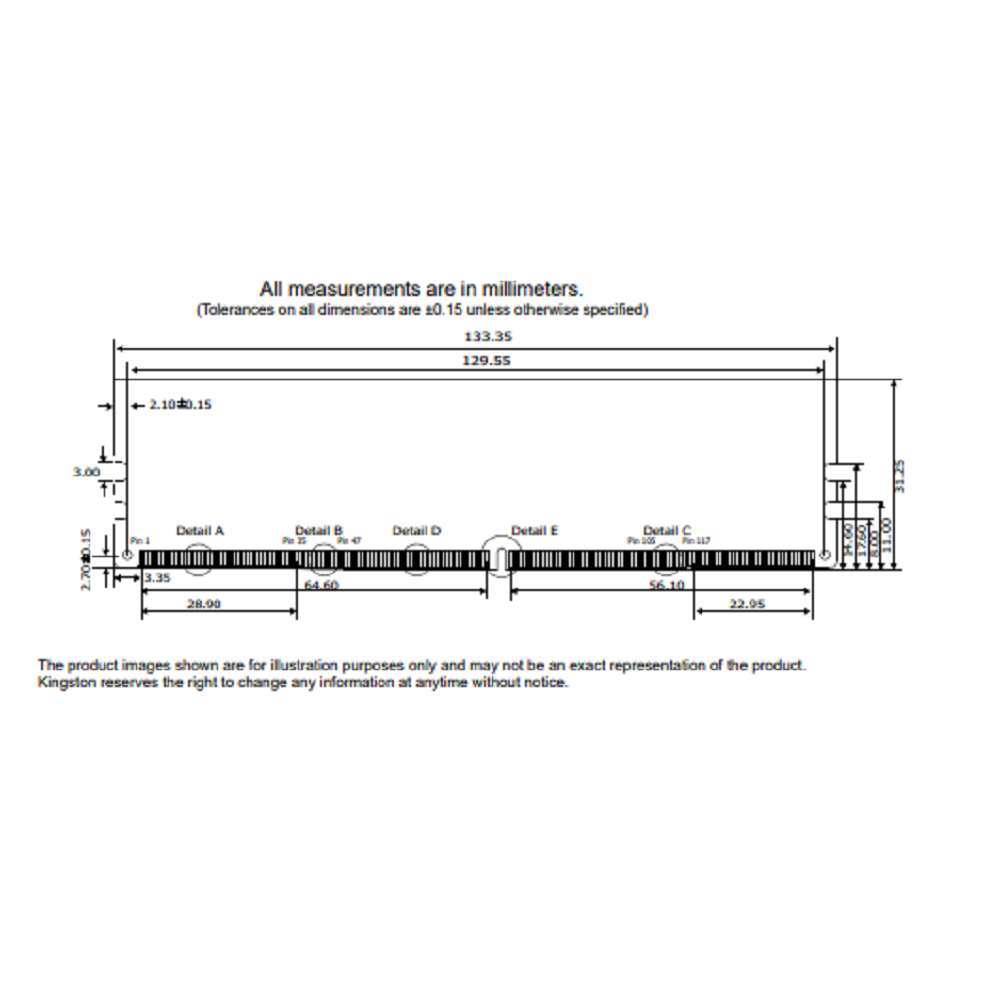

Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FEATURE of Kingston 16GB 3200MT/s CL16
- Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
On-Die termination (ODT)
16 internal banks; 4 groups of 4 banks each
Bi-Directional Differential Data Strobe
8 bit pre-fetch
Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

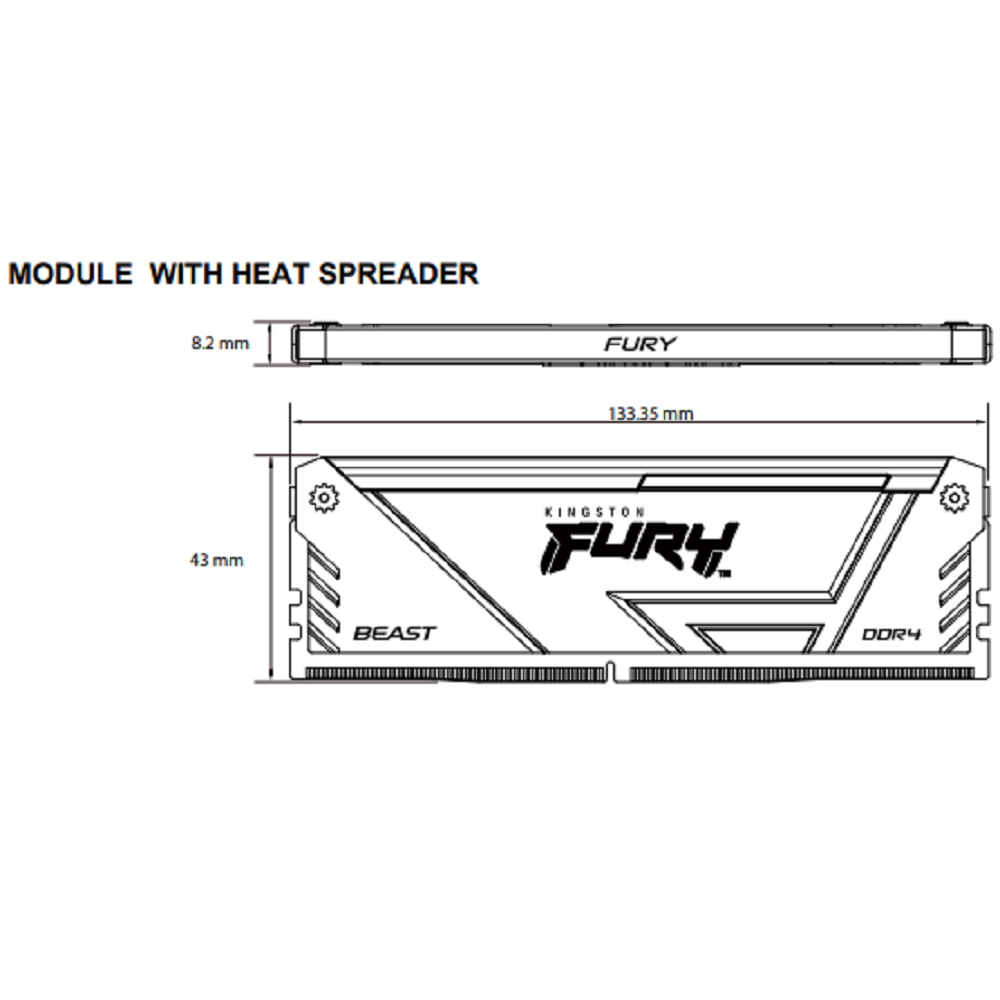

Height 1.69” (43mm), w/heatsink
Kingston FURY Infrared Sync Technology
RGB effects stay synced thanks to Kingston’s patented infrared sync technology.
Our engineers have predefined Intel Extreme Memory Profiles designed to maximize the performance of our memory modules reaching speeds up to 3733MHz.
