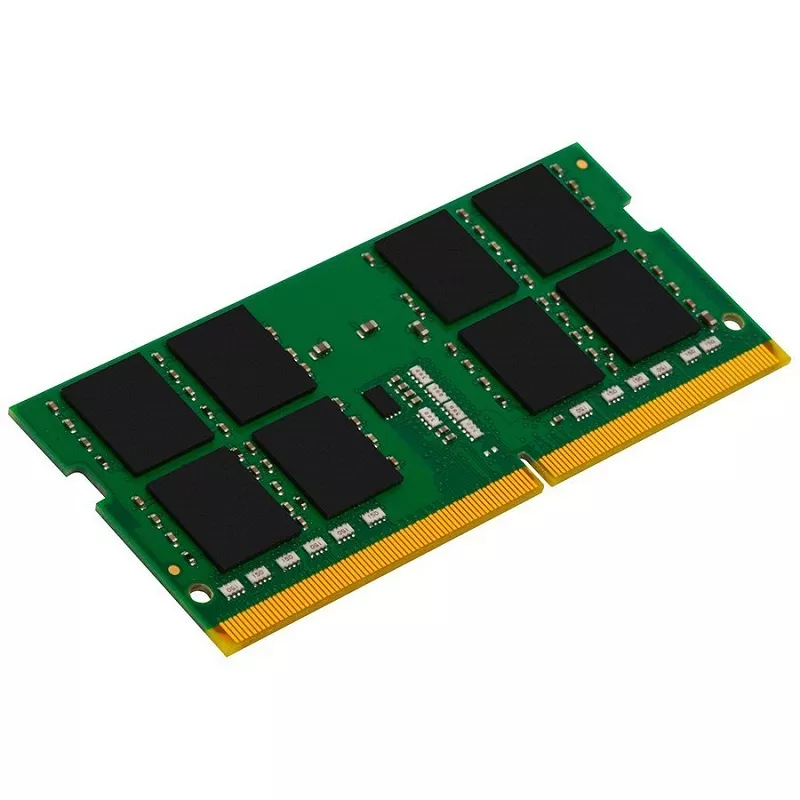

Kingston 16GB NoteBook RAM PC4-3200 [ KVR32S22D8-16 ]

Kingston 16GB NoteBook RAM PC4-3200 [ KVR32S22D8-16 ]

More about Kingston 16GB DDR4 3200Hz

DESCRIPTION

This document describes ValueRAM’s KVR32S22S6/8 as a 1G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

SPECIFICATIONS

CL(IDD)

22 cycles

Row Cycle Time (tRCmin)

45.75ns(min.)

Refresh to Active/Refresh // Command Time (tRFCmin)

350ns(min.)

Row Active Time (tRASmin)

32ns(min.)

UL Rating

94 V – 0

Operating Temperature

0o C to +85o C

Storage Temperature

-55o C to +100o C

FEATURES of Kingston 16GB DDR4 3200Hz

Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Dual-rank
On-board I2 serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
PCB: Height 1.18” (30.00mm)
RoHS Compliant and Halogen-Free
