New

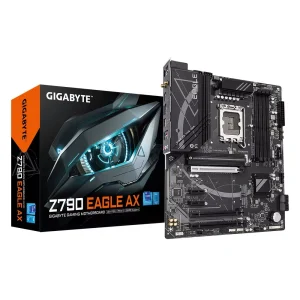

Gigabyte Z790 EAGLE AX WIFI Motherboard Z790-EAGLE-AX
175.00 JOD
In stock
Related products
Gigabyte GeForce RTX 5060 WINDFORCE OC 8GB Graphics Card GDDR7 GV-N5060WF2OC-8GD
SKU:
0400311
| Brand | GIGABYTE |
|---|---|
| GPU Card Number | GeForce RTX™ 5060 |
| GPU Card Size | L=199 W=116 H=40 |
| GPU Core Clock | 2512 MHz (Reference card : 2497 MHz) |
| GPU CUDA Cores | 3840 |
| GPU Memory Bus | 128 bit |
| GPU Memory Clock | 28 Gbps |
| GPU Memory Size | 8 GB |
| GPU Memory Type | GDDR7 |
| GPU Output | DP (DisplayPort 2.1b), HDMI |
| GPU Power Connectors | 1 x 8-Pin |
| GPU Recommended PSU | 550W |
Gigabyte GeForce RTX 5060 WINDFORCE Max OC 8GB Graphics Card GDDR7 GV-N5060WF2MAX OC-8GD
SKU:
0400310
| Brand | GIGABYTE |
|---|---|
| GPU Card Number | GeForce RTX™ 5060 |
| GPU Card Size | L=199 W=116 H=40 |
| GPU Core Clock | 2512 MHz (Reference card : 2497 MHz) |
| GPU CUDA Cores | 3840 |
| GPU Memory Bus | 128 bit |
| GPU Memory Clock | 28 Gbps |
| GPU Memory Size | 8 GB |
| GPU Memory Type | GDDR7 |
| GPU Output | DP (DisplayPort 2.1b), HDMI |
| GPU Power Connectors | 1 x 8-Pin |
| GPU Recommended PSU | 550W |
Gigabyte GeForce RTX 5060 Ti AERO OC 8G [ GV-N506TAERO OC-8GD ]
SKU:
0400148
| Brand | GIGABYTE |
|---|---|
| GPU Card Number | GeForce RTX™ 5060 Ti |
| GPU Card Size | L=281 // W=117 // H=40 mm |
| GPU Core Clock | 2647 MHz (Reference card :2572 MHz) |
| GPU CUDA Cores | 4608 |
| GPU Memory Bus | 128 bit |
| GPU Memory Clock | 28 Gbps |
| GPU Memory Size | 8 GB |
| GPU Memory Type | GDDR7 |
| GPU Output | DP (DisplayPort 2.1b), HDMI 2.1b |
| GPU Power Connectors | 1 x 8-Pin |
| GPU Recommended PSU | 650W |
Description

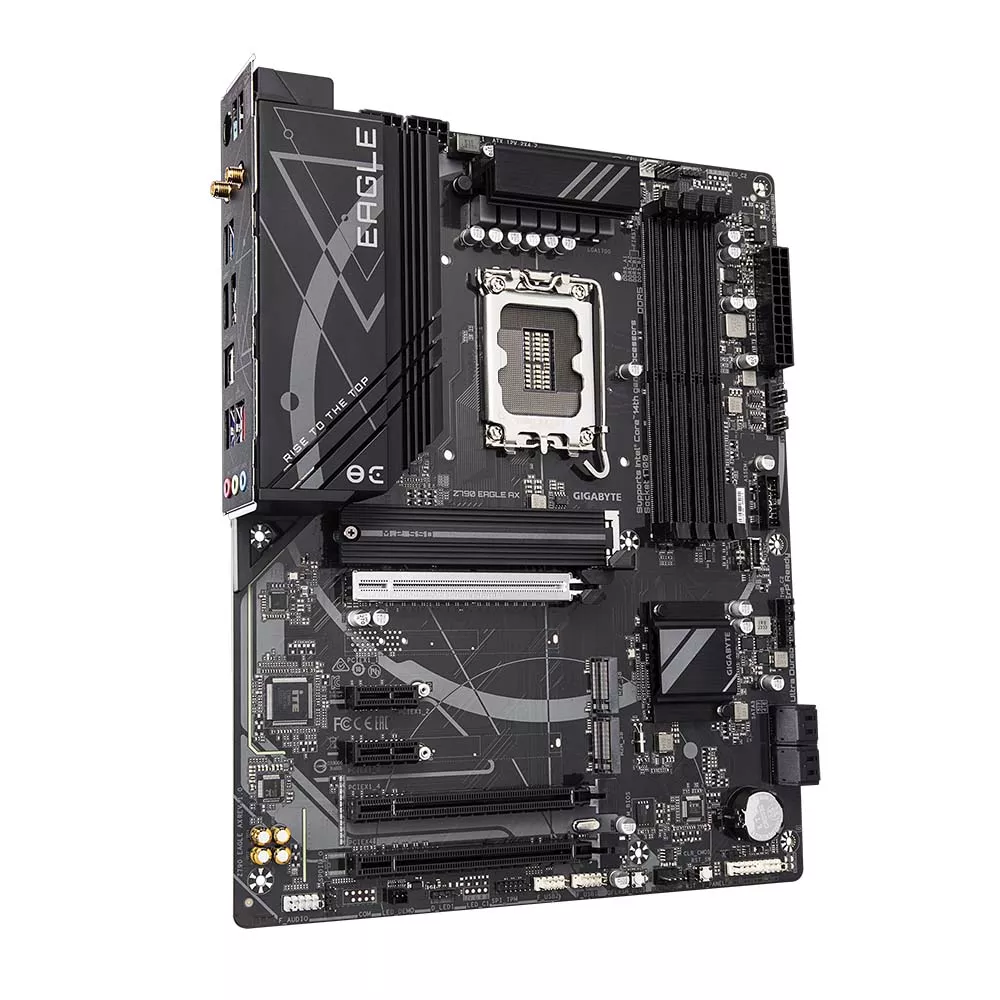

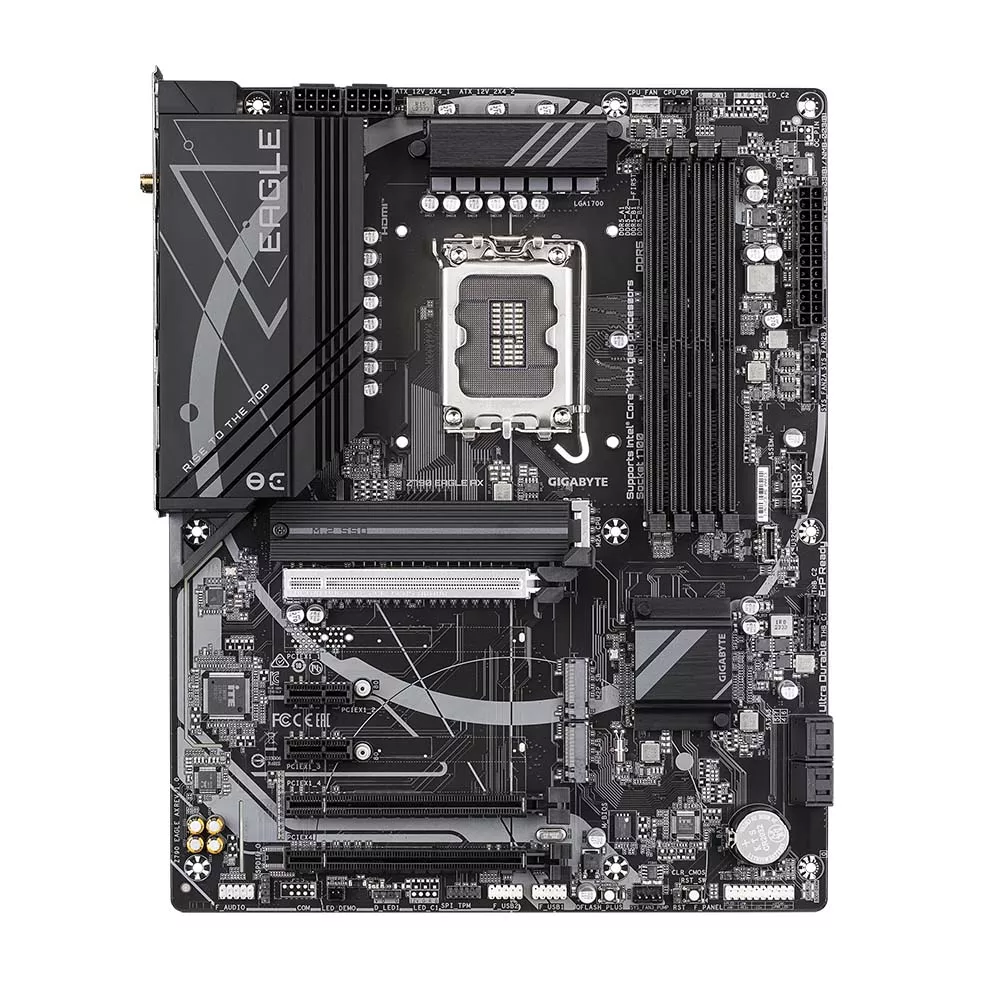

Gigabyte Z790 EAGLE AX WIFI Motherboard Z790-EAGLE-AX
More about Gigabyte Z790 Eagle AX
Durable Performance Z790
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital VRM Design Z790
The best VRM design ever built with the highest quality components.
Future Connectivity Z790
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
PCIe 5.0 / 4.0 Hardware Design
Featuring PCIe 5.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0/ 4.0 devices to provide the superior performance.
Hi-Fi Audio High-End Audio Capacitors
Specification of Z790 Eagle AX
Category |
Details |
|---|---|
CPU Support |
LGA1700 socket – Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors |
Cache |
L3 cache varies with CPU (see CPU Support List) |
Chipset |
Intel® Z790 Express Chipset |
Memory (i9/i7) |
DDR5 up to 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200 / 4800 / 4400 MT/s |
Memory (i5/i3/12th Gen) |
DDR5 4800 / 4400 MT/s |
Memory Slots |
4 × DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM), Dual channel |
Memory Features |
ECC Un‑buffered DIMM (non‑ECC mode), Non‑ECC DIMM 1Rx8/2Rx8/1Rx16, XMP support |
Onboard Graphics |
Intel® HD Graphics (CPU dependent) |
Video Outputs |
1 × HDMI 2.1 (4096×2160 @ 60 Hz, HDCP 2.3) 1 × DisplayPort 1.2 (4096×2304 @ 60 Hz, HDCP 2.3) |
Audio |
Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1‑channel, S/PDIF Out |
LAN |
Realtek® 2.5GbE LAN (2.5/1/0.1 Gbps) |
Wireless |
Intel® Wi‑Fi 6E AX211 (PCB rev. 1.0) or Realtek® Wi‑Fi 6E RTL8852CE (PCB rev. 1.1), Bluetooth 5.3 |
Expansion Slots |
CPU: 1 × PCIe 5.0 x16 Chipset: 1 × PCIe 4.0 x4, 1 × PCIe 3.0 x1, 2 × PCIe 3.0 x1 |
Storage Interfaces |
CPU: 1 × M.2 PCIe 4.0 x4/x2 (22110/2280) Chipset: 2 × M.2 PCIe 4.0 x4/x2 (2280), 1 × M.2 SATA/PCIe 4.0 x4/x2 (2280), 4 × SATA 6Gb/s RAID 0/1/5/10 support |
USB (Back Panel) |
|
USB (Internal) |
1 × USB Type‑C 3.2 Gen 1 header, 1 × USB 3.2 Gen 1 header, 2 × USB 2.0 headers, 4 × USB 2.0 via hub |
Internal I/O |
24‑pin ATX, 2 × 8‑pin ATX 12V, CPU/system fan headers, LED strip headers, M.2 sockets, SATA connectors, TPM header, reset/Q‑Flash Plus buttons, Clear CMOS jumper |
Back Panel I/O |
PS/2 port, USB ports (as above), HDMI, DisplayPort, RJ‑45, 2 × SMA antenna connectors, 3 × audio jacks |
Controller |
iTE® I/O Controller Chip |
Monitoring |
Voltage, temperature, fan speed, water cooling flow, fan fail warning, fan/pump speed control |
BIOS |
256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features |
GIGABYTE Control Center, Q‑Flash, Q‑Flash Plus, Smart Backup |
Bundled Software |
Norton® Internet Security (OEM), LAN bandwidth management software |
OS Support |
Windows 11 64‑bit, Windows 10 64‑bit |
Form Factor |
ATX, 30.5 cm × 24.4 cm |
For more information about this product visit official website of Gigabyte
Gigabyte
For more related products visit us at our website
PCCircle
You can buy Gigabyte products from our store at Amman Jordan PC Circle, or you can try out our Fast Delivery Service
Additional information
| Brand | GIGABYTE |
|---|---|
| MB CPU Socket | LGA 1700 For 12th/13th/14th Intel Gen |
| MB Form Factors | ATX |
| MB Ram Slots | 4 Slots DDR5 |
| MB Series | Z790 |
| MB Wi-Fi & Bluetooth | Bluetooth V5.2, Wi-Fi 6 (802.11ax) |
