New

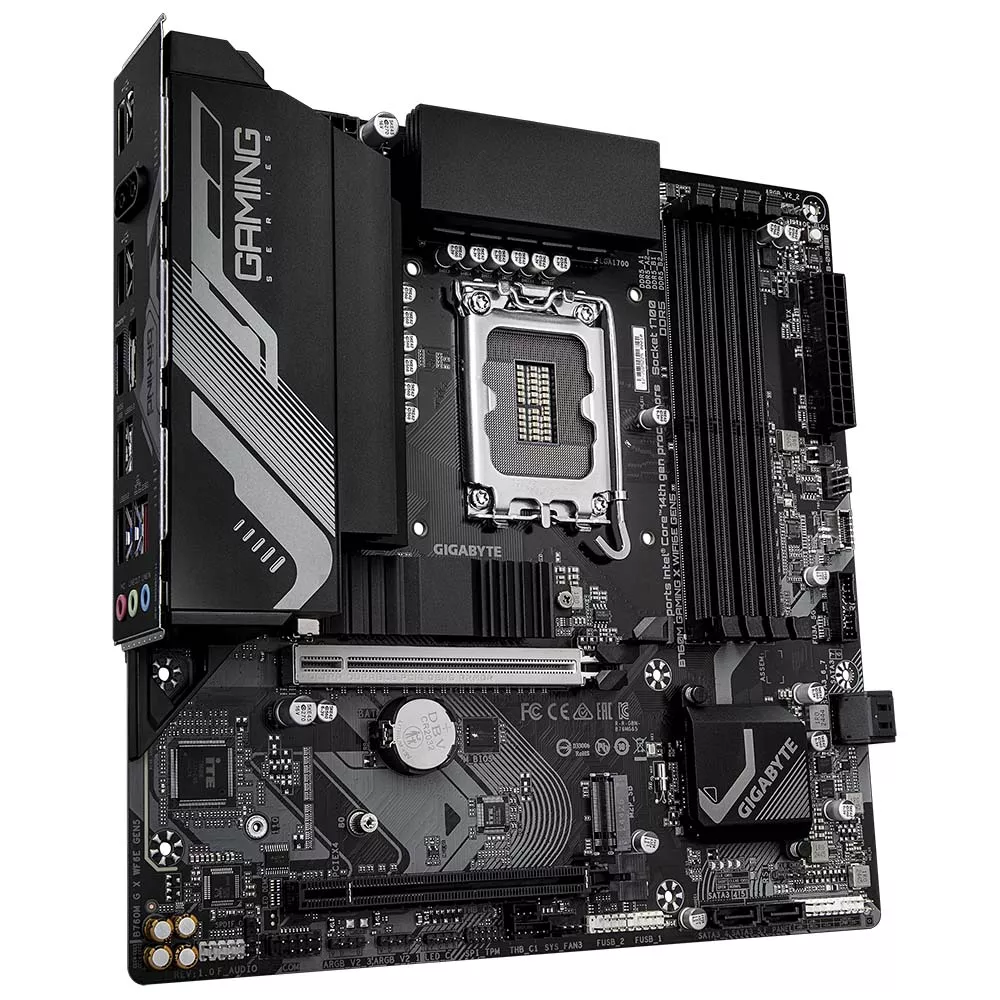

Gigabyte B760M GAMING X WF6E GEN5 Motherboard B760M-G-X-WF6E-GEN5
139.00 JOD
In stock
Related products
Gigabyte GeForce RTX 5060 WINDFORCE OC 8GB Graphics Card GDDR7 GV-N5060WF2OC-8GD
SKU:
0400311
| Brand | GIGABYTE |
|---|---|
| GPU Card Number | GeForce RTX™ 5060 |
| GPU Card Size | L=199 W=116 H=40 |
| GPU Core Clock | 2512 MHz (Reference card : 2497 MHz) |
| GPU CUDA Cores | 3840 |
| GPU Memory Bus | 128 bit |
| GPU Memory Clock | 28 Gbps |
| GPU Memory Size | 8 GB |
| GPU Memory Type | GDDR7 |
| GPU Output | DP (DisplayPort 2.1b), HDMI |
| GPU Power Connectors | 1 x 8-Pin |
| GPU Recommended PSU | 550W |
Gigabyte GeForce RTX 5060 WINDFORCE Max OC 8GB Graphics Card GDDR7 GV-N5060WF2MAX OC-8GD
SKU:
0400310
| Brand | GIGABYTE |
|---|---|
| GPU Card Number | GeForce RTX™ 5060 |
| GPU Card Size | L=199 W=116 H=40 |
| GPU Core Clock | 2512 MHz (Reference card : 2497 MHz) |
| GPU CUDA Cores | 3840 |
| GPU Memory Bus | 128 bit |
| GPU Memory Clock | 28 Gbps |
| GPU Memory Size | 8 GB |
| GPU Memory Type | GDDR7 |
| GPU Output | DP (DisplayPort 2.1b), HDMI |
| GPU Power Connectors | 1 x 8-Pin |
| GPU Recommended PSU | 550W |
Gigabyte GeForce RTX 5060 Ti AERO OC 8G [ GV-N506TAERO OC-8GD ]
SKU:
0400148
| Brand | GIGABYTE |
|---|---|
| GPU Card Number | GeForce RTX™ 5060 Ti |
| GPU Card Size | L=281 // W=117 // H=40 mm |
| GPU Core Clock | 2647 MHz (Reference card :2572 MHz) |
| GPU CUDA Cores | 4608 |
| GPU Memory Bus | 128 bit |
| GPU Memory Clock | 28 Gbps |
| GPU Memory Size | 8 GB |
| GPU Memory Type | GDDR7 |
| GPU Output | DP (DisplayPort 2.1b), HDMI 2.1b |
| GPU Power Connectors | 1 x 8-Pin |
| GPU Recommended PSU | 650W |
Description
Gigabyte B760M GAMING X WF6E GEN5 Motherboard B760M-G-X-WF6E-GEN5
More about Gigabyte B760M Gaming X
Express to PCIE5 Performance
The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.
Fully Covered Thermal Design
High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.
Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that’s not only powerful but also built for longevity and reliability. GIGABYTE motherboards are engineered to endure and excel.
Unlock DDR5 Performance
GIGABYTE is offering a tested and proven platform with extreme memory performance boost.
All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
Specification of Gigabyte B760M Gaming X
Category |
Details |
|---|---|
CPU Support |
LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors (refer to Gigabyte’s website for latest CPU support list). L3 cache varies with CPU. |
Chipset |
Intel® B760 Express Chipset |
Memory Support |
DDR5: 7600(O.C.), 7400(O.C.), 7200(O.C.), 7000(O.C.), 6800(O.C.), 6600(O.C.), 6400(O.C.), 6200(O.C.), 6000(O.C.), 5800(O.C.), 5600(O.C.), 5400(O.C.), 5200(O.C.), 4800, 4000 MT/s |
Memory Slots |
4 × DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) |
Memory Features |
Dual channel architecture; ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode); Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16; Supports Extreme Memory Profile (XMP). Note: CPU/memory config may affect supported types, speeds, and module count. |
Onboard Graphics |
Intel® HD Graphics support: • 1 × HDMI (4096×2160@60 Hz, HDMI 2.1, HDCP 2.3, native TMDS) • 1 × DisplayPort (4096×2304@60 Hz, DP 1.2, HDCP 2.3). Graphics specs vary by CPU. |
Audio |
Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel (configurable via software). Supports S/PDIF Out. |
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless Communication |
Intel® Wi-Fi 6E AX210: WiFi a/b/g/n/ac/ax (2.4/5/6 GHz bands), Bluetooth 5.3, 11ax 160 MHz standard. (Actual data rate may vary.) |
Expansion Slots |
CPU: 1 × PCIe x16 (PCIe 5.0, runs at x16, supports GPU or NVMe SSD only). Chipset: 1 × PCIe x16 (PCIe 3.0, runs at x4). |
Storage Interfaces |
CPU: 1 × M.2 (Socket 3, M key, 2280, PCIe 4.0 x4/x2, M2A_CPU). Chipset: 1 × M.2 (Socket 3, M key, 22110/2280, PCIe 4.0 x4/x2, M2P_SB). 4 × SATA 6Gb/s connectors. Supports RAID 0/1/5/10 for SATA devices. |
USB (Chipset) |
• 1 × USB Type-C® (internal header, USB 3.2 Gen 2) • 5 × USB 3.2 Gen 1 (3 back panel, 2 internal header) • 1 × USB 2.0/1.1 (back panel) |
USB (Chipset + Hubs) |
8 × USB 2.0/1.1 (4 back panel, 4 internal headers) |
Internal I/O Connectors |
|
Back Panel Connectors |
3 × USB 3.2 Gen 1, 5 × USB 2.0/1.1, 2 × antenna connectors (2T2R), 1 × HDMI, 1 × DisplayPort, 1 × RJ-45, 3 × audio jacks. (Support may vary by CPU.) |
I/O Controller |
iTE® I/O Controller Chip |
H/W Monitoring |
Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control (depends on installed fan). |
BIOS |
1 × 256 Mbit flash, licensed AMI UEFI BIOS. Supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. |
Unique Features |
GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup. |
Bundled Software |
Norton® Internet Security (OEM version); LAN bandwidth management software (service discontinued due to contract termination). |
Operating System |
Windows 11 64-bit, Windows 10 64-bit |
Form Factor |
Micro ATX, 24.4 cm × 24.4 cm |
For more information about this product visit official website of Gigabyte
Gigabyte
For more related products visit us at our website
PCCircle
You can buy Gigabyte products from our store at Amman Jordan PC Circle, or you can try out our Fast Delivery Service
Additional information
| Brand | GIGABYTE |
|---|---|
| MB CPU Socket | LGA 1700 For 12th/13th/14th Intel Gen |
| MB Form Factors | Micro ATX |
| MB Ram Slots | 4 Slots DDR5 |
| MB Series | B760M |
| MB Wi-Fi & Bluetooth | Bluetooth V5.2, Wi-Fi 6E (802.11ax) |
