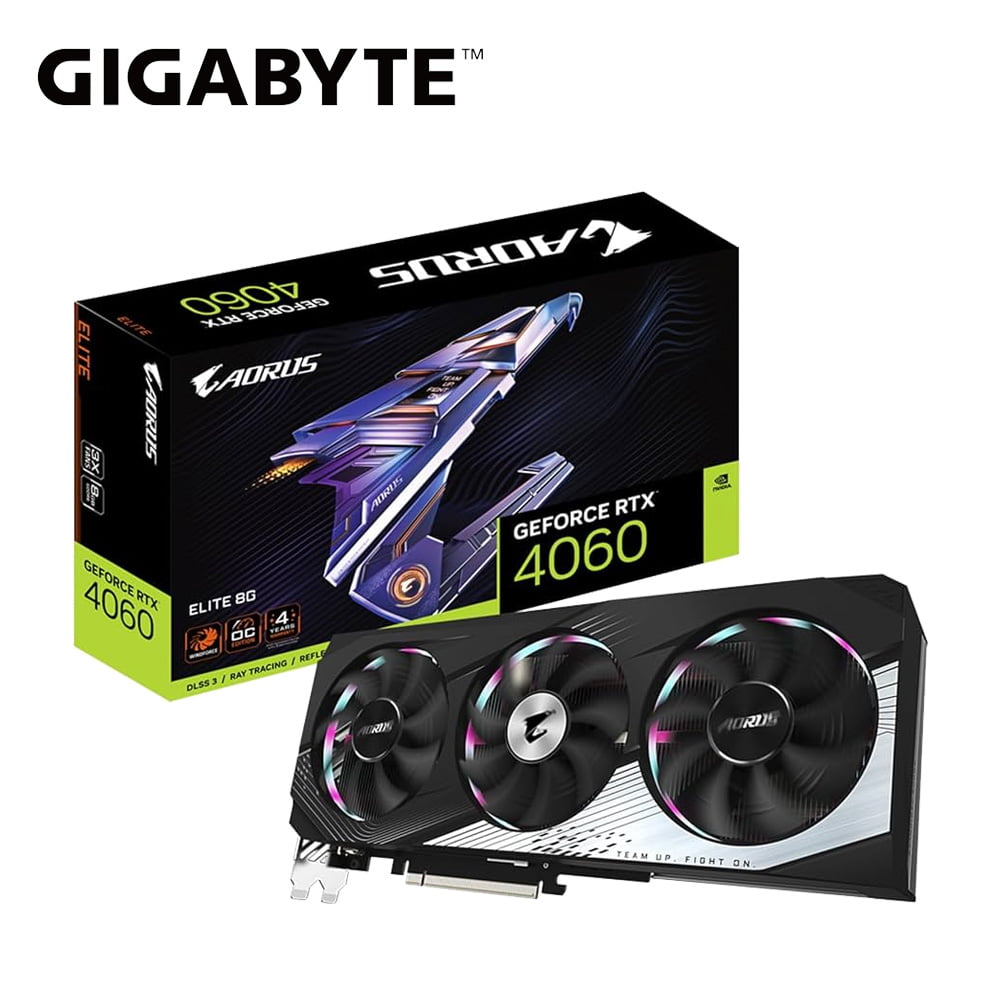

Gigabyte Aorus GeForce RTX 4060 ELITE 8G Graphic Card GV-N4060AORUS-8GD
More about Gigabyte AORUS 4060 ELITE
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4060
Integrated with 8GB GDDR6 128bit memory interface
WINDFORCE cooling system
RGB Fusion
Dual BIOS
Protection metal back plate
The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3
New Streaming Multiprocessors
Up to 2x performance and power efficiency
Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3
vs. brute-force rendering
Third-Gen RT Cores
Up to 2x ray tracing performance
WINDFORCE COOLING SYSTEM
THE EVOLVING POWER OF WINDFORCE

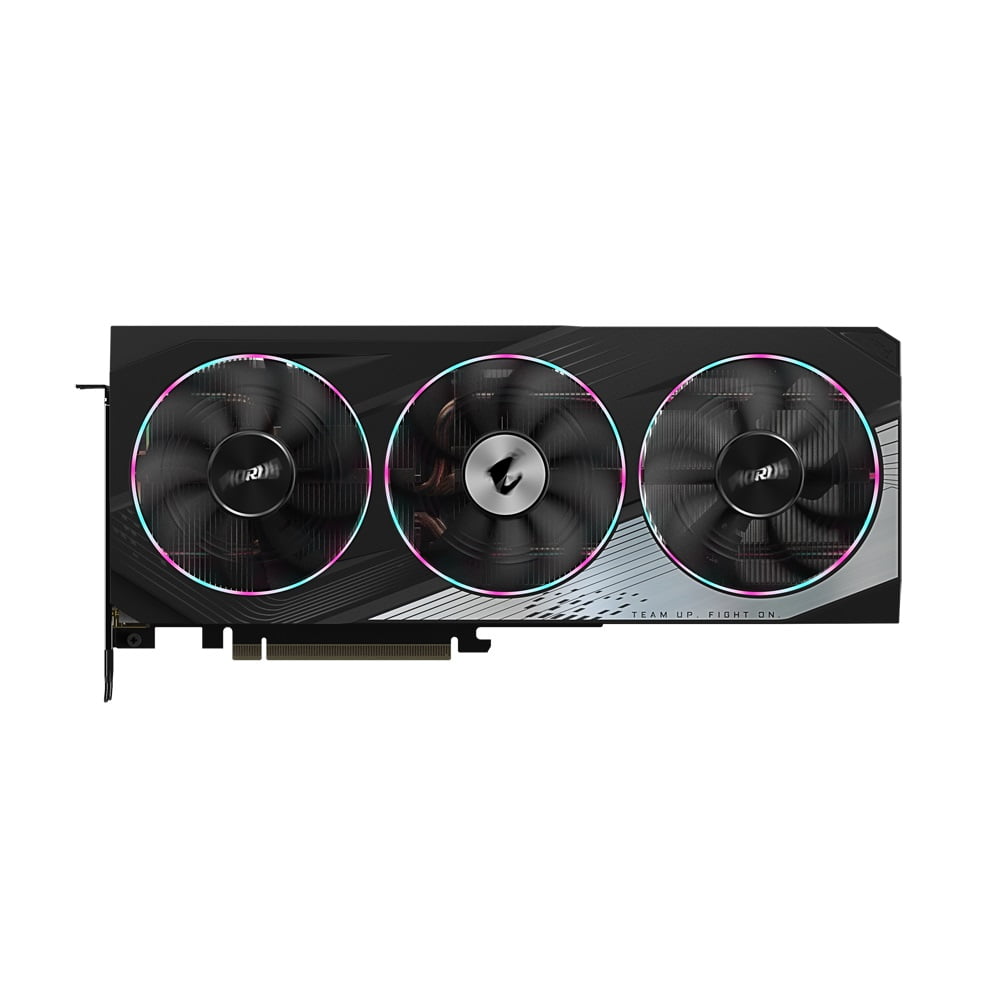

The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, composite copper heat pipes that directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
THE OTHER WAY AROUND.
ALTERNATE SPINNING
Each fan rotates in different direction to the adjacent one. This special mechanism reduces turbulence and increases air pressure by minimizing the offset occurred between airflows.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
MAKE ROOM FOR THE AIRFLOW.
SCREEN COOLING
To create more space for airflow to pass through, the heatsink extends over the PCB and therefore increase the ventilation. This Screen Cooling design provides better heat dissipation.
Specification of Gigabyte AORUS 4060 ELITE
Graphics Processing
GeForce RTX™ 4060Core Clock
2640 MHz (Reference card: 2460 MHz)CUDA® Cores
3072Memory Clock
17 GbpsMemory Size
8 GBMemory Type
GDDR6Memory Bus
128 bitCard Bus
PCI-E 4.0Digital max resolution
7680×4320Multi-view
4Card size
L=299 W=128 H=56 mmPCB Form
ATXDirectX
12 UltimateOpenGL
4.6Recommended PSU
450WPower Connectors

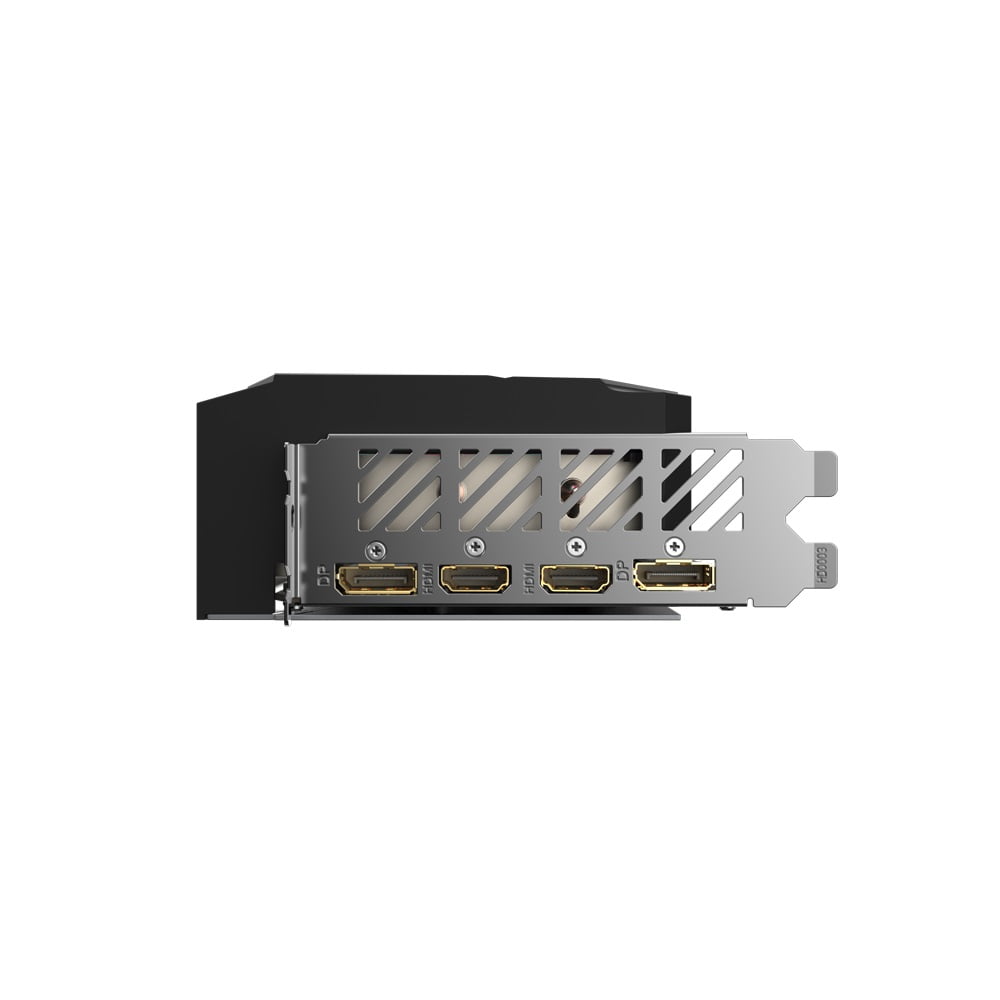

8 pin*1Output
DisplayPort 1.4a*2
HDMI 2.1a*2
Accessories
- 1. Quick guide
2. AORUS Metal sticker
