Gigabyte AMD Radeon RX 9070-XT GAMING OC 16G – GV-R9070XTGAMING OC-16GD

Gigabyte AMD Radeon RX 9070-XT GAMING OC 16G – GV-R9070XTGAMING OC-16GD

Gigabyte AMD RX 9070-XT

Most features

•  Powered by Radeon RX 9070 XT
•  Integrated with 16GB GDDR6 256bit memory interface

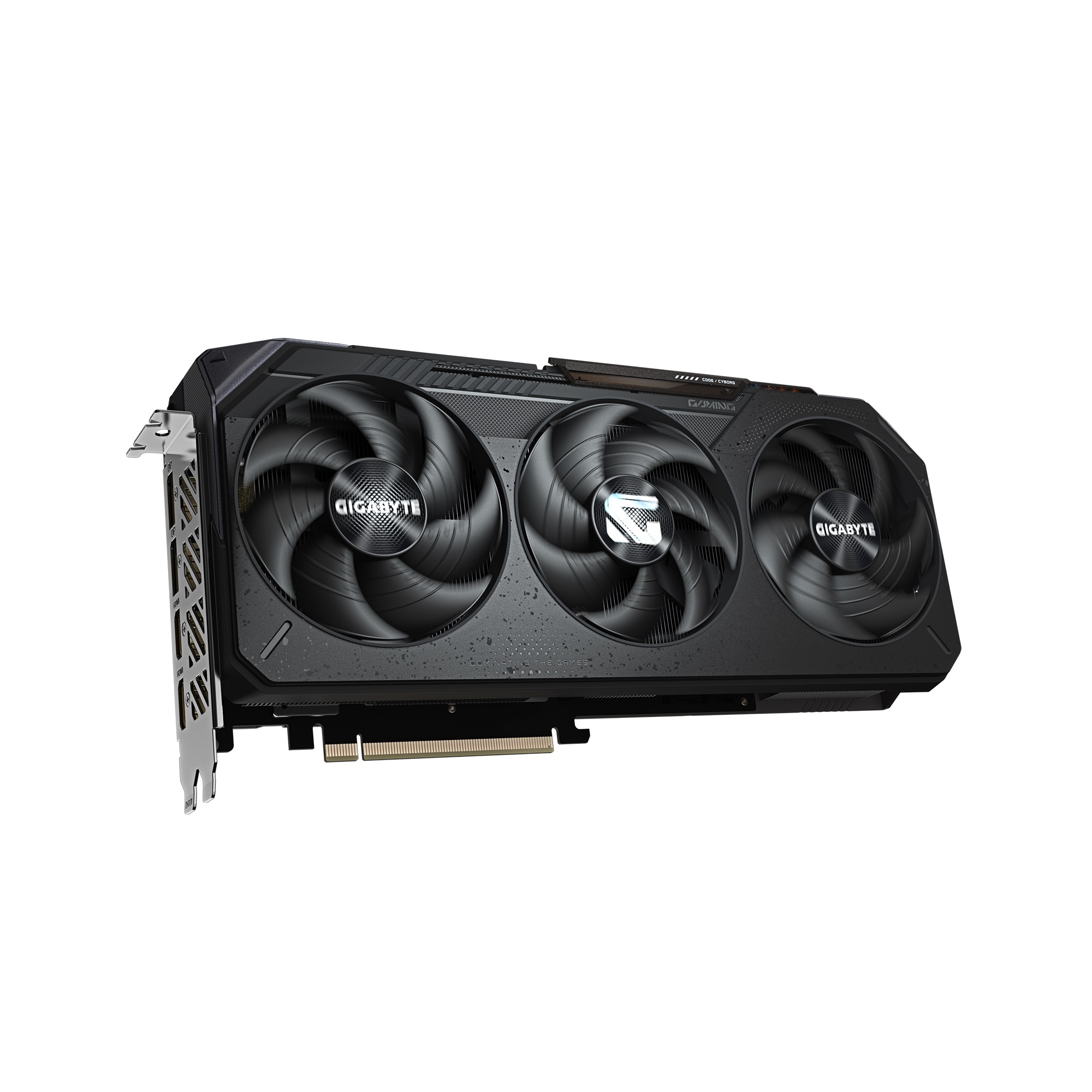

•  WINDFORCE cooling system
  •  Hawk fan
  •  Server-grade Thermal conductive gel
•  RGB Lighting
•  Dual BIOS (Performance / Silent)
•  Reinforced structure
• More GPUs

ASTONISHING EXTERIOR DESIGN

The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.

SLIDING SIDE PLATE

Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.

This animation is for illustrative purposes only. Actual product appearance may vary.

REINFORCED STRUCTURE

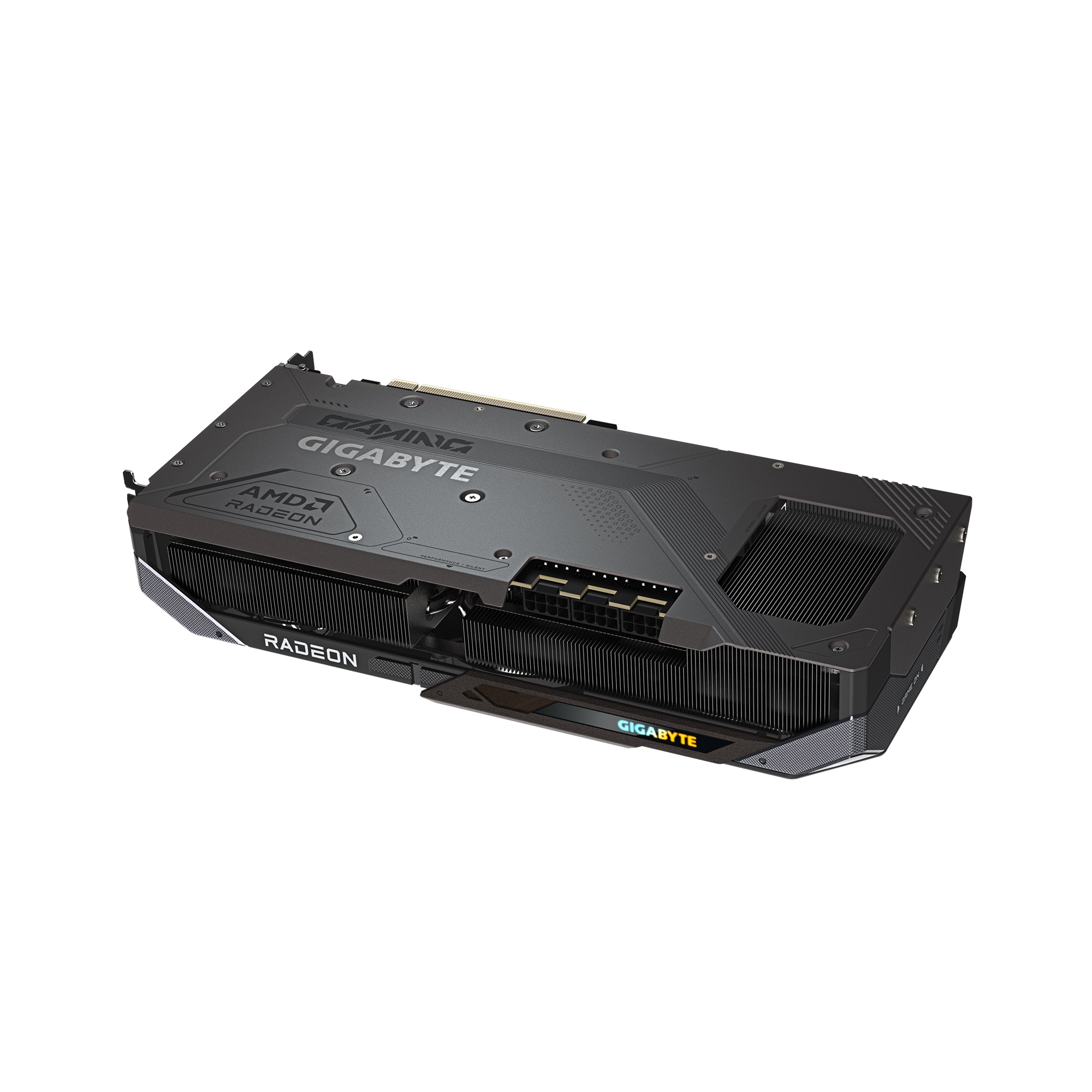

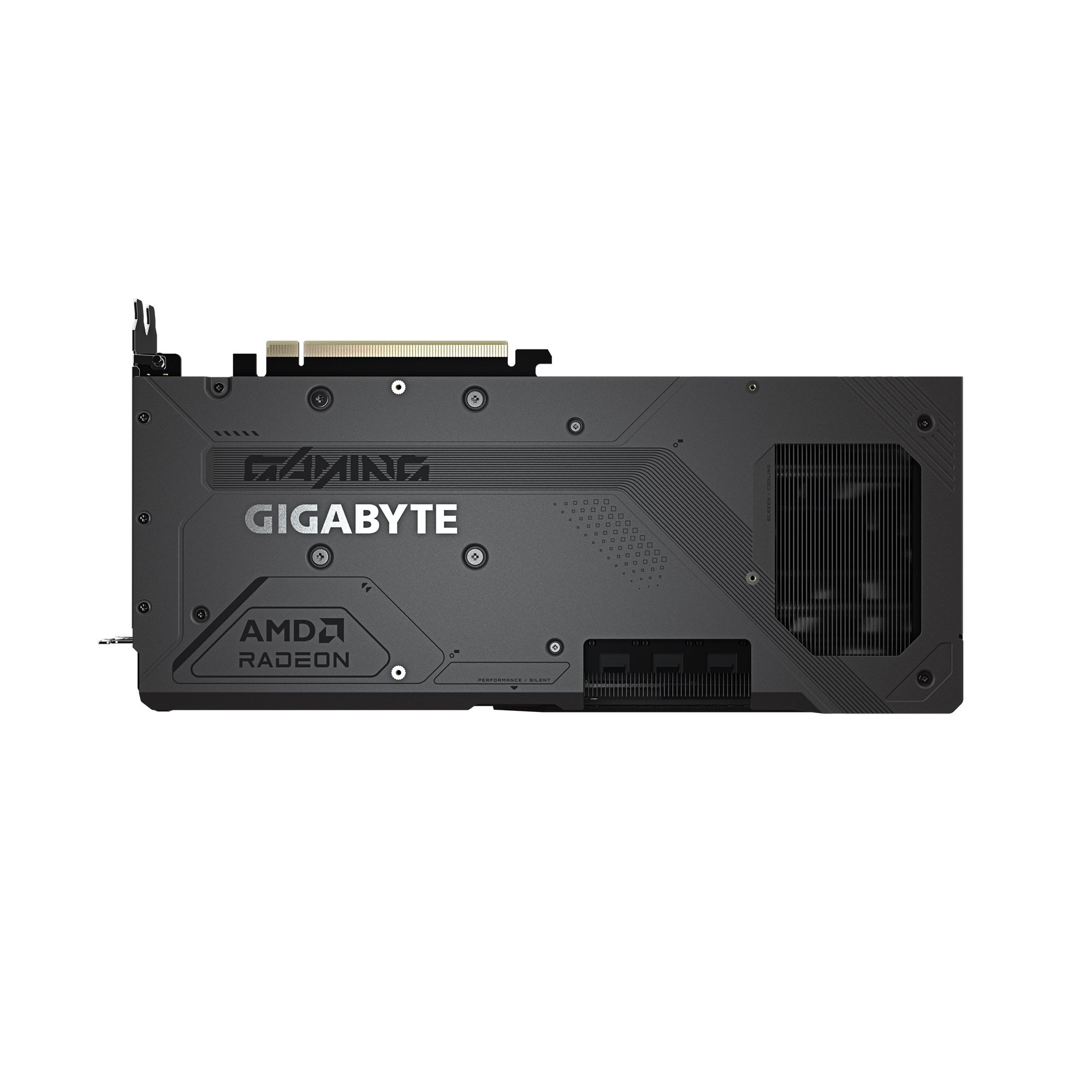

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

POWER THROUGH THE GAME

GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

Specifications

Graphics Processing
Radeon™ RX 9070 XT
Core Clock
Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz)
Game Clock* : up to 2520 MHz (Reference card: 2400 MHz)
Stream Processors
4096
Memory Clock
20 Gbps

Memory Size
16GB
Memory Type
GDDR6
Memory Bus
256 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680×4320
Multi-view
4
Card size
L=288 W=132 H=56 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
4.6
Recommended PSU
850W
Power Connectors
8 pin*3

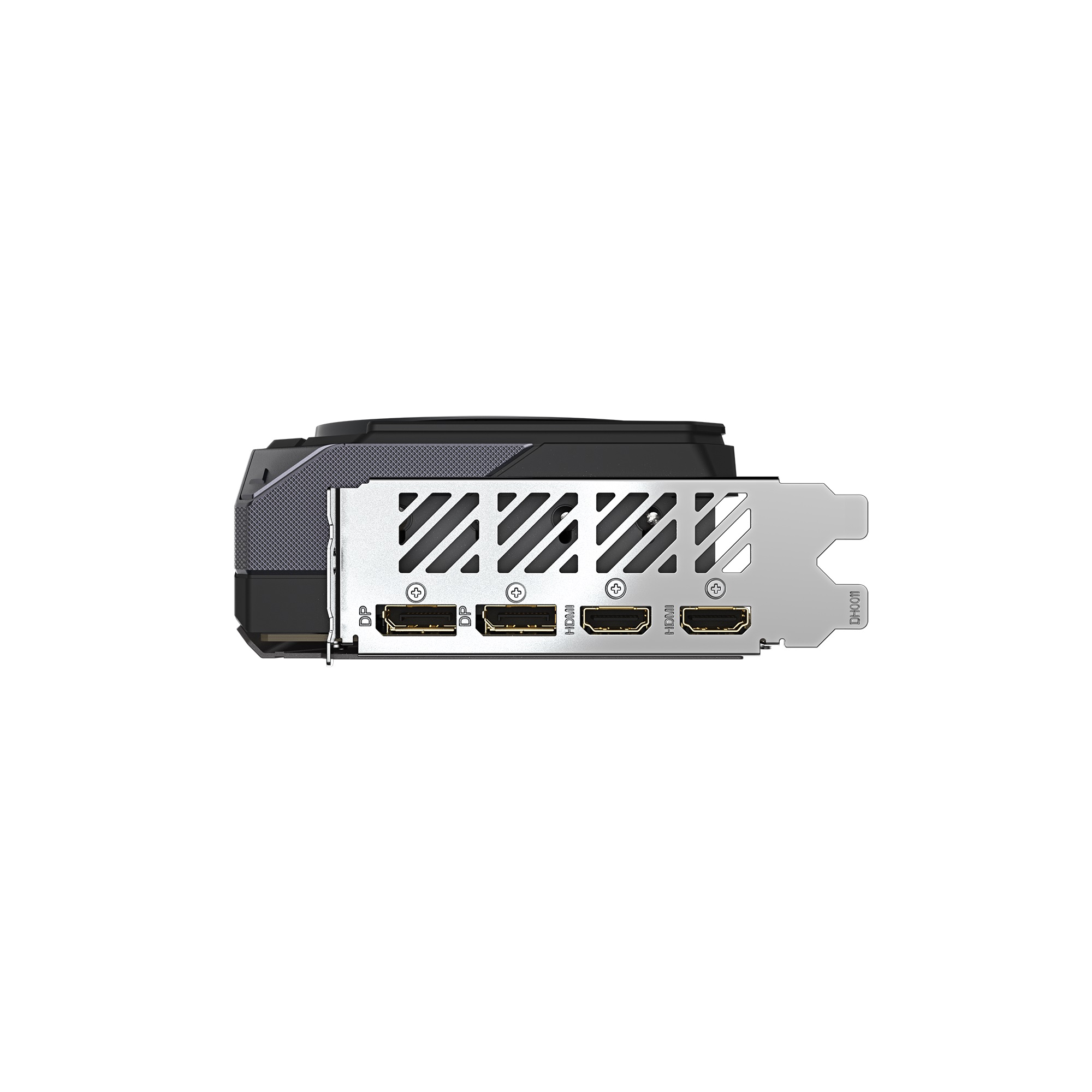

Output
DisplayPort 2.1a *2
HDMI 2.1b *2
Accessories
Quick guide
