ASUS TUF Gaming GeForce RTX™ 3070 Ti OC Edition – [ 90YV0GY0-MONA00 ]

ASUS TUF Gaming GeForce RTX™ 3070 Ti OC Edition – [ 90YV0GY0-MONA00 ]

TUF Gaming GeForce RTX™ 3070 Ti OC Edition 8GB GDDR6X buffed-up design with chart-topping thermal performance.

• NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
• 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
• 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
• OC edition: Boost clock 1815 MHz (OC mode)/ 1785 MHz (Gaming mode)
• Axial-tech Fan Design has been newly tuned with a reversed central fan direction for less turbulence.
• Dual Ball Fan Bearings can last up to twice as long as sleeve bearing designs.
• Military-grade Capacitors and other TUF components enhance durability and performance.
• GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

BUILT TUF

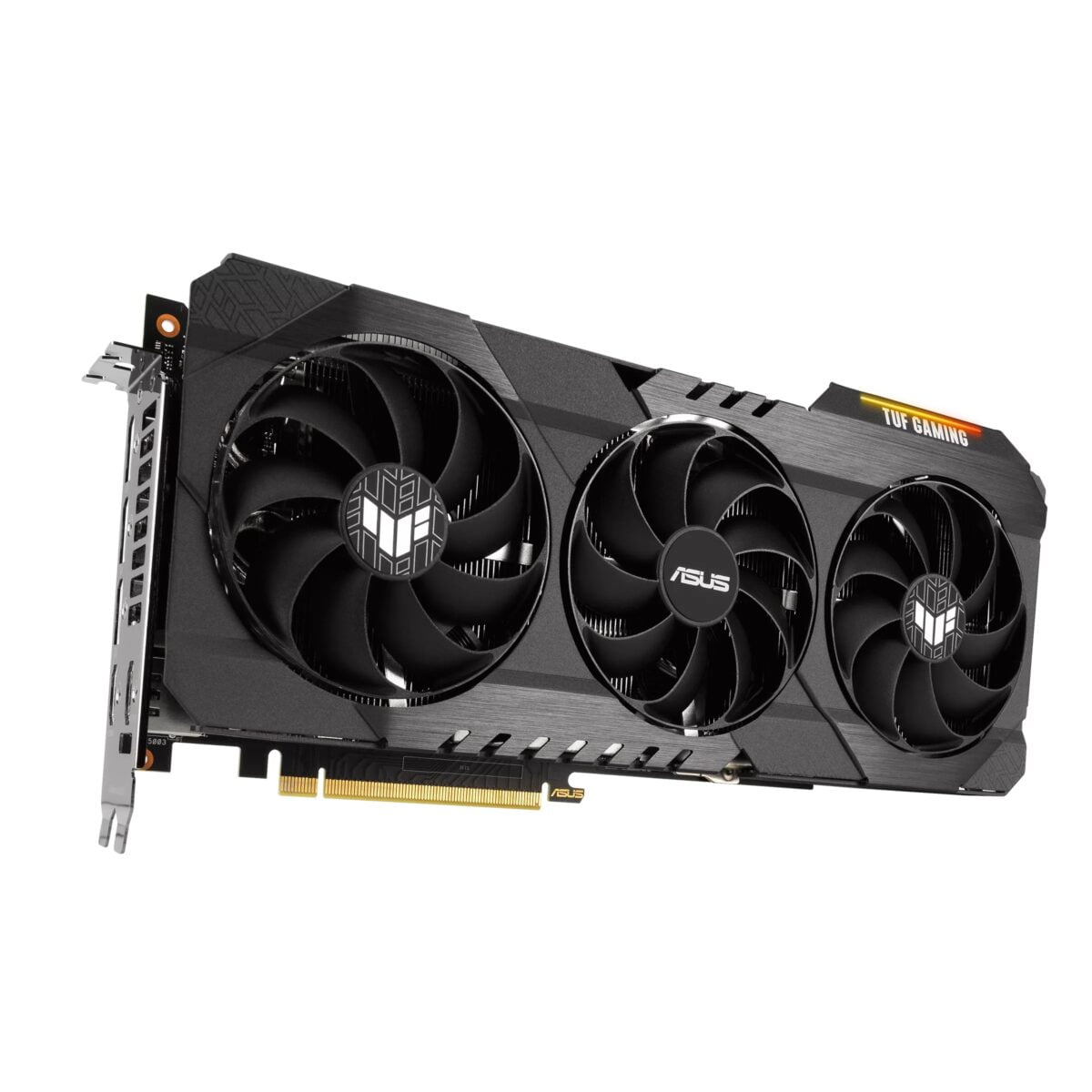

The TUF GAMING GeForce RTX™ 3070 Ti has been stripped down and built back up to provide more robust power and cooling. A new all-metal shroud houses three powerful axial-tech fans that utilize durable dual ball fan bearings. Fan rotation has been optimized for reduced turbulence, and a stop mode brings all three fans to a halt at low temps. Beneath, independent heatsinks for the GPU and memory keep thermals under tight control. Additional features, including TUF components, Auto-Extreme Technology, a new GPU bracket, and a backplate vent make the TUF a proper powerhouse. For builders looking for a new “old faithful”, this card has your back.

IT’S COOLER OUT BACK

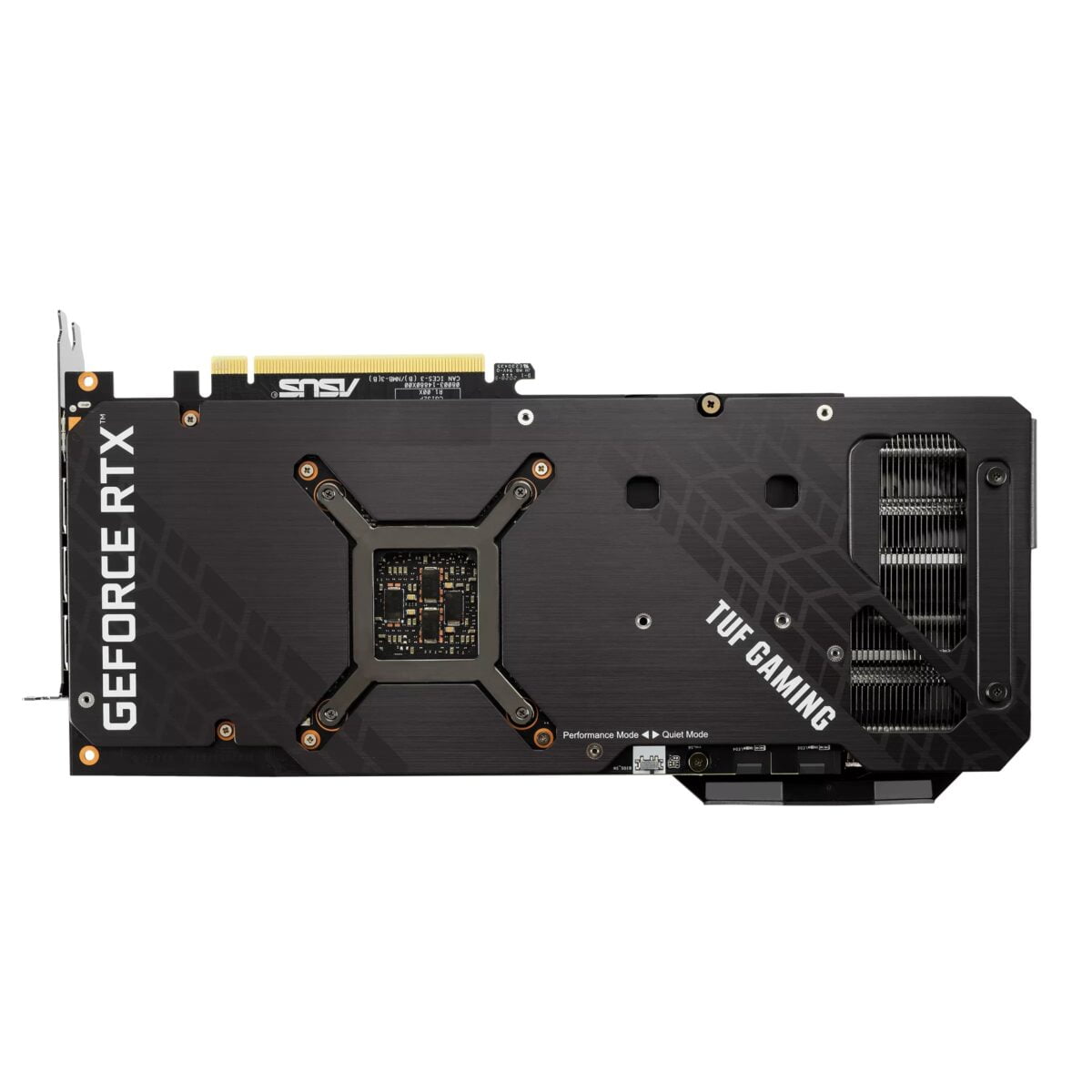

The underside of the card reveals a host of improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the cooler. Beneath the GPU, a bracket provides consistent mounting pressure between the die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. A conveniently placed Dual Bios switch allows customization of the card’s default performance profile without software.

Graphic Engine : NVIDIA® GeForce RTX™ 3070 Ti
Bus Standard : PCI Express 4.0
OpenGL : OpenGL®4.6
Video Memory : 8GB GDDR6X
Engine Clock : OC mode : 1815 MHz (Boost Clock)
Gaming mode : 1785 MHz (Boost Clock)
CUDA Core : 6144
Memory Speed :19 Gbps
Memory Interface : 256-bit
Resolution : Digital Max Resolution 7680 x 4320

Interface
Yes x 2 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)

Maximum Display Support : 4
NVlink/ Crossfire Support : No

Accessories
1 x TUF certificate of Reliability
1 x Collection card
1 x Speedsetup Manual

Software : ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions
299.9 x 126.9 x 51.7 mm
11.81 x 5 x 2.04 inch

Recommended PSU : 750W

Power Connectors : 2 x 8-pin
Slot : 2.7 Slot
