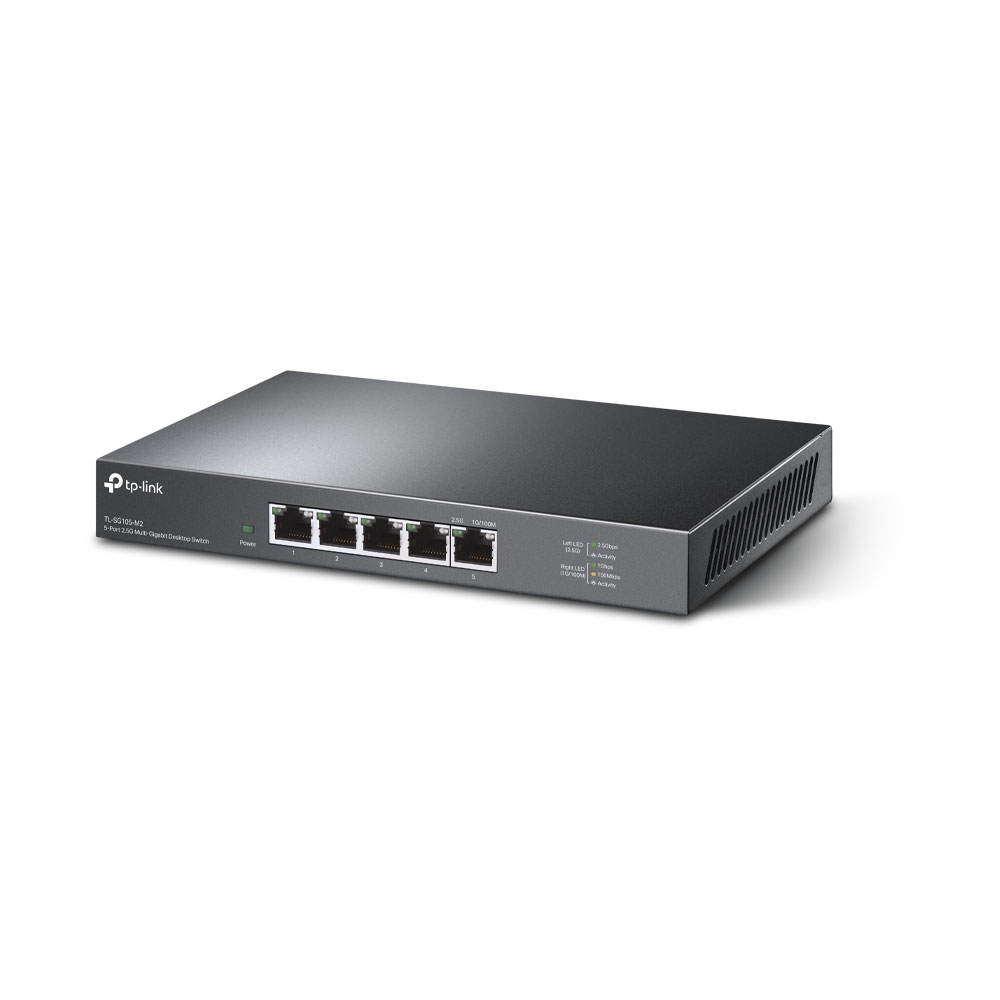

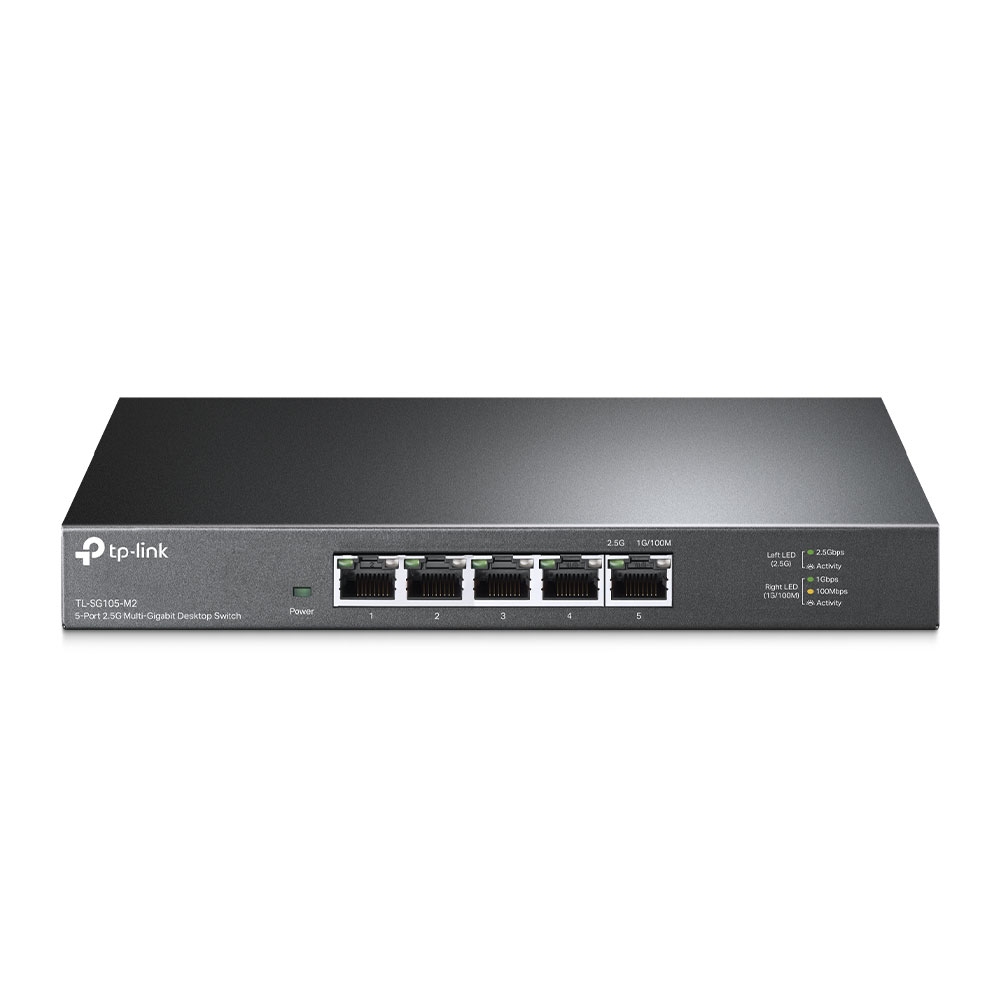

tp link 5-Port 2.5G Desktop Switch – Metal Casing – TL-SG105-M2
tp link 5-Port 2.5G
Most features
- Five 2.5 Gbps Ports. 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25 Gbps of switching capacity.
- Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.
- Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,

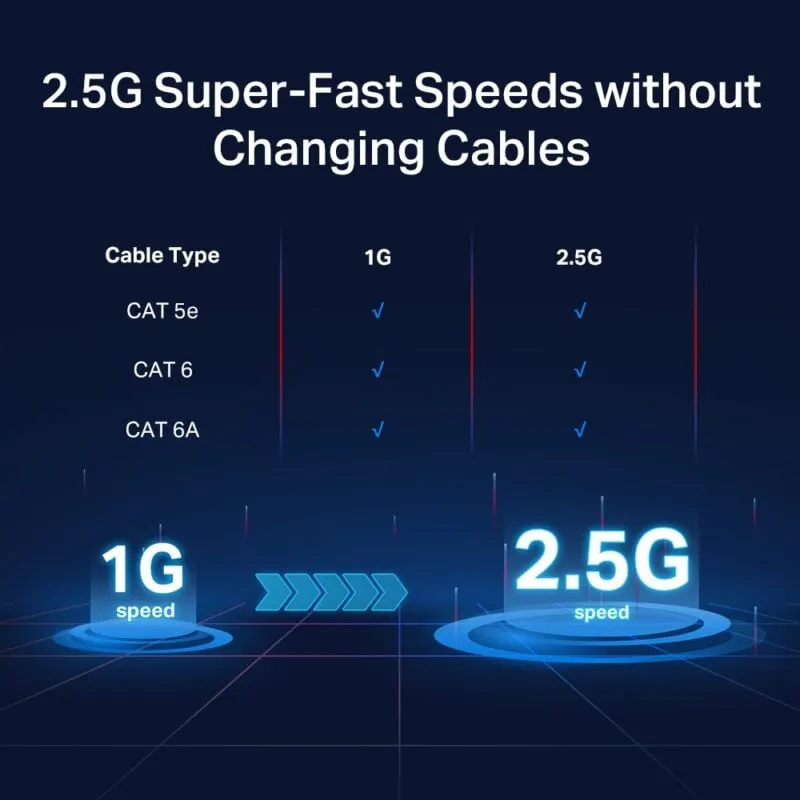

- Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.
- Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business.
- Plug and Play. Allows for easy deployment without the need for a technician.
- Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- More wired network products
Specification
Standards and Protocols
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
Interface
5× 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity
Fanless

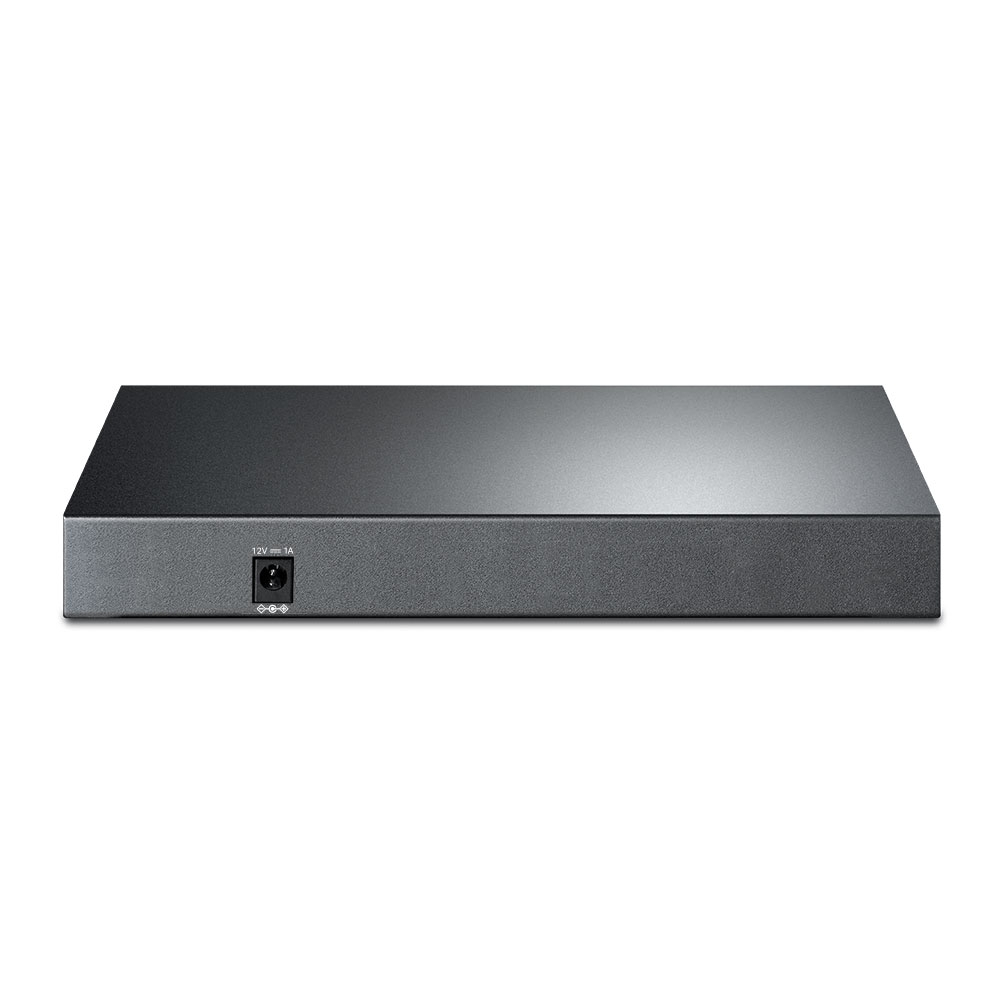

External Power Supply
External Power Adapter (Output: 12 VDC / 1 A)
LED Indicator
• System Power: 1
• Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port
Dimensions ( W x D x H ):
8.2×4.9×1.0 in (209×126×26 mm)
Max Power Consumption:
12.11 W
Max Heat Dissipation:
41.32 BTU/h
Switching Capacity:
25 Gbps
Packet Forwarding Rate:
18.6 Mpps
MAC Address Table:
16 K
Packet Buffer Memory:
1.5 Mb
Jumbo Frame:
10 KB
