Kingston Notebook RAM 16GB 5600MT/s DDR5 CL46 KVR56S46BS8-16

Kingston Notebook RAM 16GB 5600MT/s DDR5 CL46 KVR56S46BS8-16

More about Kingston N.B 16GB 5600MT/s

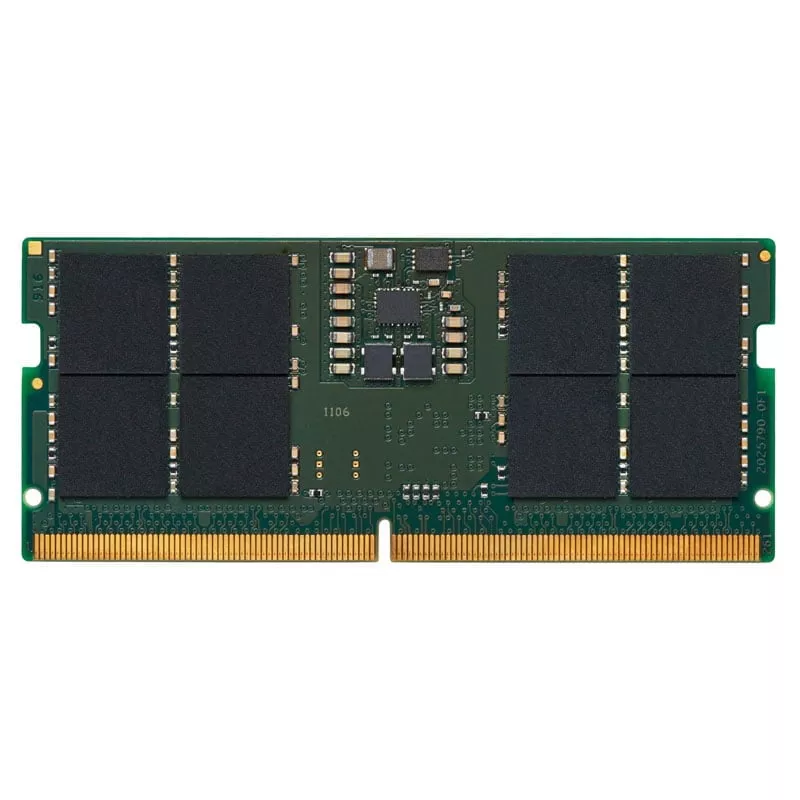

This document describes ValueRAM’s KVR56S46BS8-16 is a 2G x 64-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

Specification of Kingston N.B 16GB 5600MT/s

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• PCB: Height 1.18” (30.00mm)

• RoHS Compliant and Halogen-Free
