GIGABYTE

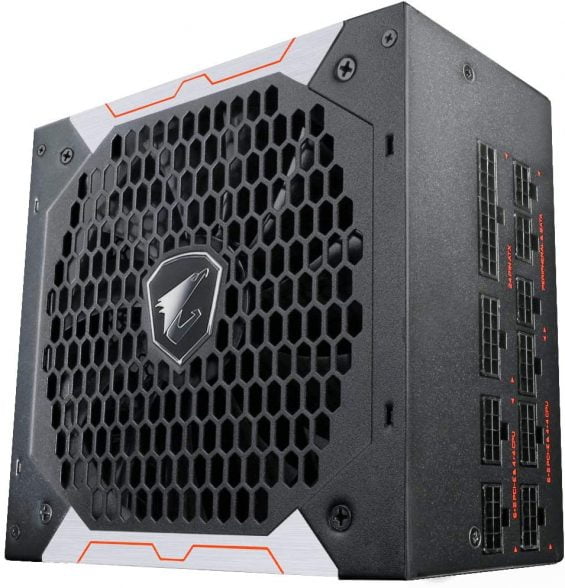

Gigabyte Aorus P750W 80+ GOLD Modular Power Supply – [GP-A750GM]

115.00 JD

Brands

GIGABYTE

In stock

SKU: 3700642 Categories: , Tag:
Description

Description

Gigabyte Aorus P750W 80+ GOLD Modular Power Supply – [GP-A750GM]

Features

Fully Modular Design
High quality 100% Japanese Capacitors
135mm 2 ball bearing smart fan with fan stop function
80 PLUS Gold certified: above 90% efficiency at 50% load
Single +12V rail
OCP/OTP/OVP/OPP/UVP/SCP protection

HIGH QUALITY 100% JAPANESE CAPACITORS

All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

PROTECTION

In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

OCP

Over Current Protection

OTP

Over Temperature Protection

OVP

Over Voltage Protection

OPP

Over Power Protection

UVP

Under Voltage Protection

SCP

Short Circuit Protection

DIMENSIONS

Specs.

Model

GP-AP750GM

Type

Intel Form Factor ATX 12V v2.31

PFC

Active PFC (>0.9 typical)

Input Voltage

1‎00-240 Vac (full range)

Input Current

1‎0A

Input Frequency

4‎7-63 Hz

Output Capacity

7‎50W

Dimension

1‎50 x 160 x 86mm

Fan Type

1‎35mm Double ball bearing fan

80 PLUS

Gold

Efficiency

9‎0% at typical load

MTBF

>100,000 hours

Protection

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

1‎00ms ~ 150ms

Hold Up Time

> 16m sec at full load (115V)

Cable Type

Flat, All black

Connectors

ATX/MB 20+4 Pin x 1 : 650mm
CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1
PCI-e 6+2 Pin x 6 : 750mm*2 , 650mm+150mm*2
SATA x6 + 4 Pin Peripheral x2 :
550mm+100mm+100mm+100mm*1
450mm+100mm+100mm+100mm *1
4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1
4 Pin Floppy x 1 : 100mm
