Kingston 8GB Note Book RAM PC4-3200 CL22 260-Pin SODIMM

Kingston 8GB DDR4 3200/Notebook

DESCRIPTION

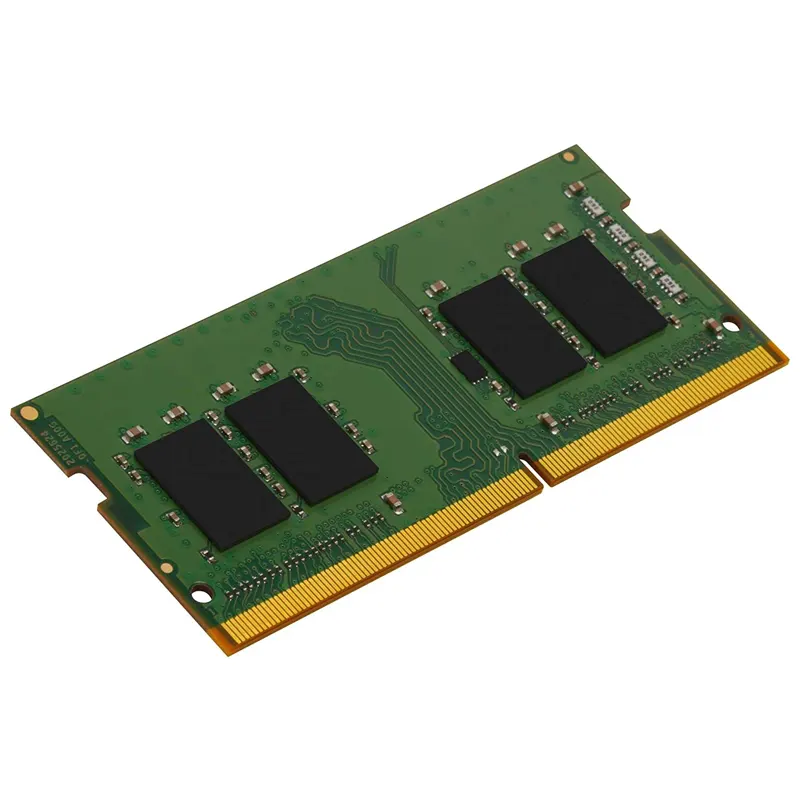

This document describes ValueRAM’s KVR32S22S6/8 as a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V.

This 260-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

SPECIFICATIONS of Kingston 8GB DDR4 3200/Notebook

• CL(IDD)
  22 cycles

• Row Cycle Time (tRCmin)
  45.75ns(min.)

• Refresh to Active/Refresh // Command Time (tRFCmin)
  350ns(min.)

• Row Active Time (tRASmin)
  32ns(min.)

• UL Rating
  94 V – 0

• Operating Temperature
  0o C to +85o C

• Storage Temperature
  -55o C to +100o C

FEATURES of Kingston 8GB DDR4 3200/Notebook

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 8 internal banks; 2 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
