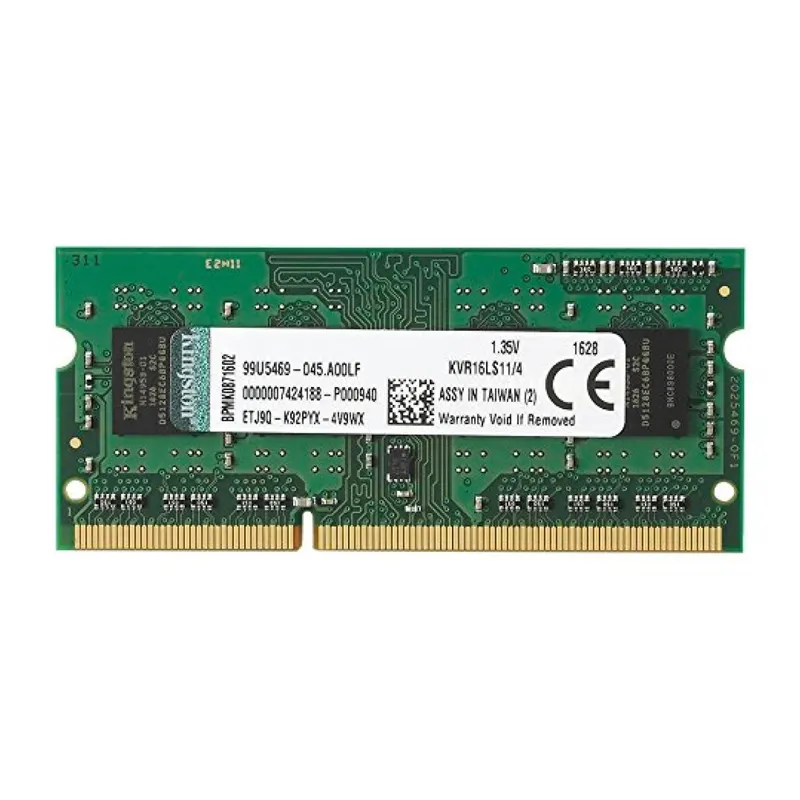

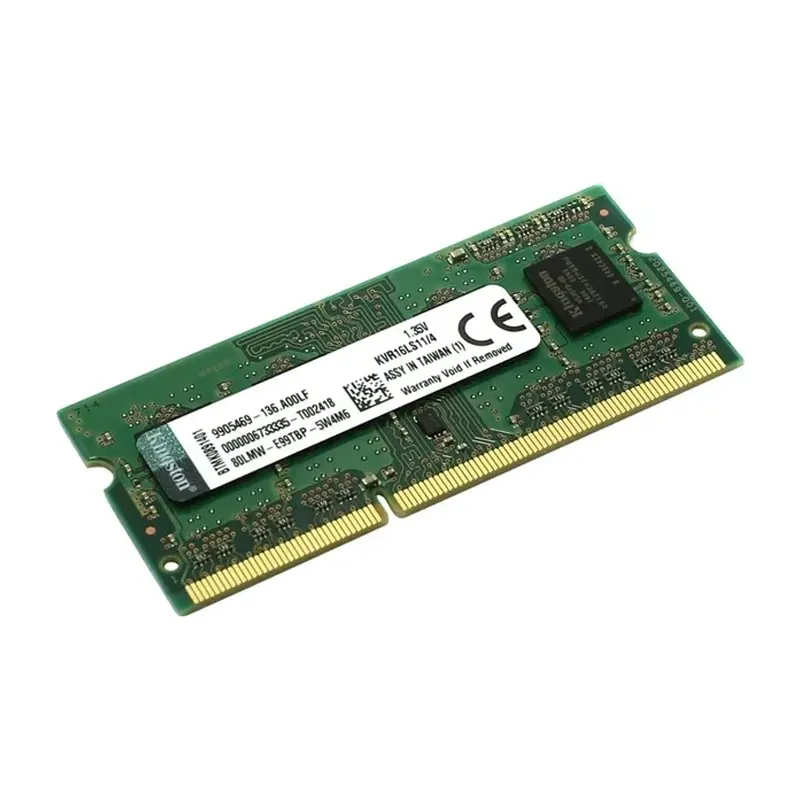

Kingston 4GB 1600MHz DDR3L PC3-12800 1.35V Non-ECC CL11 SODIMM Laptop Memory KVR16LS11/4

Description

Kingston 4GB 1600MHz DDR3L PC3-12800 1.35V
Non-ECC CL11 SODIMM Intel Laptop Memory KVR16LS11/4

4GB module of 1600MHz DDR3 Notebook RAM

DESCRIPTION
This document describes ValueRAM’s 512M x 64-bit (4GB)
DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 1Rx8, low
voltage, memory module, based on eight 512M x 8-bit FBGA
components. The SPD is programmed to JEDEC standard
latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This
204-pin SODIMM uses gold contact fingers

FEATURES
● JEDEC standard 1.35V and 1.5V Power Supply
● VDDQ = 1.35V and 1.5V
● 800MHz fCK for 1600Mb/sec/pin
● 8 independent internal bank
● Programmable CAS Latency: 11, 10, 9, 8, 7, 6, 5
● Programmable Additive Latency: 0, CL – 2, or CL – 1 clock
● 8-bit pre-fetch
● Burst Length: 8 (Interleave without any limit, sequential with starting
address “000” only), 4 with tCCD = 4 which does not allow seamless
read or write [either on the fly using A12 or MRS]
● Bi-directional Differential Data Strobe
● Internal(self) calibration : Internal self calibration through ZQ pin
(RZQ : 240 ohm ± 1%)
● On Die Termination using ODT pin
● Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at
85°C < TCASE ≤ 95°C
● Asynchronous Reset
● PCB: Height1.18” (30mm), double sided component
● Lead Free RoHS Compliant
