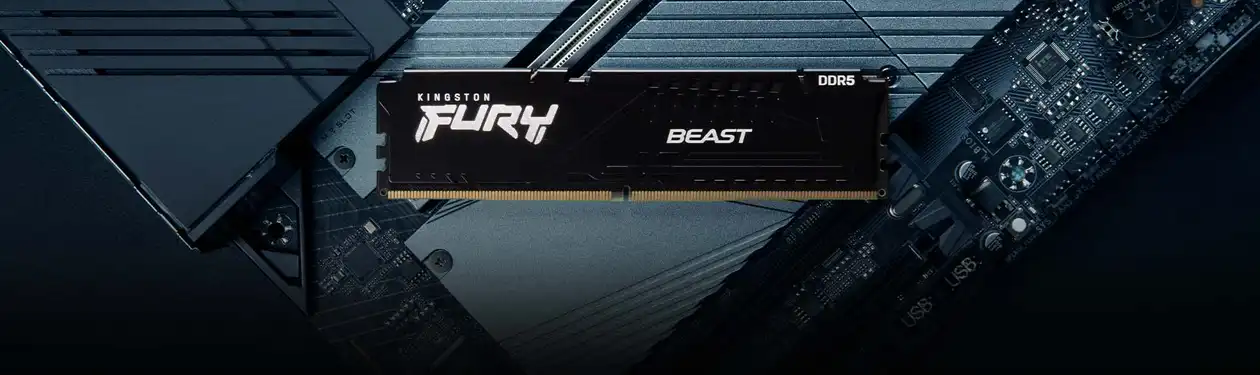

Kingston 8GB FURY Beast DDR5 6000MHz Memory nonRgb [ KF560C30BBE-8 ]

8GB FURY Beast 6000MHz

8GB FURY Beast 6000MHz

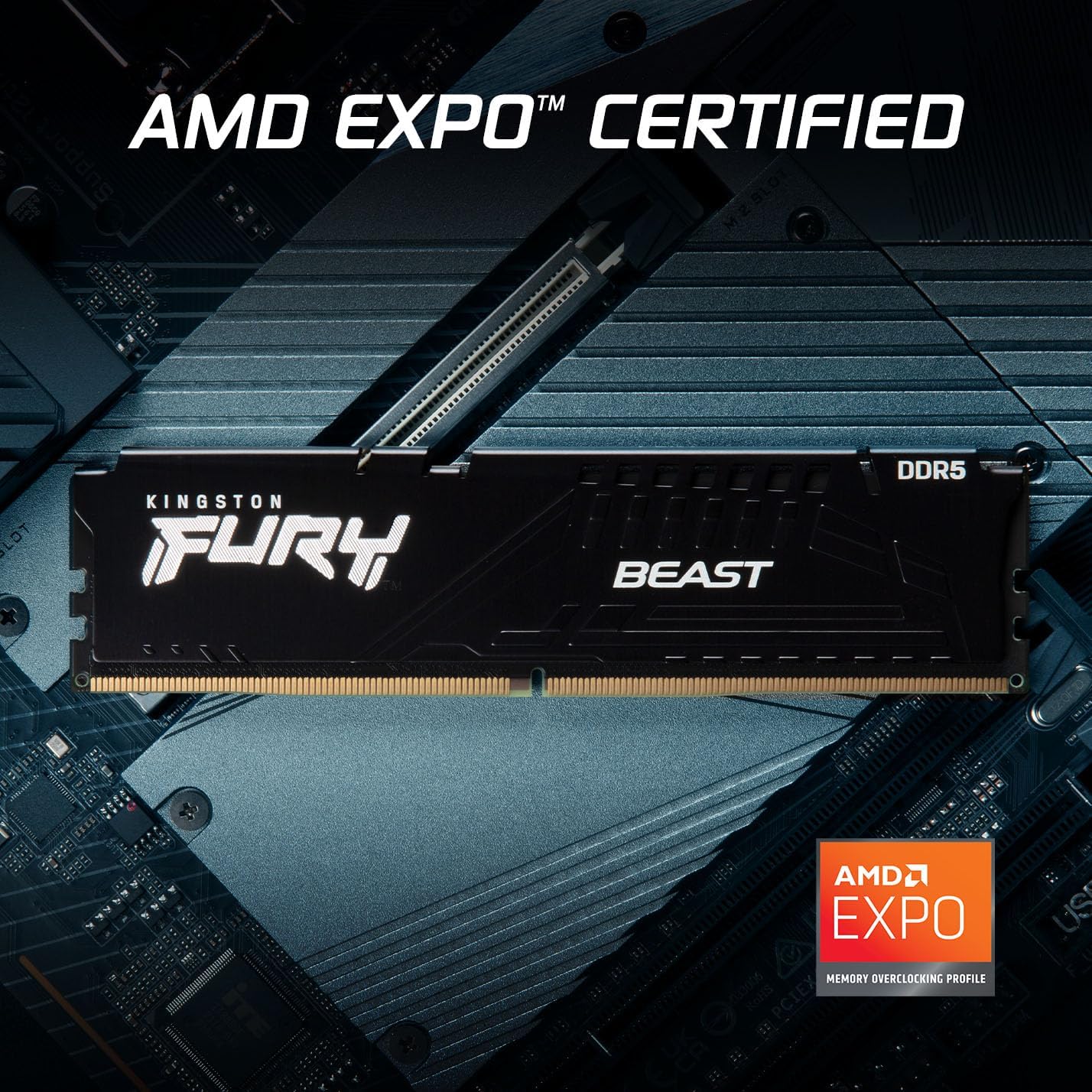

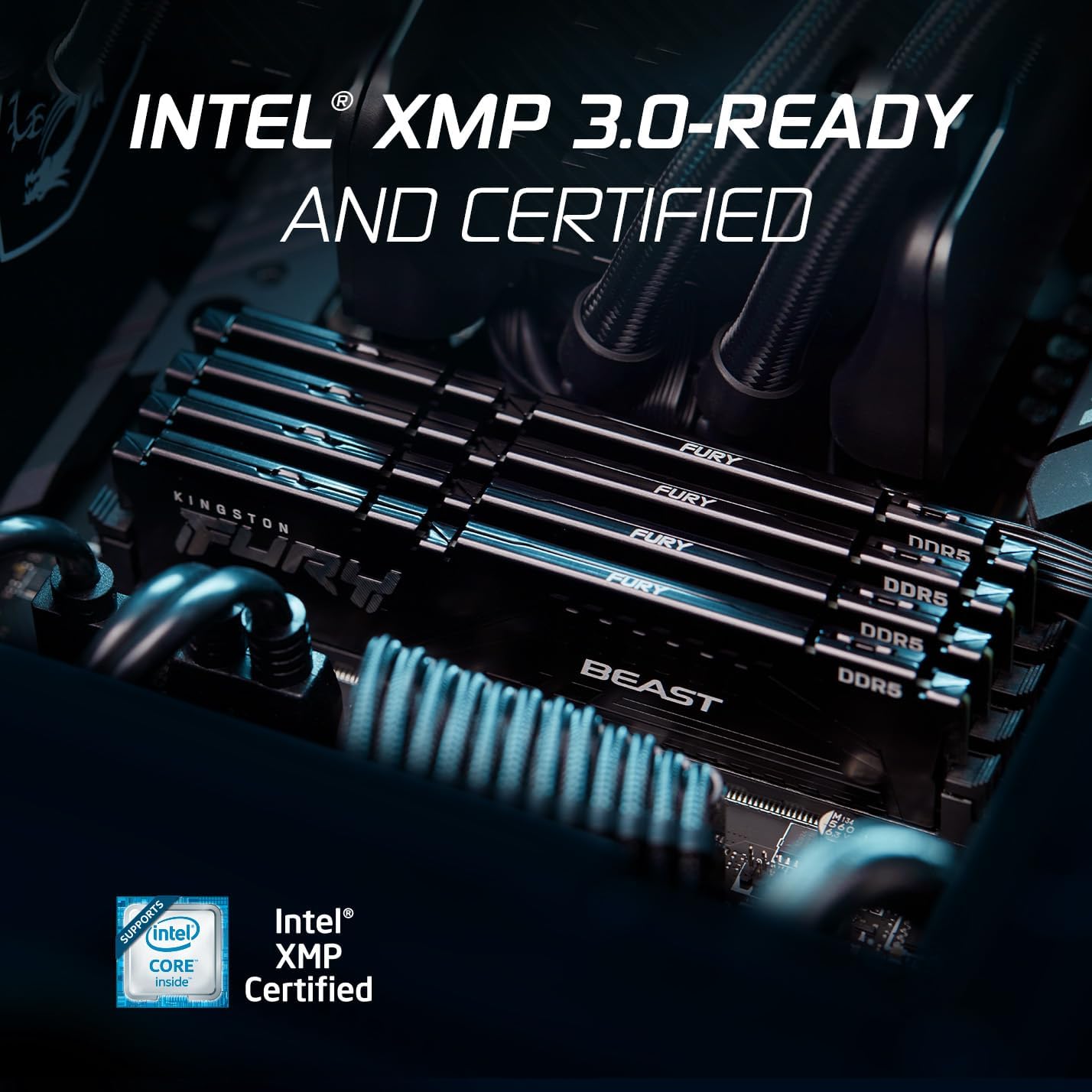

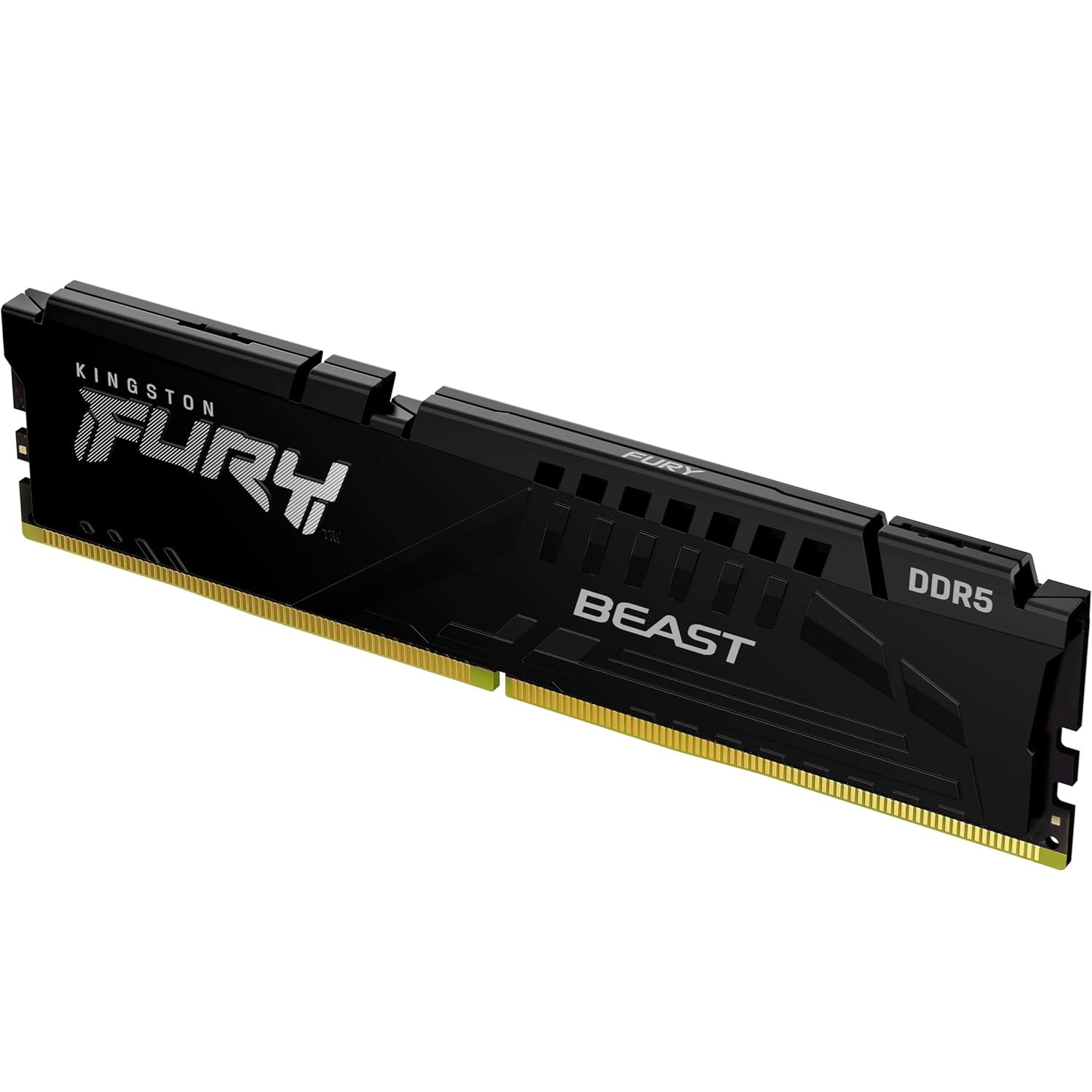

Kingston FURY KF560C30BBE-8 is a 1G x 64-bit (8GB) DDR5-6000 CL30 SDRAM (Synchronous DRAM) 1Rx16, memory module, based on four 1G x 16-bit FBGA components per module. The module supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 30-36-36 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

DEFAULT FEATURES of FURY Beast 6000MHz

Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• Height 1.37” (34.9mm), w/heatsink

FACTORY TIMING PARAMETERS 8GB FURY Beast 6000MHz

• Default (JEDEC) : DDR5-4800 CL40-39-39 @1.1V

• EXPO Profile #0 : DDR5-6000 CL30-36-36 @1.4V

• EXPO Profile #1: DDR5-5600 CL40-40-40 @1.25V

• XMP Profile #1: DDR5-6000 CL30-36-36 @1.4V

• XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V

DEFAULT SPECIFICATIONS:

• CL(IDD) : 40 cycles
• Row Cycle Time (tRCmin) : 48ns(min.)
• Refresh to Active/Refresh Command Time (tRFCmin) : 295ns(min.)
• Row Active Time (tRASmin) : 32ns(min.)
• UL Rating  : 94 V – 0
• Operating Temperature : 0o C to +85o C
• Storage Temperature : -55o C to +100o C
