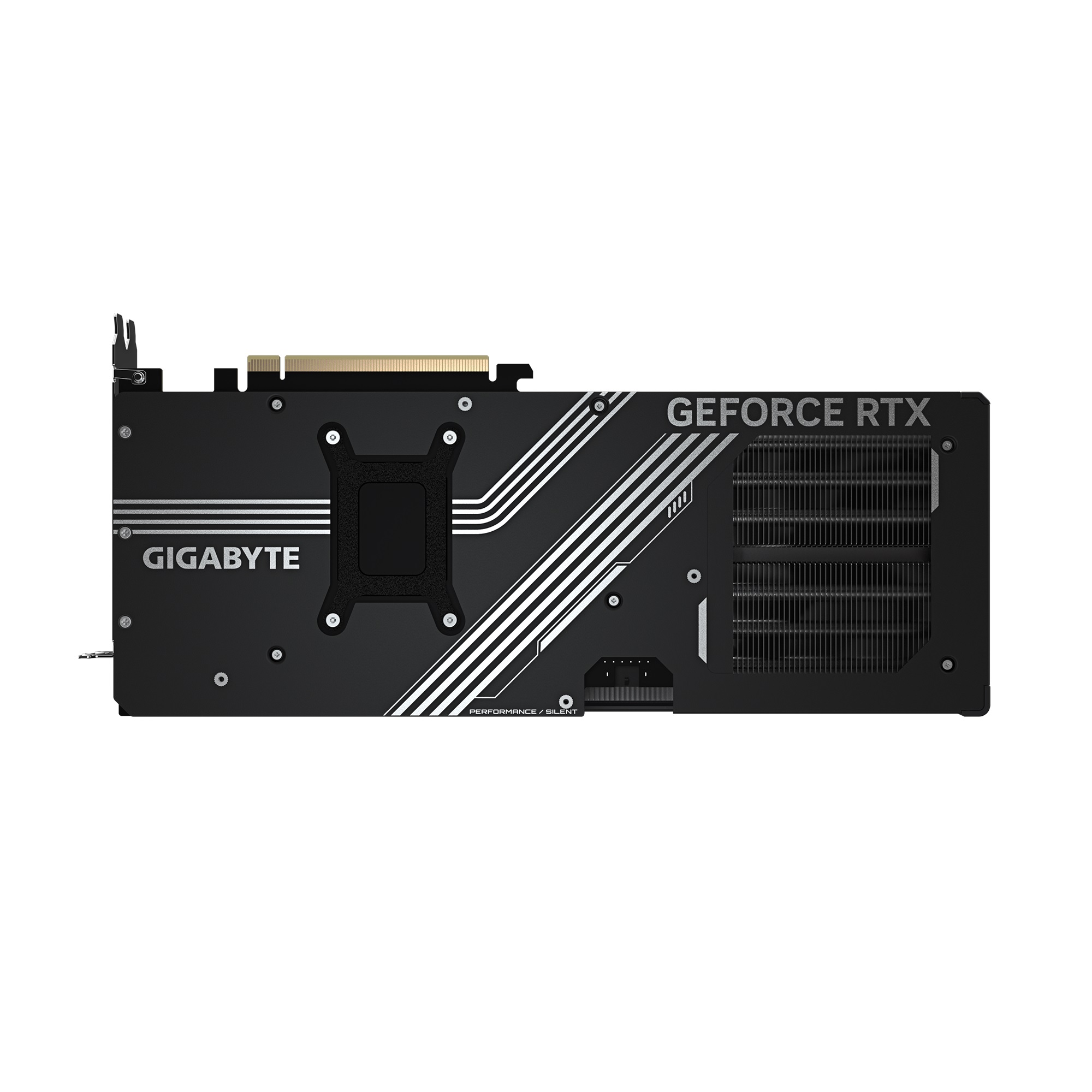

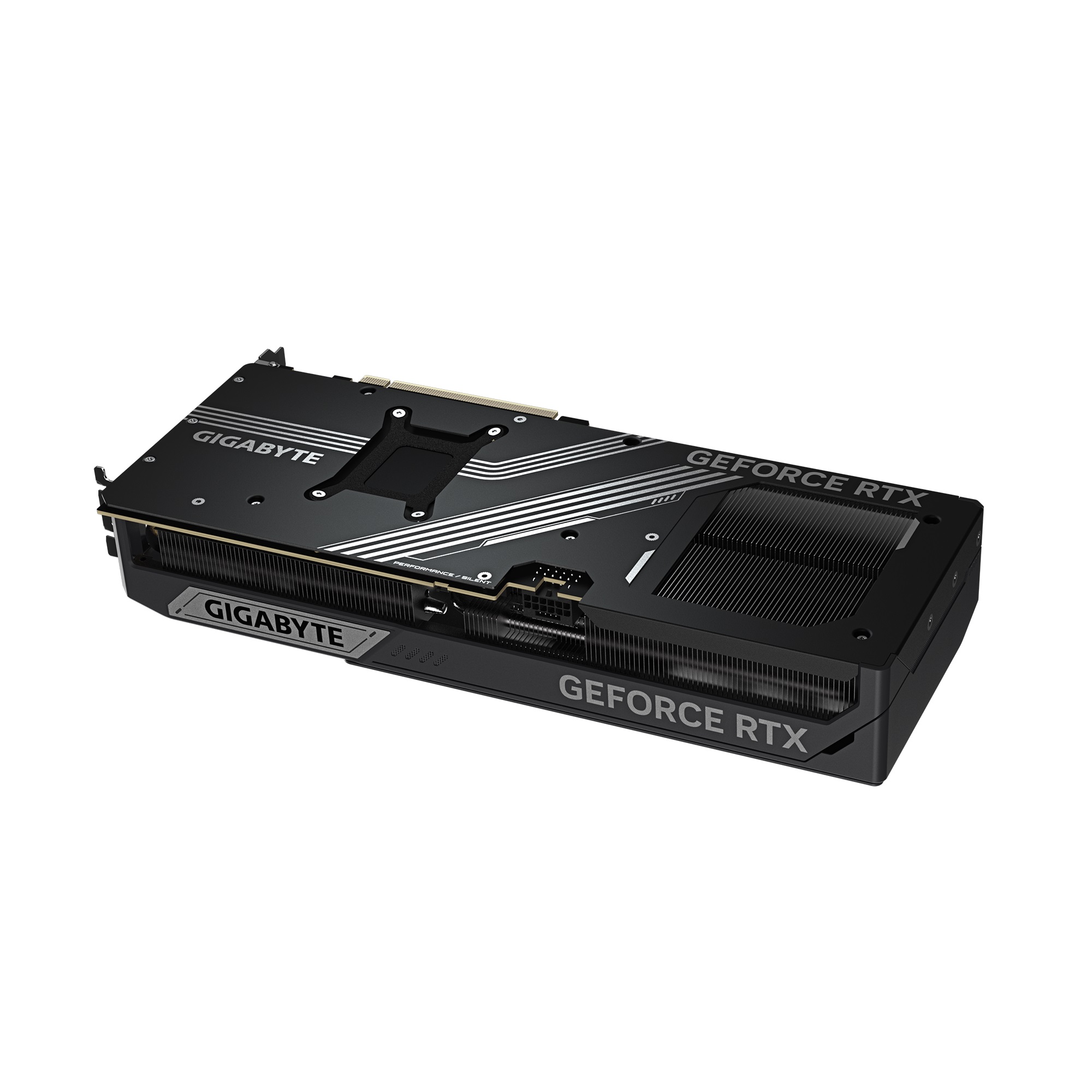

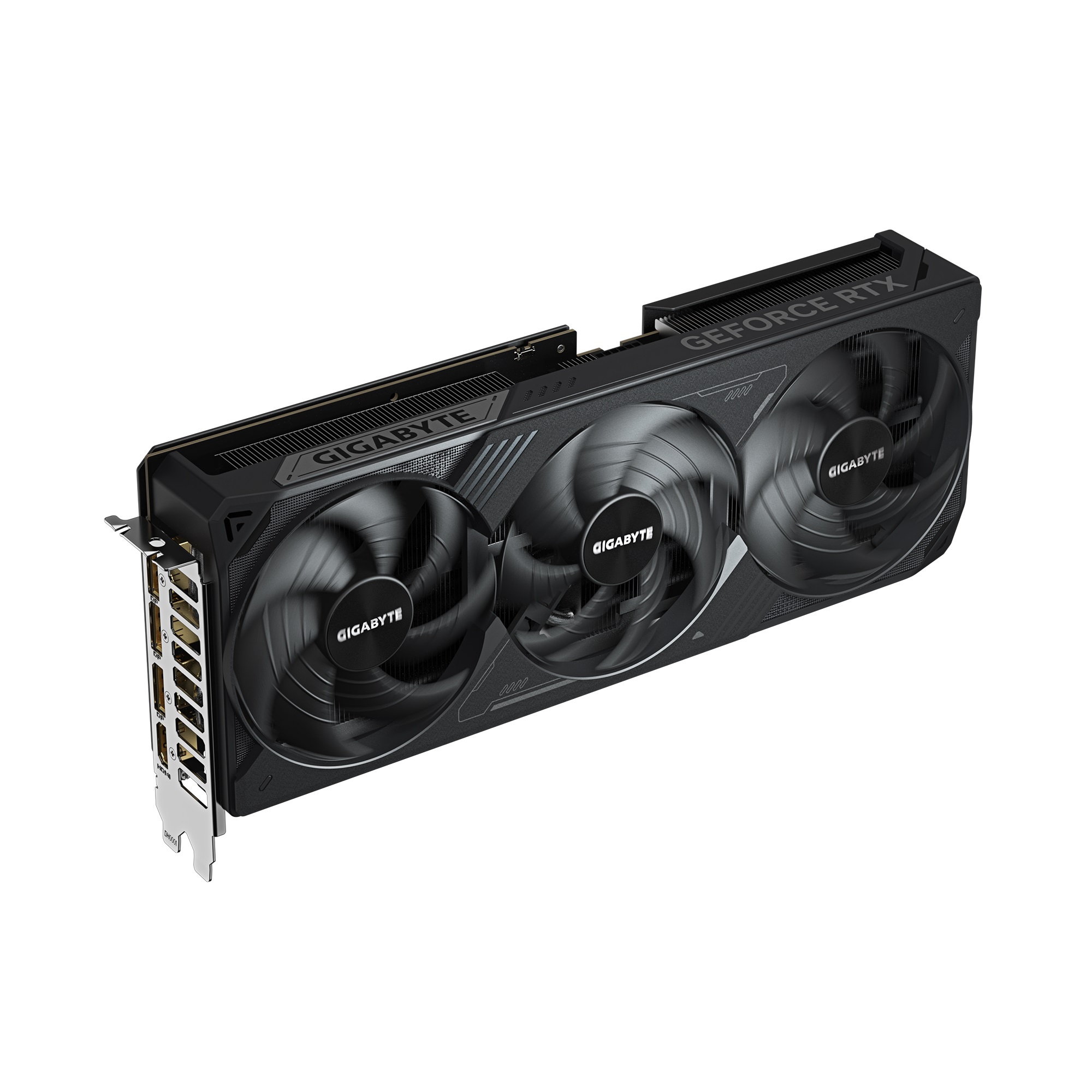

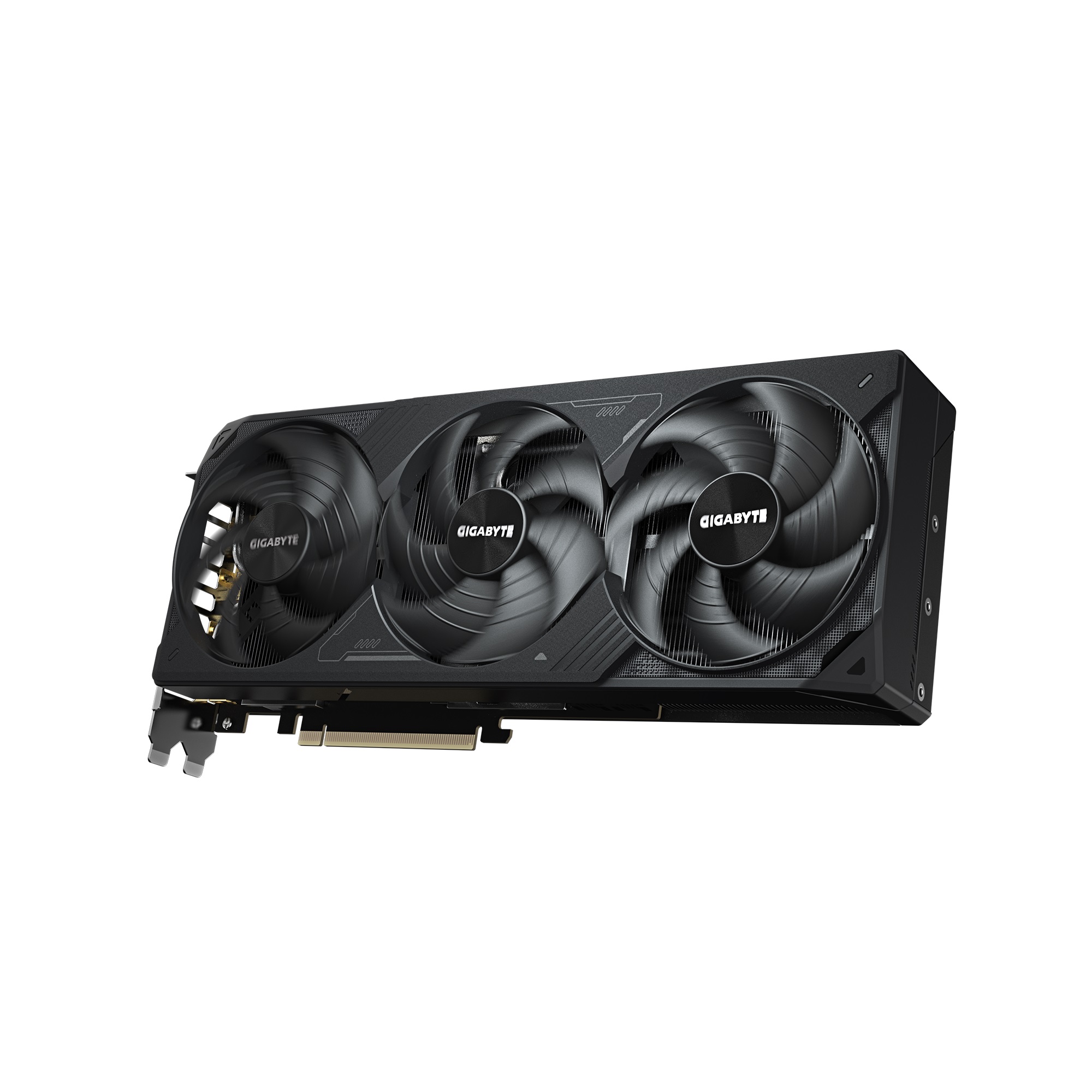

Gigabyte RTX 5080 WINDFORCE OC SFF 16G – 16GB GDDR7 – GV-N5080WF3OC-16GD
1,249.00 JOD
In stock
Related products
ASUS DUAL GeForce RTX 3050 OC Edition 6GB GDDR6 Graphics Card DUAL-RTX3050-O6G
![Gigabyte GeForce RTX 4060 Ti EAGLE OC ICE 8G [ GV-N406TEAGLEOC ICE-8GD ]](https://pccircle.com/wp-content/uploads/2024/09/Gigabyte-GeForce-RTX-4060-Ti-Eagle-OC-8G-05-600x600.jpg)
![Gigabyte GeForce RTX 4060 Ti EAGLE OC ICE 8G [ GV-N406TEAGLEOC ICE-8GD ]](https://pccircle.com/wp-content/uploads/2024/09/Gigabyte-GeForce-RTX-4060-Ti-Eagle-OC-8G-04-600x600.jpg)
Gigabyte GeForce RTX 4060 EAGLE OC ICE 8G [ GV-N4060EAGLEOC ICE-8GD ]
Gigabyte GeForce RTX 4060 Gaming OC 8G Graphic Card (GV-N4060GAMINGOC-8GD)
Gigabyte RTX 5080 WINDFORCE OC SFF 16G – 16GB GDDR7 – GV-N5080WF3OC-16GD
Gigabyte RTX 5080 WINDFORCE
Most features
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX™ 5080
- Integrated with 16GB GDDR7 256bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade thermal conductive gel
- Dual BIOS (Performance / Silent)
- NVIDIA SFF-ready
- Reinforced structure
- Versatile VGA holder
- More GPUs
WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies.
It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
LARGE VAPOR CHAMBER & COMPOSITE COPPER HEAT PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
Specifications
Graphics Processing
GeForce RTX™ 5080
Core Clock
2670 MHz (Reference: 2617 MHz)
CUDA® Cores
10752
Memory Clock
30 Gbps
Memory Size
16GB
Memory Type
GDDR7
Memory Bus
256 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680 x 4320
Multi-view
4
Card size
L=304 W=126 H=50 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
OpenGL 4.6
Recommended PSU
850W
Power Connectors
16 pin*1

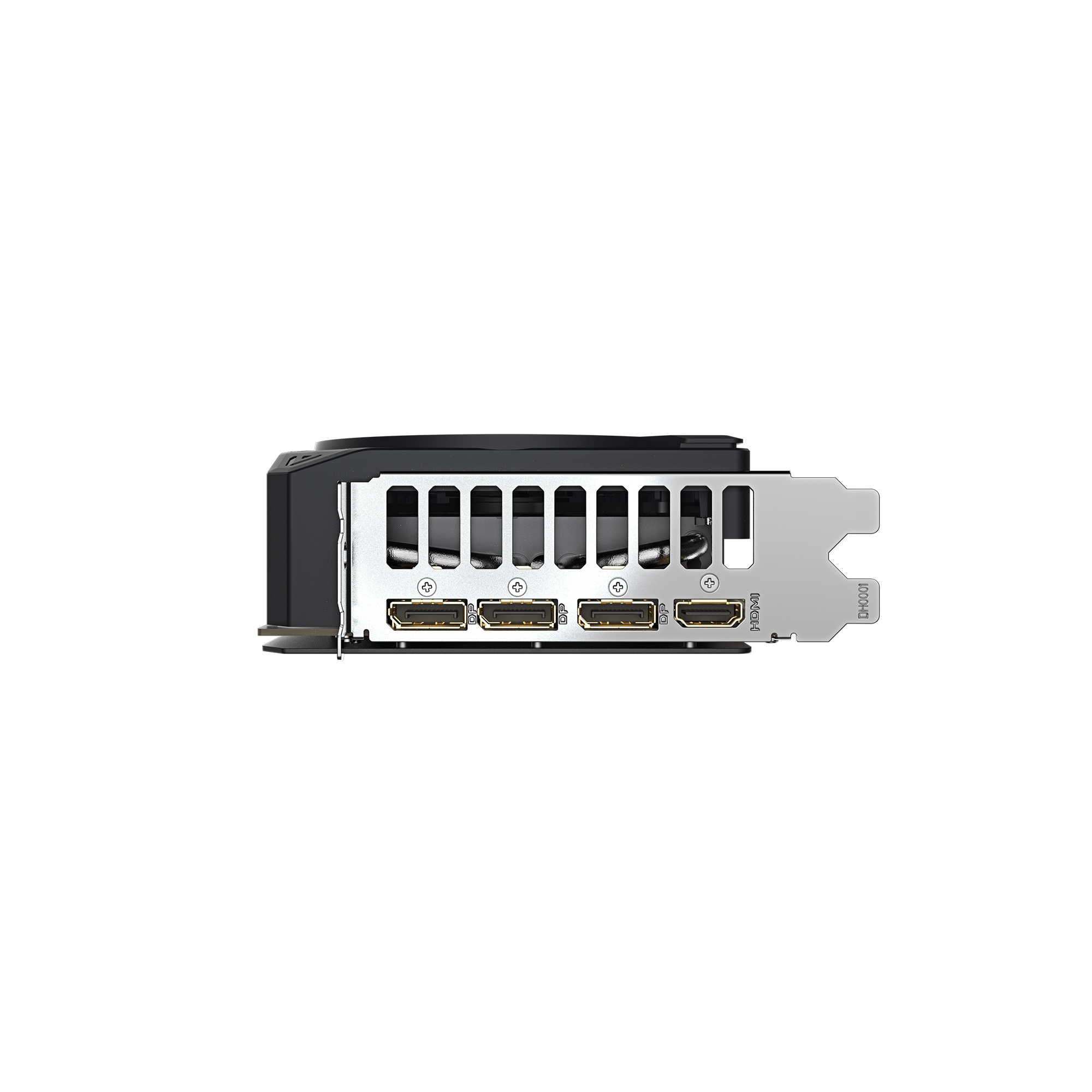

Output
DisplayPort 2.1b x3
HDMI 2.1b x1
Accessories
1. VGA manual
2. 1x 12V-2×6 to 3x PCIe 8pin adapter
3. Versatile VGA holder
4. Versatile VGA holder manual
