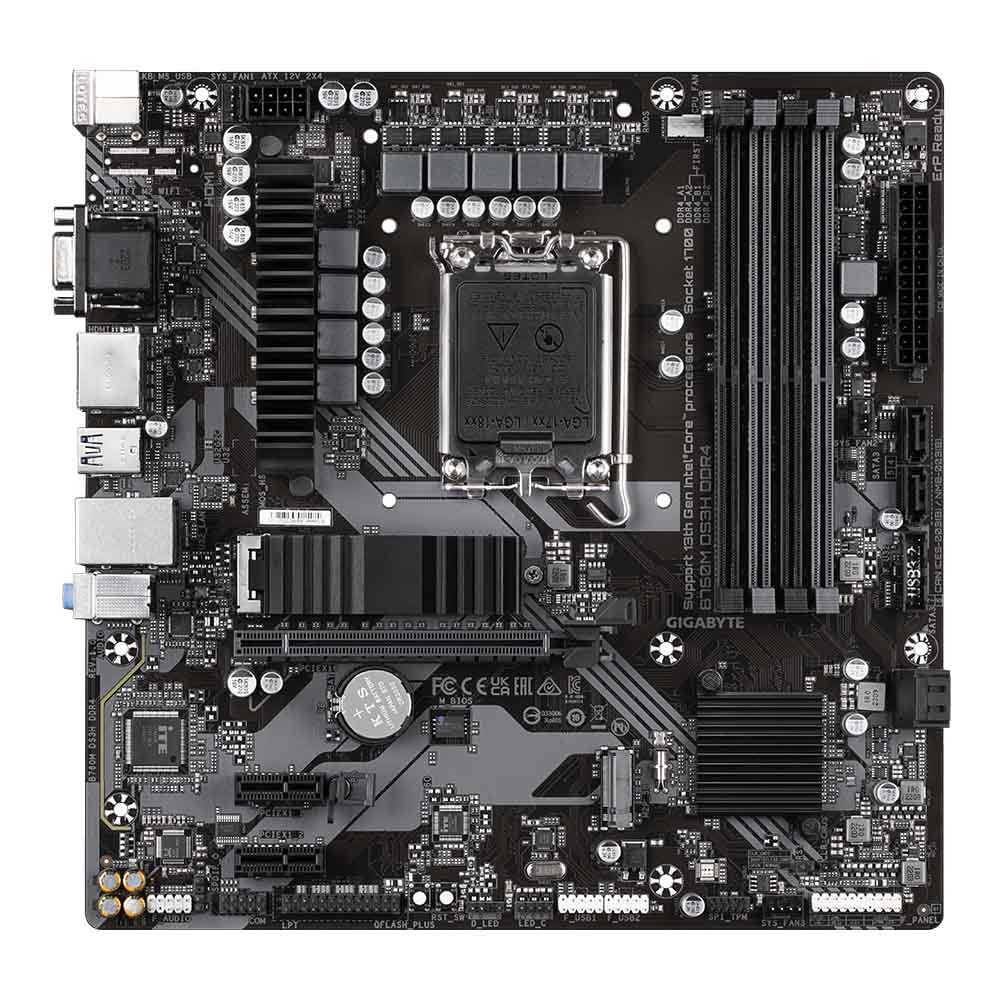

Gigabyte Motherboard B760M DS3H DDR4 (rev. 1.0) [ B760M-DS3H-DDR4 ]

Gigabyte Motherboard B760M DS3H DDR4 (rev. 1.0) [ B760M-DS3H-DDR4 ]

Key Features:

# Supports Intel® Core™ 14th/ 13th /12th processors
# Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
# Dual Channel DDR4：4*DIMMs XMP Memory Module Support
# Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
# M.2 Thermal Guard：To Ensure M.2 SSD Performance
# EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
# Fast Networks：2.5GbE LAN
# Extended Connectivity：Rear USB-C® 10Gb/s, DP, HDMI
# Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
# Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Gigabyte Motherboard B760M DS3H DDR4 (rev. 1.0) [ B760M-DS3H-DDR4 ]

Specification:

CPU	1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
	2. L3 cache varies with CPU
	(Please refer “CPU Support List” for more information.)

Chipset	1. Intel® B760 Express Chipset

Memory	1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
	2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
	3. Dual channel memory architecture
	4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	6. Support for Extreme Memory Profile (XMP) memory modules
	(Please refer “Memory Support List” for more information.)

Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
	2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
	* Support for HDMI 2.0 version and HDCP 2.3.
	3. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
	* Support for DisplayPort 1.2 version and HDCP 2.3
	4. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
	* Support for DisplayPort 1.2 version.
	(Graphics specifications may vary depending on CPU support.)
	Support for up to quad-display at the same time

Audio	1. Realtek® Audio CODEC
	2. High Definition Audio
	3. 2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	4. Support for S/PDIF Out

LAN	1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots	CPU:
	1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
	Chipset:
	1. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Storage Interface	CPU:
	1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
	2. 4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB	Chipset:
	1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
	2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
	3. 2 x USB 2.0/1.1 ports on the back panel
	Chipset+2 USB 2.0 Hubs:
	1. 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 1 x 8-pin ATX 12V power connector
	3. 1 x CPU fan header
	4. 3 x system fan headers
	5. 1 x addressable LED strip header
	6. 1 x RGB LED strip header
	7. 2 x M.2 Socket 3 connectors
	8. 4 x SATA 6Gb/s connectors
	9. 1 x front panel header
	10. 1 x front panel audio header
	11. 1 x USB 3.2 Gen 1 header
	12. 2 x USB 2.0/1.1 headers
	13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	14. 1 x serial port header
	15. 1 x parallel port header
	16. 1 x S/PDIF Out header
	17. 1 x Q-Flash Plus button
	18. 1 x reset button
	19. 1 x reset jumper
	20. 1 x Clear CMOS jumper

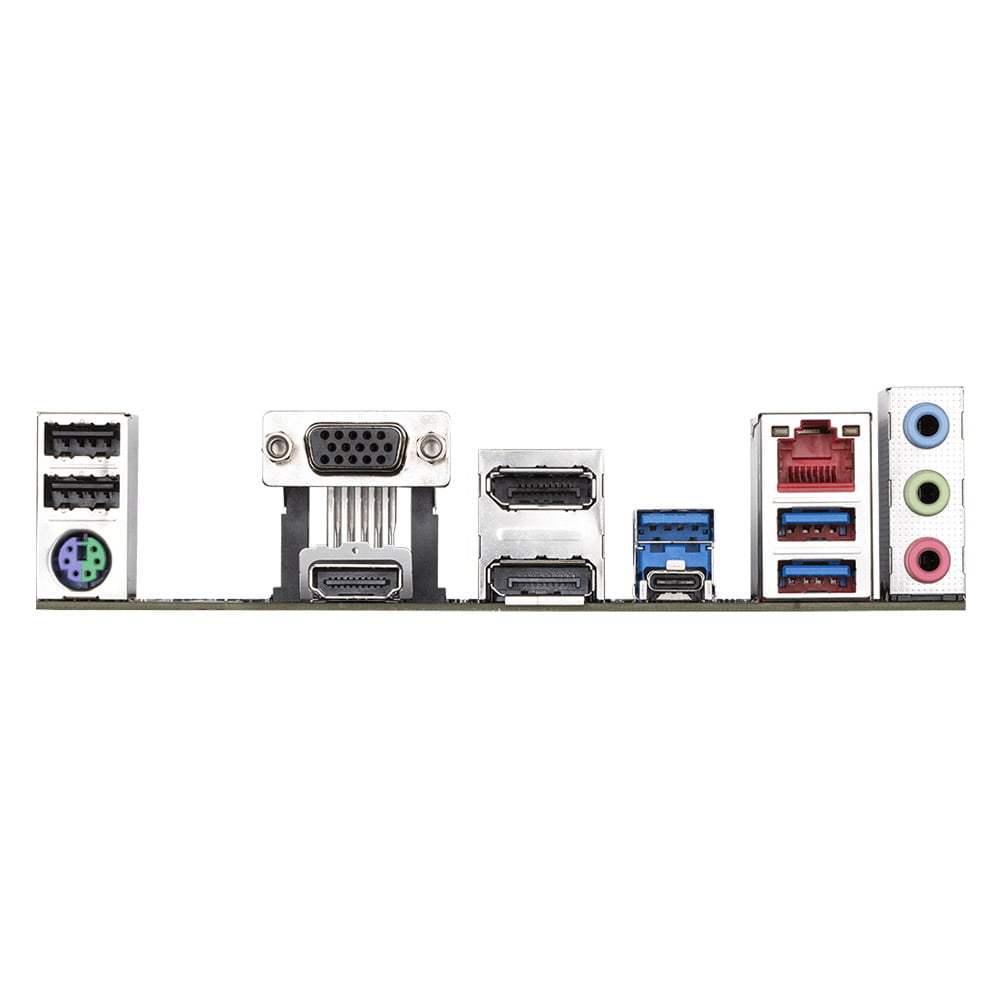

Back Panel Connectors	1. 2 x USB 2.0/1.1 ports
	2. 1 x PS/2 keyboard/mouse port
	3. 1 x D-Sub port
	4. 1 x HDMI port
	5. 2 x DisplayPorts
	6. 3 x USB 3.2 Gen 1 ports
	7. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
	8. 1 x RJ-45 port
	9. 3 x audio jacks

I/O Controller	1. iTE® I/O Controller Chip

H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Water cooling flow rate detection
	5. Fan fail warning
	6. Fan speed control
	* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS	1. 1 x 128 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features	1. Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	2. Support for Q-Flash
	3. Support for Q-Flash Plus

Bundled Software	1. Norton® Internet Security (OEM version)
Bundled Software	2. LAN bandwidth management software

Operating System	1. Support for Windows 11 64-bit
Operating System	2. Support for Windows 10 64-bit

Form Factor	1. Micro ATX Form Factor; 24.4cm x 24.4cm

For More Info. Click Here

For More Gigabyte Product Click Here

Sold out

Gigabyte Motherboard B760M DS3H DDR4 (rev. 1.0) [ B760M-DS3H-DDR4 ]

Click to enlarge

Back to products

99.95 JOD

Add 30.00 JOD to cart and get free shipping!

Out of stock

Compare

Add to wishlist

SKU: 1200259 Categories: Components, Motherboard Tag: GIGABYTE
