GIGABYTE GTX 1660 Ti OC { 6GB GDDR6 / 1536 CUDA Cores } GV-N166TOC-6GD

GIGABYTE GTX 1660 Ti OC [ GV-N166TOC-6GD ]

Most features

• Memory: 6GB GDDR6
• CUDA Cores: 1536

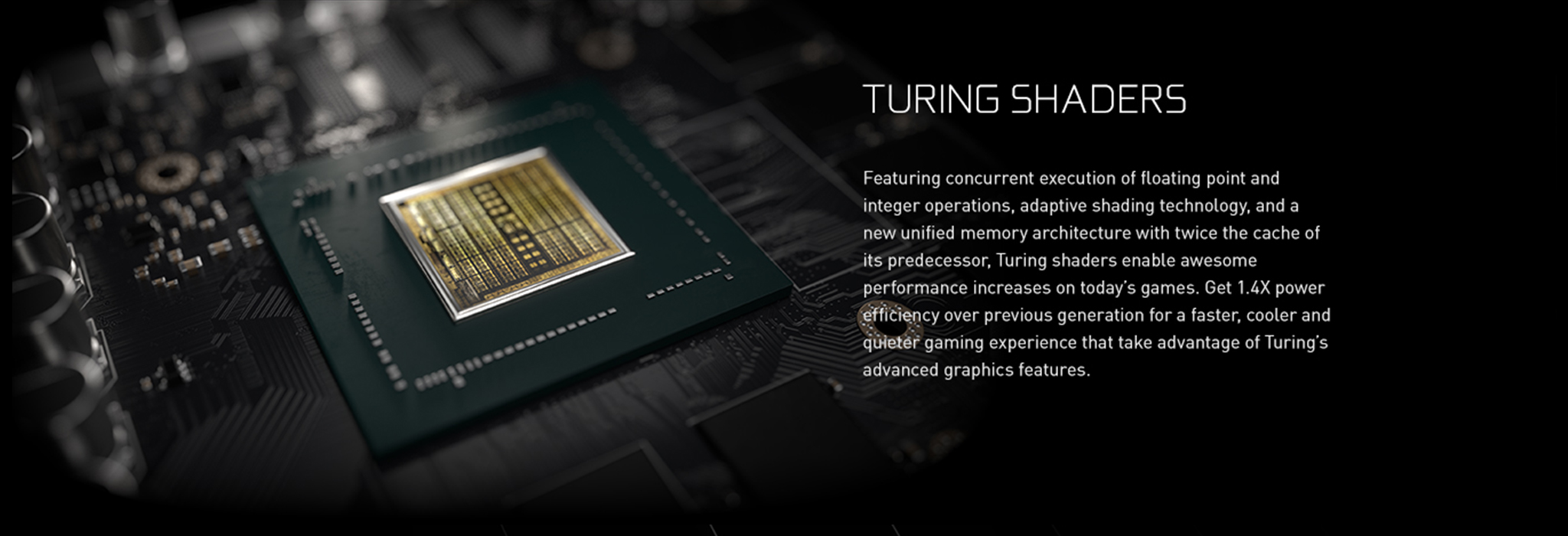

• architecture: NVIDIA Turing .
• Cooling System: WINDFORCE 2X Cooling System with alternate spinning fans.
• Output: DisplayPort 1.4 *3 || HDMI 2.0b *1
• Recommended PSU : 450W
• More GPUs
• GIGABYTE official website

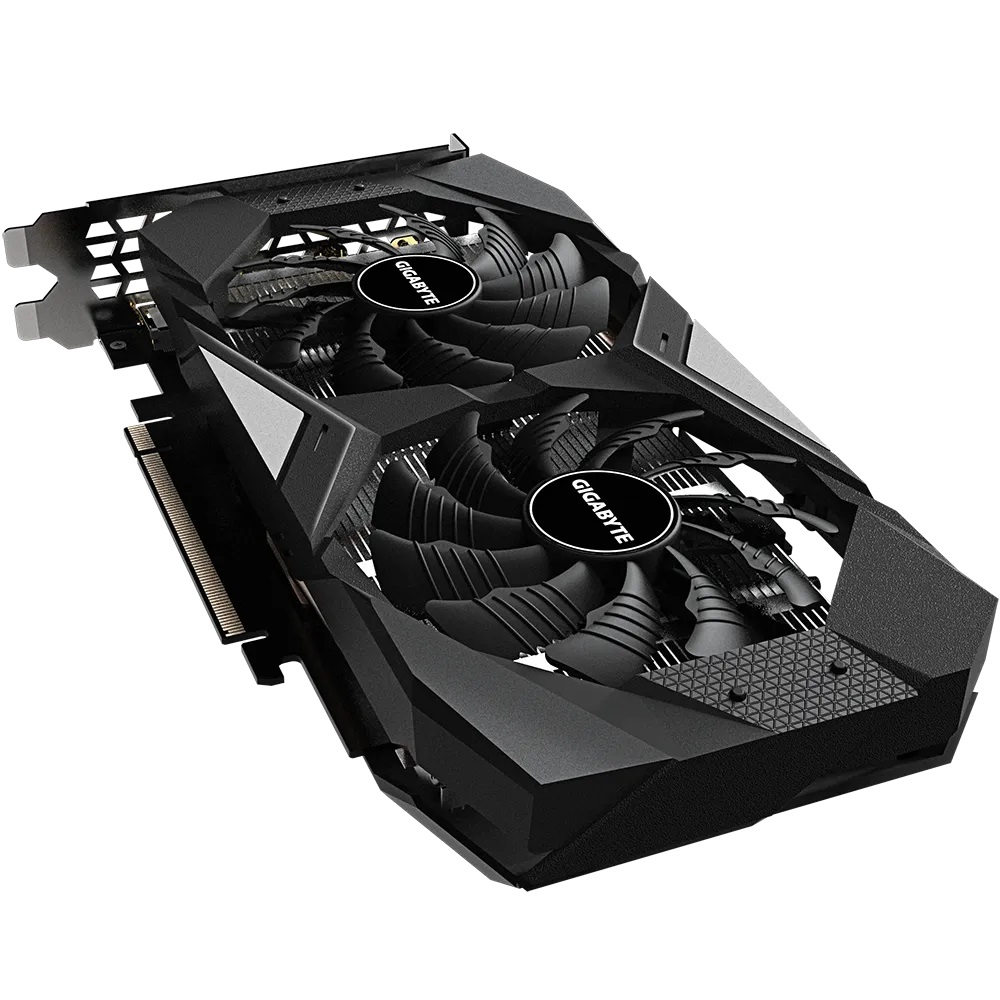

WINDFORCE 2X COOLING SYSTEM

WINDFORCE 2X cooling system features 2x unique blade fans, alternate spinning fan, a composite copper heat pipe direct touch GPU and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

ALTERNATE SPINNING

The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

COMPOSITE HEAT-PIPE

The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.

Specifications
Core Clock:
1800 MHz (Reference Card: 1770 MHz)
CUDA Cores:
1536
Memory Clock:
12000 MHz
Memory Size:
6 GB
Memory Type:
GDDR6
Memory Bus:
192 bit
Memory Bandwidth (GB/sec):
288 GB/s
Card Bus:
PCI-E 3.0 x 16
Digital max resolution:
7680×4320@60Hz
Multi-view:
4
Card size:
L=225.65 W=122.02 H=40.5 mm
PCB Form:
ATX
DirectX:
12
OpenGL:
4.6
Recommended PSU:
450W
Power Connectors:
8 Pin*1
Output:
DisplayPort 1.4 *3
HDMI 2.0b *1
SLI Support:
No
