GIGABYTE GeForce RTX 5070 WINDFORCE OC SFF 12G GDDR7 GPU NVIDIA Blackwell architecture and DLSS 4 – GV-N5070WF3OC-12GD

599.00  JOD

Add 30.00  JOD to cart and get free shipping!

In stock

SKU: 0400125 Categories: , , Tag:
Description

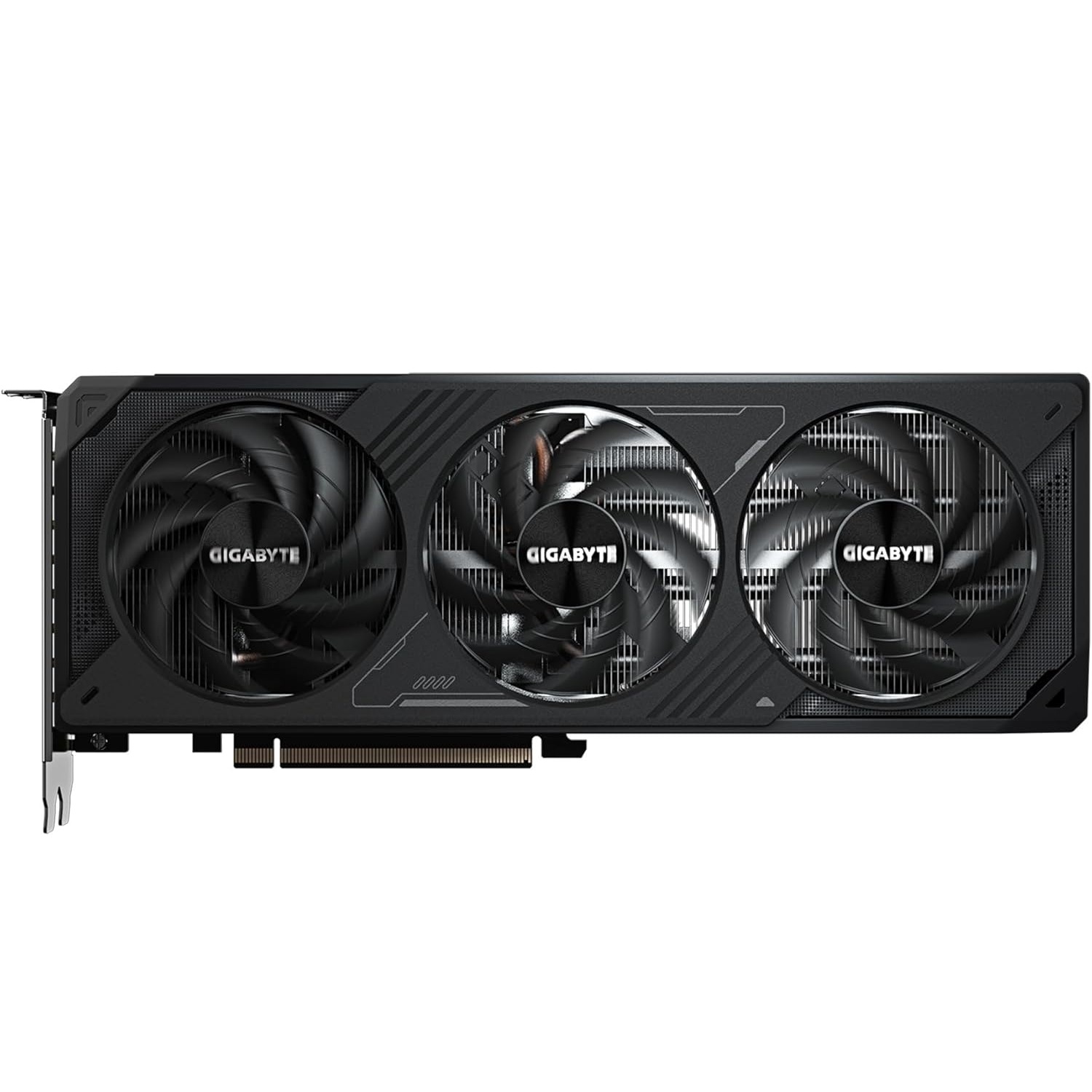

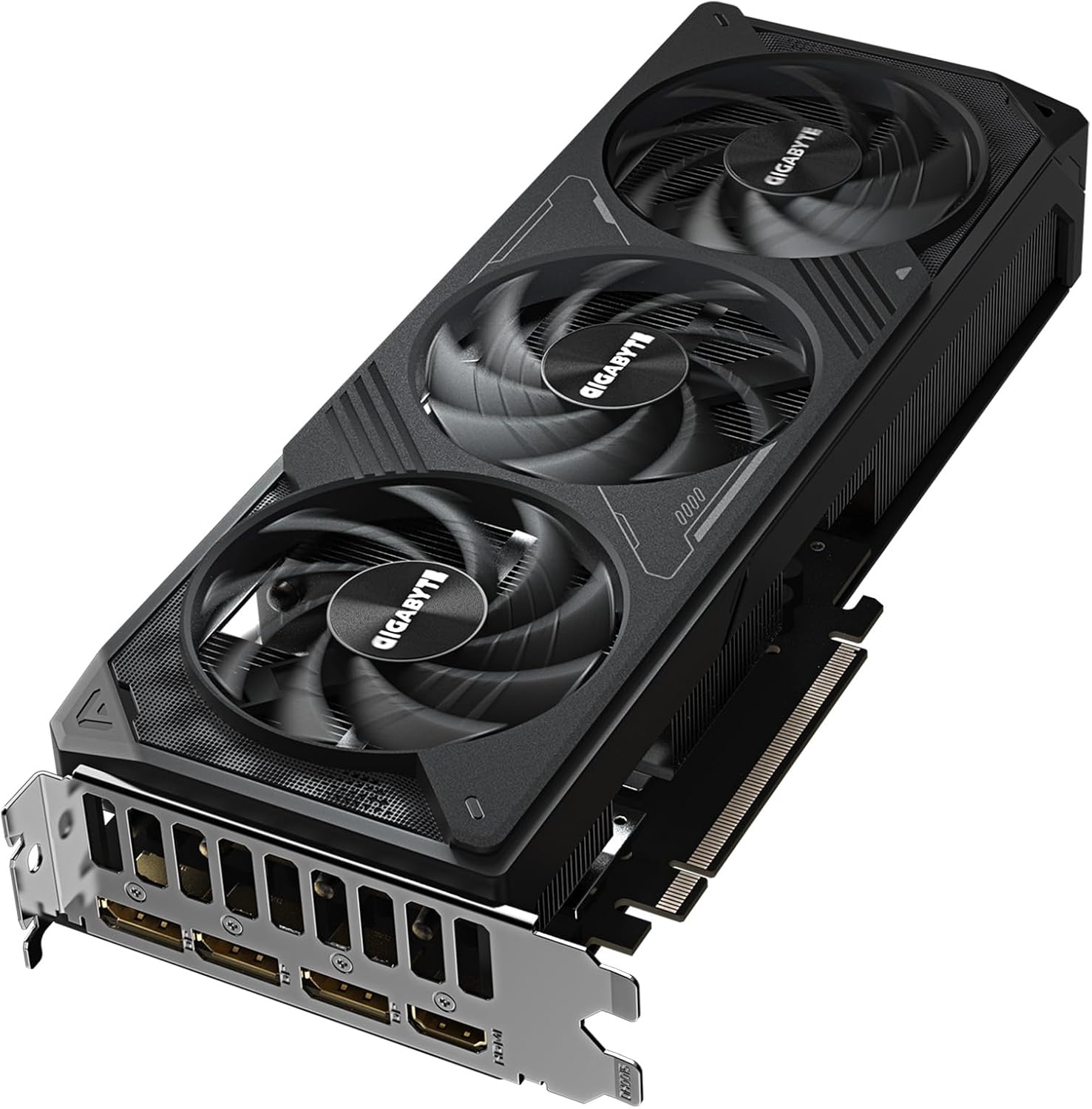

GIGABYTE RTX 5070 WINDFORCE

GIGABYTE  RTX 5070 WINDFORCE



FEATURES

  • Powered by the NVIDIA Blackwell architecture and DLSS 4
  • Powered by GeForce RTX 5070
  • Integrated with 12GB GDDR7 192bit memory interface
  • WINDFORCE cooling system
    • Hawk fan
    • Server-grade thermal conductive gel
  • NVIDIA SFF-ready
  • Reinforced structure

CORE CLOCK

2542 MHz (Reference card : 2512 MHz)

The Ultimate Platform for
Gamers and Creators

Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors

Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry



WINDFORCE
COOLING SYSTEM GIGABYTE  RTX 5070 WINDFORCE

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPE

The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

EXCELLENCE IN ESSENTIAL

NVIDIA SFF-READY

Complying with NVIDIA’s small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.

REINFORCED STRUCTURE

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.



SPECs OF GIGABYTE RTX 5070 WINDFORCE



  • Graphics Processing : GeForce RTX™ 5070
  • Core Clock : 2542 MHz (Reference card : 2512 MHz)
  • CUDA® Cores : 6144
  • Memory Clock : 28 Gbps
  • Memory Size : 12 GB
  • Memory Type : GDDR7
  • Memory Bus : 192 bit
  • Card Bus : PCI-E 5.0
  • Digital max resolution : 7680×4320
  • Multi-view : 4
  • Card size : L=282 W=110 H=50 mm
  • PCB Form : ATX
  • DirectX : DirectX 12 API
  • OpenGL : 4.6
  • Recommended PSU : 750W
  • Power Connectors : 16 Pin*1

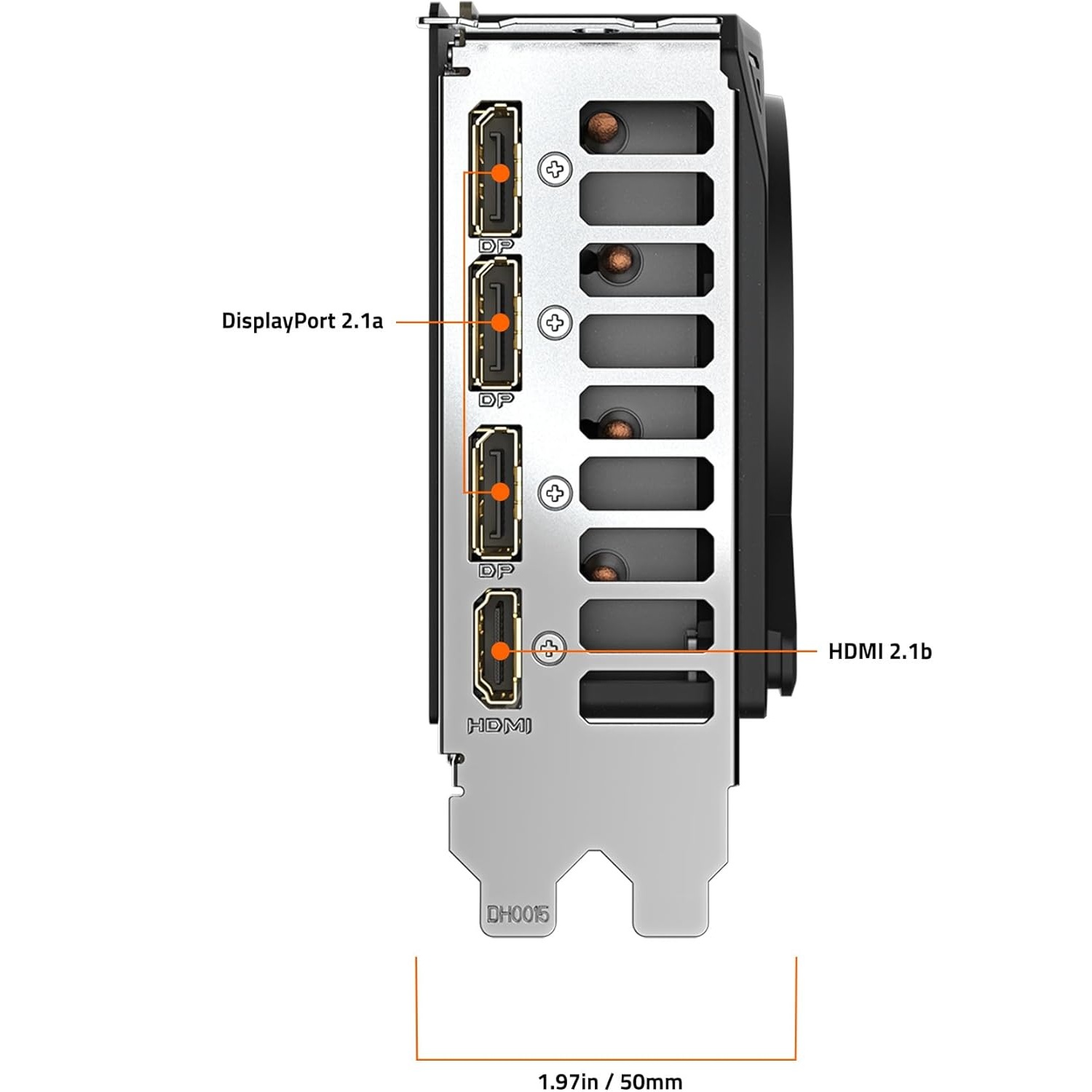

  • Output
    DisplayPort 2.1b *3
    HDMI 2.1b *1
  • Accessories
    1. Quick guide
    2. 1x 12V-2×6 to 2x PCIe 8pin adapter



For more info. Click link here
