New

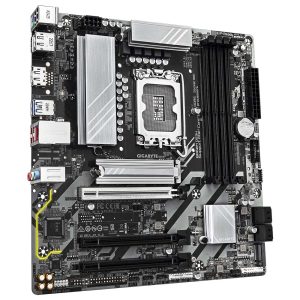

Gigabyte B860M DS3H Motherboard For Intel Core Ultra B860M-DS3H
124.95 JOD
In stock
Description
Gigabyte B860M DS3H Motherboard For Intel Core Ultra B860M-DS3H
More about Gigabyte B860M DS3H Motherboard
Infinite Memory Performance
UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.
Specification
| Category | Specification |
|---|---|
| CPU | LGA1851 socket; Supports Intel® Core™ Ultra Processors; L3 cache varies by CPU |
| Chipset | Intel® B860 Express Chipset |
| Memory | DDR5 9066(O.C) down to 5600 MT/s; 4× DIMM sockets; up to 256 GB; Dual channel |
| Supports ECC/non-ECC Un-buffered DIMMs; XMP support | |
| Onboard Graphics | Intel® HD Graphics (CPU-dependent); 1× HDMI (4096×2160@60Hz); 2× DisplayPort (3840×2160@144Hz) |
| HDMI 2.1, DisplayPort 2.1, HDCP 2.3; Triple-display support | |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| LAN | Realtek® 2.5GbE LAN chip (2.5G/1G/100Mbps) |
| Expansion Slots | 1× PCIe x16 (CPU, PCIe 5.0); 2× PCIe x16 (Chipset, PCIe 4.0 x1) |
| Storage Interface | 1× M.2 (CPU, PCIe 5.0 x4/x2); 1× M.2 (Chipset, PCIe 4.0 x4/x2); 4× SATA 6Gb/s |
| RAID 0/1/5/10 support for SATA | |
| USB Ports | 1× USB 3.2 Gen 2 Type-A (rear); 4× USB 3.2 Gen 1 (2 rear, 2 internal); |
| 1× USB Type-C® (USB 3.2 Gen 1, internal); 7× USB 2.0/1.1 (3 rear, 4 internal) | |
| Internal I/O | 24-pin ATX, 8-pin ATX 12V; CPU/system fan headers; RGB headers; M.2 & SATA ports |
| Front panel/audio headers; USB headers; TPM header; Q-Flash Plus button | |
| Reset jumper; Clear CMOS jumper | |
| Back Panel I/O |
|
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water flow detection; Fan fail warning/control |
| BIOS | 256 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC); Q-Flash; Q-Flash Plus; Smart Backup |
| Operating System | None |
| Form Factor | Micro ATX; 24.4 cm × 24.4 cm |
For more information about this product visit official website of Gigabyte
Gigabyte
For more related products visit us at our website
PC Circle
Additional information
| Brand |
GIGABYTE |
|---|---|
| MB CPU Socket |
LGA 1851 |
| MB Form Factors |
Micro ATX |
| MB Ram Slots |
4 Slots DDR5 |
| MB Series |
B860M |
| MB Wi-Fi & Bluetooth |
None |
