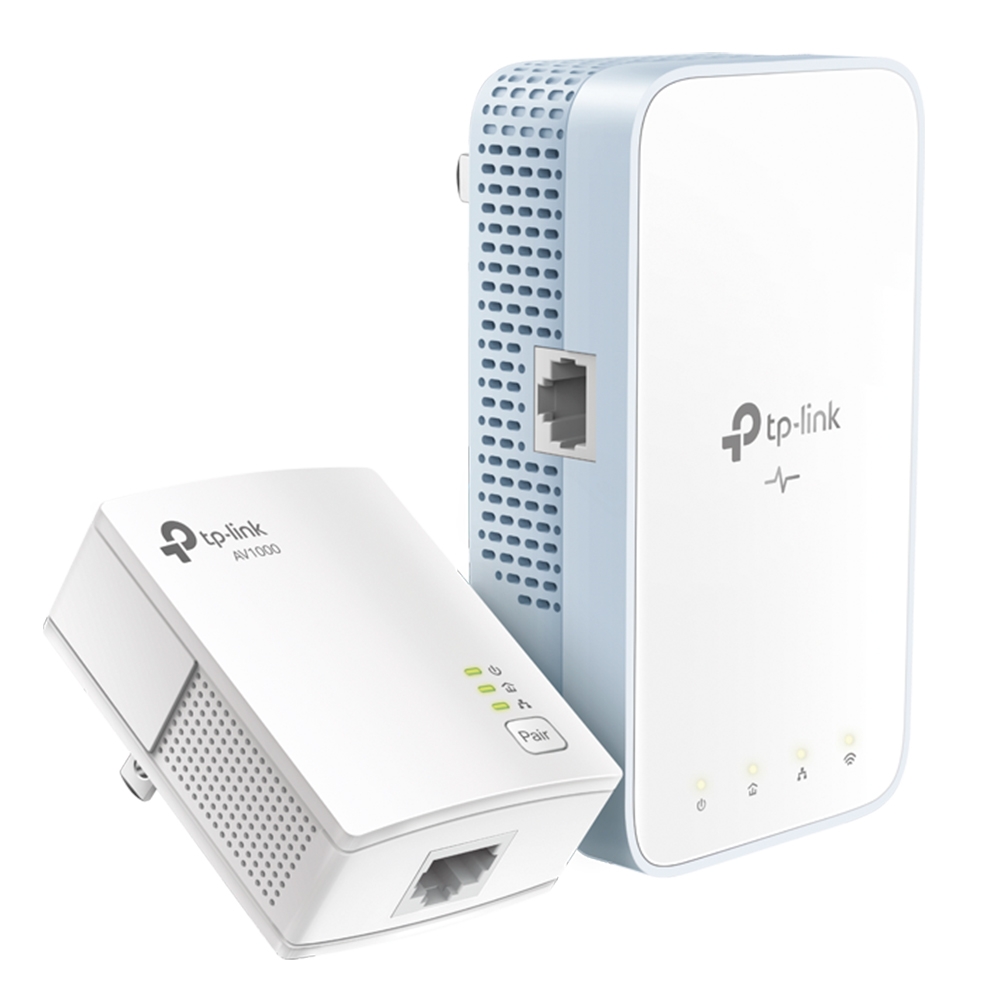

TP-Link TL-WPA7517 KIT AV1000 AC1200 Powerline Wi-Fi Extender AC1200
More about TP-Link TL-WPA7517 AC1200
Extend AC750 Wi-Fi to Every Room Using Existing Electrical System
AV1000 Gigabit Powerline ac Wi-Fi Kit
TL-WPA7517 KIT
Extend Wired and Wireless Network Using Electrical System
TL-WPA7517 KIT transforms your home’s existing electrical circuit into a Gigabit network, and brings wired and wireless network to anywhere there is a power outlet.
- > No need for drilling or wire installation
- > Network passes through walls and floors
- > Expand coverage by adding more extenders
- > Powerline adapters must be deployed in sets of two or more and be connected to the same electrical circuit
AV1000 Speeds and 300 Meters Range
Using advanced Home Plug AV2 technology, TL-WPA7517 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.
AC750 Wi-Fi for an Advanced Online Experience
With the 802.11ac Wi-Fi technology, the TL-WPA7517 operates a dual band Wi-Fi network (simultaneous 300 Mbps on 2.4 GHz and 433 Mbps on 5 GHz) with more bandwidth and less interference, maximizing the performance of your powerline network.
One Tap for a Unified Network
One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup.
Gigabit Ethernet for Fast Wired Connections
One Gigabit Ethernet port provides reliable high-speed wired connection for a bandwidth intensive device, such as game consoles, smart TVs, STB and more, or connects multiple devices by adding a switch. Two Ethernet cables are included in the box.
Specification of TP-Link TL-WPA7517 AC1200
| HARDWARE FEATURES | |
|---|---|
| Plug Type | US |
| Standards and Protocols | HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz) |
| Interface | TL-WPA7517: 1 Ethernet Port TL-PA7017: 1 Ethernet Port |
| Button | Pair, Reset, Wi-Fi Clone, LED On/Off |
| Power Consumption | TL-WPA7517: Maximum: 11W, Typical: 6.5W TL-PA7017: Maximum: 2.9W, Typical: 2.6W |
| LED Indicator | Power, Powerline, Ethernet, Wi-Fi (2.4GHz), Wi-Fi (5GHz) |
| Dimensions ( W x D x H ) | TL-WPA7517: 2.7 × 1.4 × 4.9 in. (69.5 × 35 × 124.1 mm) TL-PA7017: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm) |
| Range | Up to 300 meters / 1000 feet range over the existing household power circuit |
| Compatibility | Compatible with all HomePlug AV & AV2 standard powerline adapters |
| Transmission Speeds | Powerline: Up to 1000 Mbps Ethernet: 10/100/1000 Mbps |
| WIRELESS FEATURES | |
|---|---|
| Wireless Security | WPA-PSK / WPA2-PSK, WEP Encrptions |
| SOFTWARE FEATURES | |
|---|---|
| Management | tpPLC: Scan the QR code to download TP-Link tpPLC App. Or download new tpPLC Utility on PCs: www.tp-link.com. |
| Modulation Technology | OFDM (PLC) |
| Encryption | Powerline: 128-bit AES Encryption Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions |
| SOFTWARE | |
|---|---|
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Contents | AV1000 Powerline Wi-Fi Kit: TL-WPA7517 & TL-PA7017 Ethernet Cable × 2 Quick Installation Guide |
| System Requirements | Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90% non-condensing |
