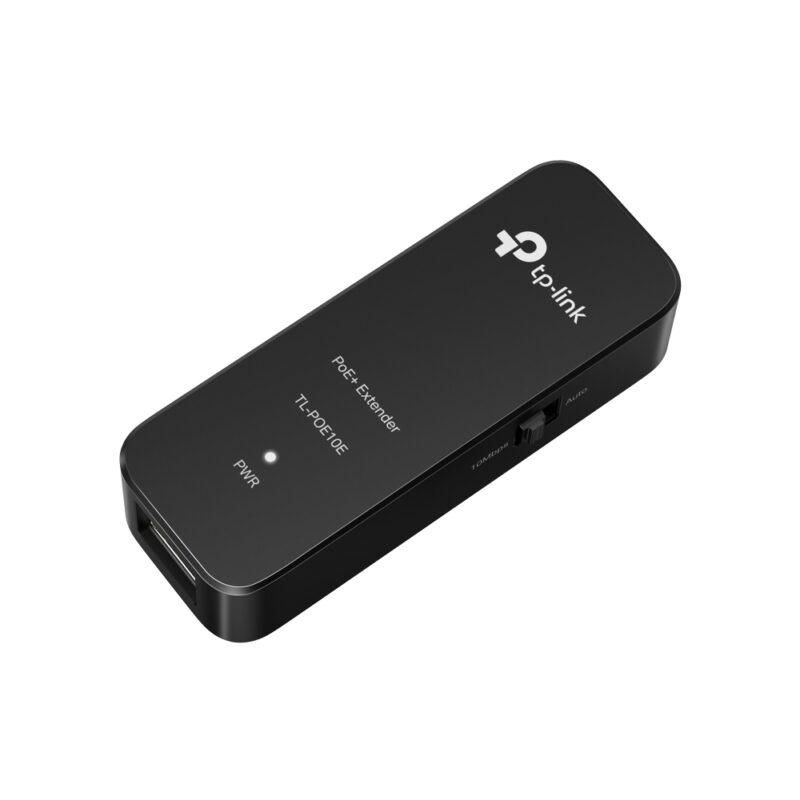

TP-Link Omada Fast Ethernet PoE+ Extender – TL-POE10E

TP-Link Omada Fast Ethernet PoE+ Extender – TL-POE10E

TP-Link Omada PoE+ Extender

• Extends a PoE/PoE+ network connection an additional 100m – 250m (10 Mbps Mode) from the PoE power source equipment
• Compliance with 802.3af/at devices and supports the maximum output power of 20W
• 2 * 10/100Mbps Ports ensure faster transmission
• Plug-and-Play, requires no configuration
• More wired products

What This Product Does

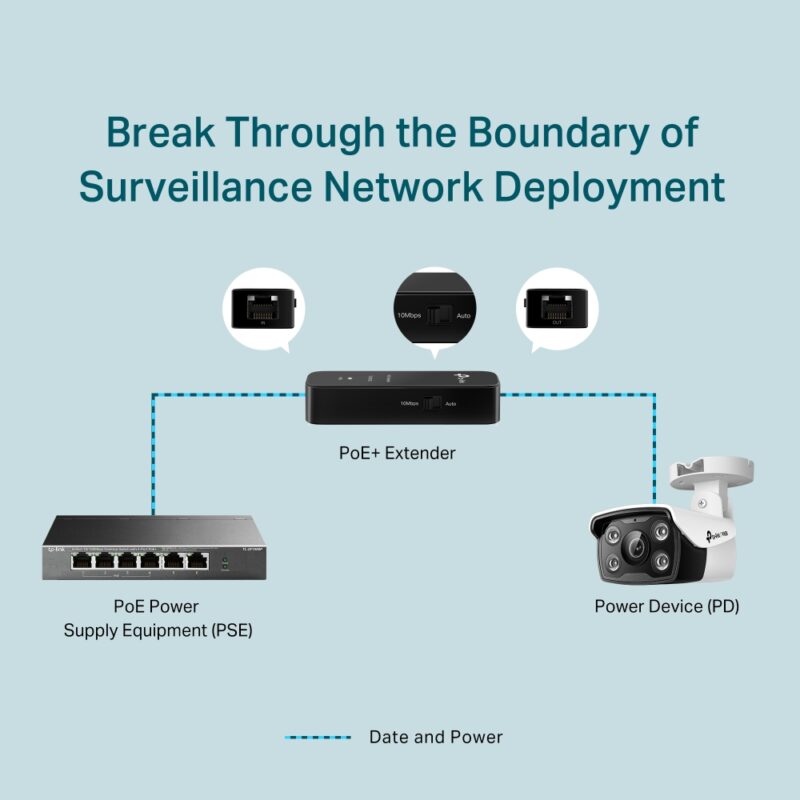

The Fast Ethernet PoE+ Extender TL-POE10E extends a PoE/PoE+ network connection an additional 100m – 250m (10 Mbps Mode) from the PoE power source equipment. TL-POE10E expands network deployment with 802.3af/at PoE compliant devices, making it ideal for remote cabling requirements in surveillance scenarios. Distance will no longer be a barrier to network deployment.

specification

Standards and Protocols:
IEEE802.3i, IEEE802.3u
Certification:
FCC, CE, RoHS
Environment:
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90%RH non-condensing
• Storage Humidity: 5% to 90%RH non-condensing
Material:
Plastics Casing
PACKAGE CONTENTS:
• Fast Ethernet PoE+ Extender TL-POE10E
• Installation Guide
HARDWARE FEATURES:
Network Media:
UTP/STP of Cat.5E or above (based on the standards that the connected
devices
comply with)

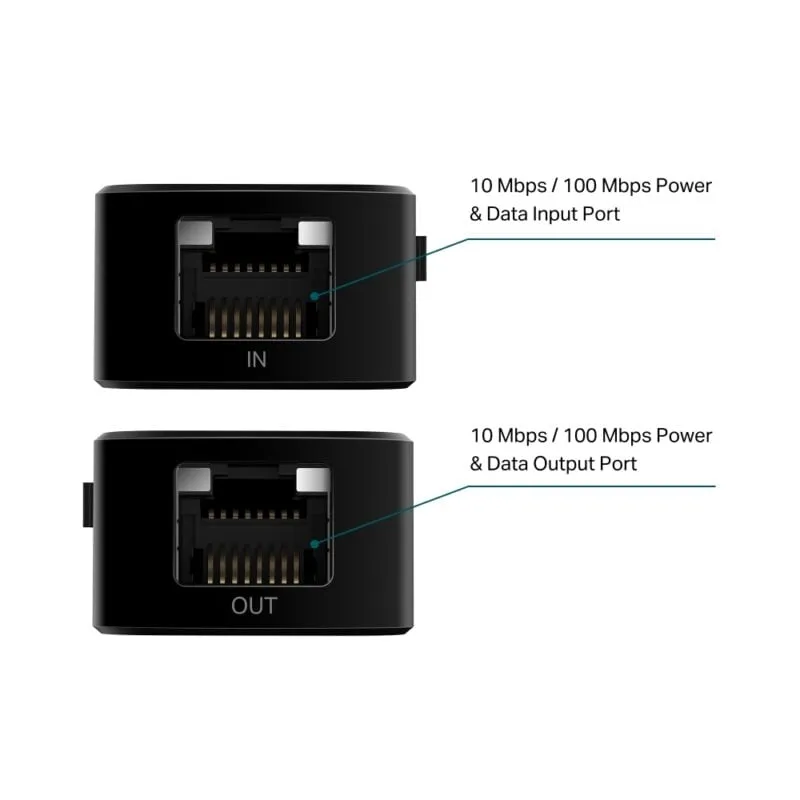

Ports:
• 1 10 Mbps /100 Mbps RJ45 PoE IN Port
• 1 10 Mbps /100 Mbps RJ45 PoE OUT Port
Basic Function:
• 1 10/100Mbps RJ45 PoE IN port
• 1 10/100Mbps RJ45 PoE Out port, supplies up to 20 W
• Up to 250 m data and power transmitting range under 10Mbps mode
• Plug-and-Play
Dimensions ( W x D x H ):
2.33*0.85*0.52 in (71*26*16 mm)
