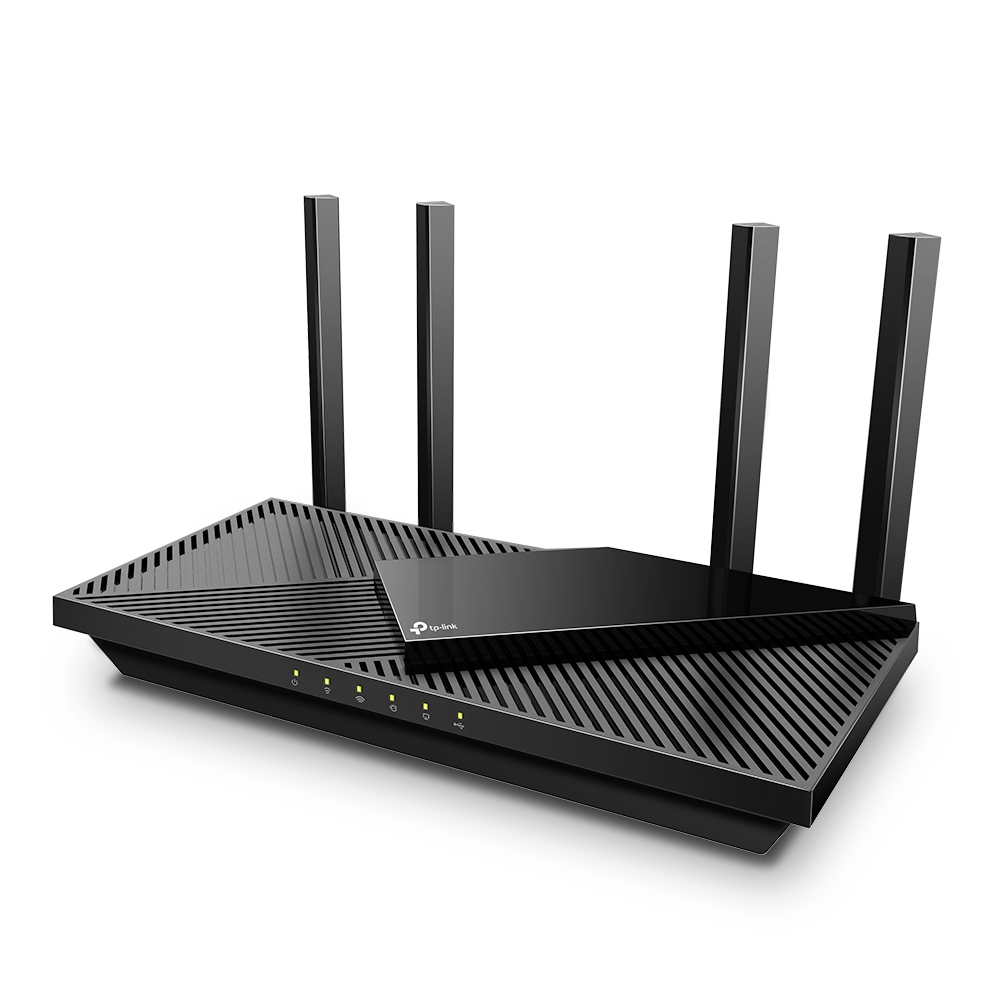

TP-Link AX3000 Dual Band Gigabit Wi-Fi 6 Router Archer AX55
Best Features of TP-Link AX3000 Archer AX55
- Next-Gen Gigabit Wi-Fi 6 Speed — 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.†
- Connect More Devices — OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
- Ultra Low Latency — Enables more responsive gaming and video chatting.
- Expanded Wi-Fi Coverage — Four high gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.
- TP – Link Home Shield – Enhanced security defends against the latest cyber threats.
- Improved Battery Life — Target Wake Time helps your devices to communicate more while consuming less power.
- Compatible with Alexa — Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
The New Era of
Home Connectivity
AX3000 Dual – Band Gigabit Wi-Fi 6 Router
Archer AX55
Wi-Fi 6 Upgrades Everything
The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Incredible Speed
Drastically improved speeds enable streaming, fast downloading, and gaming—all at the same time. 5 GHz with 160 MHz channel support doubles the bandwidth, enabling 8K video without lag.
More Responsive Experiences
Less Loading Wheels
Enjoy smooth gaming, video streaming, and live feed simultaneously. OFDMA makes your Wi Fi stronger by allowing multiple clients to share one band at the same time, which cuts latency and jittering.
Powerful CPU and High Memory
Connect More without Dropping Speed
Behind the Wi-Fi 6 technology structure are the advanced Qualcomm chipset and high memory. Enjoy fast connections with minimal latency even under a heavy load of transmission. Every click for website links and online playback on your laptop and phone just responds quicker.
Improved Cooling Design Consistent Full Output
No heat ups, no throttles. A larger heat sink and refined case design cool the WiFi 6 system and enable your network to stay at top speed in more versatile environments.
Wi-Fi Coverage Throughout Your Home
4 high-performance external antennas boost Wi Fi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for previously hard to reach outlets.
USB 3.0 Ports
Easily share files between connected devices by plugging into an external drive. You can even make it your personal cloud storage and access it from outside securely*.
TP-Link One Mesh ™
Flexibly Create Whole Home Wi Fi with Archer AX55
Want to build a whole home Wi-Fi? Archer AX55 supports One Mesh to form seamless whole – home coverage, preventing drops and lag when moving between signals.
TP-Link Home Shield:
Advanced Security for Your Everyday Devices
With TP – Link Home Shield, enjoy advanced security features delivering a safe environment that protects your family and network’s data and privacy.
Home Network Scanner
Real – time network scanner to detect potential threats and security issues.
Parental Controls
Manage time online and block inappropriate content keeping your family safe online.
Quality of Service
Assign your favorite devices to have the fastest connections for top performance.
Upgrade to Home Shield Pro
WPA3 — New Level of Cyber Security
The latest Wi – Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi Fi password safety and enhanced protection against brute – force attacks combine to safeguard your home Wi Fi *.
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX55 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.
Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.
New Connection Notification
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.
Easy Firmware Upgrade
Tired of upgrading firmware ? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up to date, just turn on the auto schedule.
Specification
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| Wi Fi Speeds | AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) |
| Wi Fi Range | 3 Bedroom Houses 4× Fixed High – Performance Antennas Beamforming High-Power FEM |
| Wi Fi Capacity | High Dual Band OFDMA Airtime Fairness DFS 4 Streams |
| Working Modes | Router Mode Access Point Mode |
| HARDWARE | |
|---|---|
| Processor | Dual – Core CPU |

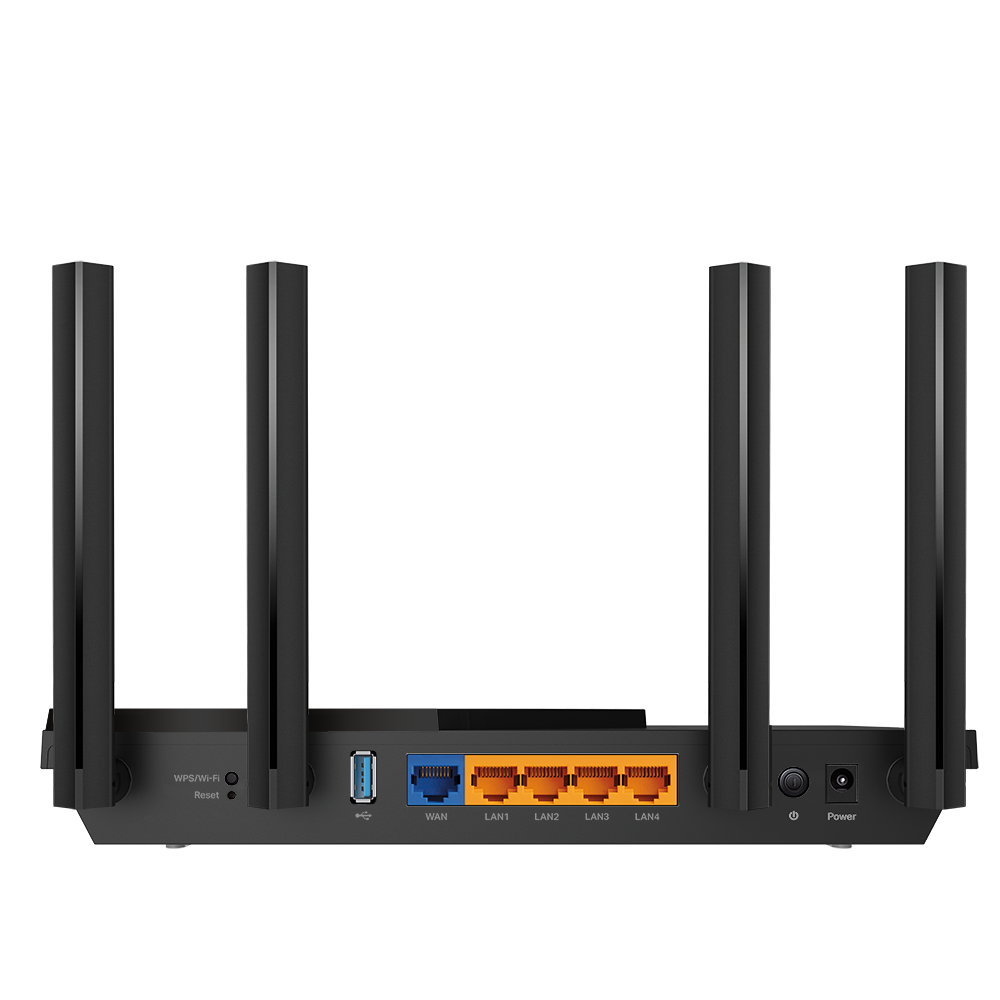

| Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| USB Support | 1× USB 3.0 Port Supported Partition Formats: Supported Functions: |
| Buttons | Wi-Fi/WPS Button Power On/Off Button Reset Button |
| Power | 12 V ⎓ 2 A |
| SECURITY | |
|---|---|
| Wi Fi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway Home Shield Security Real – Time IoT ProtectionMalicious Site BlockerIntrusion Prevention SystemDDoS Attack PreventionHome Network Scanner |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN PPTP |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Service Kits | Home Shield |
One Mesh ™ | One Mesh ™ SupportedWithout replacing your existing devices or buying a whole new Wi Fi ecosystem, One Mesh ™ helps you create a more flexible network that covers your entire home with TP – Link One Mesh ™ products. |
| Parental Controls | Home Shield Parental Controls Custom Profiles |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Virtual Servers Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP Dyn DNS |
| Management | Tether App Webpage |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non condensing |
| TEST DATA | |
|---|---|
| Wi Fi Transmission Power | CE: < 20dBm(2.4GHz) < 23dBm(5.15GHz~5.35GHz) < 30dBm(5.47GHz~5.725GHz) FCC: <30dBm(2.4GHz & 5.15GHz~5.825GHz) |
| WiFi Reception Sensitivity | 5GHz:1.11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-75dBm2.11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm3.11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm4.11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm5.11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm6.11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm7.11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-61dBm8.11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-58dBm2.4GHz:9.11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-74dB10.11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dB11.11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm12.11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 10.2 × 5.3 × 1.5 in (261.1 × 134.5 × 41.0 mm) |
| Package Contents | Wi Fi Router Archer AX55 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
