TP-Link 5-Port Network Switch

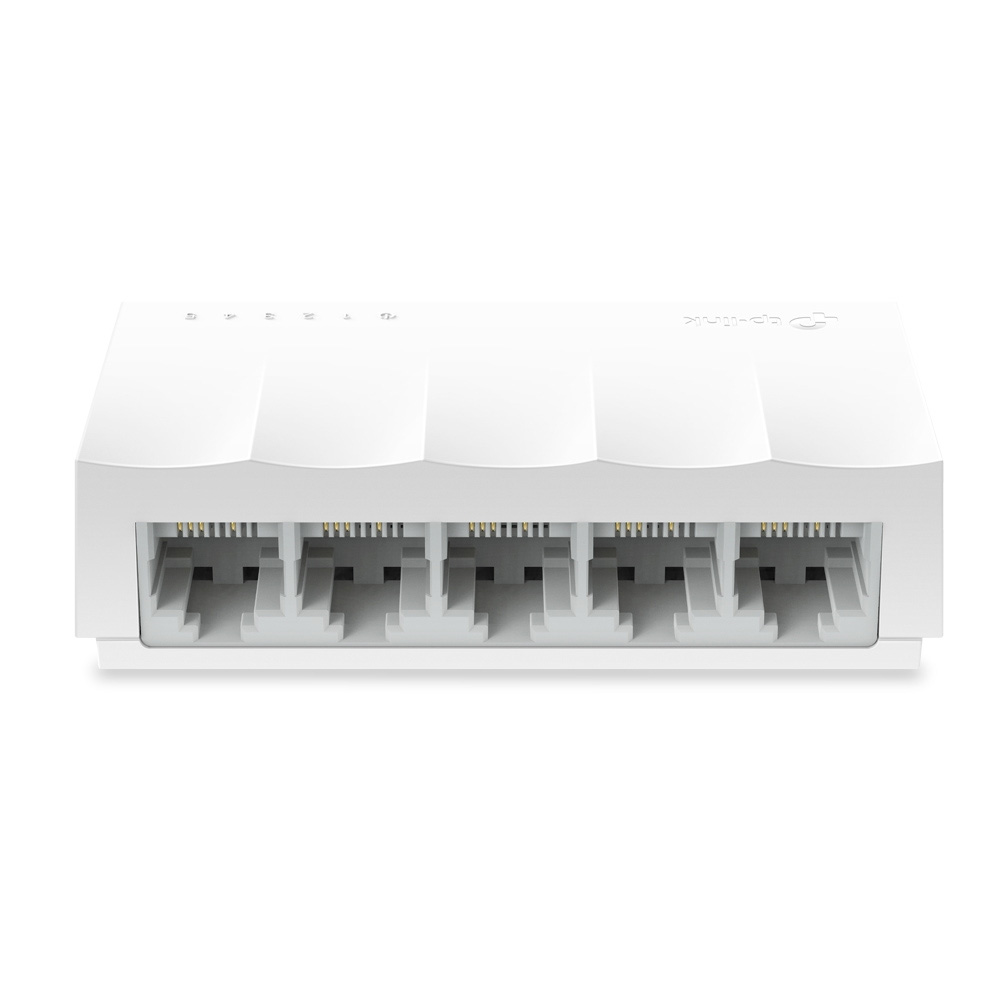

TP-Link 5-Port 10/100Mbps Desktop Network Switch [ LS1005 ]

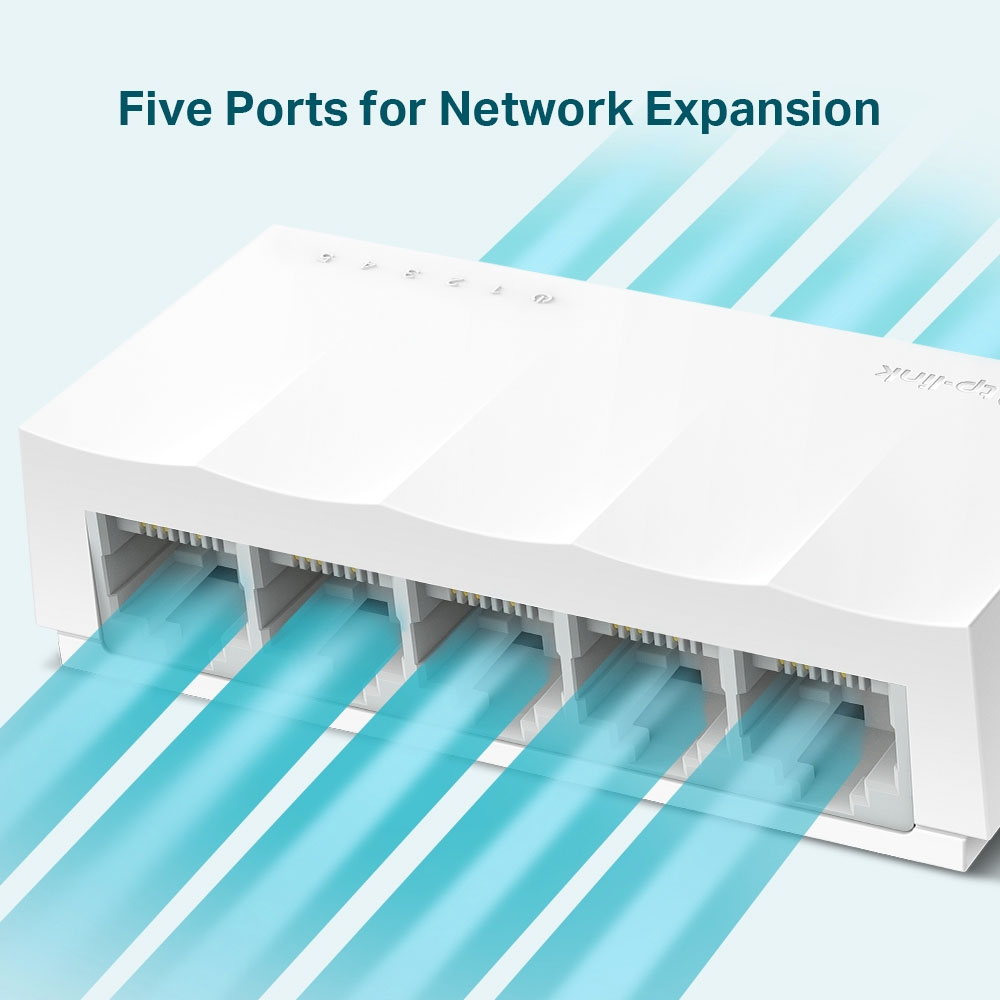

# 5× 10/100Mbos Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
# Green Ethernet technology saves power consumption
# IEEE 802.3X flow control provides reliable data transfer
# Plastic casing and desktop design
# Plug and play, no configuration required
# Fanless design ensures quiet operation
Overview
Let Lite Wave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

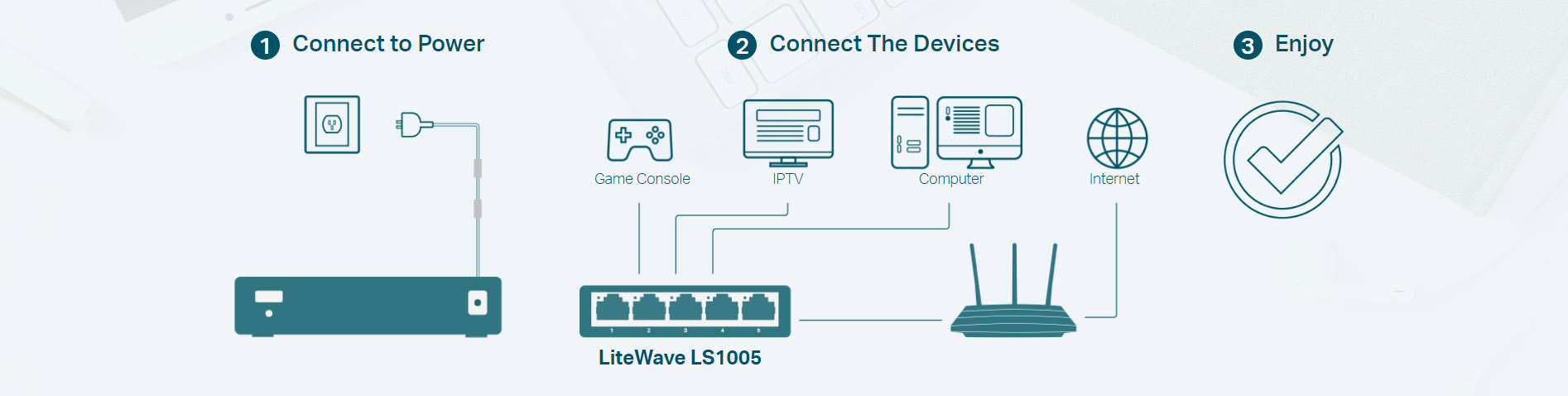

Plug and Play

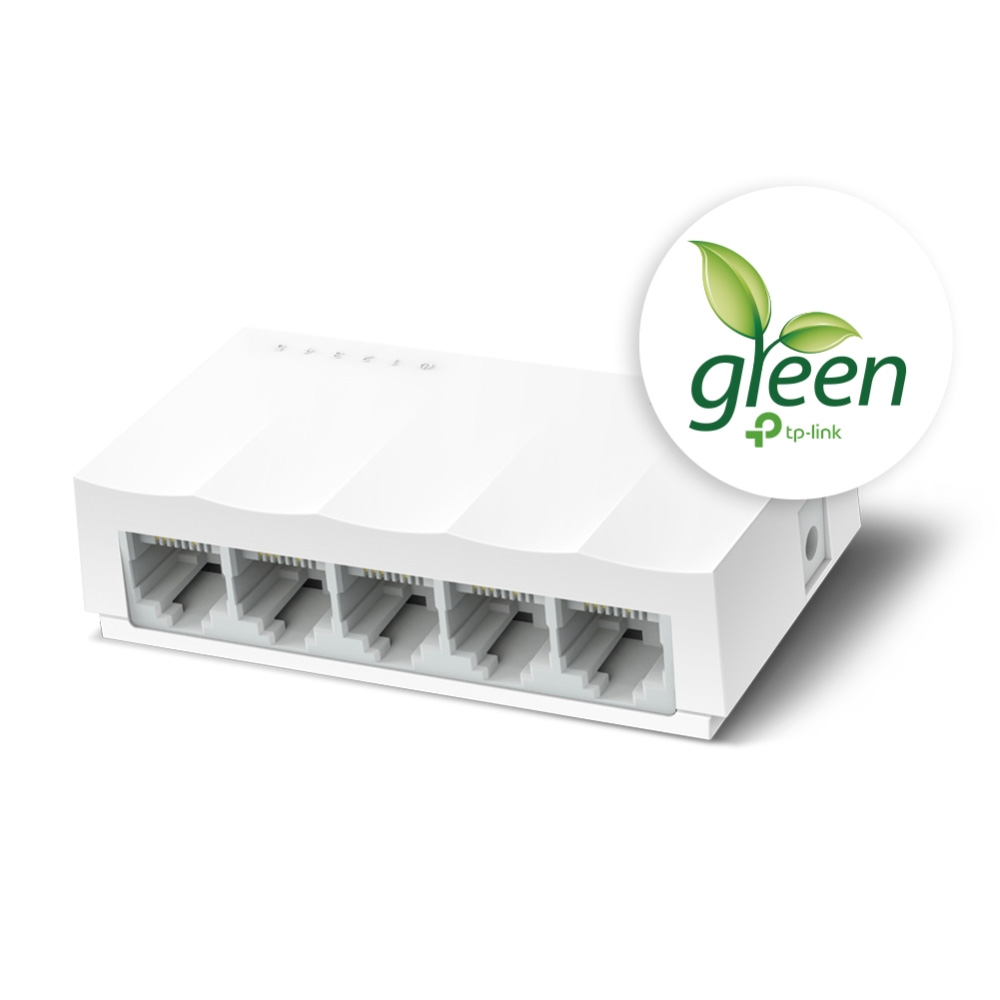

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

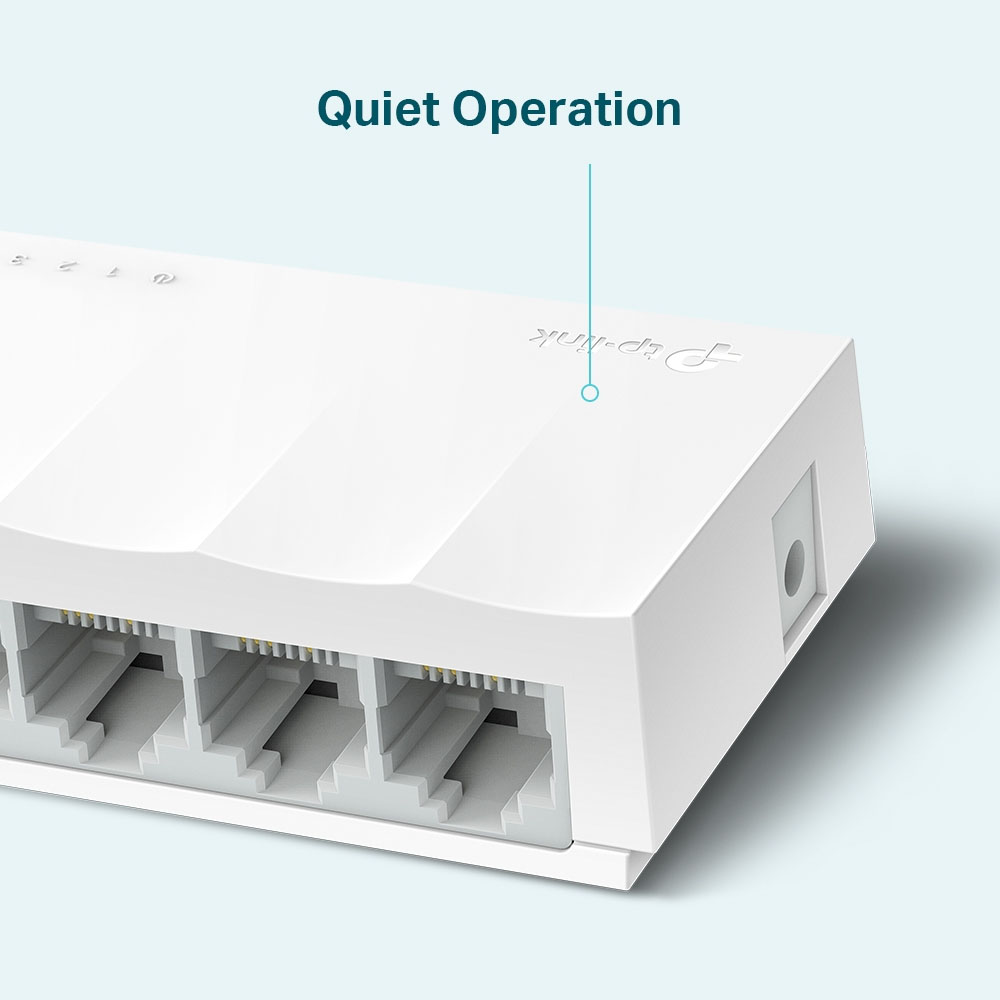

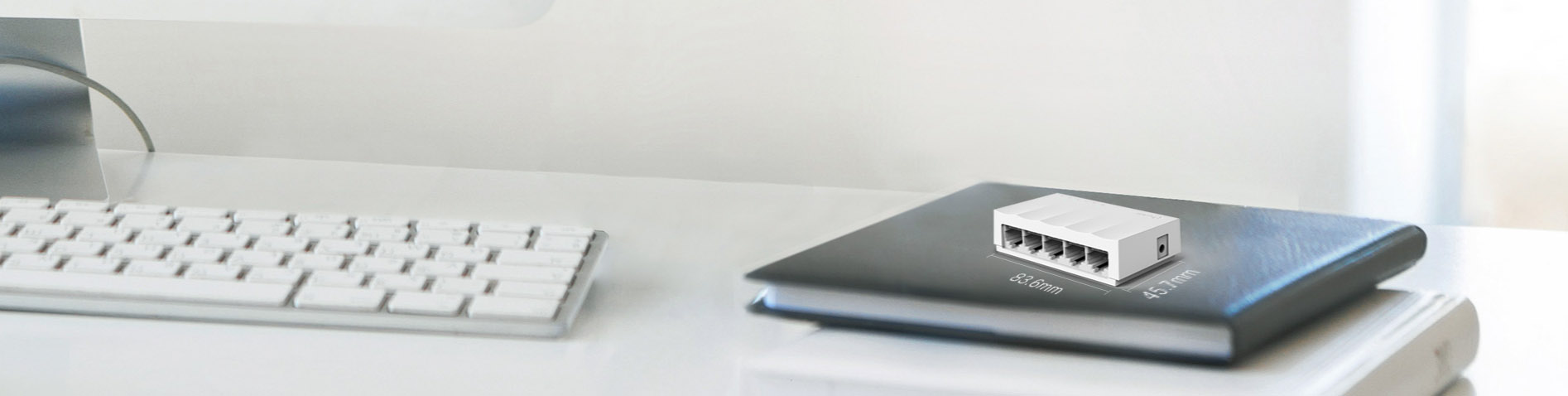

Fanless and Desktop Design
Compact desktop design, to meet your needs in any environment.
Besides, fanless design ensures quiet operation.
Use Where You Need, However You Need
The LS1005 is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
Specifications
HARDWARE FEATURES | |
Standards and Protocols | IEEE 802.3i/802.3u/802.3x |
Interface | 5× 10/100Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
Fan Quantity | Fanless |
External Power Supply | External Power Adapter (Output: 5VDC/0.6A) |
Dimensions ( W x D x H ) | 3.3 × 1.8 × 0.9 in. (83.6 × 45.7 × 22.8 mm) |
Max Power Consumption | 1.65W |
Max Heat Dissipation | 5.627 Btu/hr |
SOFTWARE FEATURES | |
Advanced Features | Green Technology |
802.3X Flow Control | |
Back Pressure | |
Transfer Method | Store and Forward |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents | 5-Port 10/100Mbps Desktop Switch |
Power Adapter | |
Installation Guide | |
Environment | Operating Temperature: 0°C~40°C (32°F~104°F) |
Storage Temperature: -40°C~70°C (-40°F~158°F) | |
Operating Humidity: 10% ~ 90% non-condensing | |
Storage Humidity: 5%~90% non-condensing |
