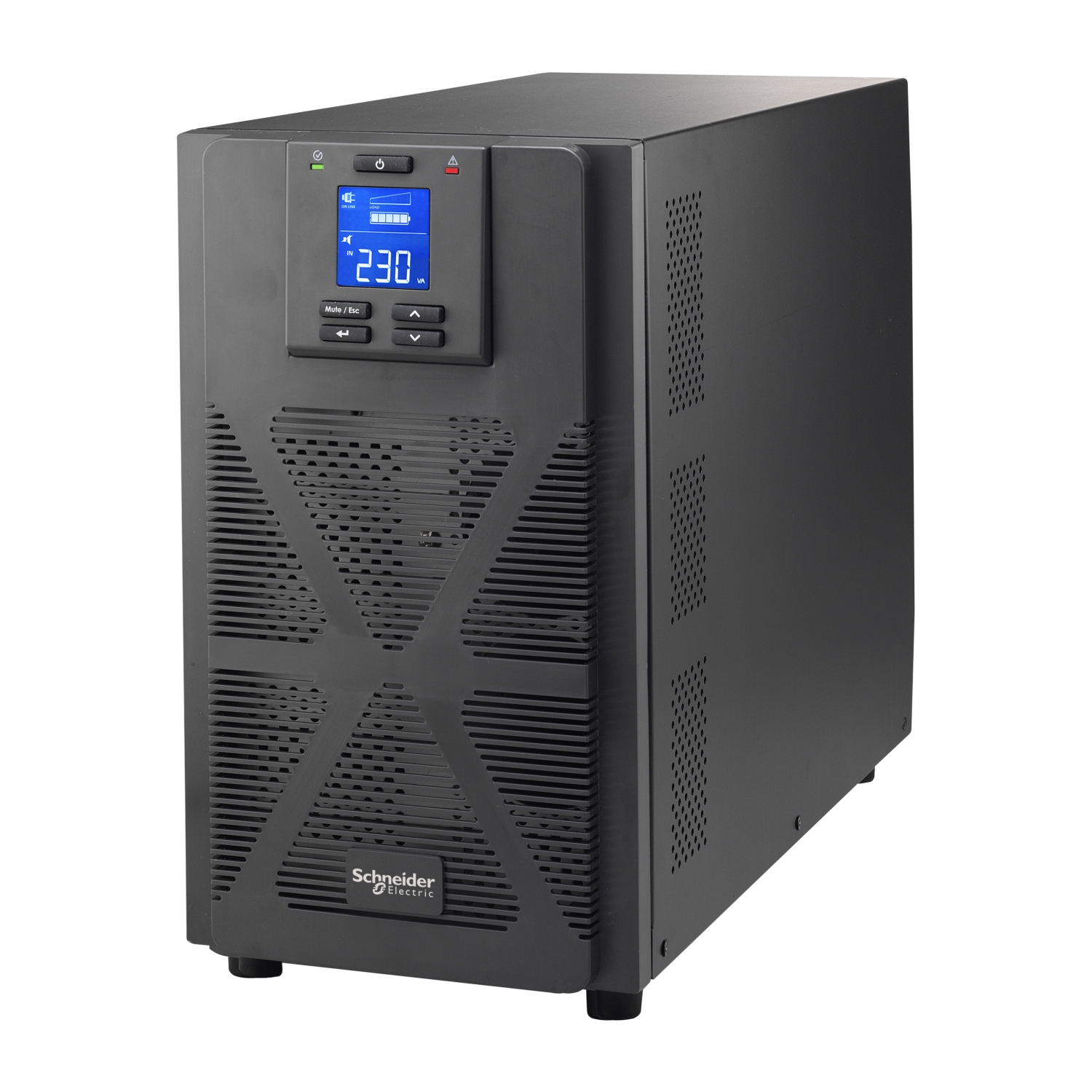

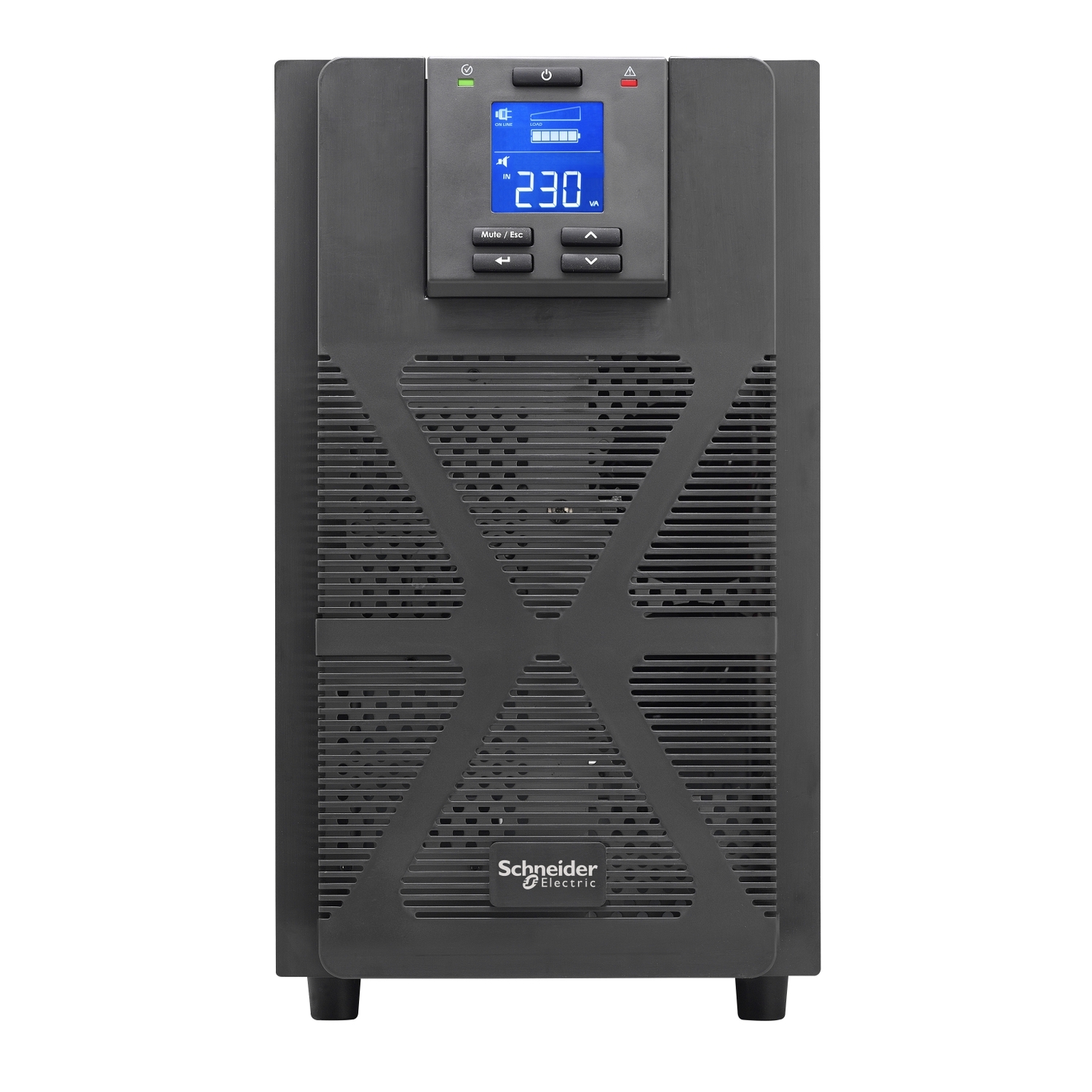

shneider SRVS3KI Easy UPS – Tower – 3kVA – 230V
shneider SRVS3KI Easy UPS – Tower – 3kVA – 230V
Features
- 3kVA/2.4kW double-conversion on-line pure sine wave tower UPS.
- High operating efficiency in energy-saving ECO mode
- Prolonged battery life with intelligent temperature-compensated charging
- Easy-to-read LCD interface for detailed and accurate information on UPS status
- more UPSs
For small to medium businesses, Easy UPS 1 Ph On-Line provides essential power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
Specifications
Main Input Voltage: 230 V
Product or component type: Uninterruptible power supply (UPS)
Other Input Voltage: 220V 240V
Main Output Voltage: 230 V
Other Output Voltage: 220 V 240 V
Rated power in W: 2400 W
Rated power in VA: 3000 VA

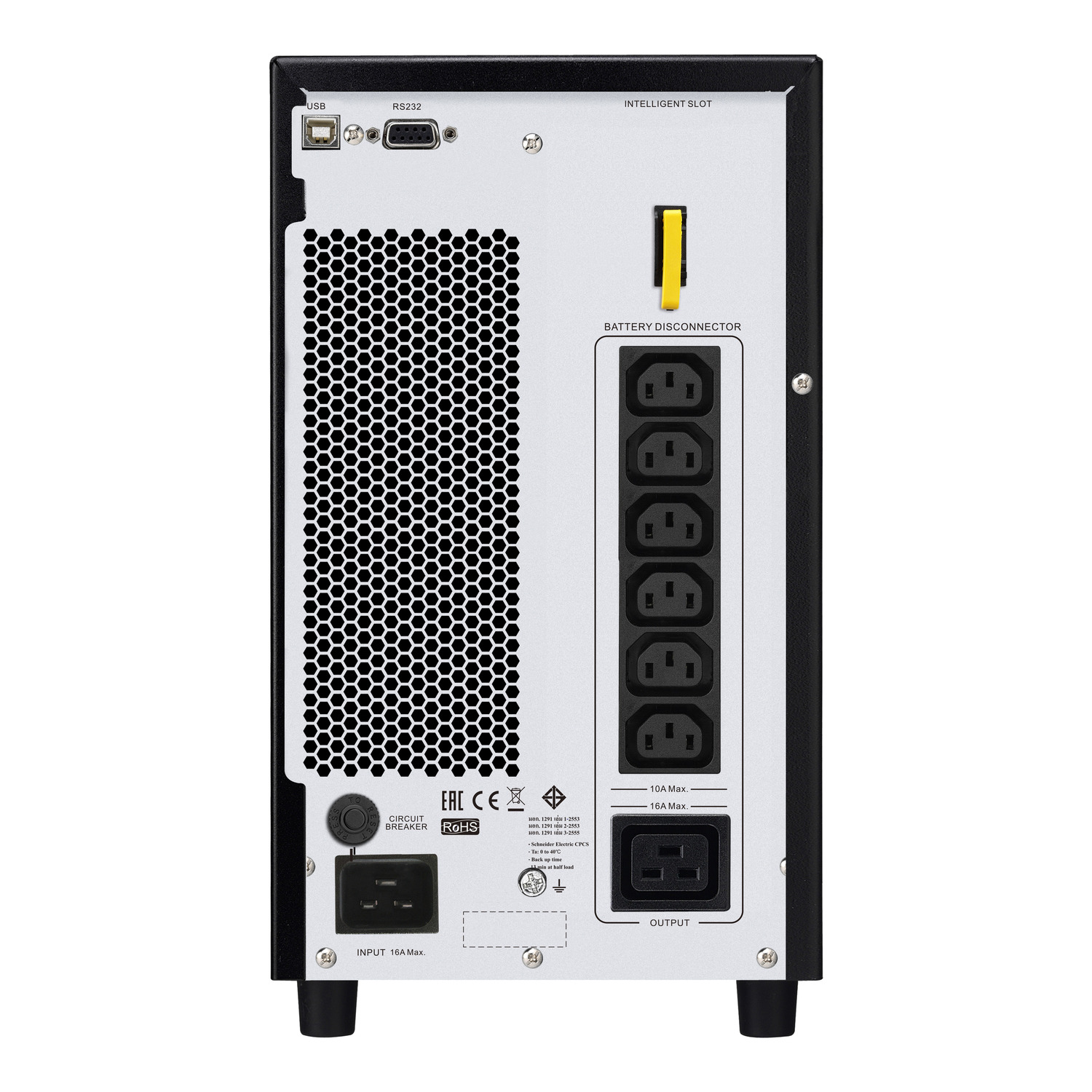

Input Connection Type: IEC 60320 C20
output connection type: 6 IEC 60320 C13
1 IEC 60320 C19
Battery type: Lead-acid battery
Battery voltage: 72 V
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 4 h
Colour: Black (RAL 7010)
Height: 33.6 cm
Width: 19 cm
Depth: 42.5 cm
Net weight: 26.8 kg
Mounting location: Front
Mounting preference: No preference
Mounting mode: Not rack-mountable
USB compatible: Yes
Mounting position: Vertical
Input:
Input voltage limits: 110…285 V half load
160…280 V full load
Network frequency: 40…70 Hz auto sensing
Output:
Maximum configurable power in
VA:
3000 VA
Maximum configurable power in
W:
2400 W
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
UPS type: Double conversion online
Wave type Sine wave
Efficiency: 88 % (full load)
Additional information: Configurable for 220 : 230 or 240 nominal output voltage
Bypass type: Internal bypass (automatic and manual)
Crest factor: 3 : 1
