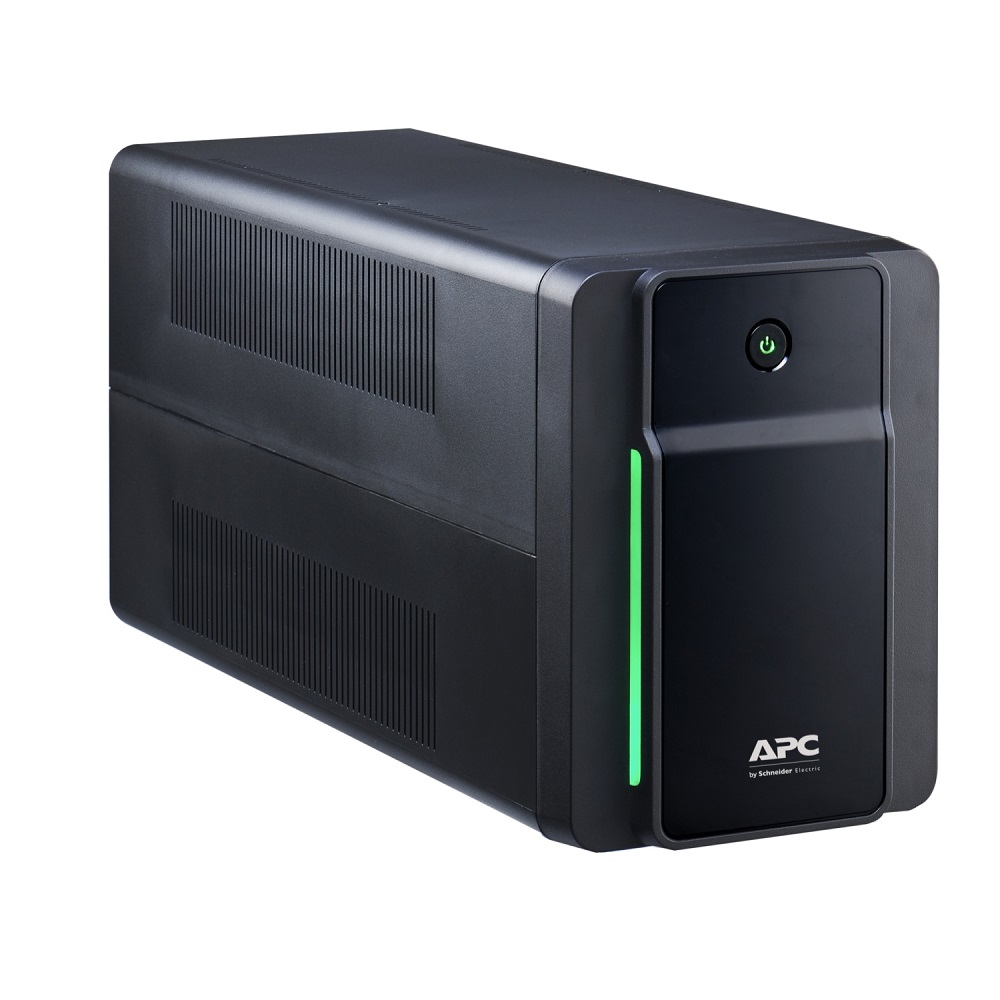

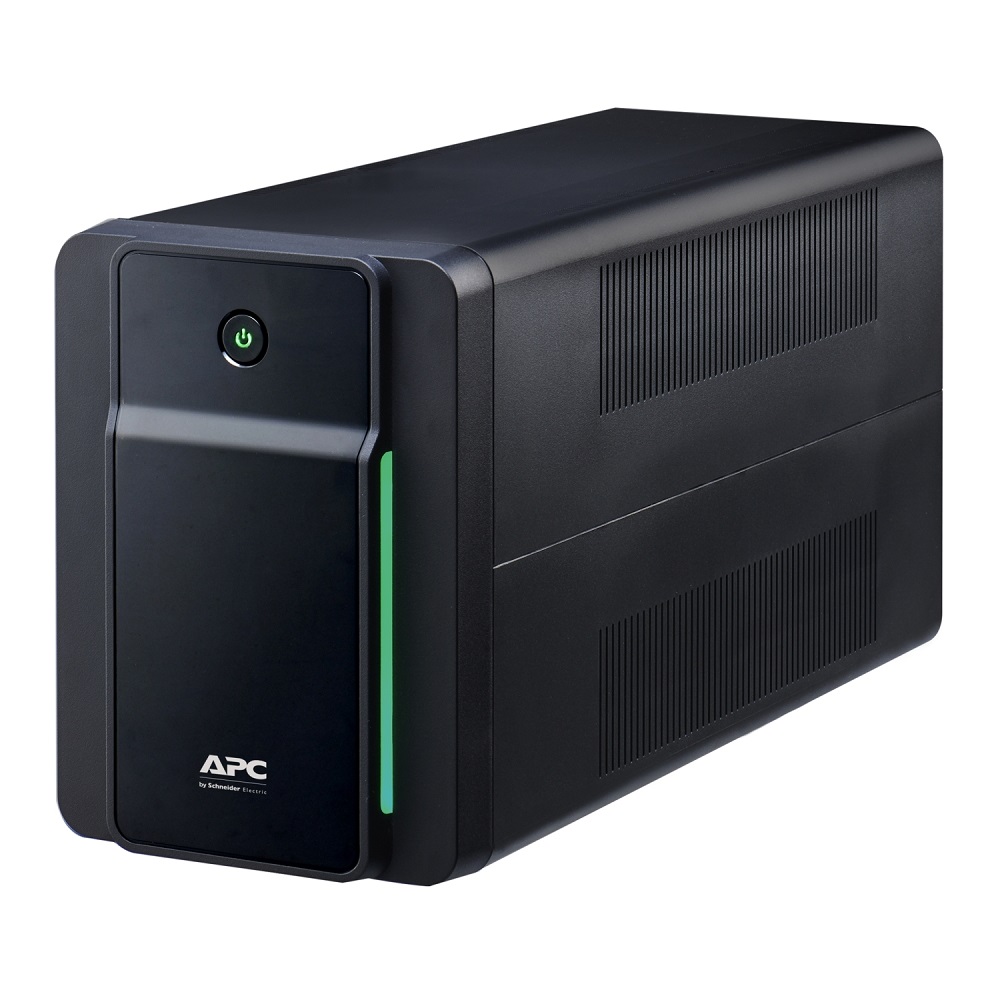

APC Back UPS 2200VA 230V AVR Universal Socket BX2200MI-MS
More about APC UPS 2200VA BX2200MI-MS
Lead time | Usually in Stock |
|---|
Run time for loadinformation_stroke Min-max: 120-1200 W | 2min 15s |
|---|---|
Max. Capacity Usedinformation_stroke | 100 % |
Main Input Voltage | 230 V |
rated power in W | 1200 W |
Rated power in VA | 2200 VA |
output connection type | 4 universal |
Cable length | 1.22 m |
Number of cables | 1 |
Battery type | Lead-acid battery |
Provided equipment | User manual |
|---|---|
Max runtime | 240 min |
Number of power module free slots | 0 |
Number of power module filled slots | 0 |
Redundant | No |
Colour | Black |
|---|---|
Height | 19 cm |
Width | 14 cm |
Depth | 39 cm |
Net weight | 12.3 kg |
Mounting preference | No preference |
Mounting mode | Not rack-mountable |
Two post mountable | 0 |
USB compatible | No |
Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
|---|---|
Input voltage limits | 140…300 V |
Input Power Factor at Full Load | 0.54 |
Maximum configurable power in W | 1200 W |
|---|---|
Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
UPS type | Line interactive |
Wave type | Stepped approximation to a sinewave |
Full load runtime | 00:01:00 1200 W |
Half load runtime | 00:08:30 600 W |
Maximum configurable power in VA | 2200 VA |
Transfer time | 6 ms typical : 10 ms maximum |
Product certifications | CE |
|---|---|
Standards | 1-EN/IEC 62040-1:2019/A11:2021 2-EN/IEC 62040-2:2006/AC:2006 3-EN/IEC 62040-2:2018 |
Equipment protection policy | Lifetime : 50000 euros |
Ambient air temperature for operation | 0…40 °C |
|---|---|
Relative humidity | 0…95 % non-condensing |
Operating altitude | 0…3000 m |
Ambient air temperature for storage | -15…40 °C |
Storage Relative Humidity | 0…95 % non-condensing |
Storage altitude | 0…3000 m |
Acoustic level | 40 dBA |
IP degree of protection | IP20 |
| Run Time | View Runtime Graph action new window |
|---|---|
| Efficiency | View Efficiency Graph action new window |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 8 h |
| Battery voltage | 24 V |
| Battery power in VAH | 190 VAh runtime 216 VAh capacity |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC177 action_new_window |
| Battery graph comments | Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
| Extended runtime | 0 |
control panel | LED Status display with on line : on battery |
|---|
Surge energy rate | 273 J |
|---|
Unit Type of Package 1 | PCE |
|---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 29.7 cm |
Package 1 Width | 49.5 cm |
Package 1 Length | 23.5 cm |
Package 1 Weight | 13.3 kg |
