Sold out

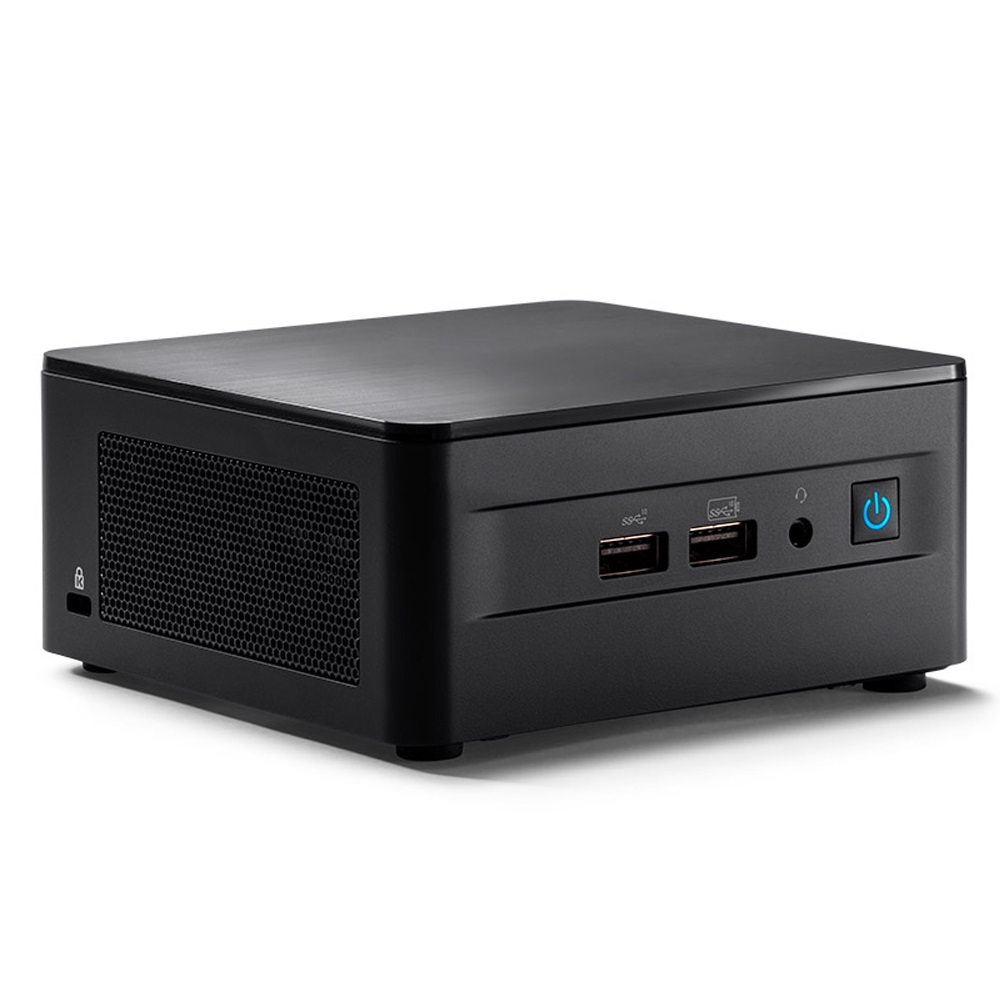

Intel® NUC 12 Pro Kit NUC12WSHi7 Single unit Intel® Core i7-1260P , No Cord , ( 18M Cache MB , up to 4.70 GHz ) RNUC12WSHI7000
499.00 JOD
Out of stock
Description
Intel® NUC 12 Pro Kit NUC12WSHi7 Single unit Intel® Core i7-1260P , No Cord , ( 18M Cache MB , up to 4.70 GHz ) RNUC12WSHI7000
More about NUC 12 Pro NUC12WSHi7
-
Good and small Size that can fit everywhere
-
Strong CPU That can make you work with fast experience
-
Two Thunderbolt Ports with High data transfer Speed
UPE | Compare Intel® Products |
|
| NUC Title | Intel® NUC 12 Pro Kit NUC12WSHi7 |
Essentials |
|
| Product Collection | Intel® NUC Kit with 12th Generation Intel® Core™ Processors |
| Code Name | Products formerly Wall Street Canyon |
| Status | Launched |
| Launch Date | Q3’22 |
| Expected Discontinuance | 1H’25 |
| Supported Operating Systems | Windows 11 Home* | Windows 11 Pro* | Windows 10 Home* | Windows 10 IoT Enterprise* | Windows 10 Pro* | Red Hat Linux* | Ubuntu 20.04 LTS* |
| Board Number | NUC12WSBi7 |
| Board Form Factor | UCFF (4″ x 4″) |
| Socket | Soldered-down BGA |
| Internal Drive Form Factor | M.2 and 2.5″ Drive |
| # of Internal Drives Supported | 3 |
| TDP | 35 W |
| DC Input Voltage Supported | 12-20 VDC |
| Processor Included | Intel® Core™ i7-1260P Processor (18M Cache | up to 4.70 GHz) |
| Total Cores | 12 |
| Total Threads | 16 |
| Lithography | Intel 7 |
| Max Turbo Frequency | 4.70 GHz |
Supplemental Information |
|
| Embedded Options Available | No |
Memory & Storage |
|
| Max Memory Size (dependent on memory type) | 64 GB |
| Memory Types | DDR4-3200 1.2V SODIMMs |
| Max # of Memory Channels | 2 |
| Max # of DIMMs | 2 |
| ECC Memory Supported ‡ | No |
Processor Graphics |
|
| Integrated Graphics ‡ | Yes |
| Graphics Output | 2x HDMI 2.1 TMDS Compatible | 2x DP 1.4a via Type C |
| # of Displays Supported ‡ | 4 |
Expansion Options |
|
| PCI Express Revision | Gen 4 (m.2 22×80 slot); Gen 3 (otherwise) |
| PCI Express Configurations ‡ | PCIe x4 Gen 4: M.2 22×80 (key M) PCIe x1 Gen 3: M.2 22×42 (key B) PCIe x1: M.2 22×30 (key E) |
| M.2 Card Slot (wireless) | 22×30 (E) |
| M.2 Card Slot (storage) | 22×80 NVMe (M); 22×42 SATA (B) |
I/O Specifications |
|
| # of USB Ports | 4 |

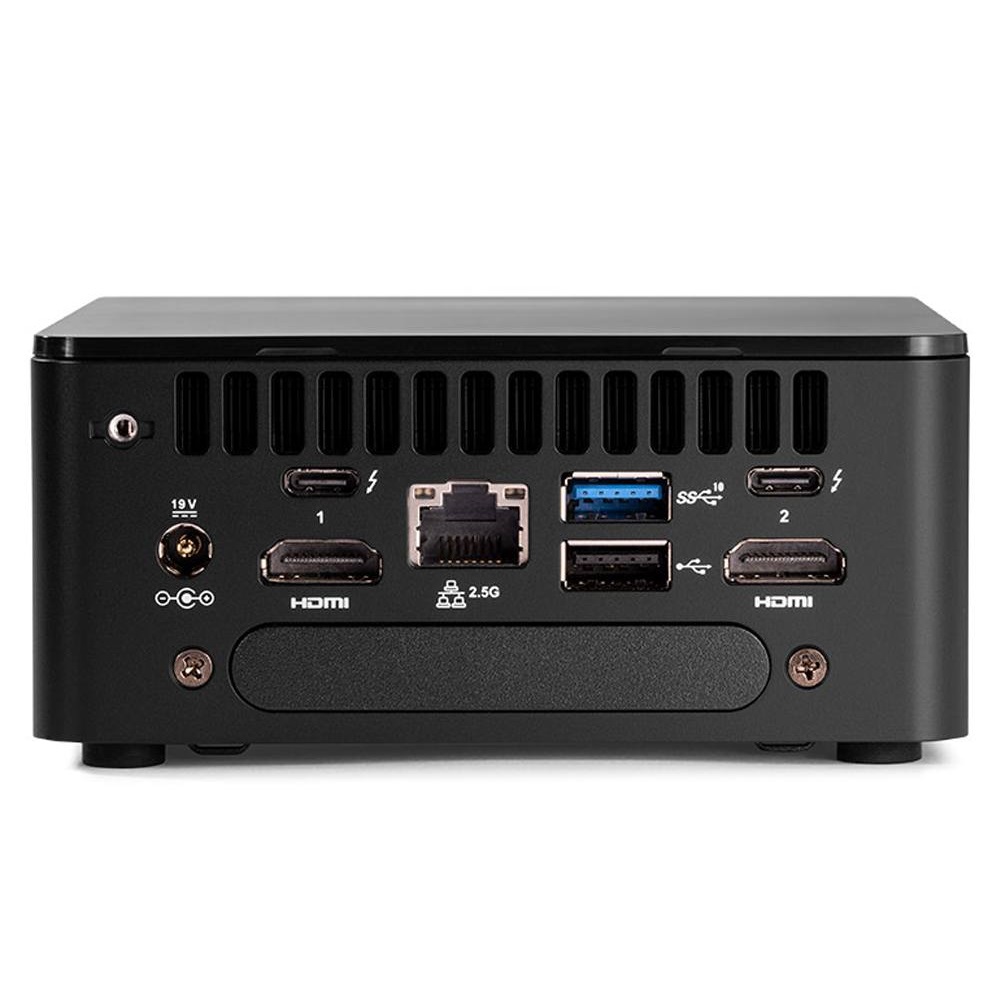

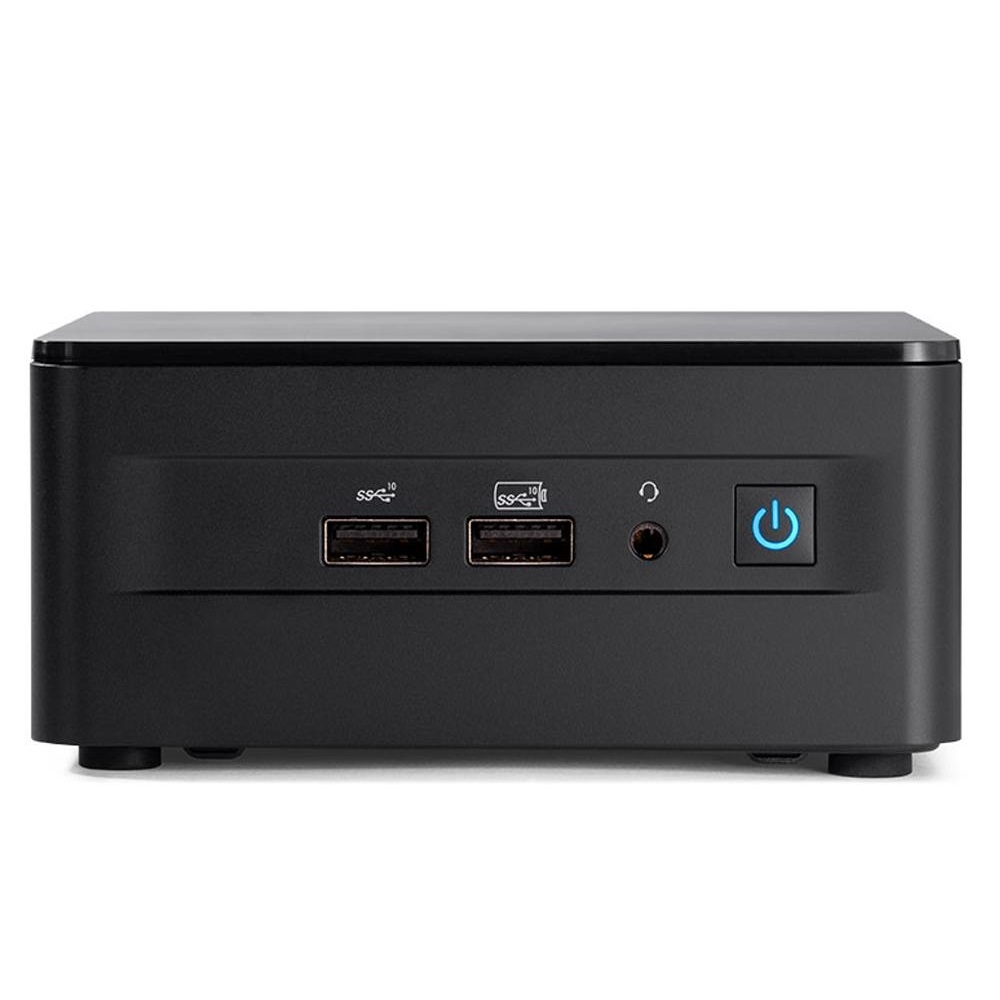

| USB Configuration | Front: 2x USB 3.2 Rear: 2x USB 4 (type C) | 1x USB 3.2 | 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22×42 (pins) | 2x USB 2.0 (headers) |
| Total # of SATA Ports | 1 |
| Serial Port via Internal Header | No |
| Audio (back channel + front channel) | Front panel: 3.5mm headphone/mic jack |
| Integrated LAN | Intel® Ethernet Controller i225-V |
| Integrated Wireless‡ | Intel® Wi-Fi 6E AX211(Gig+) |
| Integrated Bluetooth | Yes |
| Additional Headers | Front _ panel (PWR | RST | 5V | 5Vsby | 3.3Vsby); Internal 2×2 power connector |
| # of Thunderbolt™ Ports | 2x Thunderbolt™ 4 |
Package Specifications |
|
| Chassis Dimensions | 117 x 112 x 54 [mm] (LxWxH) |
Advanced Technologies |
|
| Intel® Optane™ Memory Supported ‡ | No |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® ME Firmware Version | 16 |
| Intel® HD Audio Technology | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
Security & Reliability |
|
| Intel® AES New Instructions | Yes |
For more information about this product visit official website of Intel
Intel
For more related products visit us at our website
PC Circle
Additional information
| Brand |
Intel |
|---|---|
| Desktop CPU |
12th Genertaion Intel® Core™ i7-1260P (3.40 GHz up to 4.70 GHz //12-Cores//16-Threads////18MB Cache) |
| Desktop Graphics Card | |
| Desktop Display Ports | |
| Desktop Memory (Ram) | |
| Desktop Operating System | |
| Desktop Storage | |
| Desktop Wi-Fi & Bluetooth |
