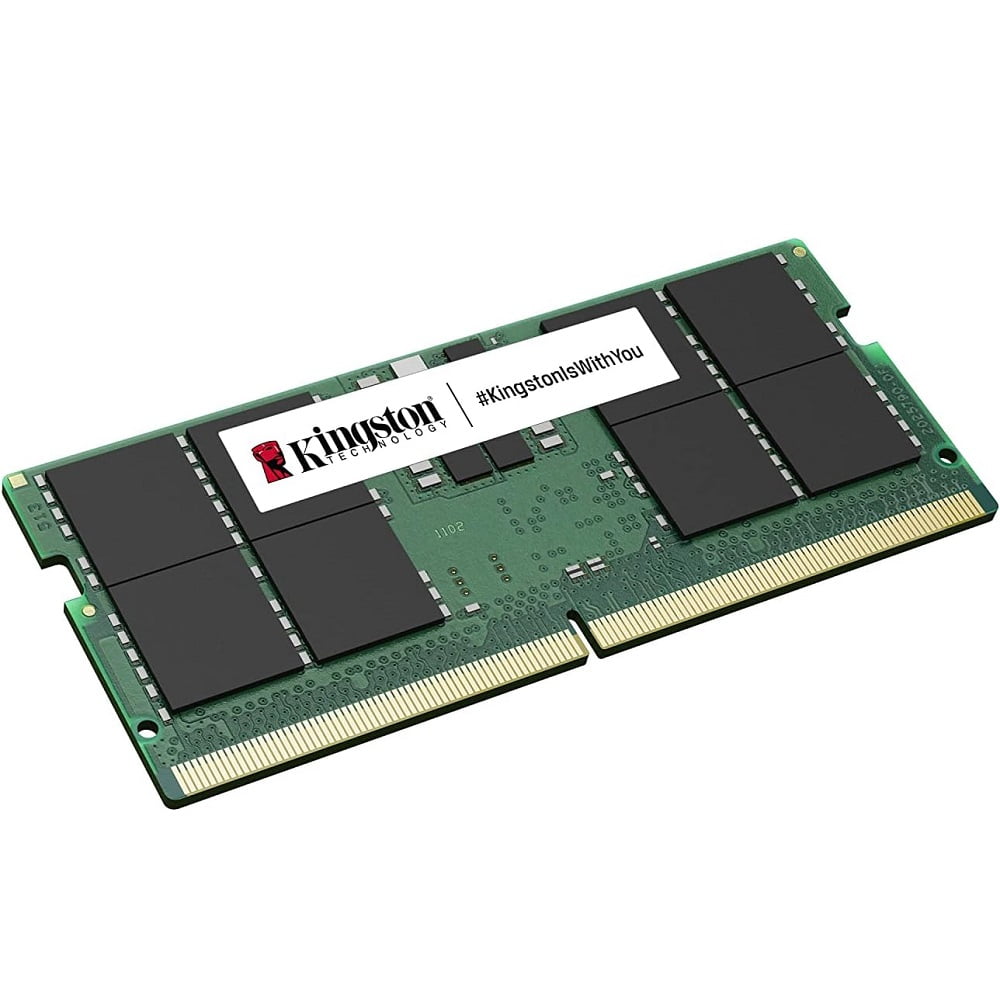

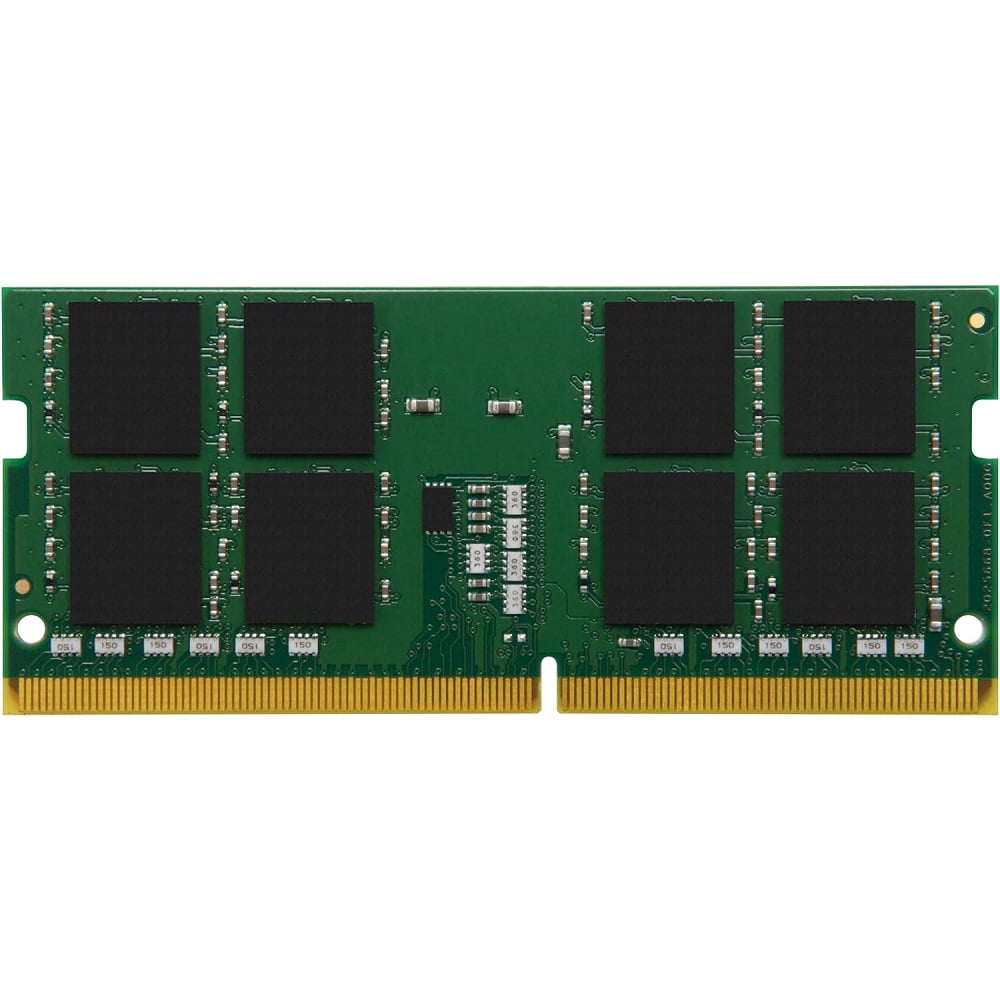

Kingston ValueRam 32GB 5600 MT/s DDR5 Notebook KVR52S46D8-32
More about Kingston 32GB 5600MT/s Notebook
This document describes ValueRAM’s KVR52S42BD8-32 is a 4G x 64-bit (32GB) DDR5-5600 CL42 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 42-42-42 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
- All ValueRAM memory is 100% tested
- ValueRAM is ideal for system builders and those who buy memory by specification
- Please always check the compatibility with manufacturer before purchasing this DRAM module
- Designed and tested to meet JEDEC industry standards
FEATURES of Kingston 32GB 5600MT/s Notebook
Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
PCB: Height 1.18” (30.00mm)
RoHS Compliant and Halogen-Free
| RAM | 32 GB DDR5 |
|---|---|
| Memory Speed | 5600 |
| Brand | Kingston |
| Item model number | KVR52S46D8-32 |
| Product Dimensions | 6.96 x 0.38 x 3 cm; 9 Grams |
| Item dimensions L x W x H | 7 x 0.4 x 3 Centimetres |
| Colour | green |
| Memory Type | SODIMM |
| Voltage | 1.1 Volts |
