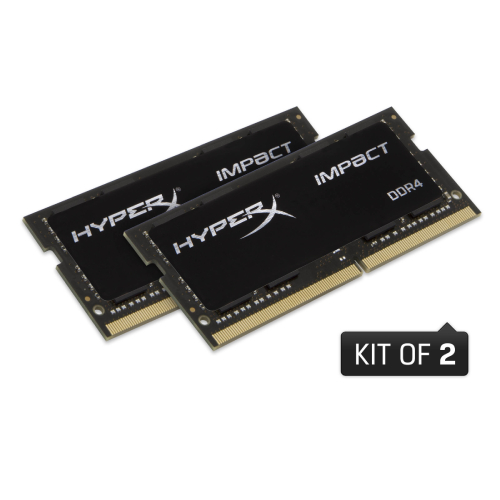

Kingston HyperX Impact 32GB (2*16GB) 3200MT/s DDR4 Notebook Ram HX432S20IB2K2/32

Kingston HyperX 32GB Impact DDR4-3200 Memory Notebook (2x16GB)

HyperX Impact 32GB (16GB 2G 64-Bit 2-pcs) DDR4-3200 CL20 260-Pin SODIMM Kit

Kingston HyperX Impact 32GB

DESCRIPTION

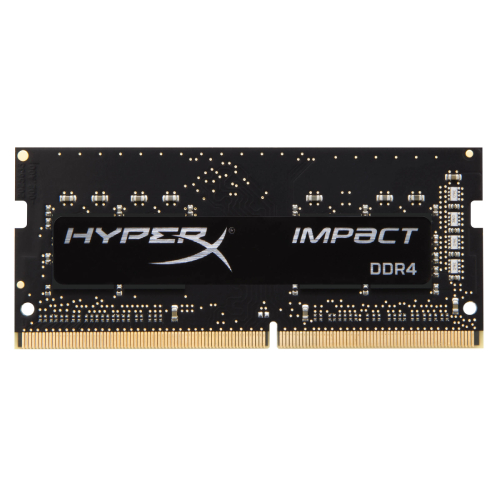

HyperX HX432S20IB2K2/32 is a kit of two 2G x 64-bit (16GB) DDR4-3200 CL20 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit DDR4 FBGA components. Each module supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Total capacity is 32GB. This module has been tested to run at DDR4-3200 at a low latency timing of 20-22-22 at 1.2V. Additional timing parameters are shown in the PnP Timing Parameters section below.

Note: The PnP feature offers a range of speed and timing options to support the widest variety of processors and chipsets. Your maximum speed will be determined by your BIOS.

SPECIFICATIONS

CL(IDD)

20 cycles

Row Cycle Time (tRCmin)

45.75ns (min.)

Refresh to Active/Refresh // Command Time (tRFCmin)

350ns (min.)

Row Active Time (tRASmin)

26.25ns (min.)

UL Rating

94 V – 0

Operating Temperature

0°C to 85°C

Storage Temperature

-55°C to +100°C

FEATURES

Power Supply: VDD = 1.2V Typical

VDDQ = 1.2V Typical

VPP = 2.5V Typical

VDDSPD = 2.2V to 3.6V

On-Die termination (ODT)

16 internal banks; 4 groups of 4 banks each

Bi-Directional Differential Data Strobe

8 bit pre-fetch

Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

Height 1.18” (30.00mm)

PnP JEDEC TIMING PARAMETERS:

JEDEC/PnP: DDR4-3200 CL20-22-22 @1.2V

XMP Profile #1: DDR4-3200 CL20-22-22 @1.2V

XMP Profile #2: DDR4-2933 CL17-19-19 @1.2V
