Kingston 16GB DDR4 2666

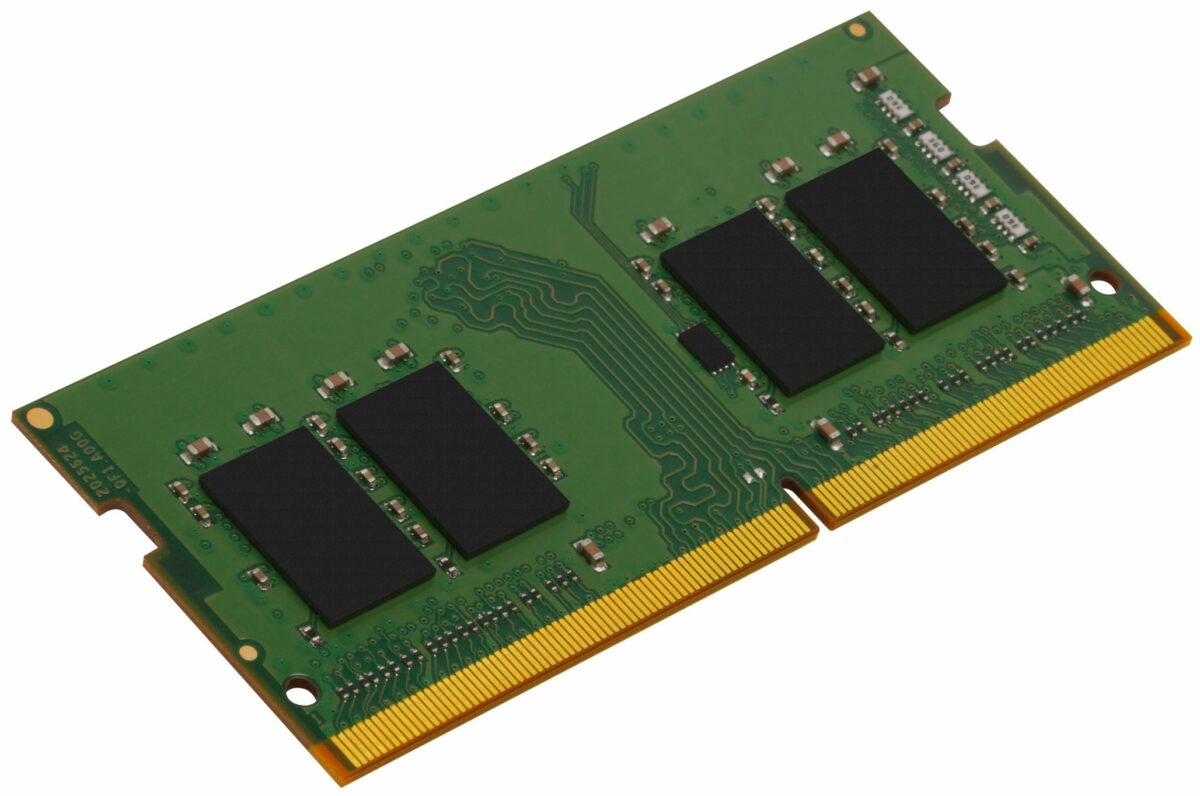

KINGSTON 16GB / 2666 MHz DDR4 PC4-CL19 260-Pin SODIMM Notebook RAM [KVR26S19S8/16] (1.2V)

KINGSTON 16GB / 2666 MHz DDR4 PC4-CL19 260-Pin SODIMM Notebook RAM [KVR26S19S8/16] (1.2V)

DESCRIPTION

This document describes ValueRAM’s KVR26S19S8/16 is a 2G x 64-bit (16GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. This 260-pin DIMM uses gold contact fingers

FEATURES

#  Power Supply: VDD = 1.2V Typical

#  VDDQ = 1.2V Typical

#  VPP = 2.5V Typical

#  VDDSPD = 2.2V to 3.6V

#  Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals

#  Low-power auto self refresh (LPASR)

#  Data bus inversion (DBI) for data bus

#  On-die VREFDQ generation and calibration

#  Single-rank

#  On-board I2 serial presence-detect (SPD) EEPROM

#  16 internal banks; 4 groups of 4 banks each

#  Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)

#  Selectable BC4 or BL8 on-the-fly (OTF)

#  Fly-by topology

#  Terminated control command and address bus

#  PCB: Height 1.18” (30.00mm)

#  RoHS Compliant and Halogen-Free
