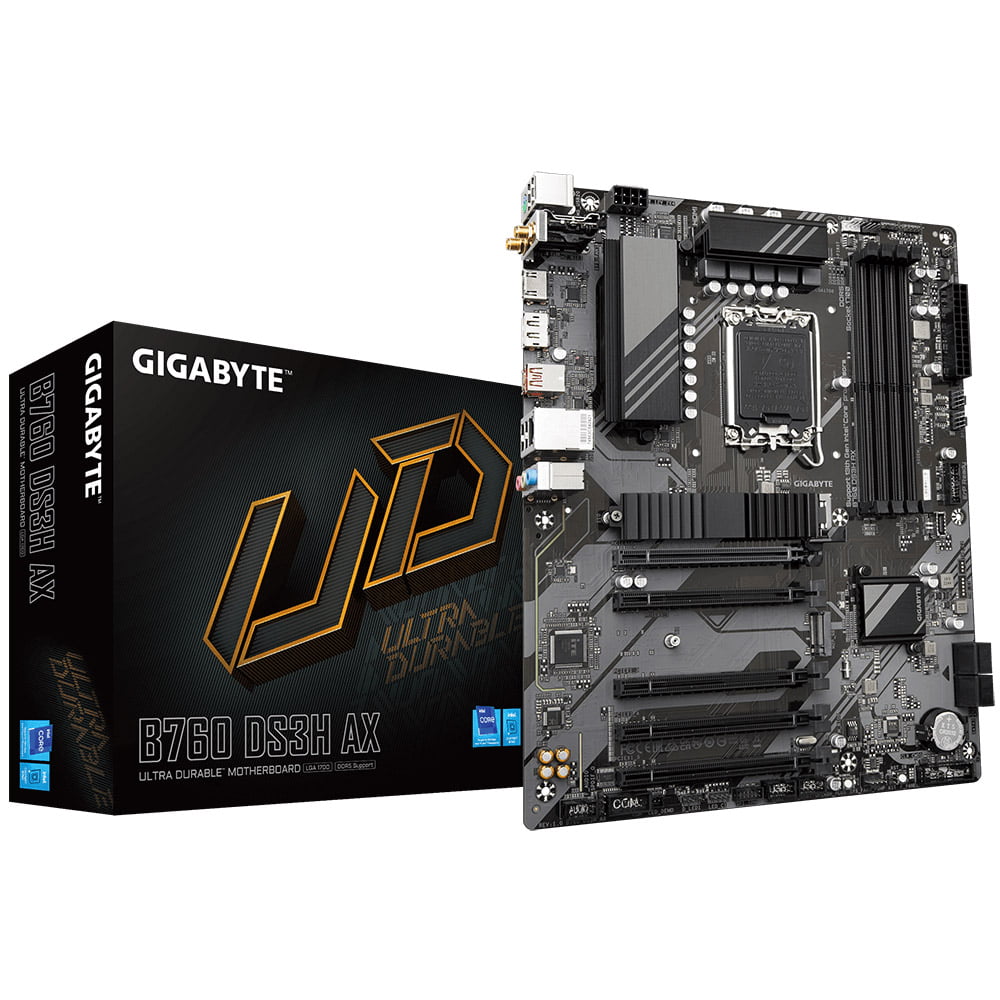

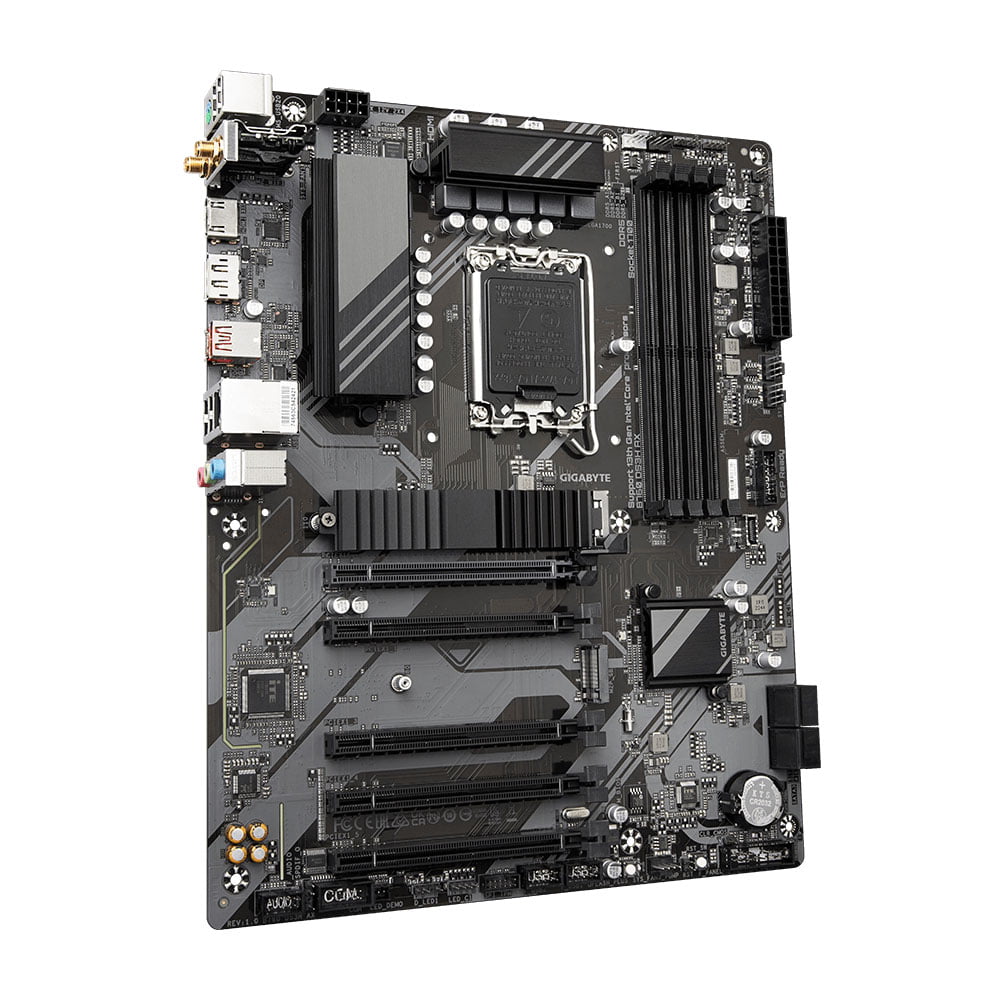

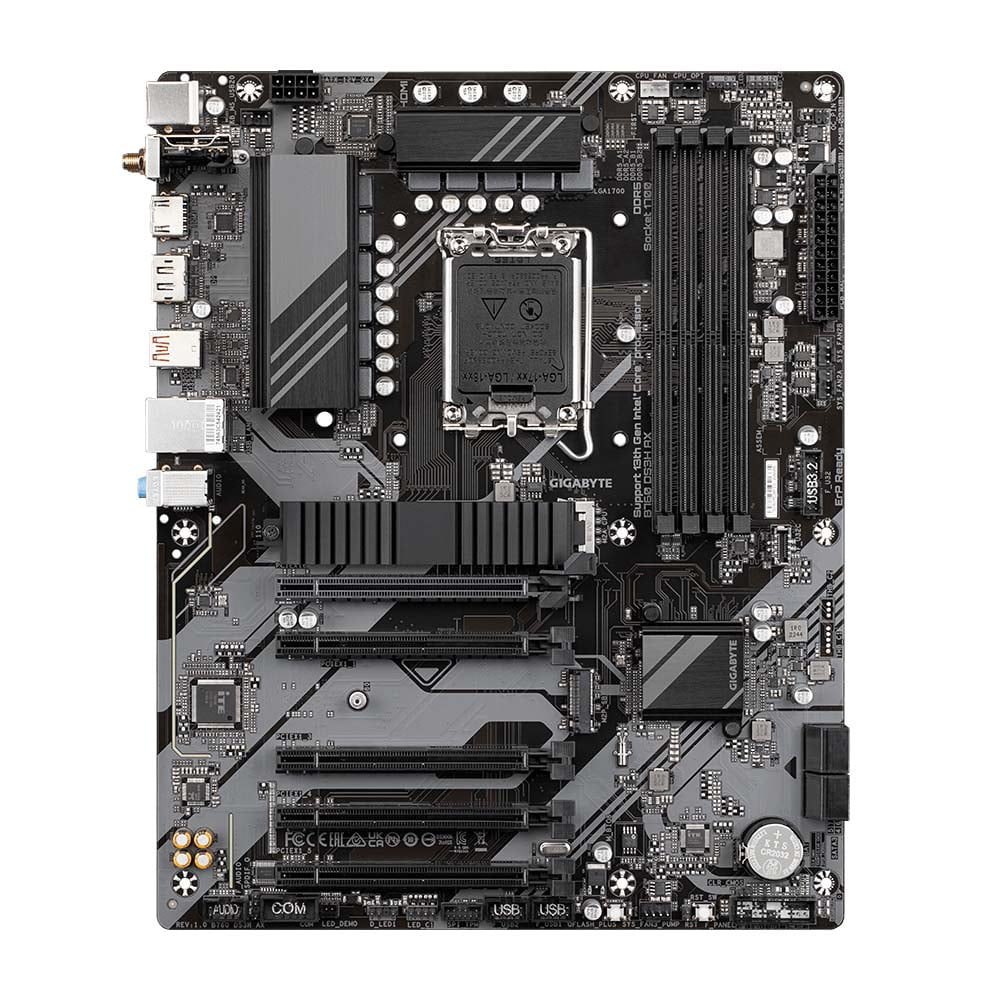

Gigabyte Ultra Durable Motherboard UD DS3H AX (DDR5) [ B760-DS3H-AX ]

Gigabyte Ultra Durable Motherboard UD DS3H AX (DDR5) [ B760-DS3H-AX ]

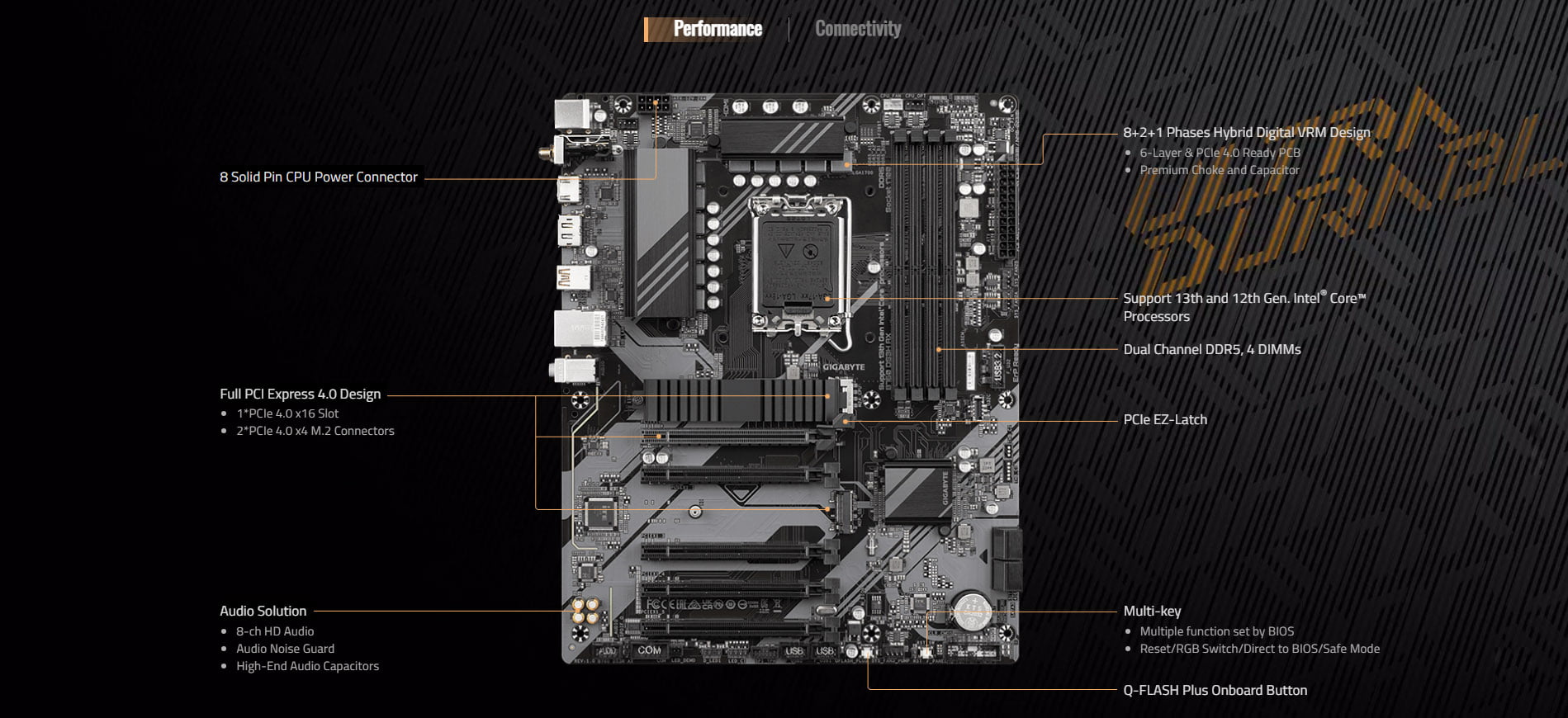

Intel^® Socket LGA 1700: Support 13th and 12th Gen Series Processors
Unparalleled Performance: Hybrid 8+2+1 Phases Digital VRM Solution
Dual Channel DDR5: 4*DIMMs XMP Memory Module Support
Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
EZ-Latch: PCIe 4.0×16 Slot with Quick Release Design
Fast Networks: GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity: Rear USB-C^® 20Gb/s, DP, HDMI
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Gigabyte Ultra Durable Motherboard UD DS3H AX (DDR5) [ B760-DS3H-AX ]

Specification:

CPU	1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
	2. L3 cache varies with CPU
	(Please refer “CPU Support List” for more information.)
Chipset	1. Intel® B760 Express Chipset
Memory	1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
	2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
	3. Dual channel memory architecture
	4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	6. Support for Extreme Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
	* Support for HDMI 2.0 version and HDCP 2.3.
	2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
	* Support for DisplayPort 1.2 version and HDCP 2.3
	(Graphics specifications may vary depending on CPU support.)
Audio	1. Realtek® Audio CODEC
	2. High Definition Audio
	3. 2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	4. Support for S/PDIF Out
LAN	1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Wireless Communication module	Intel® Wi-Fi 6E AX210 (PCB rev. 1.0)
	1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	2. BLUETOOTH 5.3
	3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
	Intel® Wi-Fi 6E AX211 (PCB rev. 1.1)
	1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	2. BLUETOOTH 5.3
	3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
	Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.2)
	1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	2. BLUETOOTH 5.3
	3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
	(Actual data rate may vary depending on environment and equipment.)
Expansion Slots	CPU:
	1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
	* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	1. 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
	(PCIEX1_1, PCIEX1_3~PCIEX1_5)
Storage Interface	CPU:
	1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
	2. 4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset:
USB	1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
	2. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
	3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
	4. 2 x USB 3.2 Gen 1 ports available through the internal USB header
	5. 4 x USB 2.0/1.1 ports on the back panel
	Chipset+2 USB 2.0 Hubs:
	1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 1 x 8-pin ATX 12V power connector
	3. 1 x CPU fan header
	4. 1 x CPU fan/water cooling pump header
	5. 3 x system fan headers
	6. 1 x system fan/water cooling pump header
	7. 2 x addressable LED strip headers
	8. 2 x RGB LED strip headers
	9. 2 x M.2 Socket 3 connectors
	10. 4 x SATA 6Gb/s connectors
	11. 1 x front panel header
	12. 1 x front panel audio header
	13. 1 x S/PDIF Out header
	14. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
	15. 1 x USB 3.2 Gen 1 header
	16. 2 x USB 2.0/1.1 headers
	17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	18. 1 x serial port header
	19. 1 x Q-Flash Plus button
	20. 1 x reset button
	21. 1 x reset jumper
	22. 1 x Clear CMOS jumper

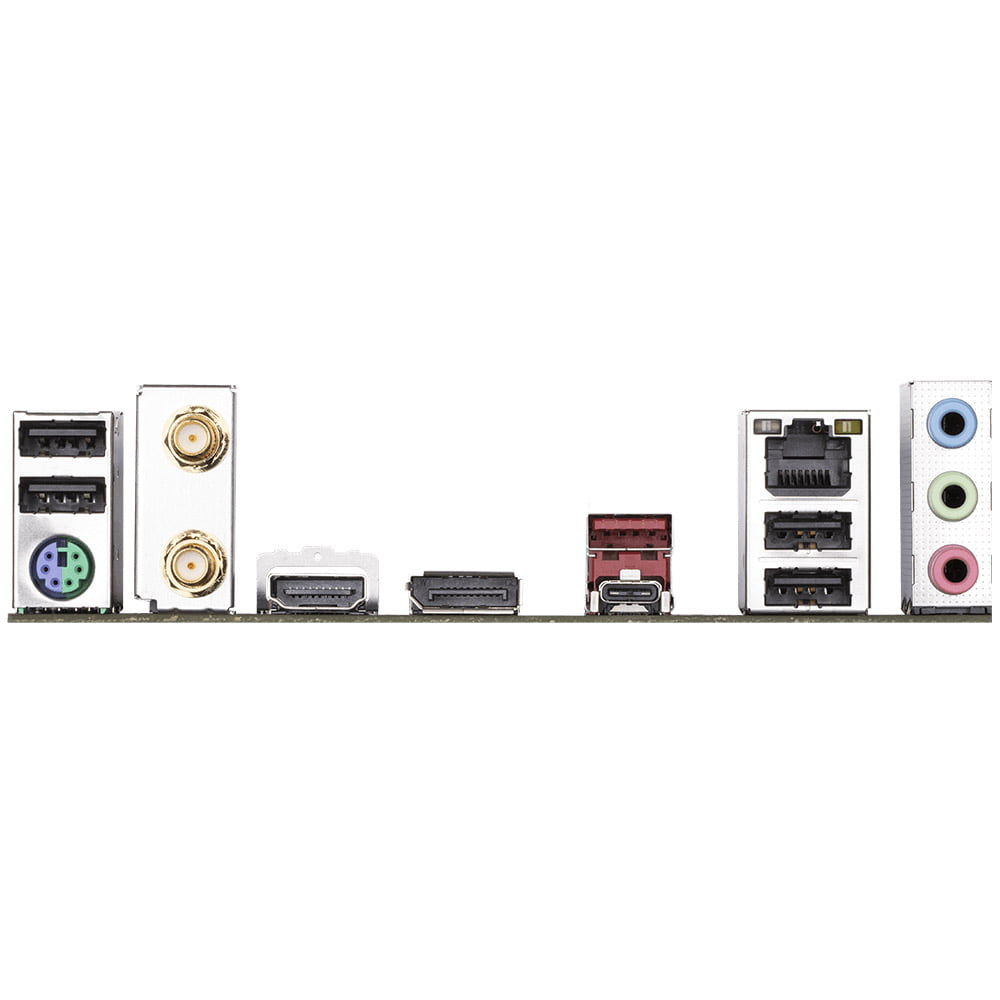

Back Panel Connectors	1. 1 x PS/2 keyboard/mouse port
	2. 2 x SMA antenna connectors (2T2R)
	3. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
	4. 1 x USB 3.2 Gen 2 Type-A port (red)
	5. 4 x USB 2.0/1.1 ports
	6. 1 x HDMI port
	7. 1 x DisplayPort
	8. 1 x RJ-45 port
	9. 3 x audio jacks
I/O Controller	1. iTE® I/O Controller Chip
H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Water cooling flow rate detection
	5. Fan fail warning
	6. Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1. 1 x 128 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	1. Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	2. Support for Q-Flash
	3. Support for Q-Flash Plus
Bundled Software	1. Norton® Internet Security (OEM version)
Bundled Software	2. LAN bandwidth management software
Operating System	1. Support for Windows 11 64-bit
Operating System	2. Support for Windows 10 64-bit
Form Factor	1. ATX Form Factor; 30.5cm x 24.4cm

For More Info. Gigabyte Motherboard UD DS3H AX Click Here

For More Gigabyte Product Click Here

Gigabyte Ultra Durable Motherboard UD DS3H AX (DDR5) [ B760-DS3H-AX ]

Click to enlarge

Back to products

139.00 JOD

Add 30.00 JOD to cart and get free shipping!

In stock

Compare

Add to wishlist

SKU: 1200253 Categories: Components, Motherboard Tag: GIGABYTE
