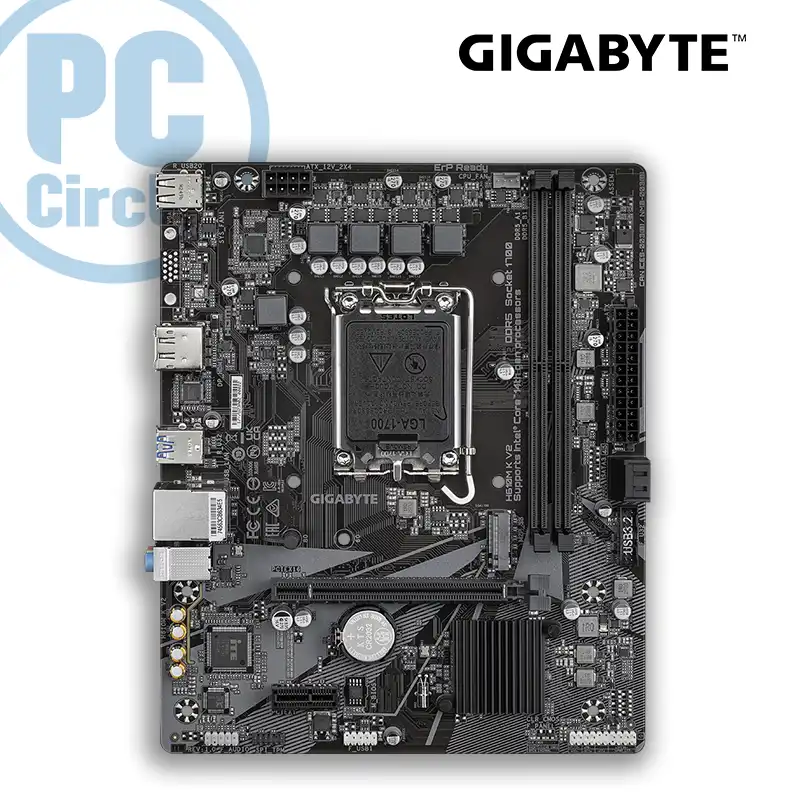

Gigabyte H610M K V2 DDR5 mATX LGA1700 Motherboard (H610M-K-V)

Gigabyte H610M K V2 DDR5 mATX LGA1700 Motherboard (H610M-K-V)

• Supports Intel^® Core™ 14th/ 13th /12th processors
• Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs​
• GbE LAN with Bandwidth Management​
• NVMe PCIe 3.0 x4 M.2​
• High Quality Audio Capacitors and Audio Noise Guard​
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​
• GIGABYTE APP Center, Simple and Easy Use​
• Anti-Sulfur Resistors Design​

Specifications :

• • CPU
  • LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors
    * Please refer to “CPU Support List” for more information.
    L3 cache varies with CPU
  • Chipset
  • Intel^® H610 Express Chipset
  • Memory
  • 14th and 13th Generation Intel^® Core™ i9/i7 Processors:
    – Support for DDR5 5600/5200/4800/4400 MT/s memory modules
    13th Generation Intel^® Core™ i5/i3 and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors:
    – Support for DDR5 4800/4400 MT/s memory modules
    2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
  • Onboard Graphics
  • Integrated Graphics Processor-Intel® HD Graphics support:
    – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.- 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3(Graphics specifications may vary depending on CPU support.)

  • Audio
  • Realtek^® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN
  • Realtek^® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
  • Expansion Slots
  • CPU:
    – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    Chipset:
    – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  • Storage Interface
  • Chipset:
    – 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
    – 2 x SATA 6Gb/s connectors
  • USB
  • Chipset:
    – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    – 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x system fan header
    1 x M.2 Socket 3 connector
    2 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
    1 x Clear CMOS jumper

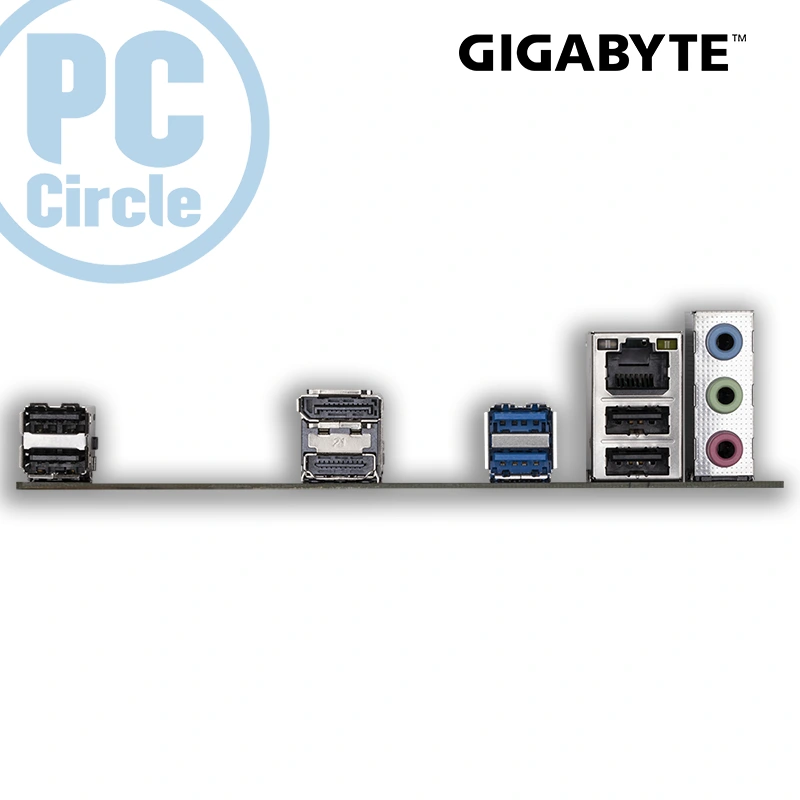

  • Back Panel Connectors
  • 1 x HDMI port
    1 x DisplayPort
    2 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks
  • I/O Controller
  • iTE^® I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.
  • BIOS
  • 1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
  • Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.– @BIOS
    – EasyTune
    – Smart Backup
    – System Information Viewer
    Support for Q-Flash
  • Bundled Software
  • Norton^® Internet Security (OEM version)
    LAN bandwidth management software
    * Service discontinued as a result of contract termination by the software provider.
  • Operating System
  • Support for Windows 11 64-bit
    Support for Windows 10 64-bit
  • Form Factor
  • Micro ATX Form Factor; 22.6cm x 18.5cm
