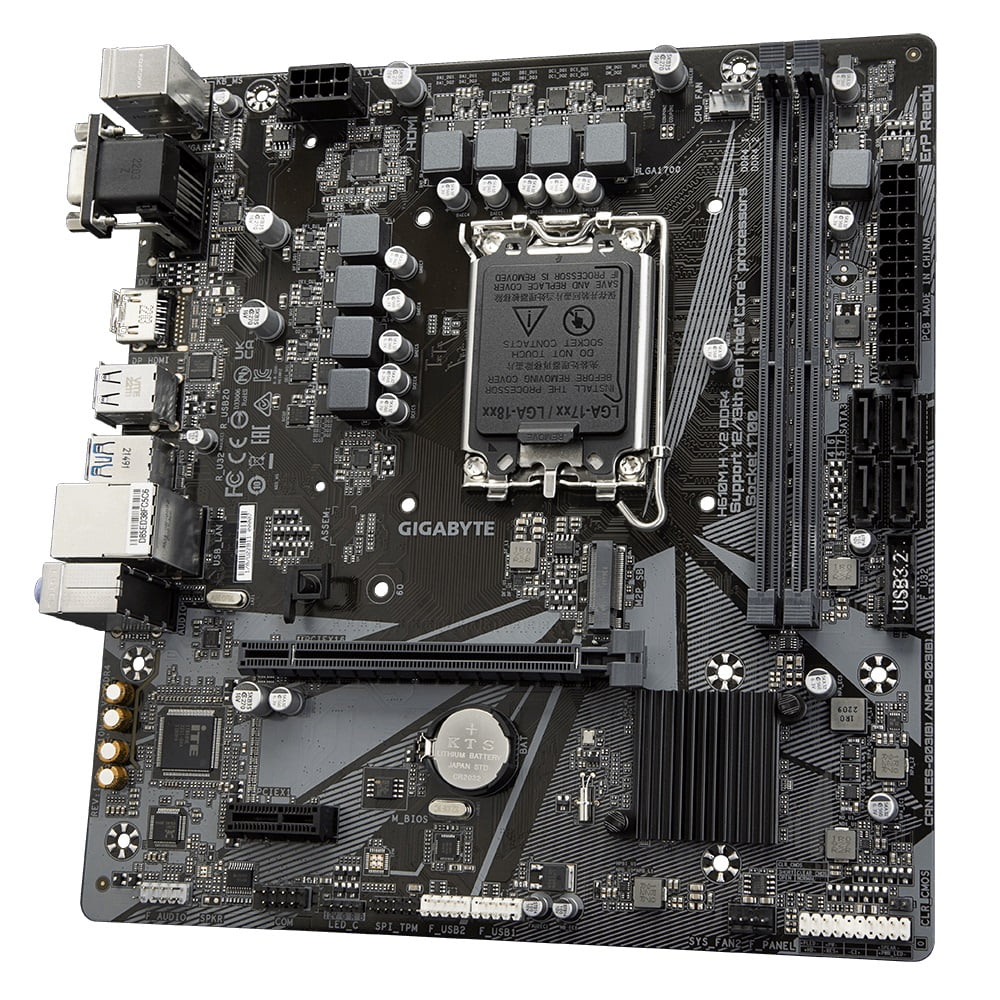

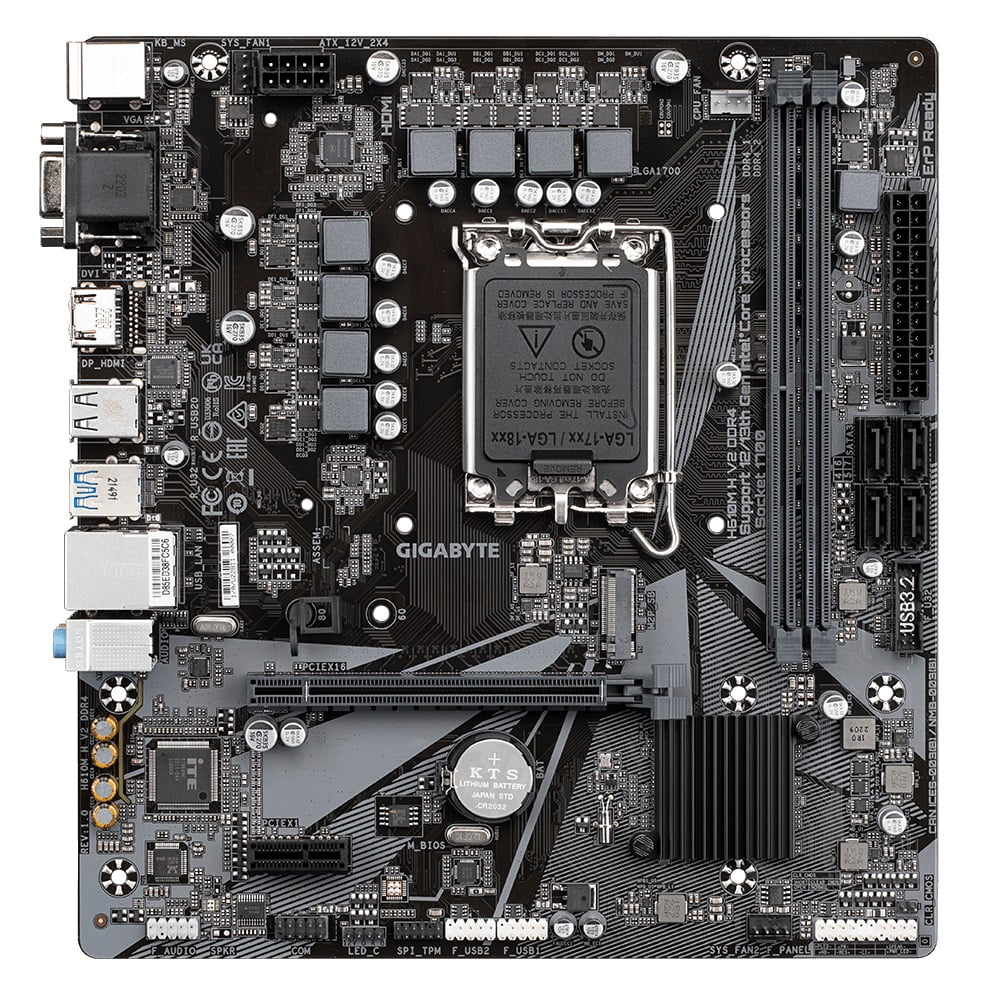

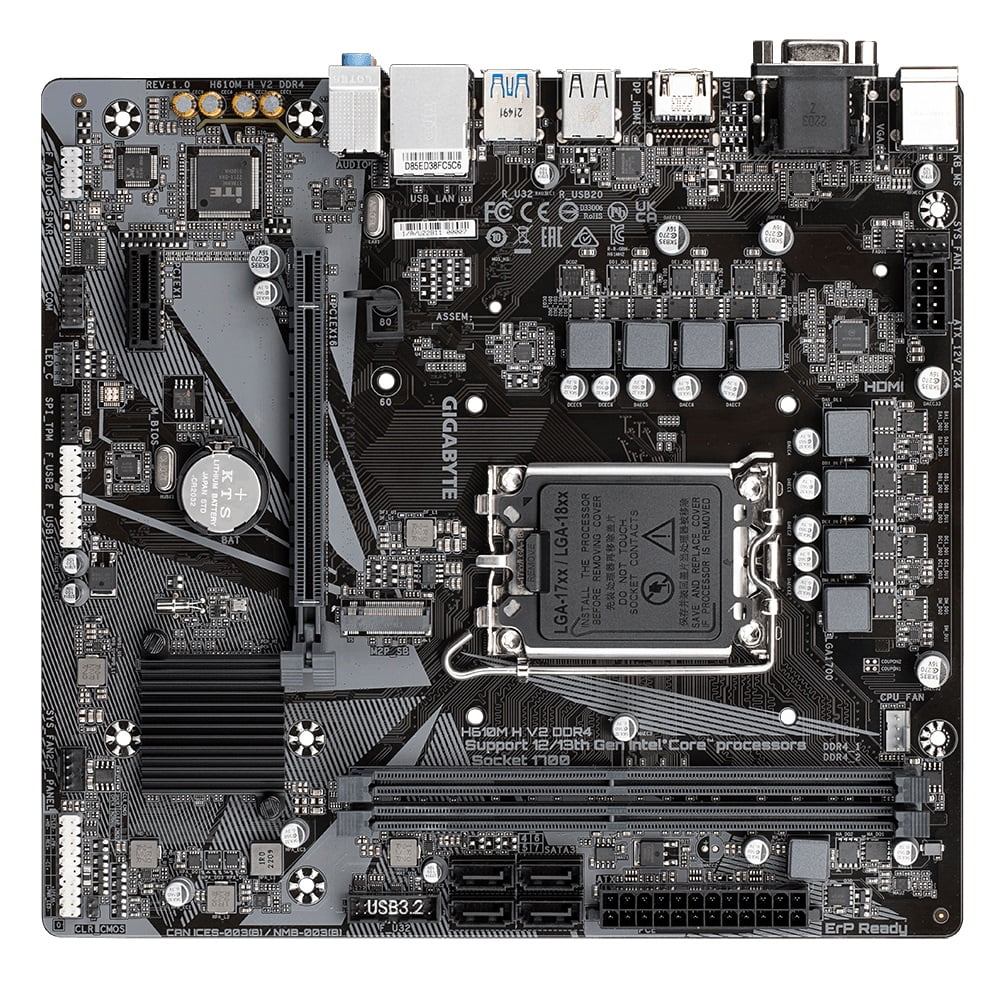

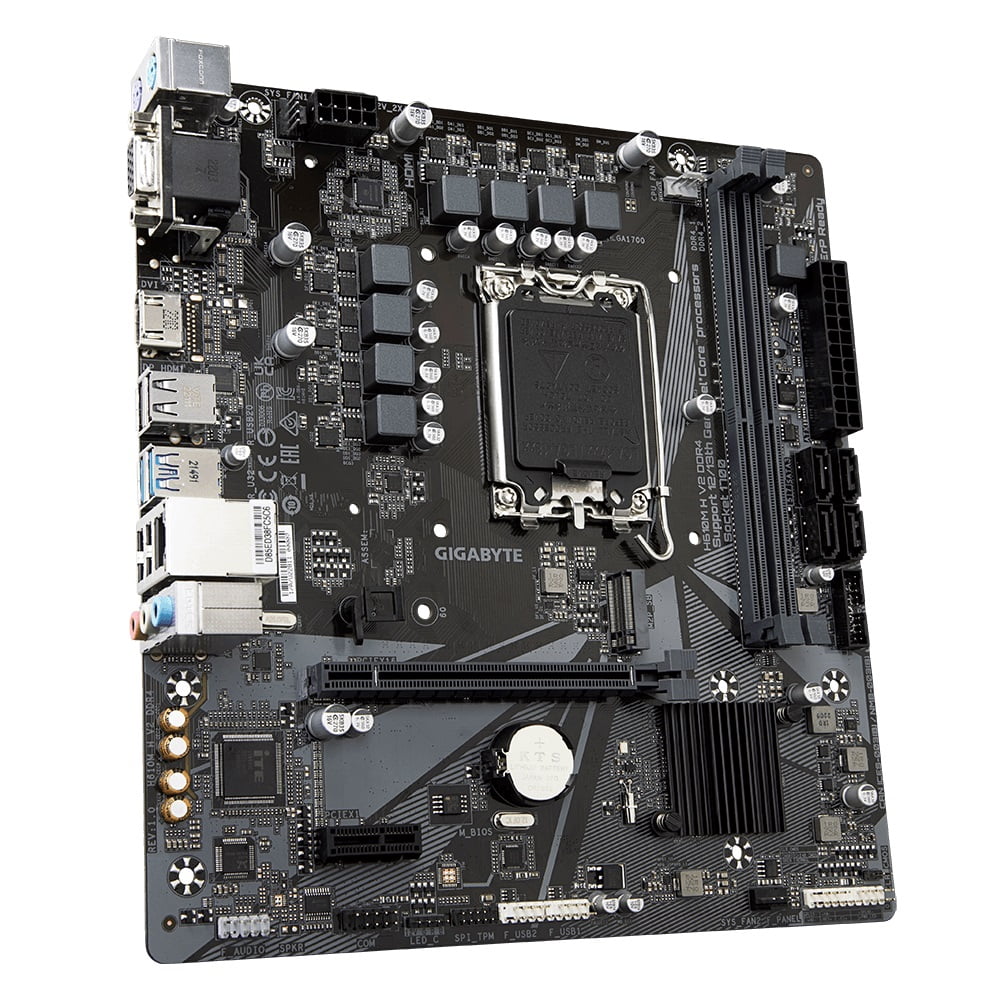

Gigabyte H610M H V2 DDR4 Motherboard H610M-H-V2-DDR4

Gigabyte H610M H V2 DDR4 Motherboard H610M-H-V2-DDR4

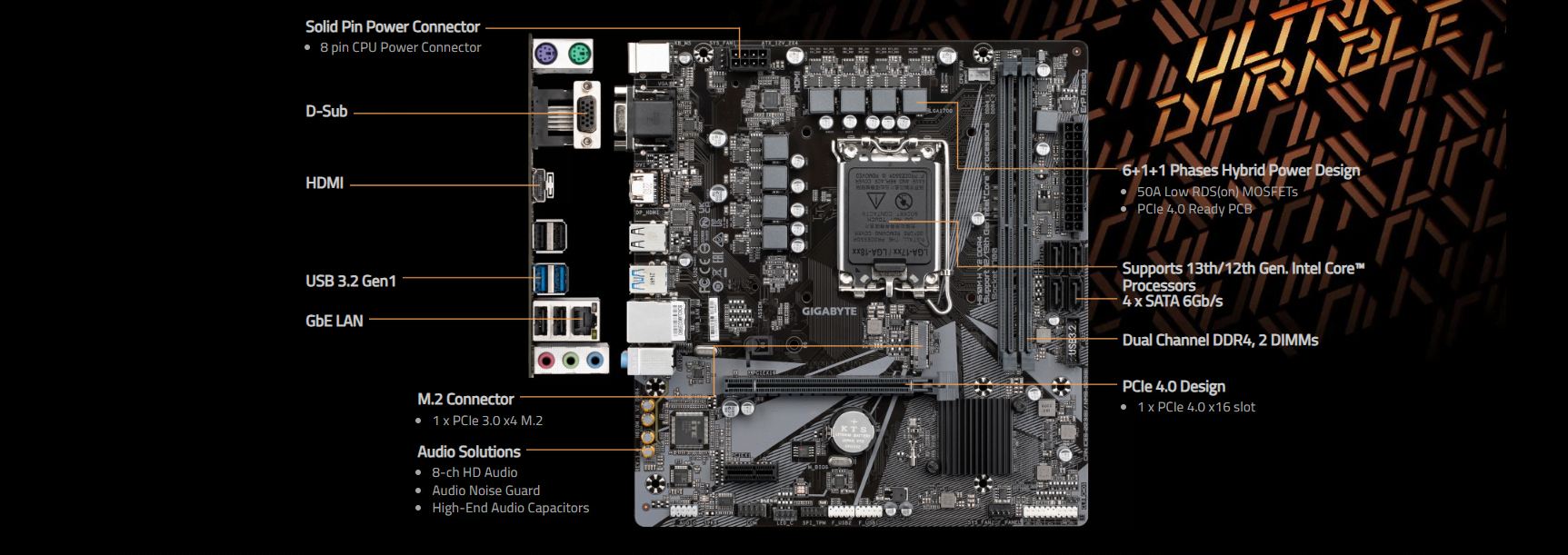

More about Gigabyte H610M H V2

• Supports 13th/12th Gen Intel^® Core™ Series Processors

• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

• 6+1+1 Hybrid Digital VRM Design

• GbE LAN with Bandwidth Management

• NVMe PCIe 3.0 x4 M.2

• High Quality Audio Capacitors and Audio Noise Guard

• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

• GIGABYTE APP Center, Simple and Easy Use

• Anti-Sulfur Resistors Design

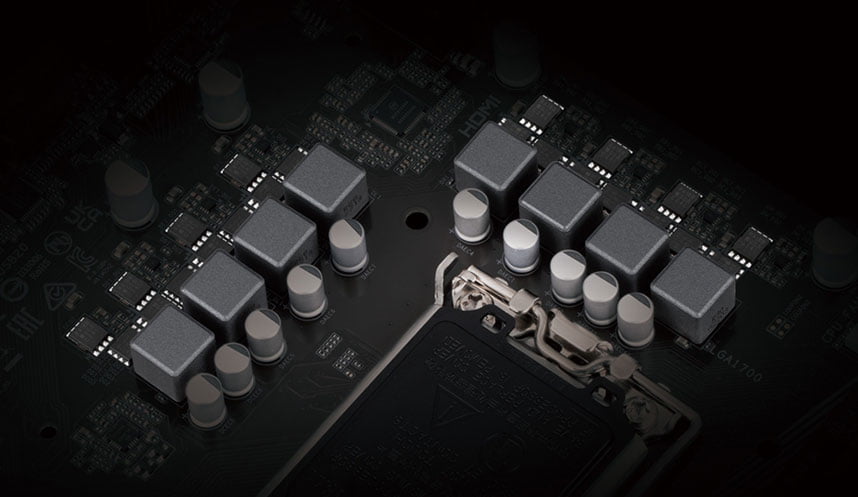

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

1 x PCIe 4.0 Slot

GbE LAN with Bandwidth Management

Specification of Gigabyte H610M H V2

• CPU

  1. LGA1700 socket: Support for 13th Generation Intel^® Core™ Processors and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*
  2. L3 cache varies with CPU

  * Please refer to “CPU Support List” for more information.

• Chipset

  1. Intel^® H610 Express Chipset

• Memory

  1. Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
  2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer “Memory Support List” for more information.)

• Onboard Graphics

  Integrated Graphics Processor-Intel^® HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
     * Support for HDMI 2.1 version and HDCP 2.3.
     ** Support native HDMI 2.1 TMDS compatible ports

  (Graphics specifications may vary depending on CPU support.)

• Audio

  1. Realtek^® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN

  1. Realtek^® GbE LAN chip (1 Gbps/100 Mbps)

• Expansion Slots

  CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

  Chipset:

  1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

• Storage Interface

  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
  2. 4 x SATA 6Gb/s connectors

• USB

  Chipset:

  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 4 x USB 2.0/1.1 ports on the back panel

  Chipset+USB 2.0 Hub:

  1. 4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector

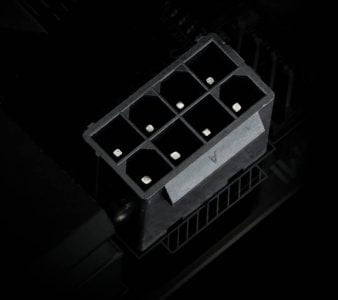

  2. 1 x 8-pin ATX 12V power connector

  3. 1 x CPU fan header

  4. 2 x system fan headers

  5. 1 x M.2 Socket 3 connector

  6. 4 x SATA 6Gb/s connectors

  7. 1 x RGB LED strip header

  8. 1 x front panel header

  9. 1 x front panel audio header

  10. 1 x USB 3.2 Gen 1 header

  11. 2 x USB 2.0/1.1 headers

  12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

  13. 1 x serial port header

  14. 1 x Clear CMOS jumper

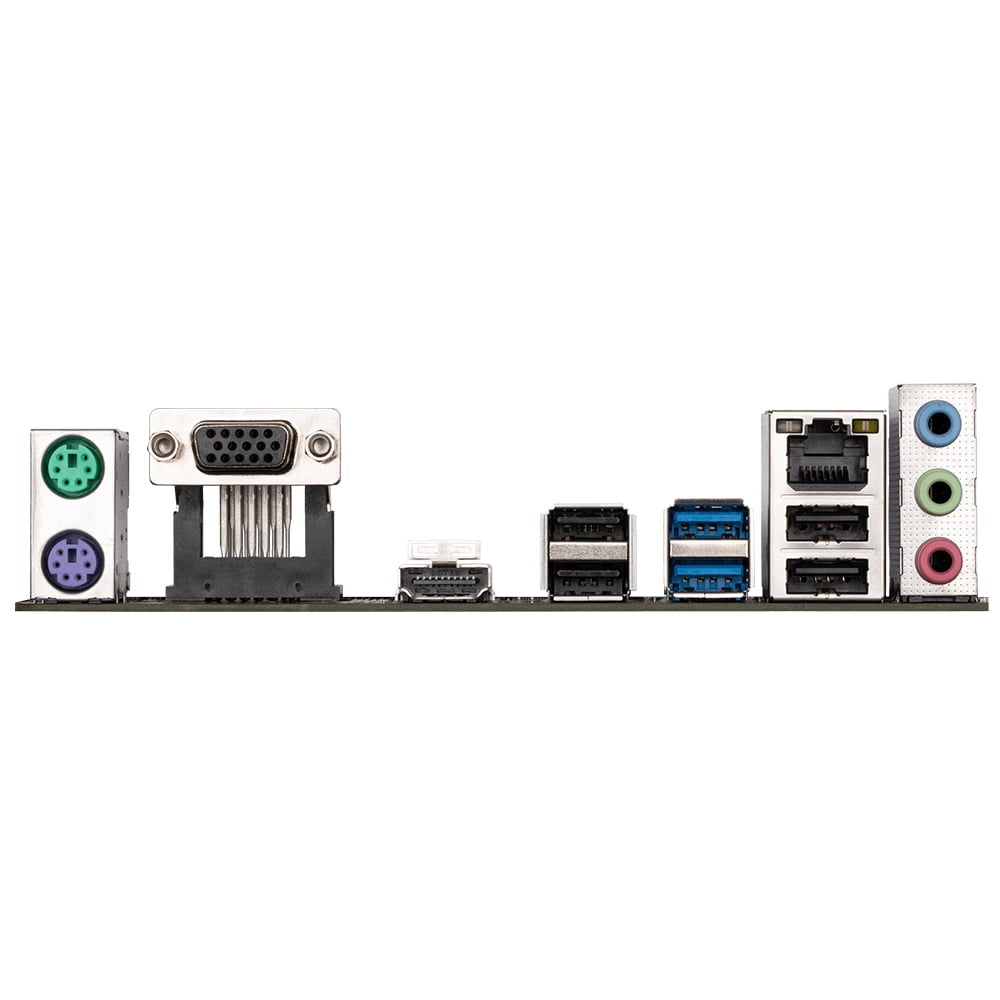

• Back Panel Connectors

  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x D-Sub port
  4. 1 x HDMI port
  5. 2 x USB 3.2 Gen 1 ports
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks

• I/O Controller

  1. iTE^® I/O Controller Chip

• H/W Monitoring

  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS

  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for APP Center
     * * Available applications in APP Center may vary by motherboard model.
     Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     Ambient LED
     EasyTune
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash
  3. Support for Xpress Install

• Operating System

  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit

• Form Factor

  1. Micro ATX Form Factor; 23.0cm x 21.5cm
