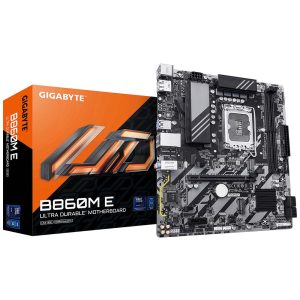

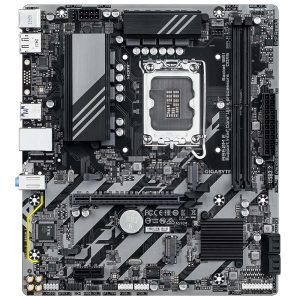

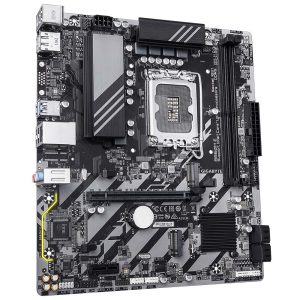

Gigabyte B860M E Motherboard For Intel Core Ultra Processors B860M-E
97.50 JOD
In stock
Description
Gigabyte B860M E Motherboard For Intel Core Ultra Processors B860M-E
More about Gigabyte B860M E Motherboard
Infinite Memory Performance
UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.
Specification
| Category | Details |
|---|---|
| CPU | LGA1851 socket; Supports Intel® Core™ Ultra Processors; L3 cache varies |
| Chipset | Intel® B860 Express Chipset |
| Memory | DDR5 8800(O.C) to 5600 MT/s; 2× DDR5 DIMM sockets; up to 128 GB |
| Dual channel; ECC/non-ECC Un-buffered DIMMs; XMP support | |
| Onboard Graphics | Intel® HD Graphics (CPU-dependent); HDMI 2.1 (4096×2160@60Hz); |
| DisplayPort 2.1 (3840×2160@144Hz); HDCP 2.3; Triple-display support | |
| Audio | Realtek® Audio CODEC; HD Audio; 2/4/5.1/7.1-channel; S/PDIF Out support |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | 1× PCIe x16 (CPU, PCIe 4.0); 1× PCIe x1 (Chipset, PCIe 3.0) |
| Storage Interface | 2× M.2 (PCIe 4.0 x4/x2); 4× SATA 6Gb/s; RAID 0/1/5/10 support |
| USB Ports | 6× USB 3.2 Gen 1 (4 rear, 2 internal); 6× USB 2.0/1.1 (2 rear, 4 internal) |
| Internal I/O | 24-pin ATX, 8-pin ATX 12V; CPU/system fan headers; RGB Gen2 headers |
| 2× M.2, 4× SATA; front panel/audio headers; S/PDIF Out header | |
| USB 3.2 Gen 1 header; 2× USB 2.0 headers; TPM header; serial port header | |
| Clear CMOS jumper | |
| Back Panel I/O |
|
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water flow detection; Fan fail warning |
| Fan/pump speed control | |
| BIOS | 256 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC); Q-Flash; Smart Backup |
| Form Factor | Micro ATX; 24.4 cm × 21.5 cm |
For more information about this product visit official website of Gigabyte
Gigabyte
For more related products visit us at our website
PC Circle
Additional information
| Brand |
GIGABYTE |
|---|---|
| MB CPU Socket |
LGA 1851 |
| MB Form Factors |
Micro ATX |
| MB Ram Slots |
2 Slots DDR5 |
| MB Series |
B860M |
| MB Wi-Fi & Bluetooth |
None |
