More about Gigabyte B860M D Motherboard

UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

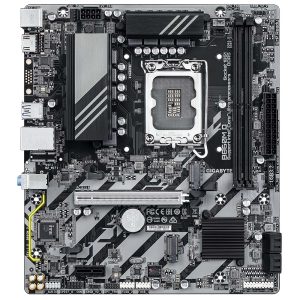

Gigabyte B860M DS3H Motherboard

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

Restructured with user-centered and intuitive performance adjustment mechanisms.

B860M

Category	Details
CPU	LGA1851 socket; Supports Intel® Core™ Ultra Processors; L3 cache varies
Chipset	Intel® B860 Express Chipset
Memory	DDR5 8800(O.C) to 5600 MT/s; 2× DIMM sockets; up to 128 GB; Dual channel
	ECC/non-ECC Un-buffered DIMMs; XMP support
Onboard Graphics	Intel® HD Graphics (CPU-dependent); HDMI 2.1 (4096×2160@60Hz); HDCP 2.3
	Triple-display support
Audio	Realtek® Audio CODEC; HD Audio; 2/4/5.1/7.1-channel; S/PDIF Out support
LAN	Realtek® 2.5GbE LAN (2.5G/1G/100Mbps)
Expansion Slots	1× PCIe x16 (CPU, PCIe 5.0); 1× PCIe x1 (Chipset, PCIe 4.0)
Storage Interface	2× M.2 (PCIe 4.0 x4/x2); 4× SATA 6Gb/s; RAID 0/1/5/10 support
USB Ports	6× USB 3.2 Gen 1 (4 rear, 2 internal); 6× USB 2.0/1.1 (2 rear, 4 internal)
Internal I/O	24-pin ATX, 8-pin ATX 12V; CPU/system fan headers; RGB Gen2 headers
	2× M.2, 4× SATA; front panel/audio headers; S/PDIF Out header
	USB 3.2 Gen 1 header; 2× USB 2.0 headers; TPM header; serial port header
	Clear CMOS jumper
Back Panel I/O	2× USB 2.0; PS/2 port HDMI 4× USB 3.2 Gen 1 RJ-45 3× audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, temperature, fan speed, water flow detection; Fan fail warning
	Fan/pump speed control
BIOS	256 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center (GCC); Q-Flash; Smart Backup
Form Factor	Micro ATX; 24.4 cm × 21.5 cm

Brand

GIGABYTE

MB CPU Socket

LGA 1851

MB Form Factors

Micro ATX

MB Ram Slots

2 Slots DDR5

MB Series

B860M

MB Wi-Fi & Bluetooth

None

New

99.95 JOD

Add 30.00 JOD to cart and get free shipping!

In stock

SKU: 1200287 Categories: Components, Motherboard Tag: GIGABYTE

Description

Category	Details
CPU	LGA1851 socket; Supports Intel® Core™ Ultra Processors; L3 cache varies
Chipset	Intel® B860 Express Chipset
Memory	DDR5 8800(O.C) to 5600 MT/s; 2× DIMM sockets; up to 128 GB; Dual channel
	ECC/non-ECC Un-buffered DIMMs; XMP support
Onboard Graphics	Intel® HD Graphics (CPU-dependent); HDMI 2.1 (4096×2160@60Hz); HDCP 2.3
	Triple-display support
Audio	Realtek® Audio CODEC; HD Audio; 2/4/5.1/7.1-channel; S/PDIF Out support
LAN	Realtek® 2.5GbE LAN (2.5G/1G/100Mbps)
Expansion Slots	1× PCIe x16 (CPU, PCIe 5.0); 1× PCIe x1 (Chipset, PCIe 4.0)
Storage Interface	2× M.2 (PCIe 4.0 x4/x2); 4× SATA 6Gb/s; RAID 0/1/5/10 support
USB Ports	6× USB 3.2 Gen 1 (4 rear, 2 internal); 6× USB 2.0/1.1 (2 rear, 4 internal)
Internal I/O	24-pin ATX, 8-pin ATX 12V; CPU/system fan headers; RGB Gen2 headers
	2× M.2, 4× SATA; front panel/audio headers; S/PDIF Out header
	USB 3.2 Gen 1 header; 2× USB 2.0 headers; TPM header; serial port header
	Clear CMOS jumper
Back Panel I/O	2× USB 2.0; PS/2 port HDMI 4× USB 3.2 Gen 1 RJ-45 3× audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, temperature, fan speed, water flow detection; Fan fail warning
	Fan/pump speed control
BIOS	256 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center (GCC); Q-Flash; Smart Backup
Form Factor	Micro ATX; 24.4 cm × 21.5 cm
