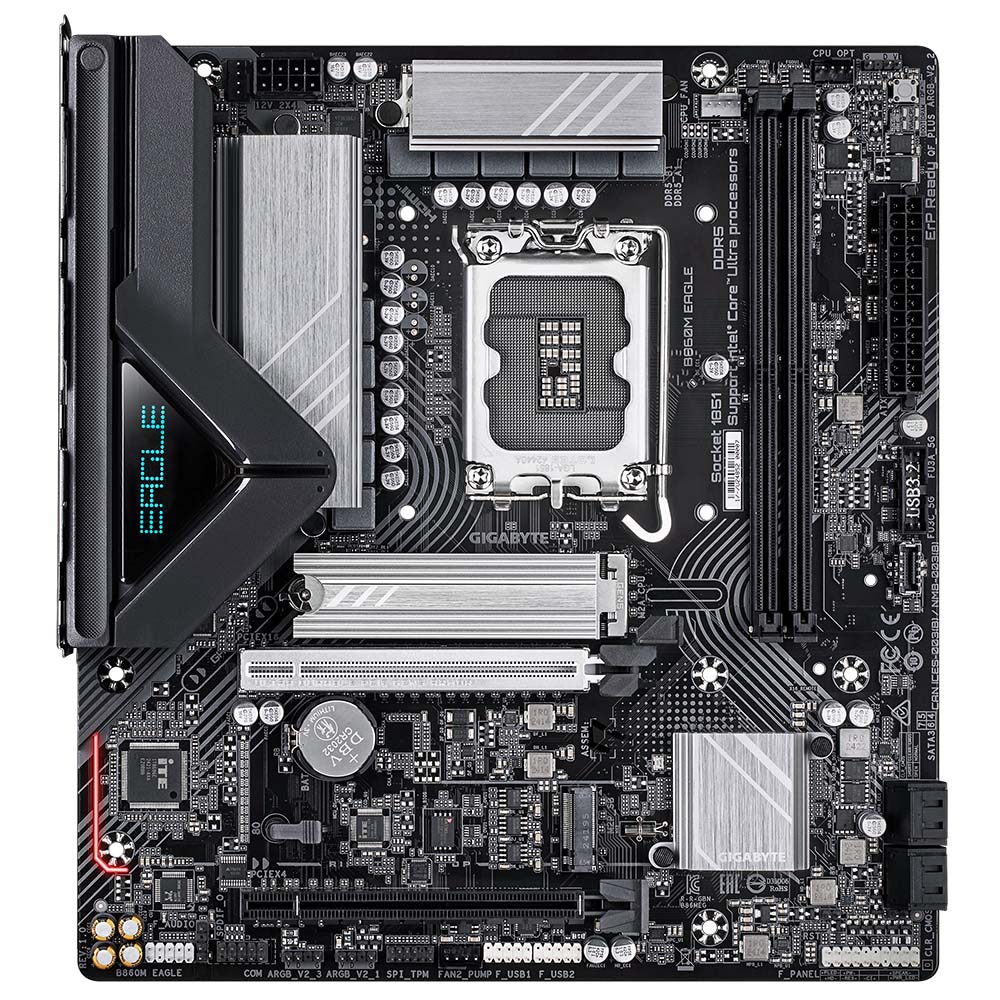

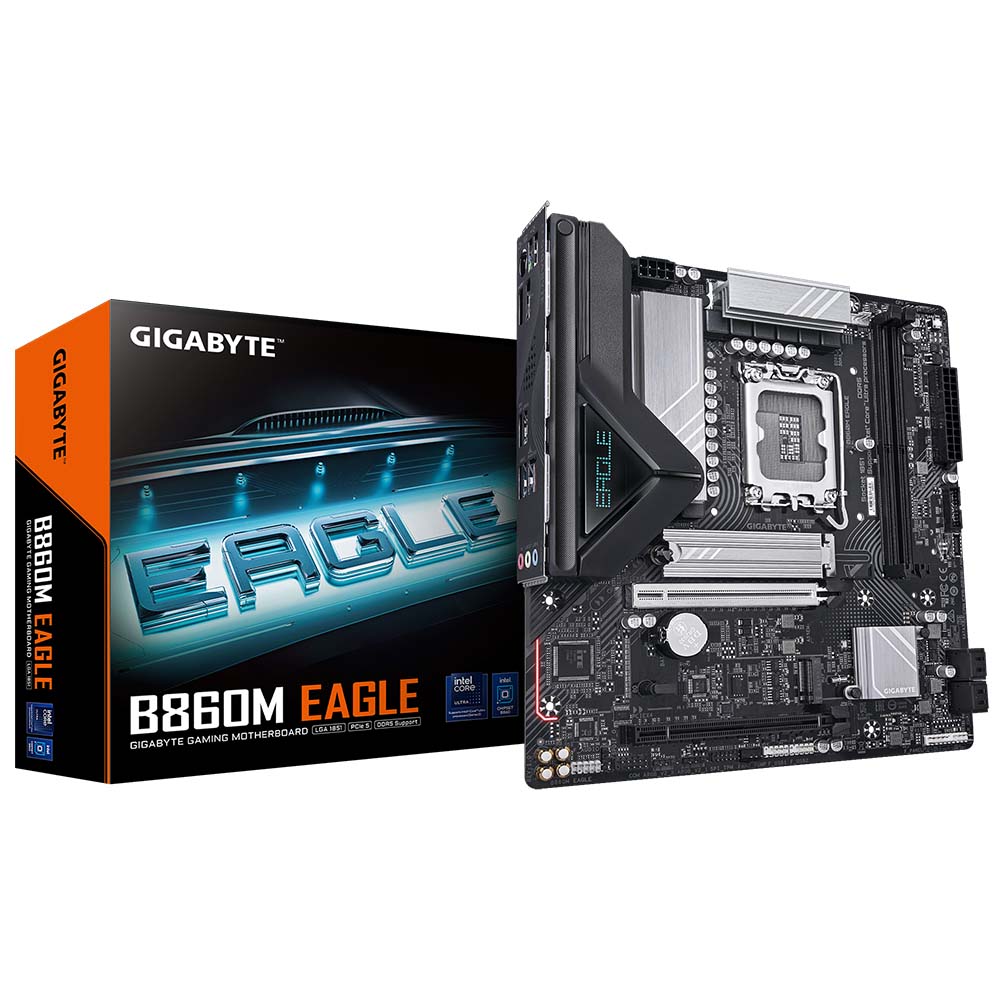

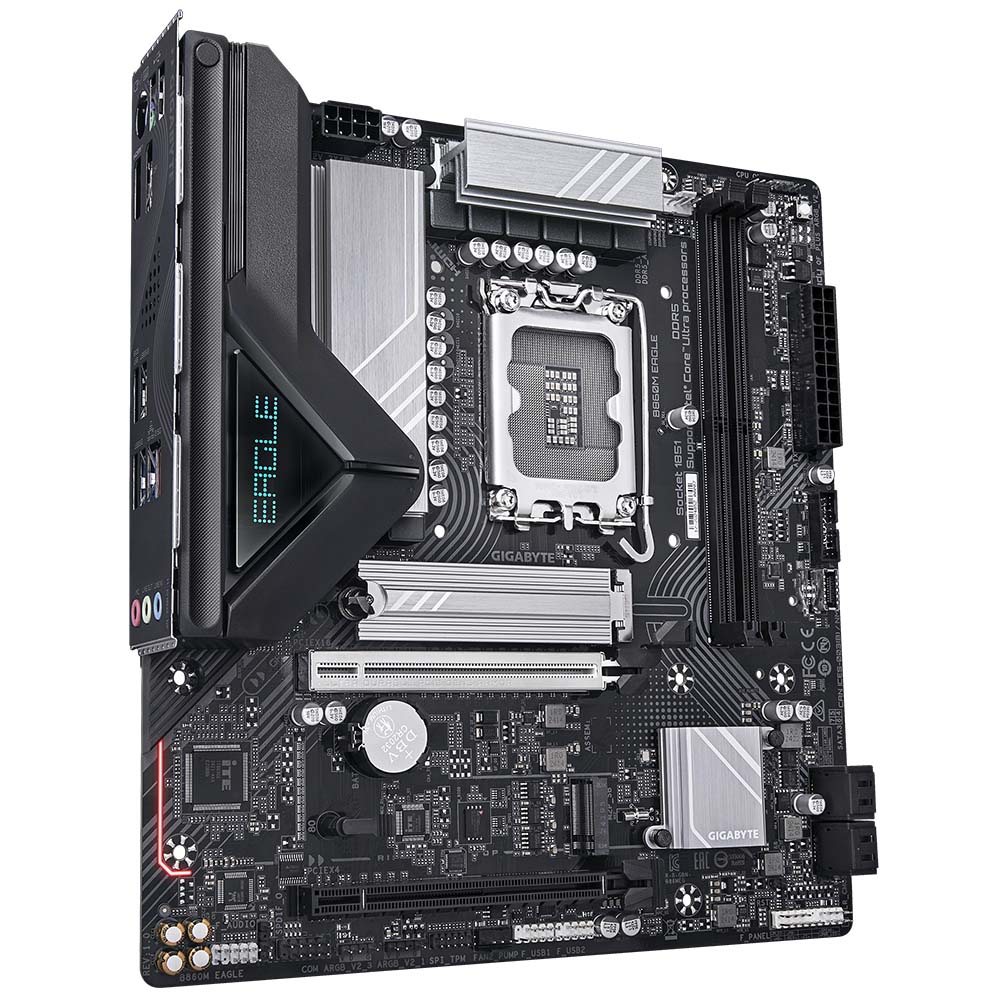

Gigabyte B860M EAGLE Motherboard Work with Intel Core Ultra CPU’s LGA 1851 B860M-EAGLE
125.00 JOD
In stock
Related products
Description
Gigabyte B860M EAGLE Work with Intel Core Ultra CPU’s LGA 1851 B860M-EAGLE
More about Gigabyte B860 Eagle LGA 1851

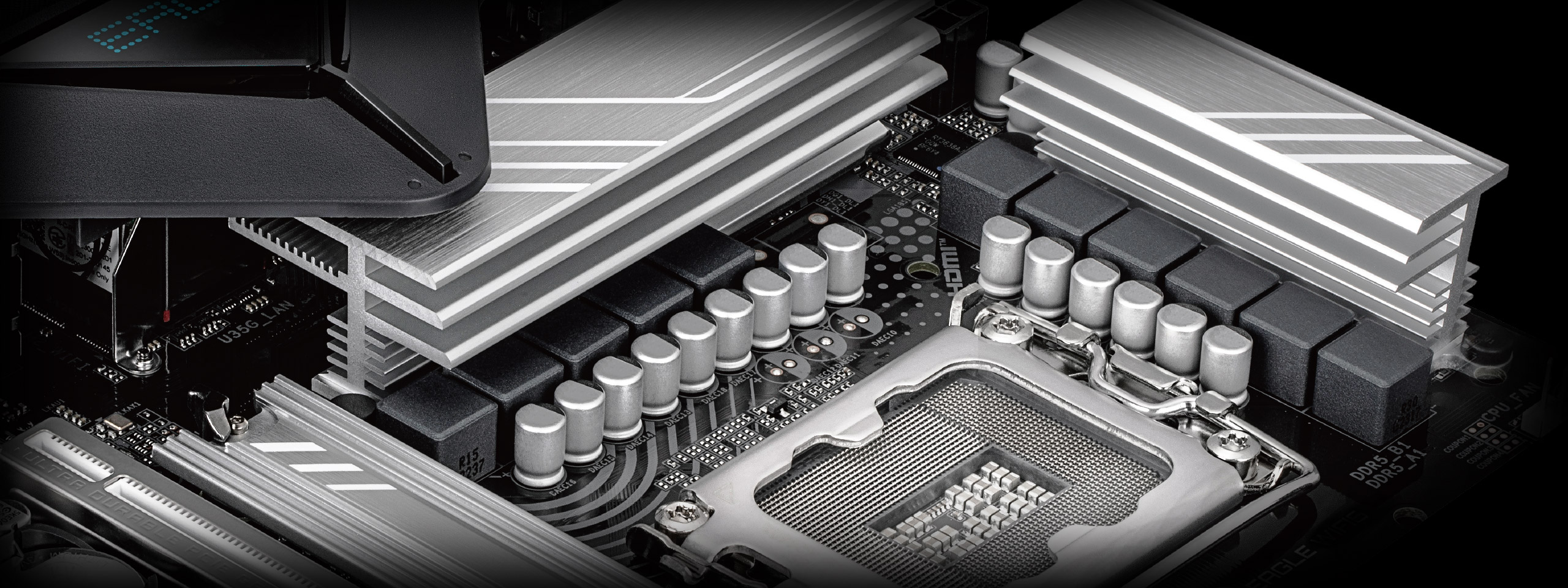

Steady Power
Better Play EAGLE Series, steady power keeps your computing smooth.
Comprehensive Thermal
EAGLE motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
Born from Ultra Durable™
Technology embodies our commitment to excellence, providing users with a platform that’s not only powerful but also built for longevity and reliability. EAGLE series motherboards are engineered to endure and excel.
CPU & Chipset
| Component | Specification |
|---|---|
| Socket | LGA1851 |
| Supported Processors | Intel ® Core™ Ultra |
| L3 Cache | Varies with CPU |
| Chipset | Intel ® B860 Express |
Memory
| Component | Specification |
|---|---|
| Supported Modules | DDR5 up to 9066(O.C) MT/s |
| DIMM Slots | 2 x DDR5 DIMM, up to 128 GB |
| Architecture | Dual-channel |
| ECC Support | Yes (operates in non-ECC mode) |
| Extreme Memory Profile (XMP) | Supported |
Onboard Graphics
| Port | Max Resolution | Features |
|---|---|---|
| HDMI | 4096×2160@60Hz | HDMI 2.1, HDCP 2.3 |
| DisplayPort | 3840×2160@144Hz | DisplayPort 2.1 |
Audio
| Component | Specification |
|---|---|
| Codec | Realtek® Audio CODEC |
| High Definition Audio | Yes |
| Channel Support | 2/4/5.1/7.1 |
| S/PDIF Out | Supported |
LAN & Expansion Slots
| Component | Specification |
|---|---|
| LAN Chip | Realtek® 2.5GbE (2.5Gbps/1Gbps/100Mbps) |
| PCIe Slots (CPU) | 1 x PCIe 5.0 x16 |
| PCIe Slots (Chipset) | 1 x PCIe 4.0 x4 |
Storage Interface
| Component | Specification |
|---|---|
| M.2 (CPU) | 1 x PCIe 5.0 x4/x2 SSD (M2A_CPU) |
| M.2 (Chipset) | 1 x PCIe 4.0 x4/x2 SSD (M2P_SB) |
| SATA | 4 x SATA 6Gb/s |
| RAID | 0, 1, 5, 10 |
USB Ports
| Location | Specification |
|---|---|
| Back Panel | 3 x USB 3.2 Gen 1, 3 x USB 2.0/1.1 |
| Internal | 1 x USB Type-C® (USB 3.2 Gen 1), 5 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
Internal I/O Connectors
| Component | Specification |
|---|---|
| Power Connectors | 24-pin ATX, 8-pin ATX 12V |
| Cooling Headers | CPU fan, water cooling pump, system fan |
| Storage | 2 x M.2, 4 x SATA 6Gb/s |
| RGB Headers | 3 x addressable RGB Gen2 |
| Front Panel | Audio, USB, TPM, Serial Port, Q-Flash, CMOS Reset |
Back Panel Connectors
| Component | Specification |
|---|---|
| HDMI | Yes |
| DisplayPort | Yes |
| USB | 3 x USB 3.2 Gen 1, 3 x USB 2.0/1.1 |
| LAN | RJ-45 |
| Audio | 3 x Jacks |
BIOS & Features
| Component | Specification |
|---|---|
| BIOS | AMI UEFI, 256 Mbit Flash |
| Monitoring | Voltage, Temperature, Fan Speed, Water Cooling Flow |
| Unique Features | GIGABYTE Control Center, Q-Flash, Smart Backup |
OS & Form Factor
| Component | Specification |
|---|---|
| OS Support |
|
| Form Factor | Micro ATX (24.4cm x 22.5cm) |
For more information about this product visit official website of Gigabyte
Gigabyte
For more related products visit us at our website
PC Circle
Additional information
| Brand |
GIGABYTE |
|---|---|
| MB CPU Socket |
LGA 1851 |
| MB Form Factors |
Micro ATX |
| MB Ram Slots |
2 slots |
| MB Series |
B860M |
| MB Wi-Fi & Bluetooth |
None |
