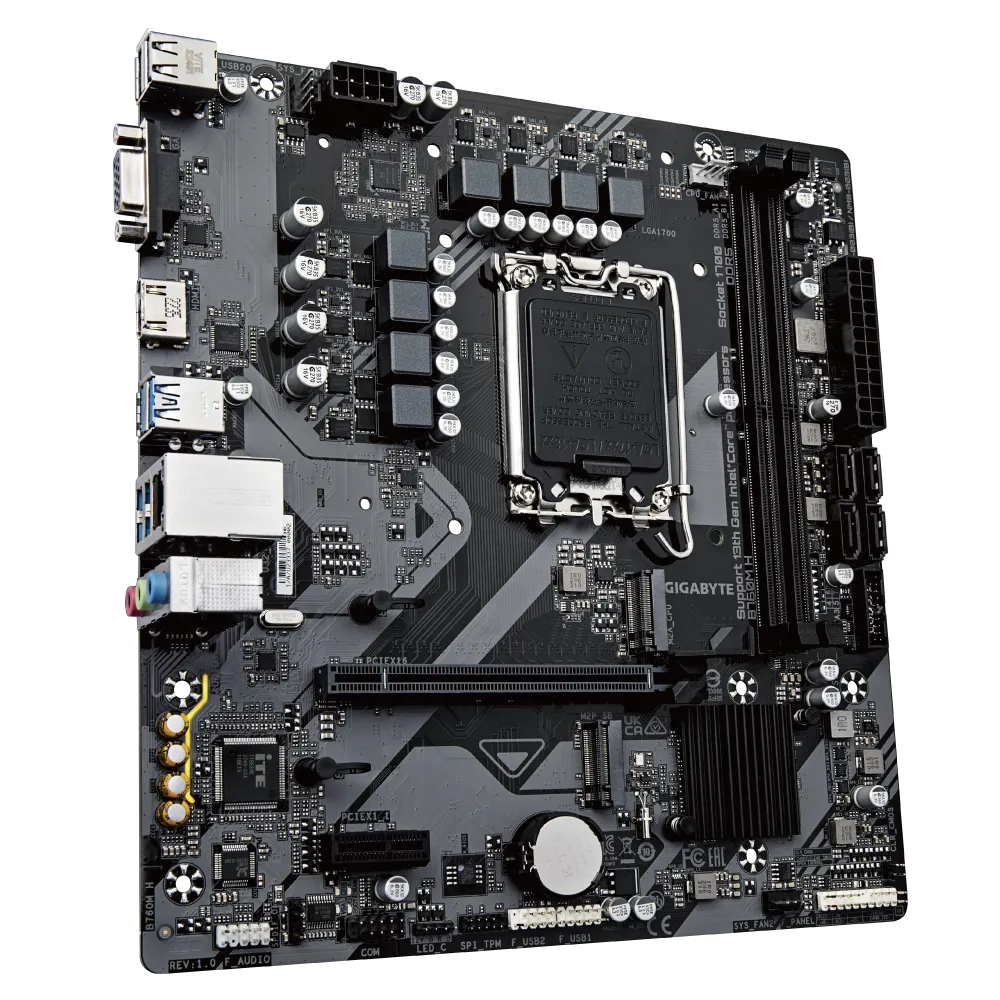

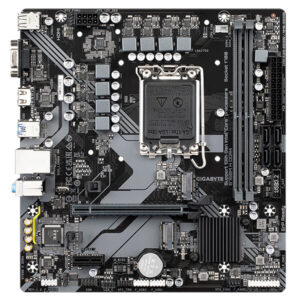

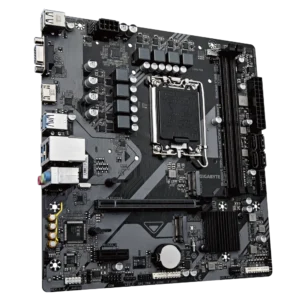

GIGABYTE B760M H DDR5

GIGABYTE B760M H DDR5

• Supports Intel^® Core™ 14th/ 13th /12th processors
• Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
• Dual Channel DDR5：2*DIMMs XMP Memory Module Support
• Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
• EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
• Fast Networks：GbE LAN
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

SPECs. OF B760M H DDR5

• CPU
  LGA1700 socket: Support for the 14th, 13th, and 12th Generation
  L3 cache varies with CPU
• Chipset
  Intel ® B760 Express Chipset
• Memory
  1. Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
  2. 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
• Onboard Graphics
  Integrated Graphics Processor-Intel® HD Graphics support:
  – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

• Audio
  Realtek® Audio CODEC
  High Definition Audio
• LAN
  Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• Expansion Slots
  CPU:
  – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

  Chipset:
  – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

• Storage Interface
  CPU:
  – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  Chipset:
  – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  – 4 x SATA 6Gb/s connectors
• USB
  Chipset:
  – 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  – 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• BIOS
  1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  Support for GIGABYTE Control Center (GCC)
  Support for Q-Flash
• Form Factor
  Micro ATX Form Factor; 23.0cm x 21.5cm
