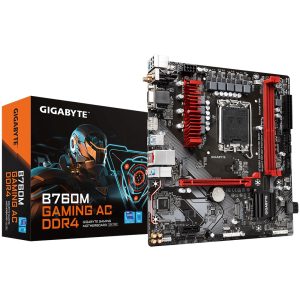

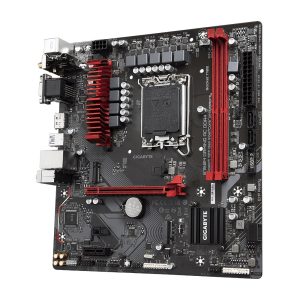

Gigabyte B760M Gaming AC
Gigabyte B760M Gaming AC
Gigabyte B760M Gaming AC
Gigabyte B760M Gaming AC
Gigabyte B760M Gaming AC
Click to enlarge
Gigabyte B760M D3H DDR4
Gigabyte Motherboard B760M D3H DDR4 For LGA 1700 intel 13th and 12th Generation , B760M-D3H-DDR4 129.00  JOD
Back to products

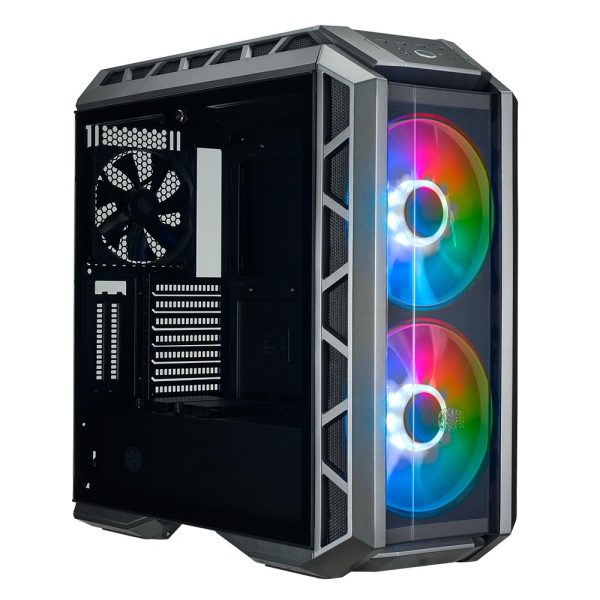

Cooler Master Mastercase H500P ARGB Mid-Tower [ MCM-H500P-MGNN-S01 ]
Cooler Master Mastercase H500P ARGB Mid-Tower [ MCM-H500P-MGNN-S01 ] 139.00  JOD
GIGABYTE

Gigabyte Motherboard B760M Gaming AC DDR4, LGA 1700 For Intel 13th and 12th Generation, B760M-Gaming-AC-DDR4

110.00  JOD

Add 30.00  JOD to cart and get free shipping!

In stock

Compare
Add to wishlist
SKU: 1200238 Categories: Components, Motherboard Tag: GIGABYTE
Share:

Related products

New
Gigabyte B760 DS3H DDR4
Gigabyte B760 DS3H DDR4
Compare

Gigabyte Motherboard B760 DS3H DDR4 LGA 1700 Socket , Support 13th and 12th Generation , B760-DS3H-DDR4

SKU: 1200221
119.95  JOD
Brand

GIGABYTE

MB CPU Socket

LGA 1700 Intel 13Th 12Th Gen

MB Series

B760

MB Form Factors

ATX

MB Ram Slots

4 Slots DDR4

MB Wi-Fi & Bluetooth

None

Add to wishlist
Add to cart
Quick view
New
Gigabyte B760M D3H DDR4
Gigabyte B760M D3H DDR4
Compare

Gigabyte Motherboard B760M D3H DDR4 For LGA 1700 intel 13th and 12th Generation , B760M-D3H-DDR4

SKU: 1200223
129.00  JOD
Brand

GIGABYTE

MB CPU Socket

LGA 1700 Intel 13Th 12Th Gen

MB Form Factors

Micro ATX

MB Ram Slots

4 Slots DDR4

MB Series

B760M

MB Wi-Fi & Bluetooth

None

Add to wishlist
Add to cart
Quick view
New
https://pccircle.com/wp-content/uploads/2023/01/1390000-1200x1200-1.jpg
https://pccircle.com/wp-content/uploads/2023/01/1390000-1200x1200-1.jpg
Compare

Intel – 13Gen Core i9-13900 24-Cores up to 5.6 GHz – BX8071513900

SKU: 2600158
499.00  JOD
Brand

Intel

Add to wishlist
Add to cart
Quick view
New
Intel -13Gen Core i7-13700 16-Cores up to 5.2 GHz - BX8071513700
Intel -13Gen Core i7-13700 16-Cores up to 5.2 GHz - BX8071513700
Compare

Intel -13Gen Core i7-13700 16-Cores up to 5.2 GHz – BX8071513700

SKU: 2600156
349.00  JOD
Brand

Intel

Add to wishlist
Add to cart
Quick view
New
Gigabyte B760 DS3H LGA-1700
Gigabyte B760 DS3H LGA-1700
Compare

Gigabyte Motherboard B760 DS3H AX DDR4 LGA 1700 Socket , Support 13th and 12th Generation , B760-DS3H-AX-DDR4

SKU: 1200220
139.00  JOD
Brand

GIGABYTE

MB CPU Socket

LGA 1700 Intel 13Th 12Th Gen

MB Series

B760

MB Form Factors

ATX

MB Ram Slots

4 Slots DDR4

MB Wi-Fi & Bluetooth

Bluetooth V5.0, Wi-Fi 6 (802.11ax)

Add to wishlist
Add to cart
Quick view
New
Compare

Intel – 13Gen Core i5-13400 10-Cores up to 4.6GHz – BX8071513400

SKU: 2600155
199.00  JOD
Brand

Intel

Add to wishlist
Add to cart
Quick view
  • Description
  • Additional information
  • Reviews (0)
Description

Gigabyte Motherboard B760M Gaming AC DDR4, LGA 1700 For Intel 13th and 12th Generation, B760M-Gaming-AC-DDR4

More about Gigabyte B760M Gaming AC

  • Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors
  • Unparalleled Performance:Hybrid 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR4:2*DIMMs XMP Memory Module Support
  • Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
  • EZ-Latch:PCIe 4.0×16 Slot with Quick Release Design
  • Fast Networks:2.5GbE LAN & Wi-Fi 802.11ac
  • Extended Connectivity:Rear USB-C® 5Gb/s, DP, HDMI, D-Sub
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card



Gigabyte B760M Gaming AC

UNPARALLELED PERFORMANCE

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
B760M Gaming AC
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

Gigabyte B760M Gaming AC

these motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

Gigabyte B760M Gaming AC

GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

Gigabyte B760M Gaming AC

Specification of Gigabyte B760M Gaming AC

  • CPU
    1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    2. L3 cache varies with CPU

    (Please refer “CPU Support List” for more information.)

  • Chipset
    1. Intel® B760 Express Chipset
  • Memory
    1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
    2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard Graphics

    Integrated Graphics Processor-Intel® HD Graphics support:

    1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
    2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
      * Support for HDMI 2.0 version and HDCP 2.3.
    3. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3

    (Graphics specifications may vary depending on CPU support.)
    Support for up to 3 displays at the same time

  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module

    Azure Wave Wi-Fi AW-CB304NF (Realtek® RTL8821CE)

    1. WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 4.2
    3. Support for 11ac wireless standard and up to 433 Gbps data rate

    (Actual data rate may vary depending on environment and equipment.)

  • Expansion Slots

    CPU:

    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

    Chipset:

    1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  • Storage Interface

    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    Chipset:

    1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    2. 4 x SATA 6Gb/s connectors

    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

  • USB

    Chipset:

    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
    2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    3. 2 x USB 2.0/1.1 ports on the back panel

    Chipset+USB 2.0 Hubs:

    1. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 3 x system fan headers
    5. 1 x addressable LED strip headers
    6. 1 x RGB LED strip headers
    7. 2 x M.2 Socket 3 connectors
    8. 4 x SATA 6Gb/s connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x S/PDIF Out header
    12. 1 x USB 3.2 Gen 1 header
    13. 2 x USB 2.0/1.1 headers
    14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    15. 1 x serial port header
    16. 1 x Q-Flash Plus button
    17. 1 x reset jumper
    18. 1 x Clear CMOS jumper
  • Back Panel Connectors
    1. 2 x USB 2.0/1.1 ports
    2. 1 x PS/2 keyboard/mouse port
    3. 2 x SMA antenna connectors (1T1R)
    4. 1 x D-Sub port
    5. 1 x HDMI port
    6. 1 x DisplayPort
    7. 3 x USB 3.2 Gen 1 ports
    8. 1 x USB Type-C® port, with USB 3.2 Gen 1 support
    9. 1 x RJ-45 port
    10. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the fan you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 22.5cm

For more information about this product visit official website of Gigabyte

Gigabyte

For more related products visit us at our website

PC Circle

Additional information
Brand

GIGABYTE

MB CPU Socket

LGA 1700 Intel 13Th 12Th Gen

MB Form Factors

Micro ATX

MB Ram Slots

2 Slots DDR4

MB Series

B760M

MB Wi-Fi & Bluetooth

Bluetooth V5.0, Wi-Fi 5 (802.11ac)

Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

CONTACT US :

PC-Circle – Al Zamakshari St , Building 15

Phone: +96265152390

WORKING HOURS :

Saturday – Thursday

9:30 am- 9:00 pm

Friday – Off

USEFUL LINKS :
  • About Us
  • Contact Us
  • Policy Page
  • Shipping and Return Policy
Copyright ©2022 Pccircle All rights reserved. Developed by SIMS Creation
Close
  • Menu
  • Categories
  • Laptops & Notebooks
    • HP
    • DELL
    • LENOVO
    • Asus
    • ACER
    • HUAWEI
    • Gateway
    • Apple
  • Desktop (PC)
  • Components
    • CPU (Processor)
    • Motherboard
    • Graphic Card
    • Hard Disk Drive
    • Solid State Drive (SSD)
    • RAM
    • Power Supply Unit (PSU)
    • PCI cards
    • CD/DVD Drive
    • ATX Cases
  • Monitor
  • Tablets & Accessories
    • Tablets
    • Accessories
  • Storage
    • Flash Memory & Memory Cards
    • External Hard Drive
    • Internal Hard Drive
    • Solid State Drive (SSD)
    • Media CD-DVD Disk
  • Printers & Scanners
  • Network Products
    • Wired
    • Wireless
  • Accessories
    • Mice
    • Keyboards
    • Speakers
    • Cameras
    • Microphone
    • Cooling Fan
    • Bags
    • Mouse Pad
    • Cleaning
    • Others
  • Power & Chargers
    • Notebook Chargers
    • Chargers
    • Power Bank
    • UPS (uninterruptible power supply)
    • Batteries
  • Ink & Toner Supplies Consumer
    • Ink Cartridges
    • Laser Toner Cartridges
  • Cables & Adapters
    • Smartphone & Tablet Cables
    • USB
    • Display
    • Audio
  • Headphones & Headset
  • Home
  • Special Offers
  • Latest Products
  • Brands
  • About us
  • Contact us
  • Wishlist
  • Compare
  • Login / Register
Shopping cart
close

Sign in

close

Lost your password?
Or login with
Facebook

No account yet?

Create an Account
