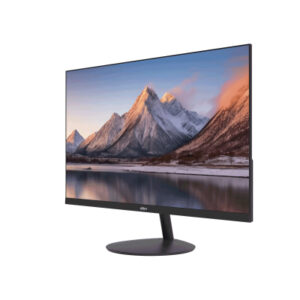

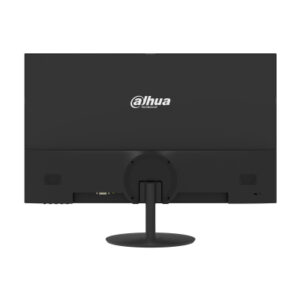

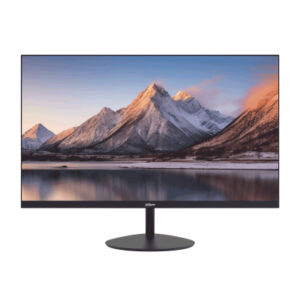

Dahua 21.5 inch (VA FHD / 10ms / HDMI + VGA) Monitor [ LM22-A200Y ]

Display

Model

DHI-LM22-A200Y

LCD Technology

VA

Backlight

ELED

Screen Size

21.45 inch

Aspect Ratio

16:9

Resolution

1920 (H) × 1080 (V)

Refresh Rate

75 Hz

Display Color

8 Bit

Color Gamut

72% NTSC

Brightness

250 cd/m²

Contrast Ratio

3000:1

Viewing Angle

178° (H) / 178° (V)

Display Mode

Horizontal

Response Time

10 ms

Lifespan

30,000 hrs

Device Ports

Input Port

1 × VGA (1080P@60 Hz),1 × HDMI 1.4 (1080P@75 Hz)

Power & Environmental Conditions

Power Supply

12 VDC, 2 A

Power Type

power adapter

Power Consumption

14 W (basic), 16 W (typ.), 16 W (max)

Standby Power Consumption

≤0.5 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Operating Humidity

10%–90% (RH)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Storage Humidity

5%–90% (RH)

General

Inclined Angle

-5°±2° / 15°±2°

Product Dimensions

492.7 mm × 284.0 mm × 41.2 mm (19.396” × 11.18” × 1.623”) (W × H × D) (without base)

Package Size

598 mm × 366 mm × 99 mm (23.543” × 14.409” × 3.898”) (W × H × D)

Frame Width

U/L/R/D：3.3 mm/3.3 mm/3.3 mm/15.2 mm

Net Weight

2.05 kg (4.52 lb)

Gross Weight

2.86 kg (6.30 lb)

Accessory

Power adapter, base, HDMI cable, user’s manual (QR code), legal and regulatoryinformation, etc.

Optional Accessory

Wall mount

Wall Mount VESA

75 mm × 75 mm (2.95″ × 2.95″)

Certification

Certifications

CE EMC, CE LVD, CE ERP
