Cooler Master MWE Gold 650 Watt 80 Plus Gold Certified Power Supply Full Modular – [MPY-6501-ACAAG-US]

Description

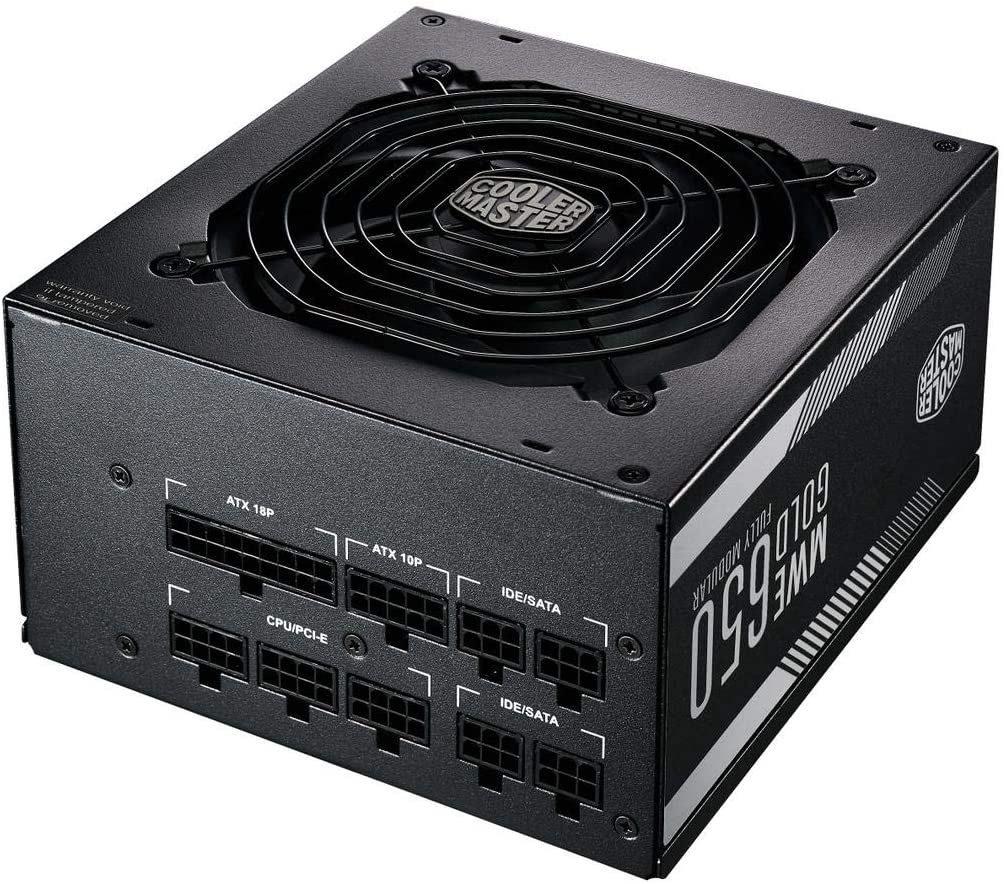

Cooler Master MWE Gold 650 Watt 80 Plus Gold Certified Power Supply Full Modular – [MPY-6501-ACAAG-US]

Features

BE BOLD, POWER WITH GOLD

80 PLUS GOLD CERTIFIED
120MM LDB FAN
ADVANCED CIRCUITRY
FULLY MODULAR CABLING

MWE GOLD 650 FULLY MODULAR

Behold the 80 Plus Gold rated, fully modular MWE Gold. This power supply unit delivers consistent 90% efficiency, low temperatures, and quiet operation. High quality, heat resistant components have been used to achieve gold level performance at temperatures up to 45°C. The Silencio fan and exclusive LDB bearing provides nearly silent cooling at no loss to system performance and a longer lifespan. Flat cables improve airflow by reducing cable bulk and a single +12V line ensures all components are fed the same stable output regardless of which cable you use. Be bold, power with gold.

80 PLUS GOLD CERTIFIED

This certification guarantees a typical efficiency of 90% under normal operating conditions.

FULLY MODULAR CABLES

Fully customizable cabling reduces clutter, increases airflow,
and improves overall thermal performance.

ADVANCED CIRCUITRY

The MWE Gold’s full-bridge design coupled with LLC, Synchronous, and DC to DC topology technologies offers reliable and stable voltage outputs.

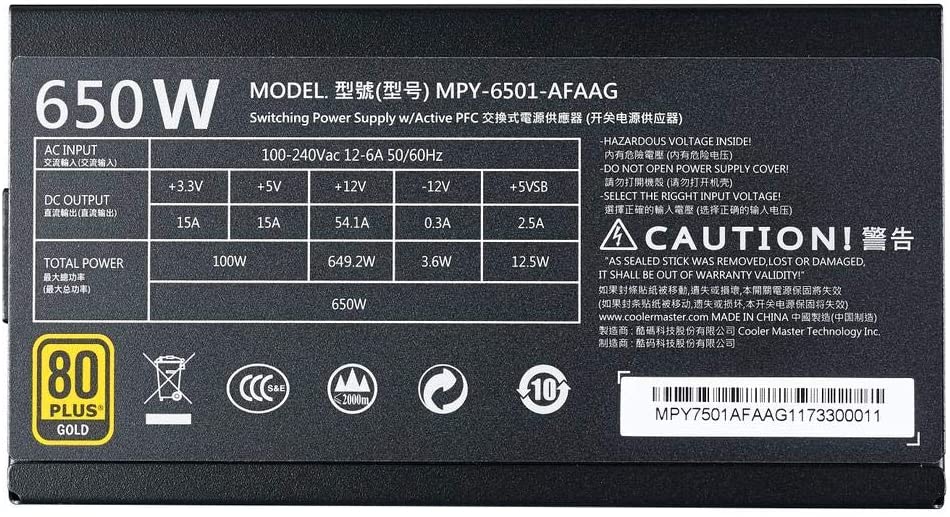

SPECIFICATIONS

PRODUCT NAME : MWE Gold 650 Full Modular

80 PLUS : Gold

MODEL : MPY-6501-AFAAG

ATX VERSION : ATX 12V V2.31

PFC : Active PFC

INPUT VOLTAGE : 100-240V

INPUT CURRENT : 12-6A

INPUT FREQUENCY : 50/60Hz

DIMENSIONS (L X W X H) : 160 x 150 x 86 mm

FAN SIZE : 120mm

FAN BEARING : LDB

POWER GOOD SIGNAL : 100-500ms

HOLD UP TIME : >14ms at 100% load

EFFICIENCY : 90% Typically

ERP 2014 LOT 3 : Yes

MTBF : >100,000 Hours

OPERATING TEMPERATURE : 0-45°C

PROTECTIONS : OVP, OPP, UVP, SCP, OTP, OCP

REGULATORY : CCC, CE, TUV-SUD, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

MB 24-PIN CONNECTORS : 1

CPU 12V 4+4 PIN CONNECTORS : 1

CPU 12V 8 PIN CONNECTORS : 1 (for updated models)

SATA CONNECTORS : 8

PERIPHERAL 4-PIN CONNECTORS : 6

FDD CABLE 4-PIN CONNECTORS : 1

PCI-E 6+2 PIN CONNECTORS : 4

MODULAR : Full Modular

WATTAGE : 500 to 750W

SERIE : MWE Gold Series
