Cooler Master MasterBox MB530P ATX Mid-Tower
MASTERBOX MB530P
SHOWROOM READY.
3 Tempered Glass Panels
Aggressive Intakes

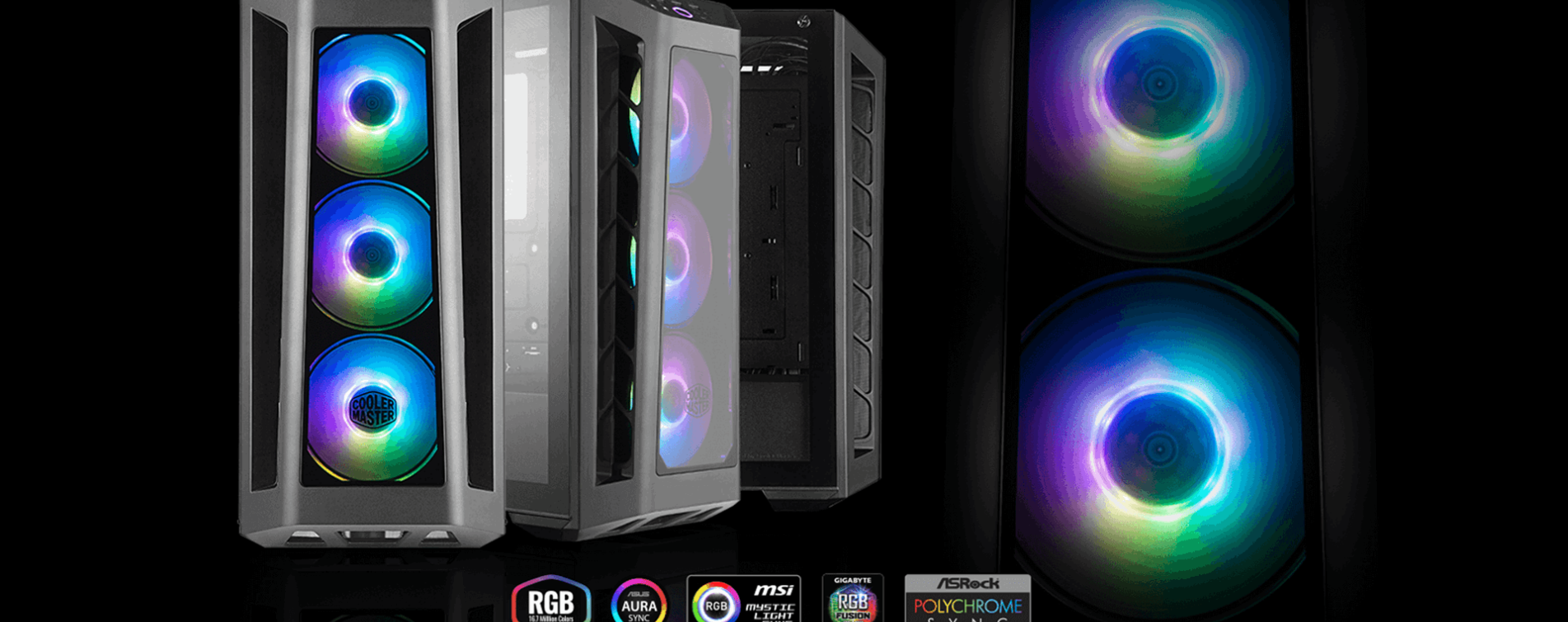

Addressable RGB Fans with Lighting Control
Support for a Total of 6 Fans and Water Cooling
Graphics Card Support Up to 410mm
Cable Cover and Routing Space
3 TEMPERED GLASS PANELS
The front and side panel offer a clear view of the front fans and system configuration, while the panel behind the motherboard is patterned tempered glass to hide the open side of the PSU.
AGGRESSIVE INTAKES
Large intakes on each side of the front panel feed air to cool the interior.
FAN AND RADIATOR SUPPORT
Front: Three 120mm or two 140mm* fans and up to a 360mm radiator with a maximum thickness of 50mm without fans.
Top: Three 120mm or two 140mm fans and supports a 120mm, 240mm or a 360mm radiator.
Rear: One 120mm fan or radiator.
All to ensure you don’t have to compromise on performance.
* 2 x 140mm fans in front can only be mounted behind the front plate
CABLE COVER AND ROUTING SPACE
A PSU shroud1, cable cover2, and 18~25mm width of space3behind the motherboard provides options to keep systems clean;
GFX cables can also be routed directly through the PSU shroud rubber grommet4
EXPANDING THE POSSIBILITIES
The spacious interior fits all standard motherboards for your gaming needs.
MAIN COMPONENTS CLEARANCE
The MasterBox MB530P case supports CPU coolers up to a height of 165mm, graphics cards up to a length of 410mm, and power supplies up to a length of 180mm.
SICKLEFLOW PWM FANS INCLUDED
Newly Optimized blade design with updated curve that provides best balance between airflow and static pressure to take the heat away while remain extremely silence.
MODEL NUMBER
MCB-B530P-KHNN-S01
AVAILABLE COLOR(S)
BLACK
MATERIALS
STEEL, PLASTIC, TEMPERED GLASS
DIMENSIONS (L X W X H)
489 X 229 X 469MM
MOTHERBOARD SUPPORT
ATX, MICRO ATX, MINI ITX
EXPANSION SLOTS
7
3.5″ DRIVE BAYS
2
2.5″ DRIVE BAYS
4
I/O PANEL
2X USB 3.0, 2X USB 2.0, AUDIO IN & OUT (SUPPORTS HD AUDIO)
ARGB CABLE
1 TO 3 ARGB SPLITTER CABLE INCLUDED
PRE-INSTALLED FANS – FRONT
3X 120MM 650~1800RPM SICKLEFLOW PWM ARGB
PRE-INSTALLED FANS – REAR
1X 120MM 1000-1400RPM MASTERFAN LITE
FAN SUPPORT – FRONT
3X 120MM, 2X 140MM
FAN SUPPORT – TOP
3X 120MM, 2X 140MM
RADIATOR SUPPORT – REAR
120MM
RADIATOR SUPPORT – FRONT
120MM, 140MM, 240MM, 280MM, 360MM
RADIATOR SUPPORT – TOP
120MM, 240MM, 360MM
CLEARANCE – CPU COOLER
165MM/6.49″
CLEARANCE – GFX
410MM/16.1″
CLEARANCE – PSU
180MM/7.1″
CABLE ROUTING – BEHIND MOTHERBOARD TRAY
18-25MM
DUST FILTERS
FRONT, TOP, BOTTOM
POWER SUPPLY SUPPORT
BOTTOM MOUNT, ATX
SERIES
MASTERBOX SERIES
SIZE
MID TOWER
