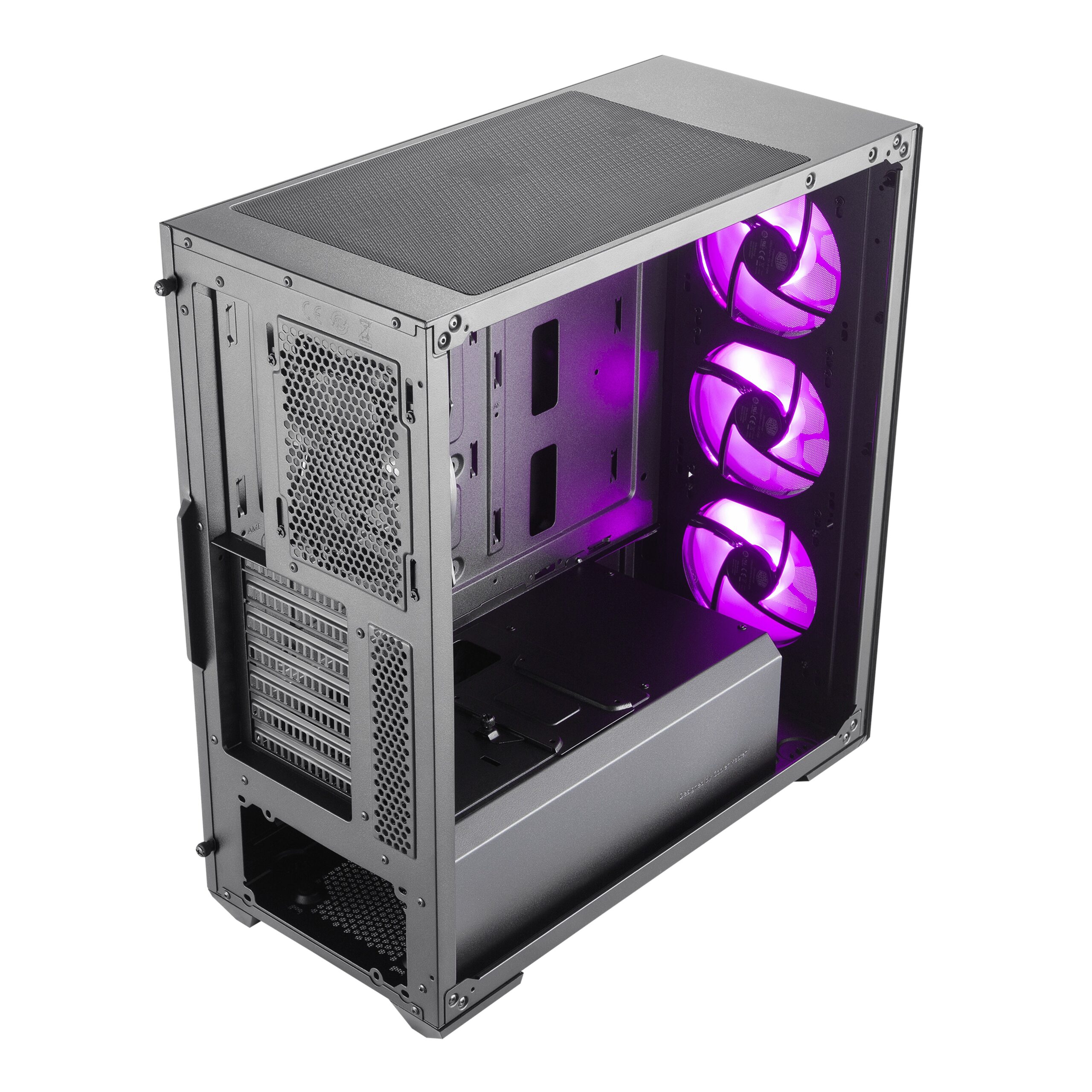

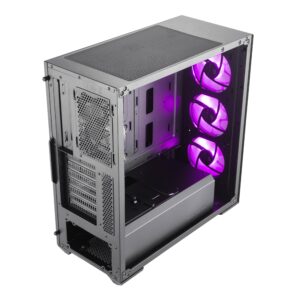

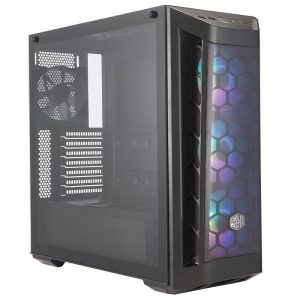

Cooler Master MB511 ARGB Case + Power Supply MWE Bronze V2 230V 650W \ MCB-B511D-KGNB65-RG1

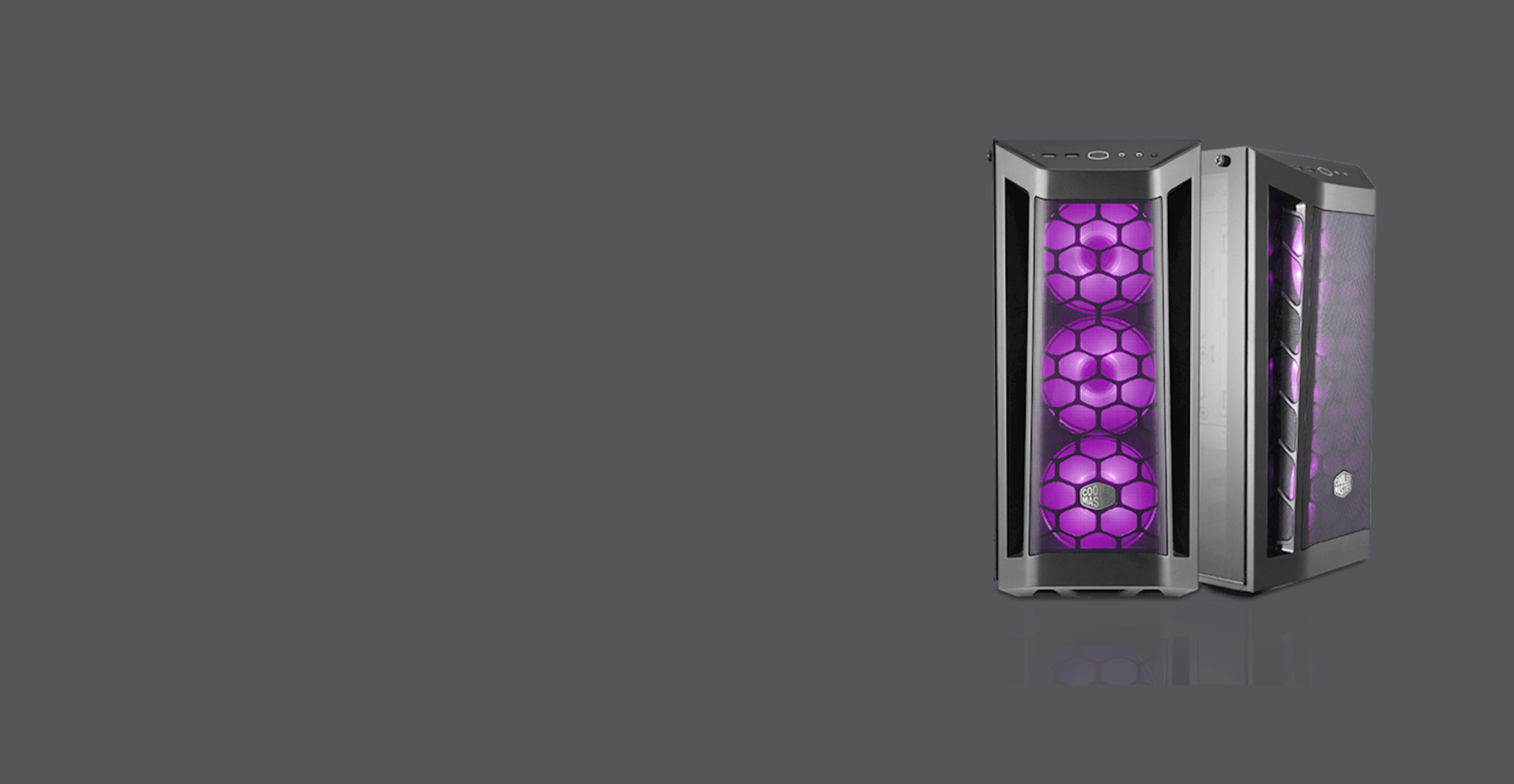

MASTERBOX MB511 RGB
READY, SET, GAME.
Mesh Front Panel
RGB LED Fans and Lighting Control
Performance Intakes
Edge-To-Edge Tempered Glass Side Panel
Support for a Total of 6 Fans and Water Cooling
Graphics Card Support Up to 410mm

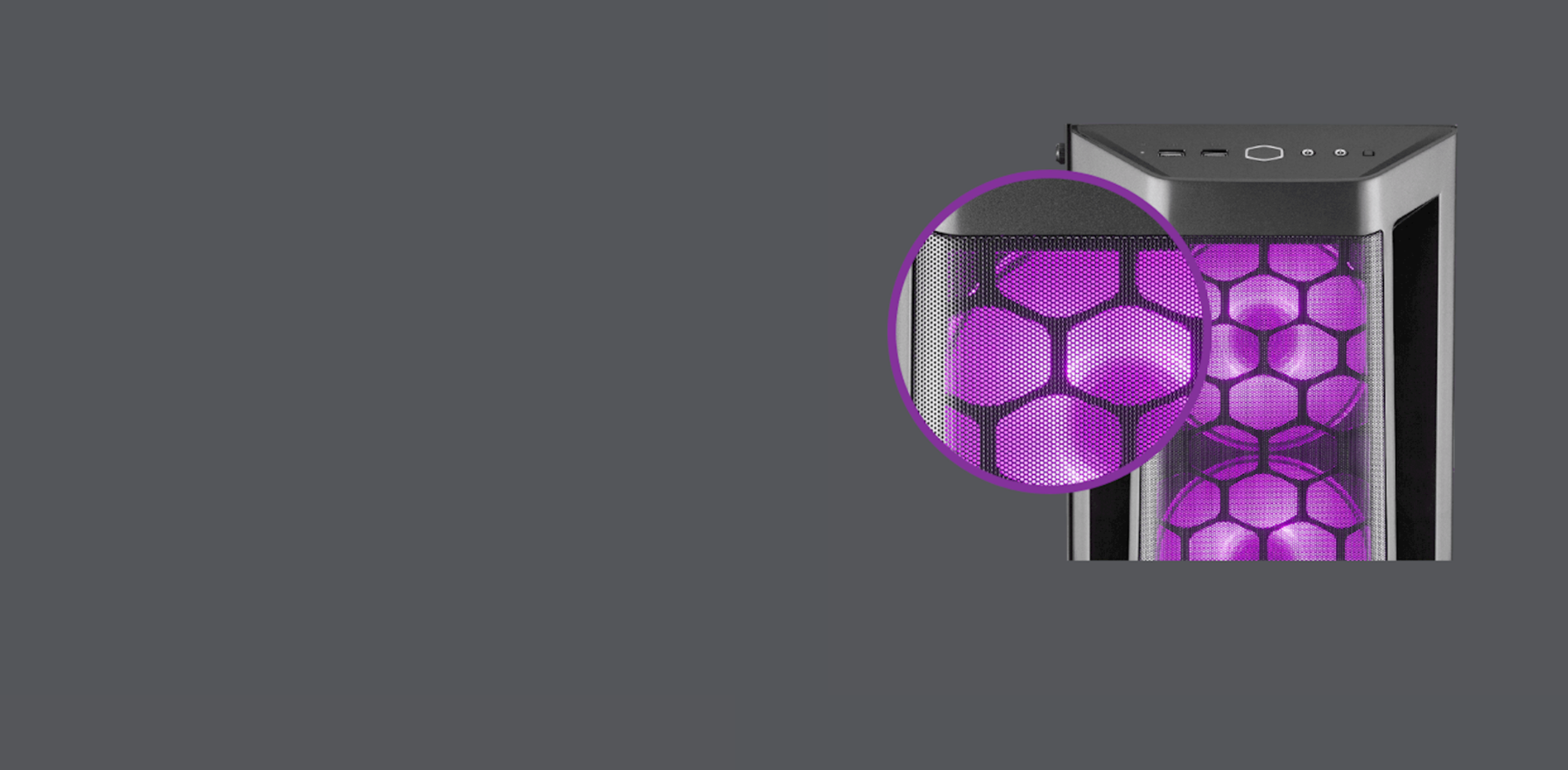

MESH FRONT PANEL
The mesh front panel offers efficient airflow for demanding systems.
PERFORMANCE INTAKE
Large intakes on each side of the front panel pay tribute to high performance cars.
RGB LED FANS AND LIGHTING CONTROL
Three 120mm RGB LED fans in front are pre-installed to create an amazing lighting effect.
One RGB controller is included in the accessory pack. If your motherboard does not support the RGB control function, you can connect the RESET button and control the RGB lighting directly from the I/O panel.

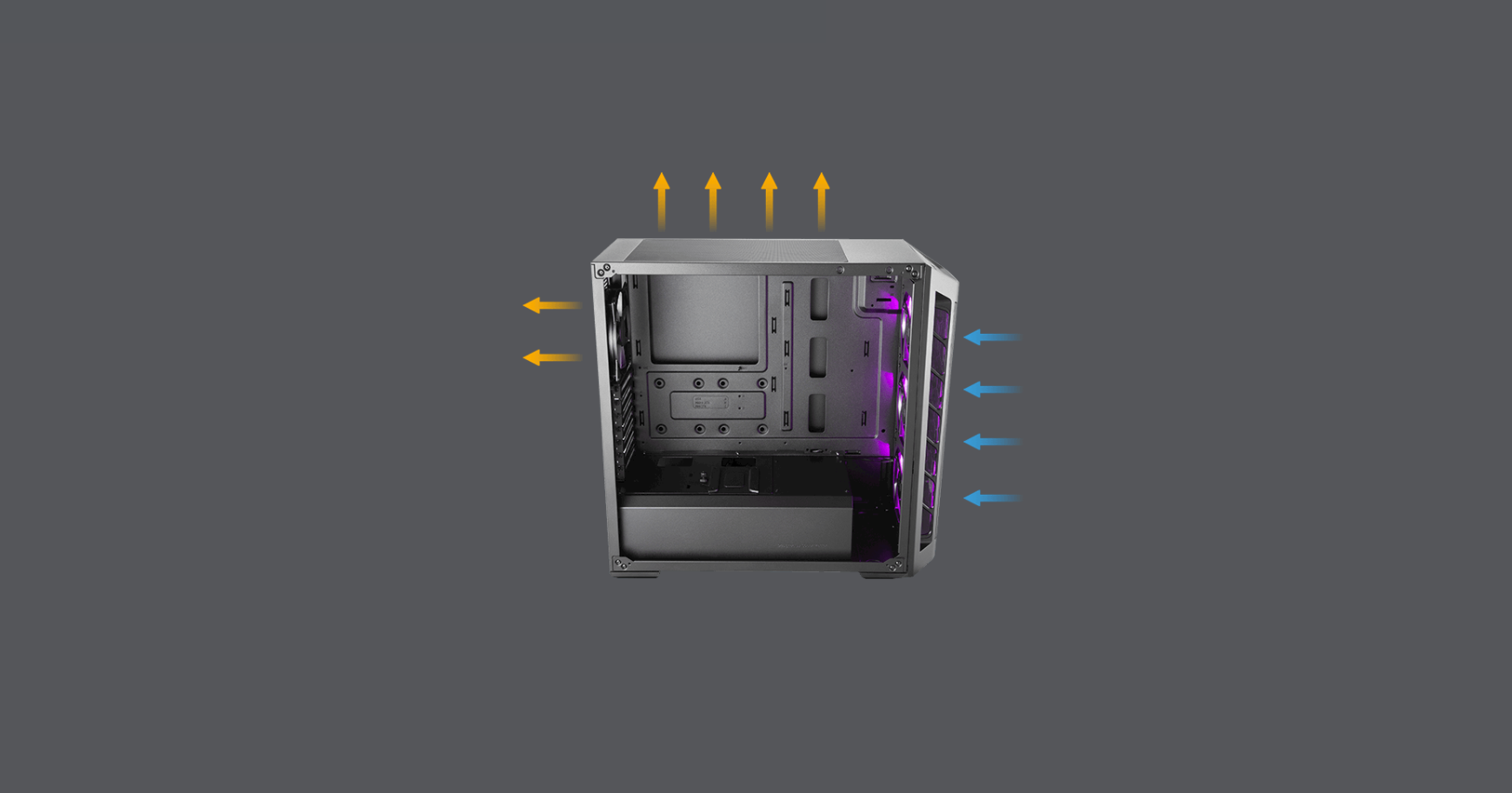

EXCELLENT THERMAL PERFORMANCE
Optimized airflow due to the semi-meshed front panel and ventilation holes on top of the case.
FAN AND RADIATOR SUPPORT
Front: Three 120mm or two 140mm* fans and up to a 360mm radiator with a maximum thickness of 50mm without fans.
Top: Two 120mm or two 140mm fans and supports a 120mm or a 240mm radiator.
Rear: One 120mm fan or radiator. All to ensure you don’t have to compromise on performance.
* 2 x 140mm fans in front can only be mounted behind the front plate

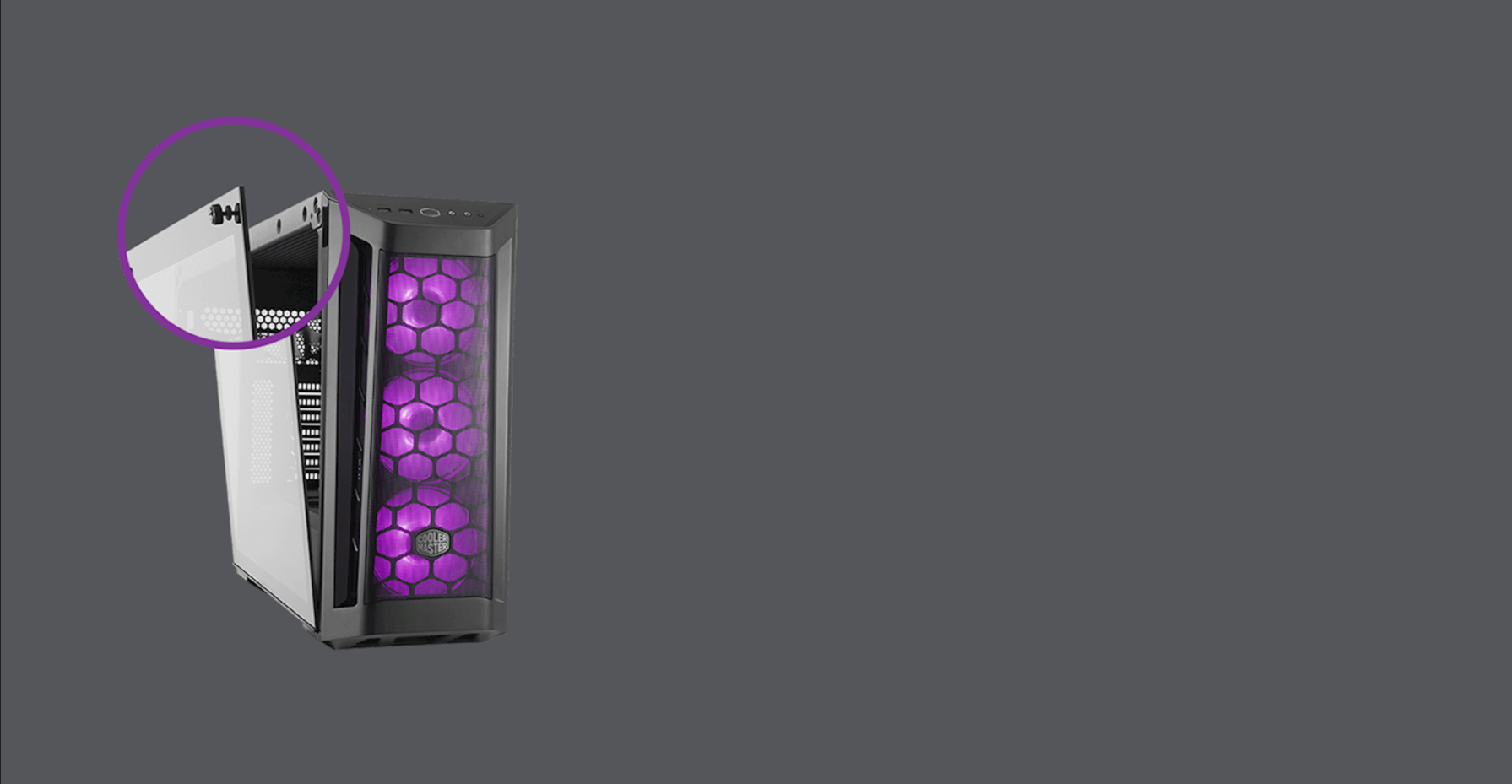

EDGE-TO-EDGE TEMPERED GLASS SIDE PANEL
Showcase your build and system lighting effect through the 4mm-thick tempered glass side panel. The side panel bracket hinges on an angle during removal, while two “captive” screws are held in place with rubber so they are not misplaced.

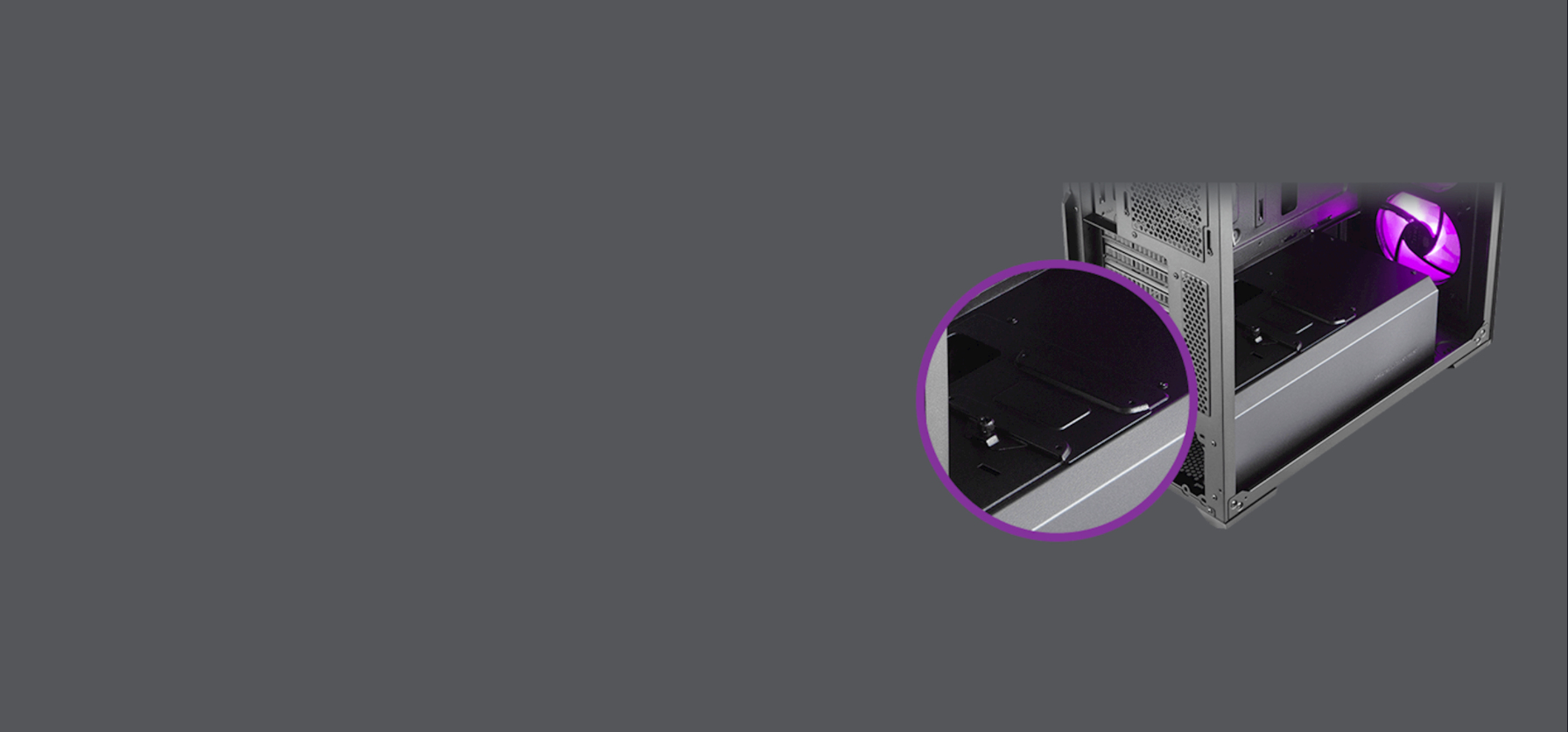

SSD BRACKET
Mount an extra SSD on the PSU shroud for more storage.
MAIN COMPONENTS CLEARANCE
The MB511 RGB case supports CPU Coolers up to a height of 165mm, Graphic Cards up to a length of 410mm and Power Supplies up to a length of 180mm.
MODEL NUMBER
MCB-B511D-KGNN-RGB
AVAILABLE COLOR(S)
BLACK
MATERIALS
STEEL, PLASTIC, TEMPERED GLASS
DIMENSIONS (L X W X H)
496 X 217 X 469 MM
MOTHERBOARD SUPPORT
ATX, MICRO ATX, MINI ITX
EXPANSION SLOTS
7
2.5″ / 3.5″ DRIVE BAYS
(COMBO) 2
2.5″ DRIVE BAYS
5 (MAX.6)
I/O PANEL
2X USB 3.0, AUDIO IN & OUT (SUPPORTS HD AUDIO)
RGB CONTROL RGB CONTROLLER INCLUDED, 1 TO 3 RGB SPLITTER CABLE INCLUDED
PRE-INSTALLED FANS – FRONT
3X 120MM RGB FAN
PRE-INSTALLED FANS – REAR
1X 120MM
FAN SUPPORT – TOP
2X 120MM, 2X 140MM
FAN SUPPORT – FRONT
3X 120MM, 2X 140MM
FAN SUPPORT – REAR
1X 120MM
RADIATOR SUPPORT – FRONT
120MM, 140MM, 240MM, 280MM, 360MM
RADIATOR SUPPORT – TOP
120MM, 240MM
RADIATOR SUPPORT
REAR 120MM
CLEARANCE – CPU COOLER
165MM/6.49″
CLEARANCE
PSU 180MM/7.1″
CLEARANCE
GFX 410MM/16.1″
CABLE ROUTING
BEHIND MOTHERBOARD TRAY 19MM / 0.74″
DUST FILTERS
FRONT, TOP, BOTTOM
POWER SUPPLY SUPPORT
BOTTOM MOUNT, ATX
LEGACY
CASES
Power Supply Unit Include
Yes
Power Supply Included ( Pre-Installed) Bronze 80+ 650 Watt.
