ASUS NUC 12 PRO
ASUS NUC 12 PRO Mini-PC 12th Generation
(vPro i7-1270P / up to 64GB DDR4-3200 / Support 2 x M.2 (2280 – 2242) / Intel Iris Xe Graphics / DOS)
[ RNUC12WSKv70000 / 90AB2WSK-MRE100 ]
Engineered for Business and Commercial Needs
ASUS NUC 12 Pro Mini PCs, Kits, and Boards raise the bar for performance and connectivity in a 4×4 device for productivity, collaboration, and edge compute. 12th Gen Intel® Core™ processors—plus up to 64GB dual-channel memory and massive SSD capacity—drive enterprise-class performance in a pint-sized PC. Select ASUS NUC 12 Pro SKUs feature Intel vPro® Enterprise for Windows with 12th Gen Intel® Core™ processors, which provides performance, security, stability, and manageability features for managed businesses of all sizes.
Key Selling Points
Powerful Performance Perfect Fit: Experience the advanced power and performance for edge computing, collaboration, home offices, and more— 12th Gen Intel® Core™ processors deliver it all.
Small Size. Big Business Performance: ASUS NUC 12 Pro sets new standards with 12th Gen Intel® Core™ processors, up to 64 GB dual-channel memory, ample SSD capacity, and lightning-fast connectivity in a compact 4×4 design.
The Power of Small: With a 4” x 4” footprint, pint-sized NUC 12 Pro Mini PCs and Kits are available in two chassis, including tall kits with a 2.5” drive bay and an internal expansion bay.
Brilliant graphics: Small size and brilliant graphics technologies make NUC systems an ideal choice for kiosks, signage, video walls, and more. Choose from systems with Intel® Iris® Xe graphics or customizable discrete graphics.
Mini-PC Specifications
Marketing Name | ASUS NUC 12 Pro Mini-PC |
Project Code | NUC12WSK |
Color | Black |
OS // OS Support | DOS // Windows 11 64-bit |
CPU | Intel® Core ™i7-1270P Processor w/ vPro, cTDP 40W |
Chipset | Integrated |
Graphics | Intel® Iris® Xe Graphics |
Memory | 2 x SO-DIMM, Up to DDR4-3200 // 32GB*2 |
Storage | 1 x M.2 2280 PCIe Gen4x4, supports 128GB~8TB NVMe SSD 1 x M.2 2242 PCIe x1, supports SATA 128GB~1TB SATA SSD |
Wireless Network & Bluetooth | Intel® AX211 (Gig+), Wi-Fi 6E, Bluetooth 5.3 Intel® vPro ® Technology |
LAN | Intel® Ethernet Controller I225-V, 2.5G |
Audio | Realtek ALC269 |
Card Reader | None |
HDMI CEC | Yes, 2 ports on back panel |

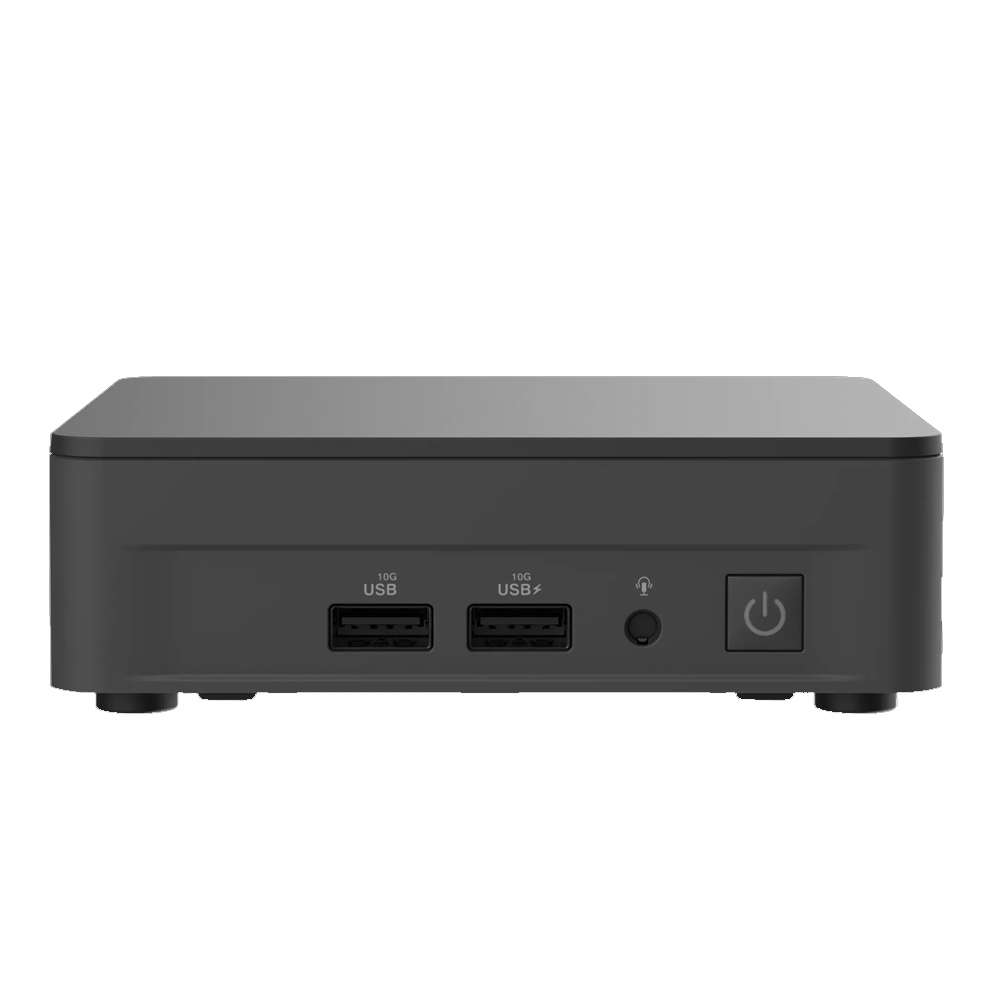

Front I/O Ports | 2 x USB 3.2 Gen2 Type-A 1 x 3.5mm Headset Jack |

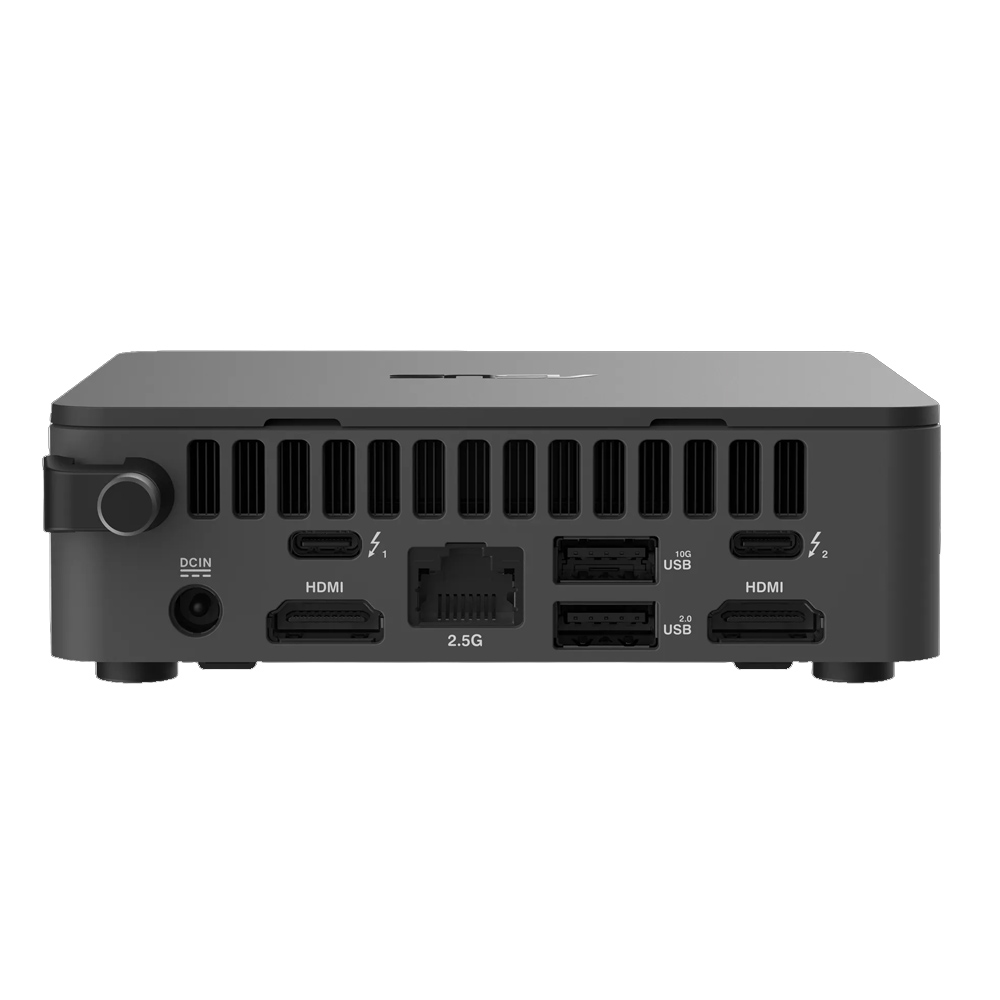

Back I/O Ports | 2 x Thunderbolt 4 Type-C w/ DisplayPort 1.4 1 x USB 3.2 Gen 2 Type-A 1 x USB 2.0 Type-A 2 x HDMI 2.0 1 x RJ45 LAN 1 x DC-in |
Side I/O Ports | 1 x Kensington Lock slot |
Power Supply | 20VDC, 6.0A, 120W Power Adapter |
Operating Temp | 0 to 40C |
Storage Temp | -40 to 60C |
Humidity | 0%-92% non-condensing |
Dimensions (W x D x H) | “H” 117 x 112 x 37 mm |
Weights | ~502g |
Accessories | AC Adapter + Power Cord VESA Bracket and Screws Cable Clip Safety/Caution/Regulatory Insert Warranty Card |
